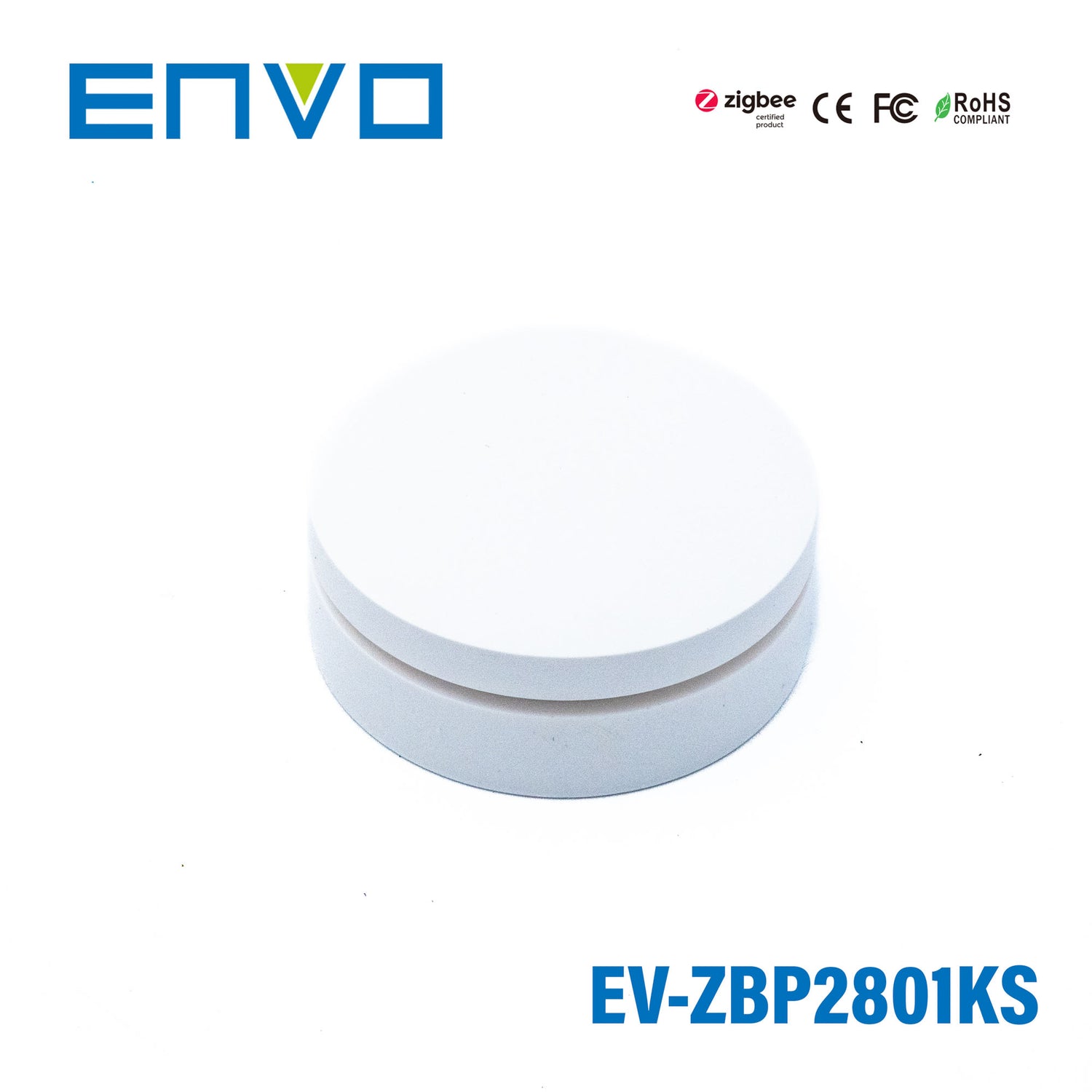

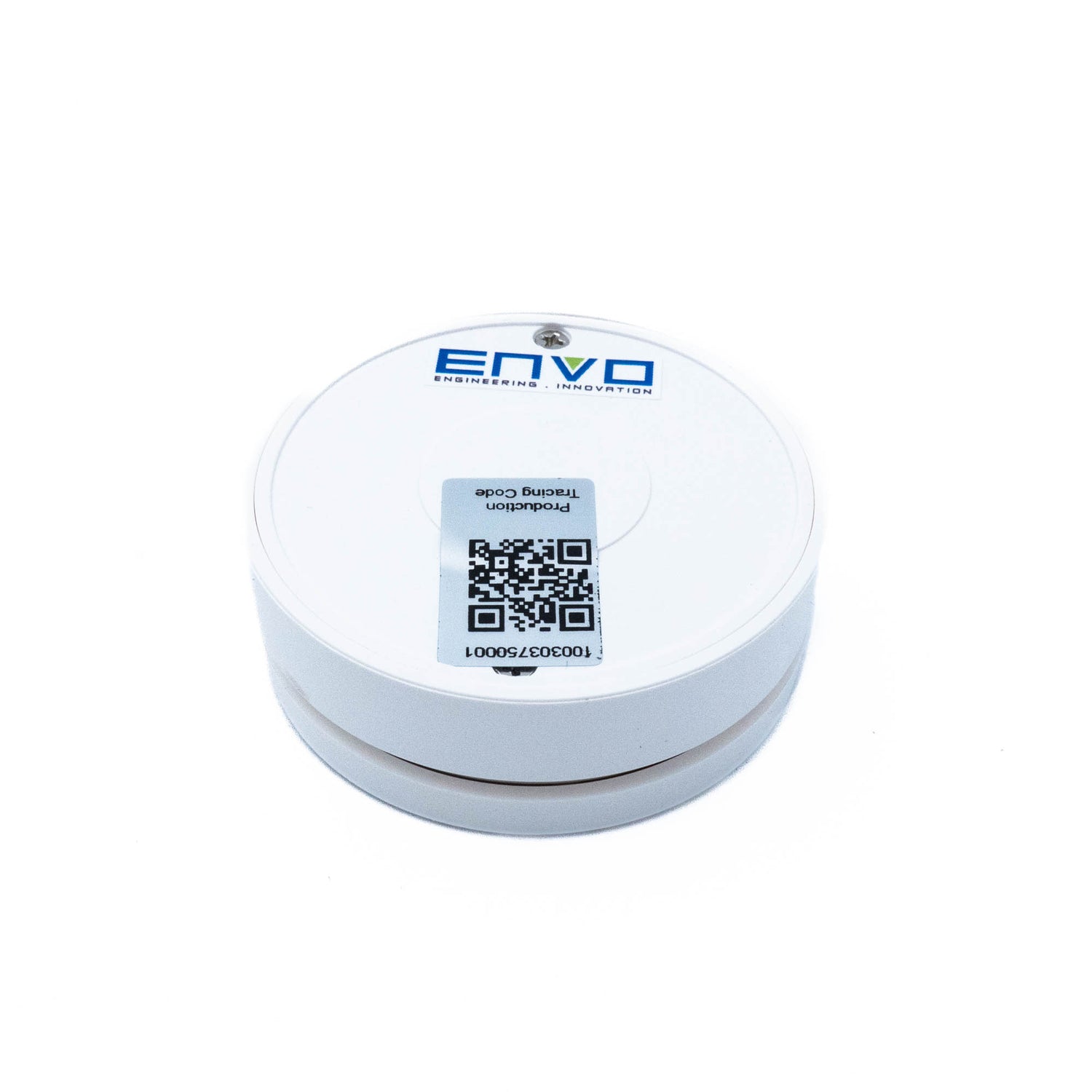

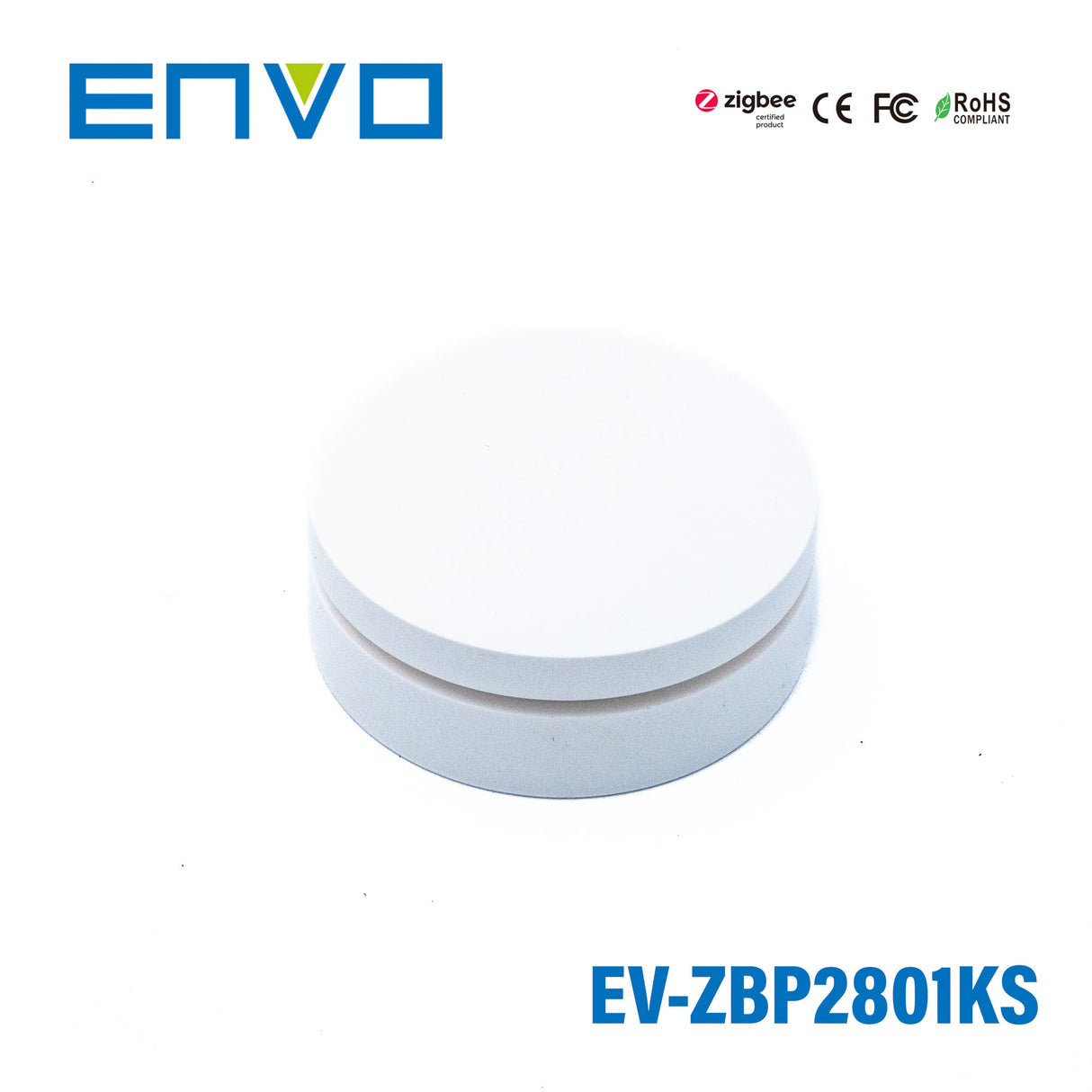

ENVO ZigBee Self-powered Remote
Please Login for Pricing
Description
Description
Features:
- The portable Zigbee Green Power switch is a wireless transmitter that communicates with Compatible Zigbee hub.
- The switch uses battery-free, energy-harvesting technology.
- Every time the switch is pressed, a micro-generator produces a small electrical current that powers a built-in transmitter.
- This transmitter sends wireless radio signals that are used to remotely control the compatible Zigbee system.
- The switch can be configured through Zigbee App after added to the Zigbee hub.
- This switch has one button to trigger different actions of designated devices or zones with 3 events: short press, double click, long press.
- Action of each event and controlled object of the button can be configured through Zigbee App.
- 5 years warranty
General Specification
Switch Type
Configurable Zigee Green Power Switch
Transmission Range
10-30m (typical)
Radio Frequency
2.4GHz
Power Supply
Self-generated when switch is pressed
Buttons
1 Button
Waterproof Grade
IP20
Working Humidity
10% ~ 95% RH non-condensing
Operating Temperature
-20 °C ~ +50 °C
Dimension (LxWxH)
Φ58xH18.16mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.8 cm
-
Width5.8 cm
-
Height1.82 cm
