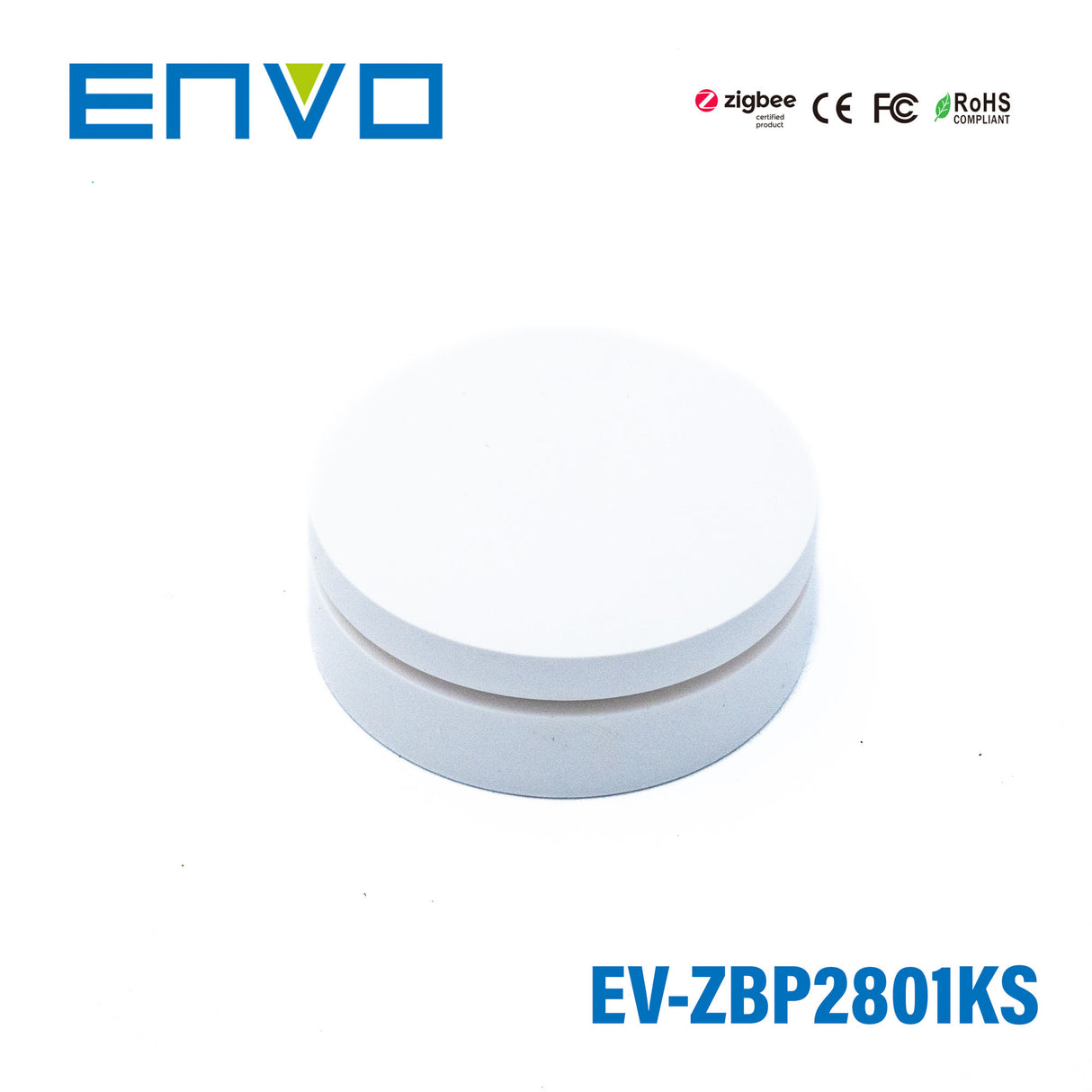

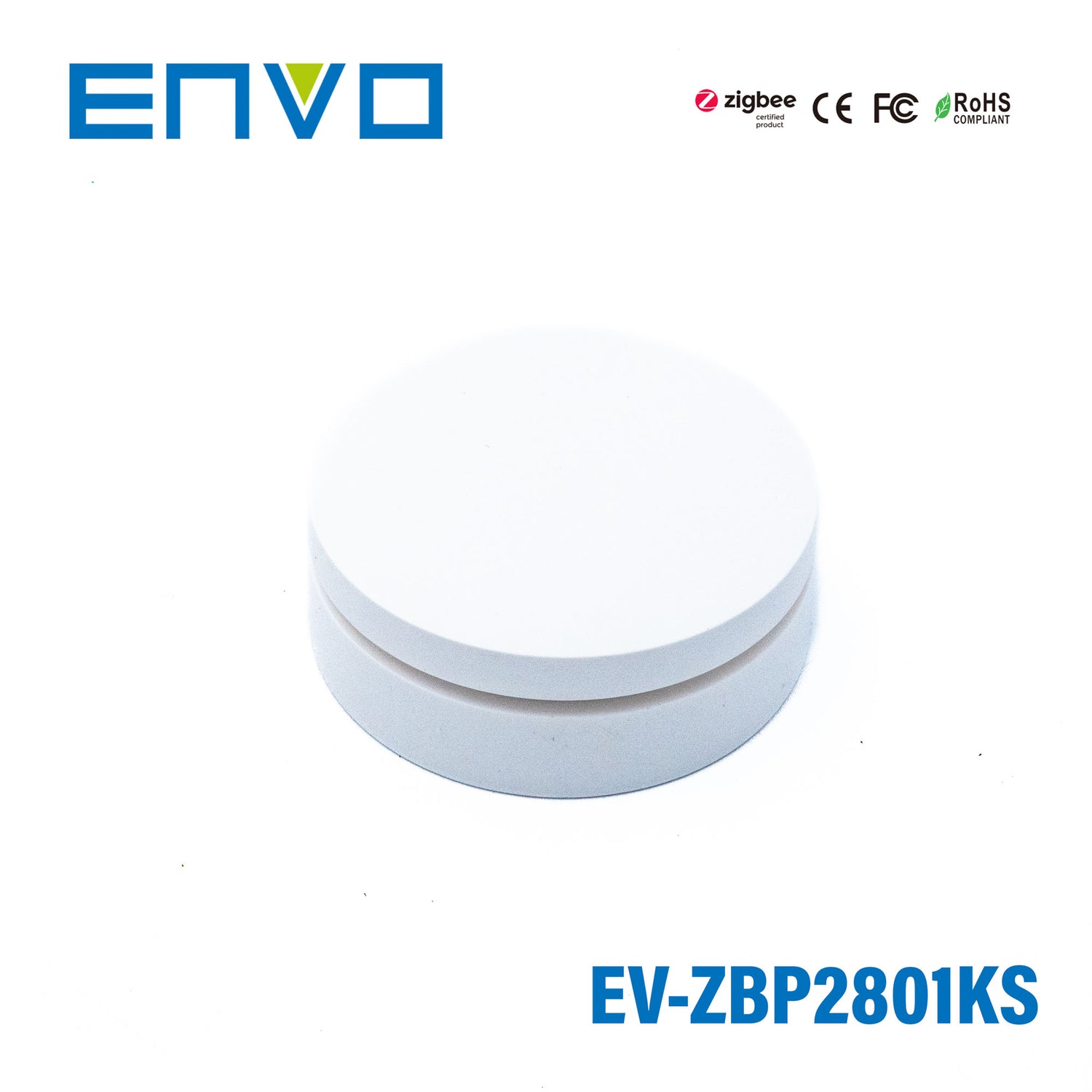

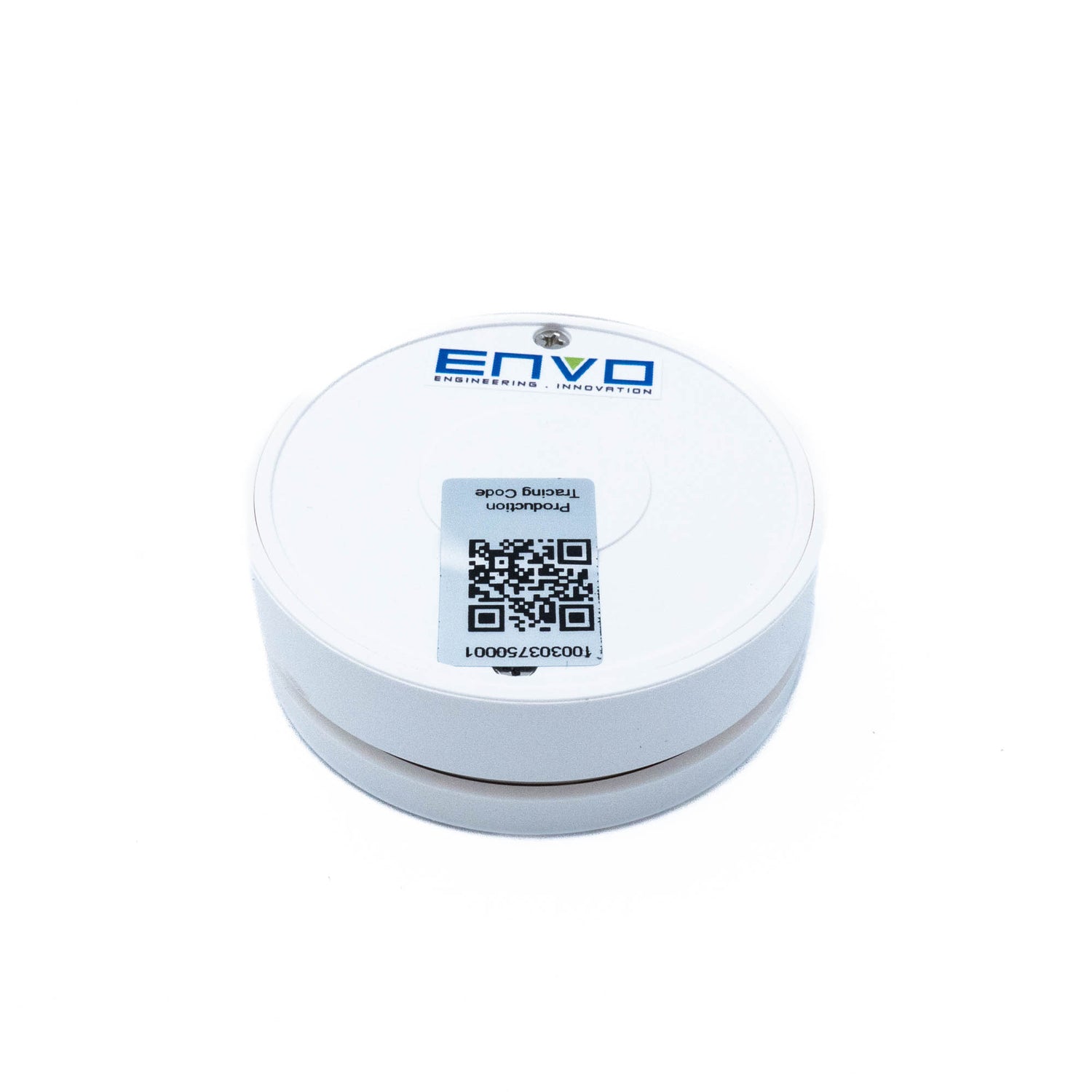

ENVO ZigBee Self-powered Remote
Log in to see priceOverview
The portable Zigbee Green Power switch is a wireless transmitter that communicates with Compatible Zigbee hub. The switch uses battery-free, energy-harvesting technology. Every time the switch is pressed, a micro-generator produces a small electrical current that powers a built-in transmitter. This transmitter sends wireless radio signals that are used to remotely control the compatible Zigbee system. The switch can be configured through Zigbee App after added to the Zigbee hub. This switch has one button to trigger different actions of designated devices or zones with 3 events: short press, double click, long press. Action of each event and controlled object of the button can be configured through Zigbee App.
Specifications
Product Data
- Switch Type
- Configurable Zigee Green Power Switch
- Transmission Range
- 10-30m (typical)
- Radio Frequency
- 2.4GHz
- Power Supply
- Self-generated when switch is pressed
- Buttons
- 1
- Dimensions
- Ξ¦58*H18.16mm
- Operating Temperature
- -20 β ~ +45 β
- Working Humidity
- 10% ~ 95% RH non-condensing
- Waterproof Grade
- IP20
- Warranty
- 5 years
Certifications & ratings
- Certification marks
- CE, FCC, RoHS
Downloads
Datasheet1
FAQ
What is the ENVO ZigBee Self-powered Remote used for?
The ENVO ZigBee Self-powered Remote is a portable wireless switch for triggering actions in a compatible Zigbee system. Its single button can be assigned to control designated devices or zones using short press, double click, and long press events.
Does this remote require a battery or external power source?
No. This model uses battery-free, energy-harvesting technology, so power is generated each time the button is pressed. A built-in micro-generator creates enough electrical current to power the transmitter for that action.
Is the ENVO ZigBee Self-powered Remote compatible with any Zigbee system?
It is designed to communicate with a compatible Zigbee hub and operate within a Zigbee system. Compatibility depends on the hub and app supporting this type of Zigbee Green Power switch.
What control options does the single button support?
This remote has one button, but it supports three distinct trigger events: short press, double click, and long press. Each event can be configured in the Zigbee app to perform different actions for selected devices or zones.
What is the wireless range of this remote?
The typical transmission range is 10 to 30 meters. Actual performance can vary depending on the surrounding environment and any obstacles between the remote and the Zigbee system.
Can this remote be used in demanding indoor environments?
It is rated IP20, so it is intended for indoor use rather than wet or exposed locations. The operating temperature range is -20 C to +45 C, and it supports 10% to 95% RH non-condensing humidity.
What makes this model different from a typical battery-powered remote?
The main difference is that this model is self-powered when pressed, so it does not rely on replaceable batteries. That can reduce maintenance while still providing portable Zigbee control for compatible devices or zones.
