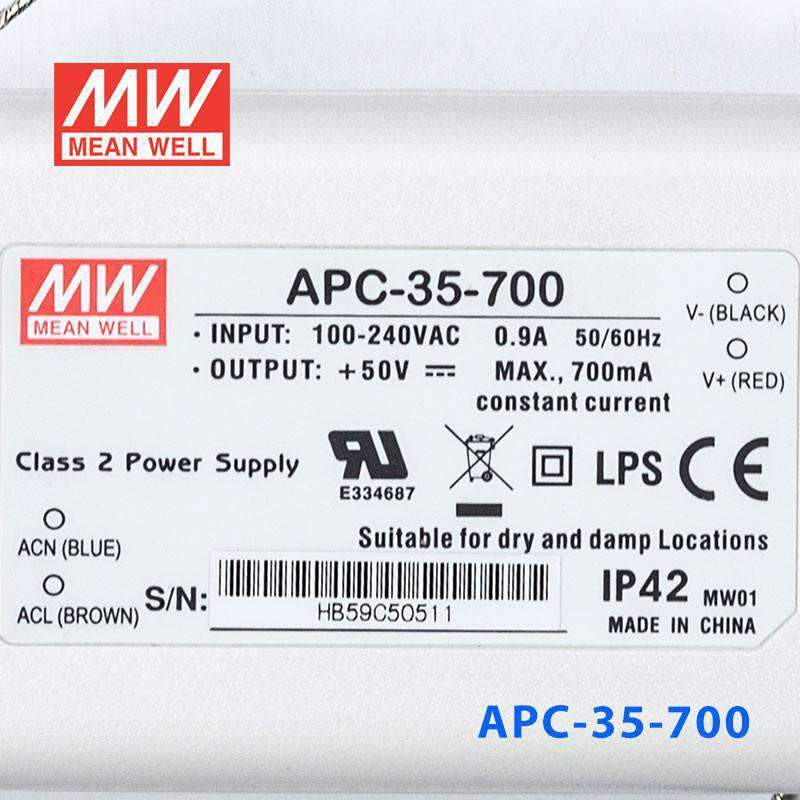

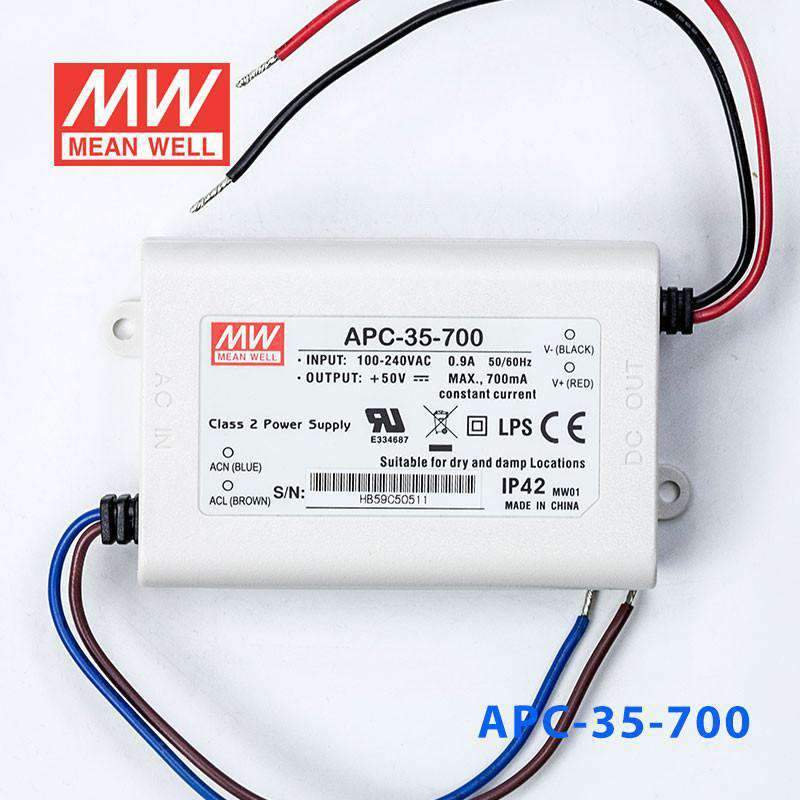

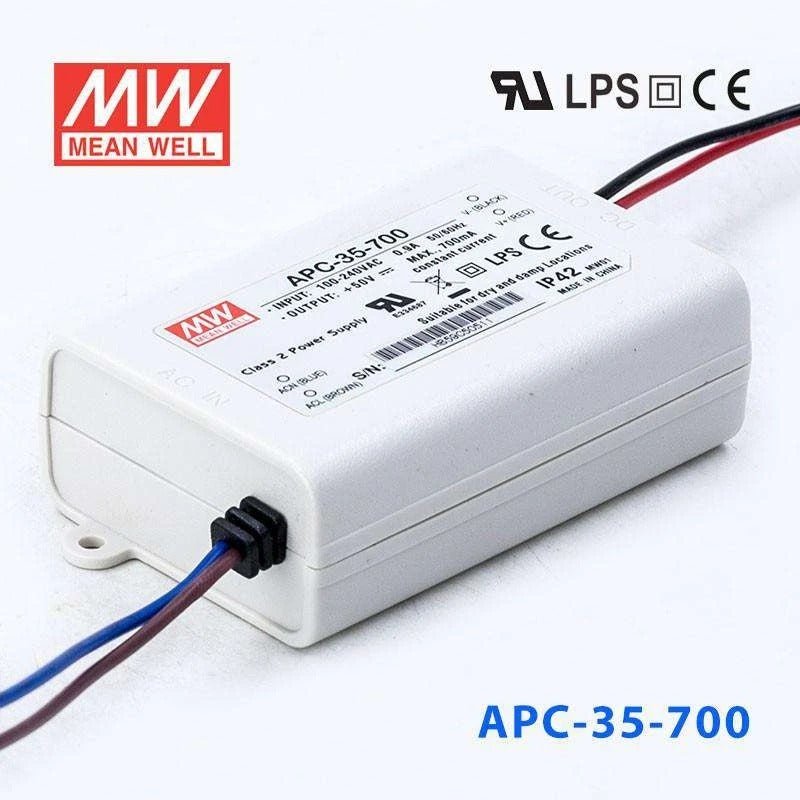

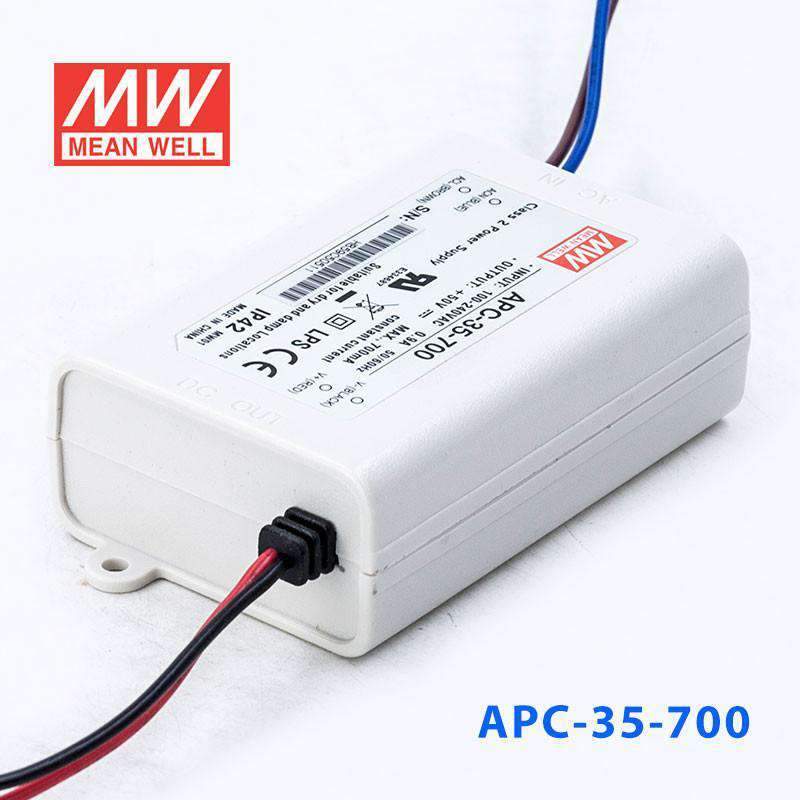

Mean Well APC-35-700 Power Supply 35W 700mA
Please Login for Pricing
Description
Description
The APC-35 is a 35W Mean Well. power converter. and an input range of 28~100V.
Key Features
- ✓ Input voltage range: 28~100V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating35 Watt
-
Output Voltage50 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length8.4 cm
-
Width5.7 cm
-
Height2.95 cm
-
Weight0.18 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-35-700 typically used for?
The Mean Well APC-35-700 is typically used for constant-current LED lighting and moving sign applications that need a 700mA drive current. With 35W rated power, it is a fit for 700mA LED loads that need more output capacity than the smaller APC-25-700 model.
Is the APC-35-700 a better fit than lower-current APC drivers when the LED load requires 700mA?
Yes. The APC-35-700 is the correct choice when the LED load is designed for 700mA constant current, while APC-35-350 and APC-35-500 are intended for 350mA and 500mA loads. The driver current should match the LED load requirement rather than being selected only by wattage.
Can the APC-35-700 be used for indoor LED lighting and moving sign projects?
Yes. The APC-35-700 is intended for LED lighting and moving sign applications, so it is suitable for indoor sign and lighting assemblies that are designed for 700mA constant-current operation and fit within the driver's electrical rating.
Will the APC-35-700 run on common AC mains supplies?
Yes. The specified AC input range is 90-264VAC, so the APC-35-700 can operate from common 120V and 240V mains systems within that range. That helps simplify deployments across a range of standard indoor environments.
Is the APC-35-700 suitable for direct outdoor installation?
No. The APC-35-700 has an IP30 design, so it is better suited to indoor use or installation inside a protective enclosure rather than direct weather exposure. Its listed working temperature is -30°C to +70°C, but ingress protection remains limited.
How does the APC-35-700 compare with the rest of the APC-35 family?
The APC-35-700 provides 35W at 700mA, while the APC-35-350, APC-35-500, and APC-35-1050 serve 350mA, 500mA, and 1050mA LED loads respectively. Compared with the APC-25-700, the APC-35-700 offers the same current class with a higher 35W power rating. The main decision point is matching the constant-current level to the LED load and then choosing the power class that provides adequate margin.
Other APC-35 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well APC-35-1050 Power Supply 35W 1050mA | 34.7W | 33V | 1.05A | Indoor | View |
| Mean Well APC-35-350 Power Supply 35W 350mA | 35W | 100V | 0.35A | Indoor | View |
| Mean Well APC-35-500 Power Supply 35W 500mA | 35W | 70V | 0.5A | Indoor | View |
