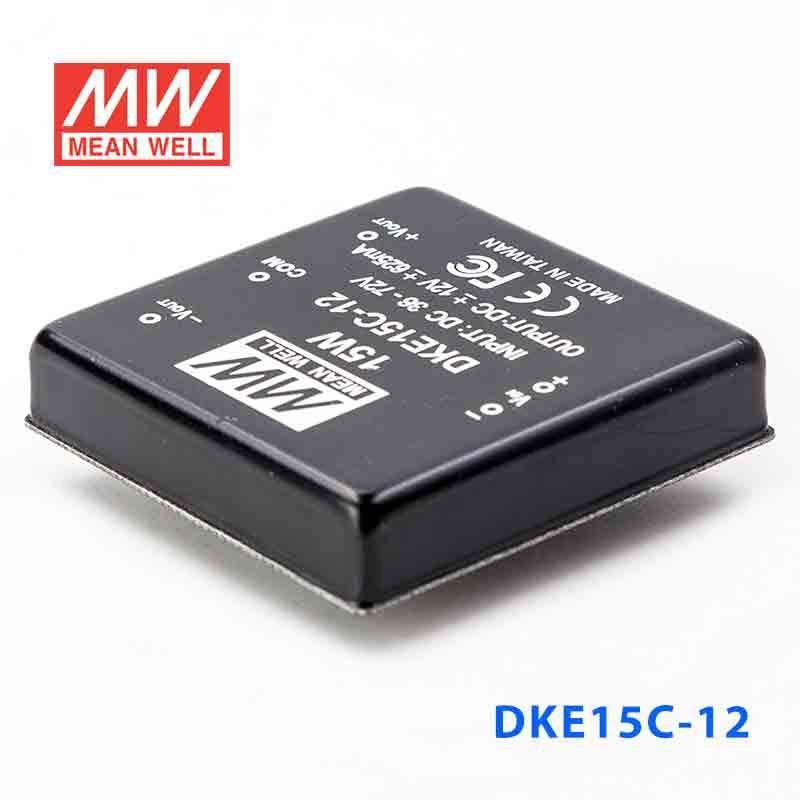

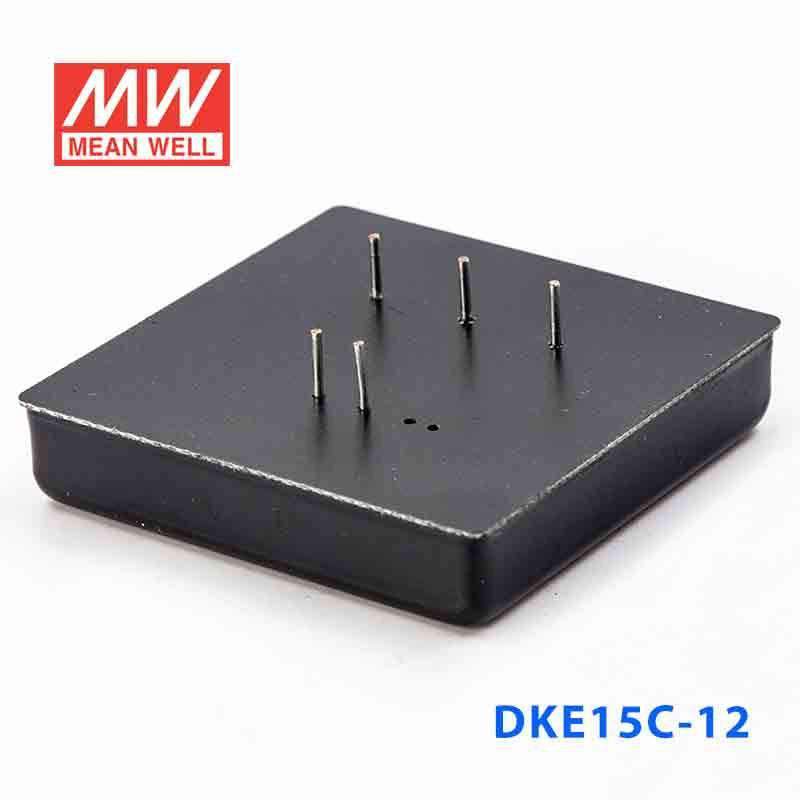

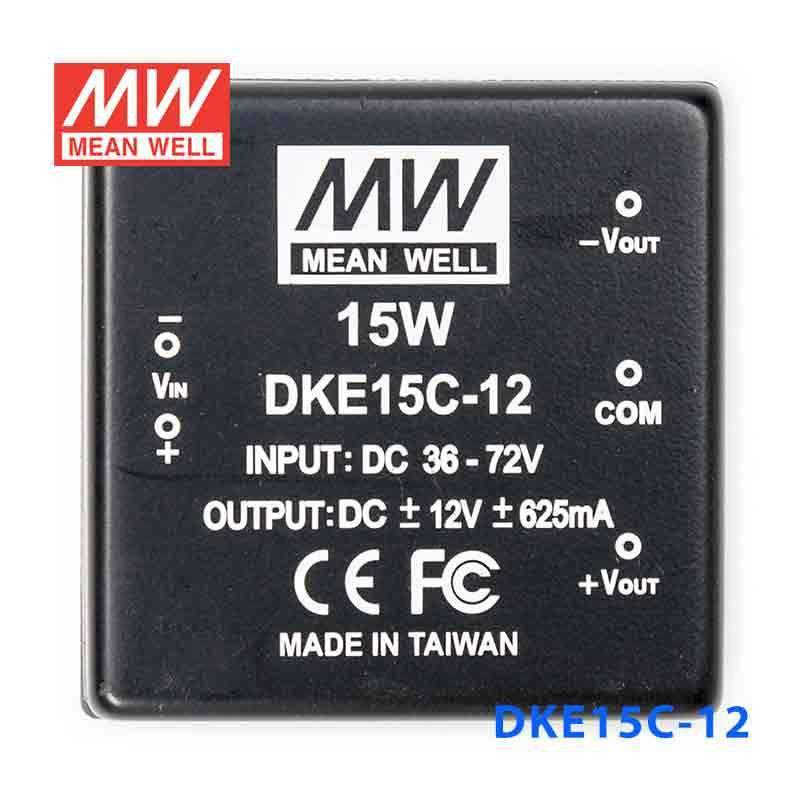

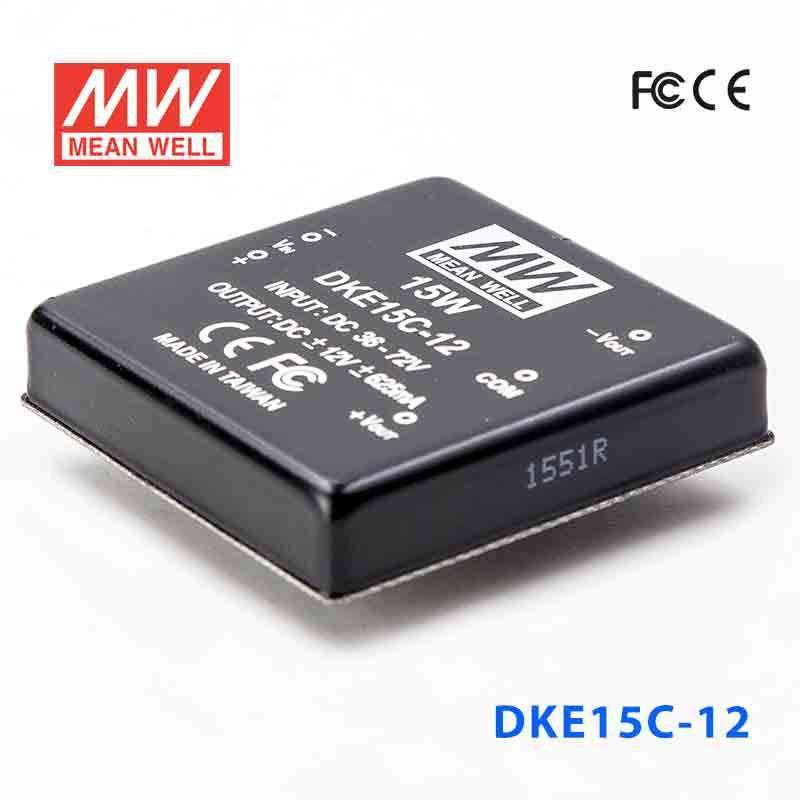

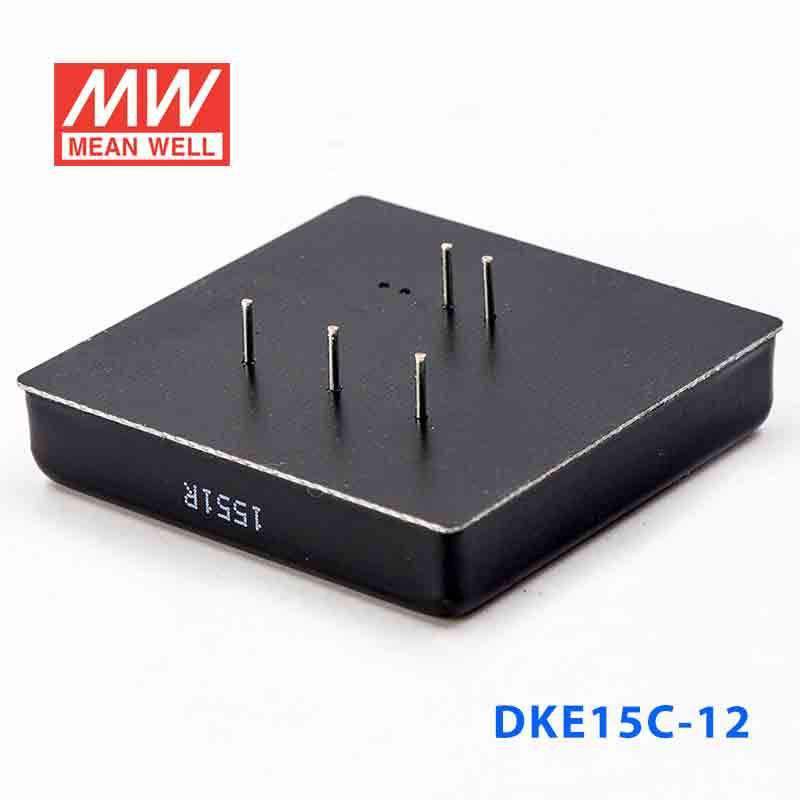

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DKE15C-12 DC-DC Converter - 15W - 36~72V in ±12V out

SKU:

DKE15C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

4: 1 wide input range (option)

1000VDC I / O isolation

3000VDC I / O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.3% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	160% to 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-25 ~ + 71°C (refer to output derating curve)
Storage temperature	-25°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / °C (max.)
Dimension (LxWxH) (mm)	2"x 2" x 0.43"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

DKE Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

0.62 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-25°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

5.08 cm
Height

1.1 cm
Weight

0.07 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DKE15C-12 for analog or measurement electronics that need ±12V rails?

Yes, this model is appropriate for low-power analog and measurement sections that require a ±12V constant-voltage output. It is built for a 36-72VAC input range and a 15W output class.

Is the DKE15C-12 a good fit for industrial control modules in higher-input systems?

It can fit industrial control modules that operate from 36-72VAC input and need a regulated ±12V output. The 15W rating makes it suitable for smaller electronic subsystems rather than larger field loads.

Can this converter be used in embedded instrumentation equipment?

Yes, the compact 50.8 x 50.8 x 11.0 mm size and 0.065 kg weight make it practical for embedded instrumentation assemblies. It is intended for equipment that needs ±12V constant-voltage output within a 15W power budget.

Is the DKE15C-12 meant for indoor or outdoor environments?

Its operating temperature range is -25°C to +71°C, which supports many indoor industrial environments. Since no IP rating is listed in the specs, the product data does not confirm suitability for direct outdoor exposure.

What are the main differences between the DKE15C-12 and the other DKE15C options?

The DKE15C family shares a 15W rating and 36-72VAC input range, with output choice being the main difference. The DKE15C-05 is 5V at 1.5A, the DKE15C-12 is 12V at 625A, the DKE15C-15 is ±15V at 500A, and the DKE15C-24 is ±24V at 313A.

Model	Power	Voltage	Current	IP Rating
Mean Well DKE15C-24 DC-DC Converter - 15W - 36~72V in ±24V out	15W	24V	0.31A	Indoor	View
Mean Well DKE15C-15 DC-DC Converter - 15W - 36~72V in ±15V out	15W	15V	0.5A	Indoor	View
Mean Well DKE15C-05 DC-DC Converter - 15W - 36~72V in ±5V out	15W	5V	1.5A	Indoor	View
Mean Well DKE15B-24 DC-DC Converter - 15W - 18~36V in ±24V out	15W	24V	0.31A	Indoor	View
Mean Well DKE15B-15 DC-DC Converter - 15W - 18~36V in ±15V out	15W	15V	0.5A	Indoor	View
Mean Well DKE15B-12 DC-DC Converter - 15W - 18~36V in ±12V out	15W	12V	0.62A	Indoor	View
Mean Well DKE15B-05 DC-DC Converter - 15W - 18~36V in ±5V out	15W	5V	1.5A	Indoor	View
Mean Well DKE15A-24 DC-DC Converter - 15W - 9~18V in ±24V out	15W	24V	0.31A	Indoor	View
Mean Well DKE15A-15 DC-DC Converter - 15W - 9~18V in ±15V out	15W	15V	0.5A	Indoor	View
Mean Well DKE15A-12 DC-DC Converter - 15W - 9~18V in ±12V out	15W	12V	0.62A	Indoor	View
Mean Well DKE15A-05 DC-DC Converter - 15W - 9~18V in ±5V out	15W	5V	1.5A	Indoor	View
