Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

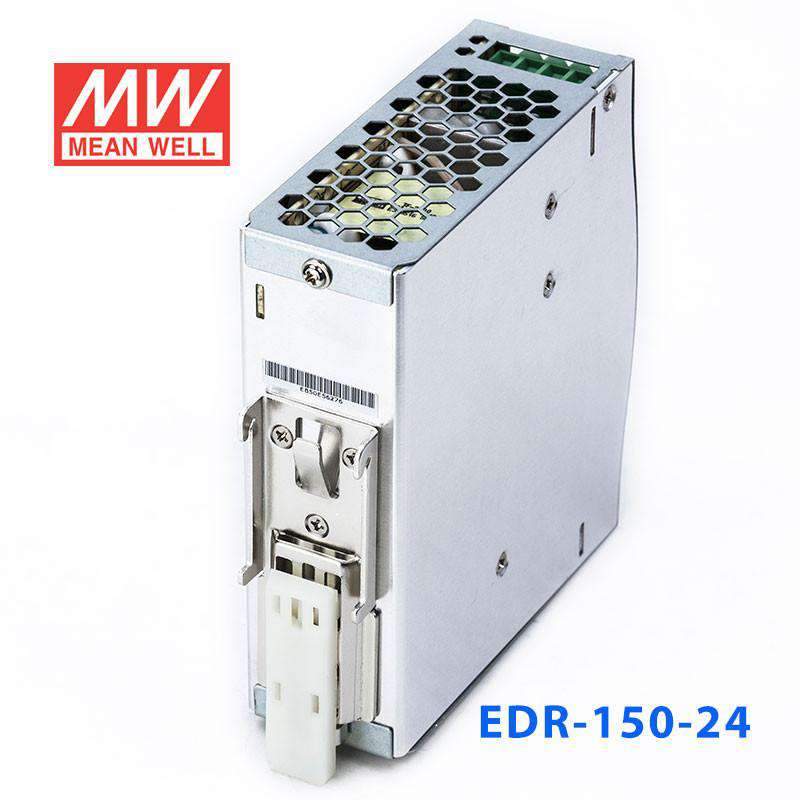

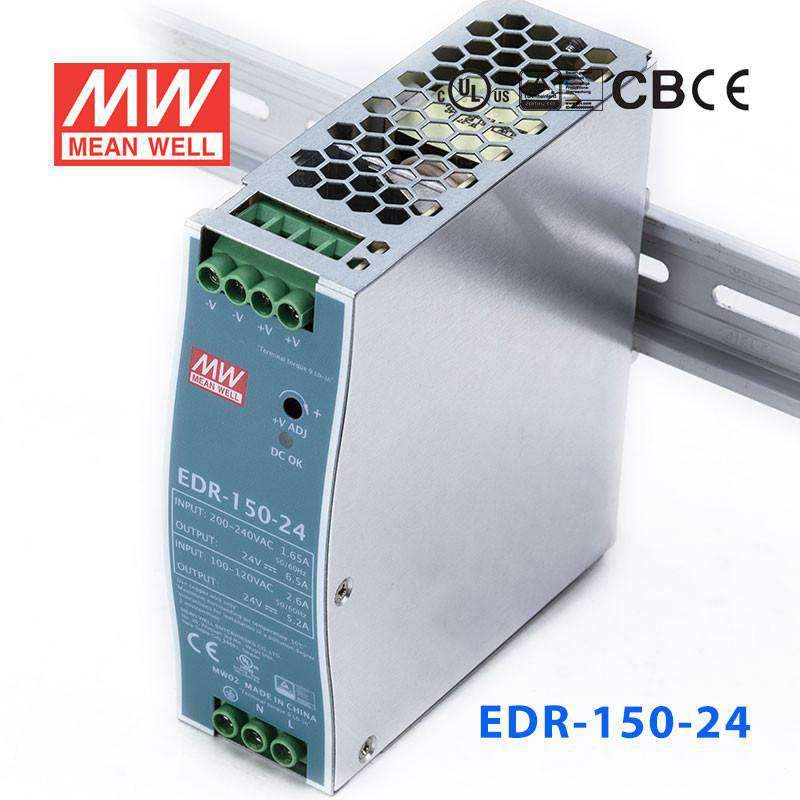

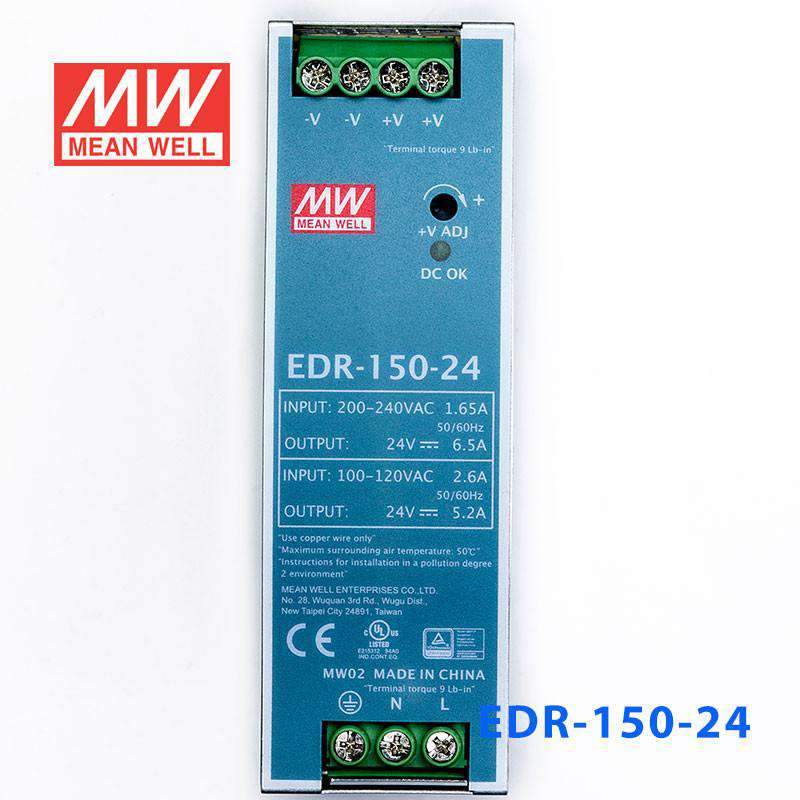

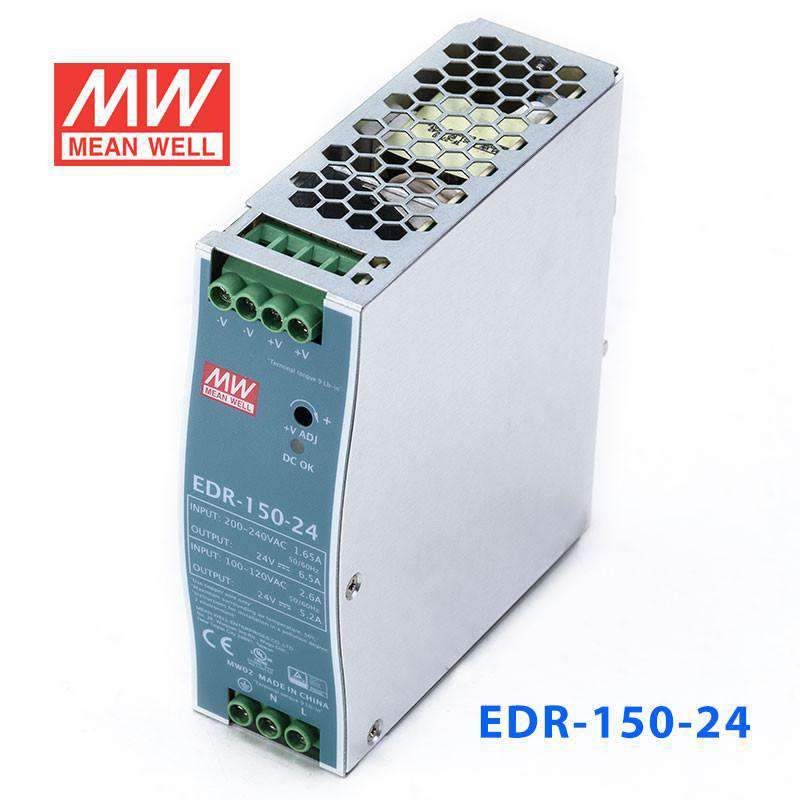

Mean Well EDR-150-24 Single Output Industrial Power Supply 150W 24V...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

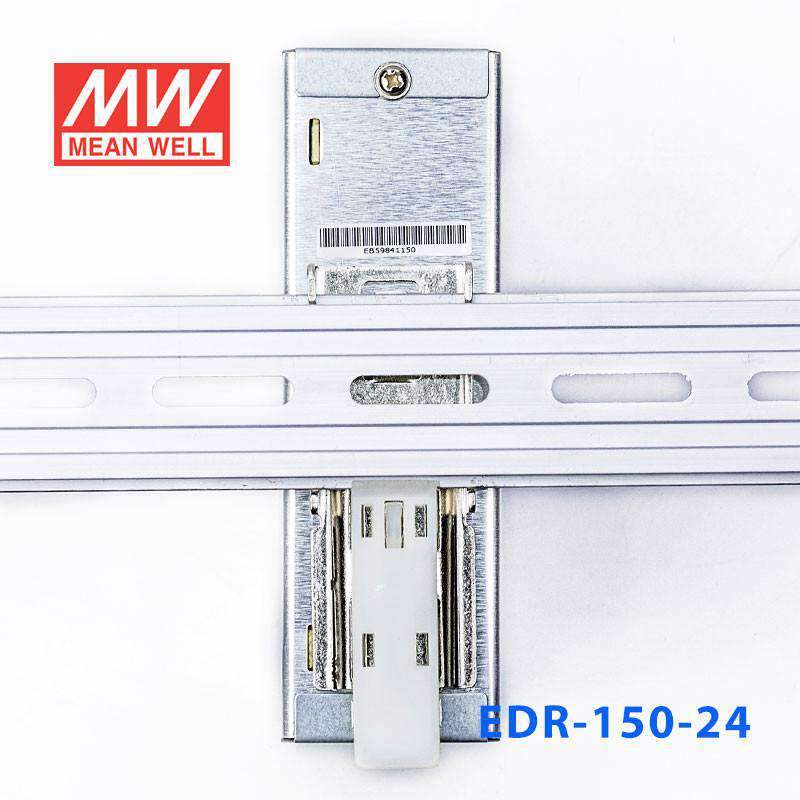

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508 (industrial control equipment) listed |
| EN61000-6-2 (EN50082-2) industrial immunity level |
| 100% full load burn-in test |
| Low cost |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| Current adjustment range | 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance |
| Overload protection | 105%~130% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage,recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C (refer to output derating curve ) |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022(CISPR22) classA, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2),EN55024 |
| Connection (screw DIN terminal) | I/P: 3 poles, O/P: 4 poles |
| Dimension (LxWxH) (mm) | 40x 125.2x 113.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEDR Series
-
Power Rating156 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length12.52 cm
-
Width11.35 cm
-
Height4 cm
-
Weight0.6 kg
File Downloads
File Downloads
::specification::
