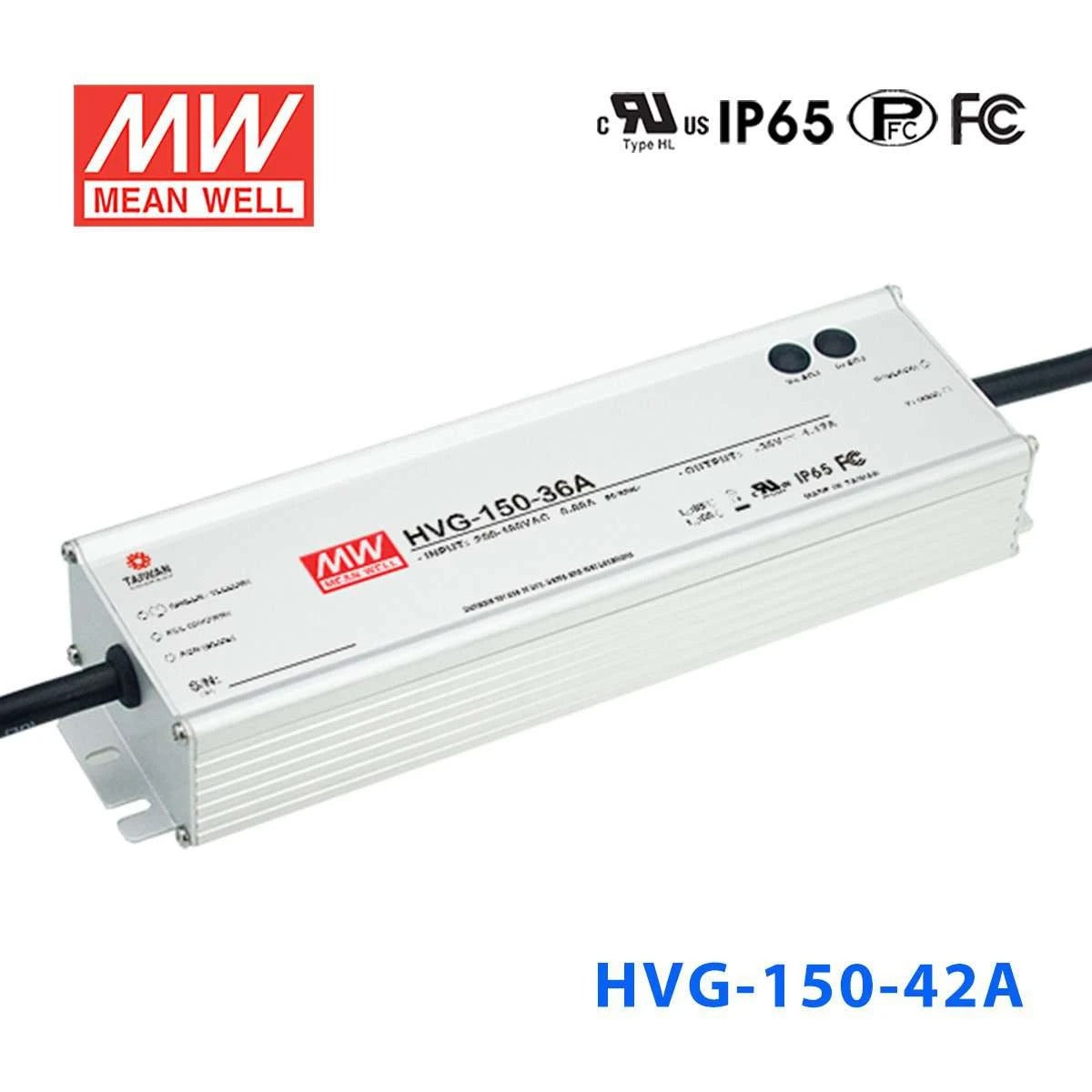

Mean Well HVG-150-42AB Power Supply 150W 42V - Adjustable and Dimmable
Please Login for Pricing
Description
Description
The HVG-150 is a 150W Mean Well power converter (input range: 180~528VAC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 180~528VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004 IP65 or IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating150.36 Watt
-
Output Voltage42 Volt
-
Rated Current3.58 Ampere
-
Input Voltage180V~528V
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length24.5 cm
-
Width6.8 cm
-
Height3.88 cm
-
Weight1.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVG-150-42AB for dimmable 42V LED signage?
Yes, if the sign lighting is designed for 42V constant current operation within the 23-42V range. The driver is rated for up to 150.36W and 3.58A, so the total connected load has to stay within those numbers.
Is this a good fit for a 42V LED strip display with adjustable light output?
It is intended for 42V constant current lighting loads and includes adjustable and dimmable functionality. For compatibility, the strip or fixture must operate within 23-42V and not exceed 3.58A or 150.36W.
Can the HVG-150-42AB be used for commercial linear lighting?
Yes, for linear lighting systems that are built for constant current operation in the 23-42V range. Its 150.36W output, aluminium casing, and -40°C to +85°C operating temperature range make it appropriate for demanding commercial lighting applications.
Can this driver be used in damp or outdoor lighting locations?
The IP65 water-resistant rating supports use in outdoor and damp environments where protection from water exposure is needed. It is better suited to protected exterior or wet-area installations than fully exposed submersion conditions.
How do I estimate the maximum LED strip length for this 42V 150.36W driver?
Use the driver's maximum power of 150.36W and divide it by the strip wattage per meter. For example, if your strip uses 12W per meter, 150.36 ÷ 12 = 12.53 meters; check your strip rated power per meter and verify that the strip is designed for 42V constant current use.
How does the HVG-150-42AB compare with other 42V models in the HVG series?
The HVG-150-42AB is rated at 150.36W, 42V, and 3.58A. Other 42V siblings are HVG-100-42A/AB/B at 95.76W and 2.28A, HVG-240-42A/AB/B at 239.4W and 5.7A, HVG-320-42A/AB/B at 319.2W and 7.6A, and HVG-480-42A/AB/B at 478.8W and 11.4A.
