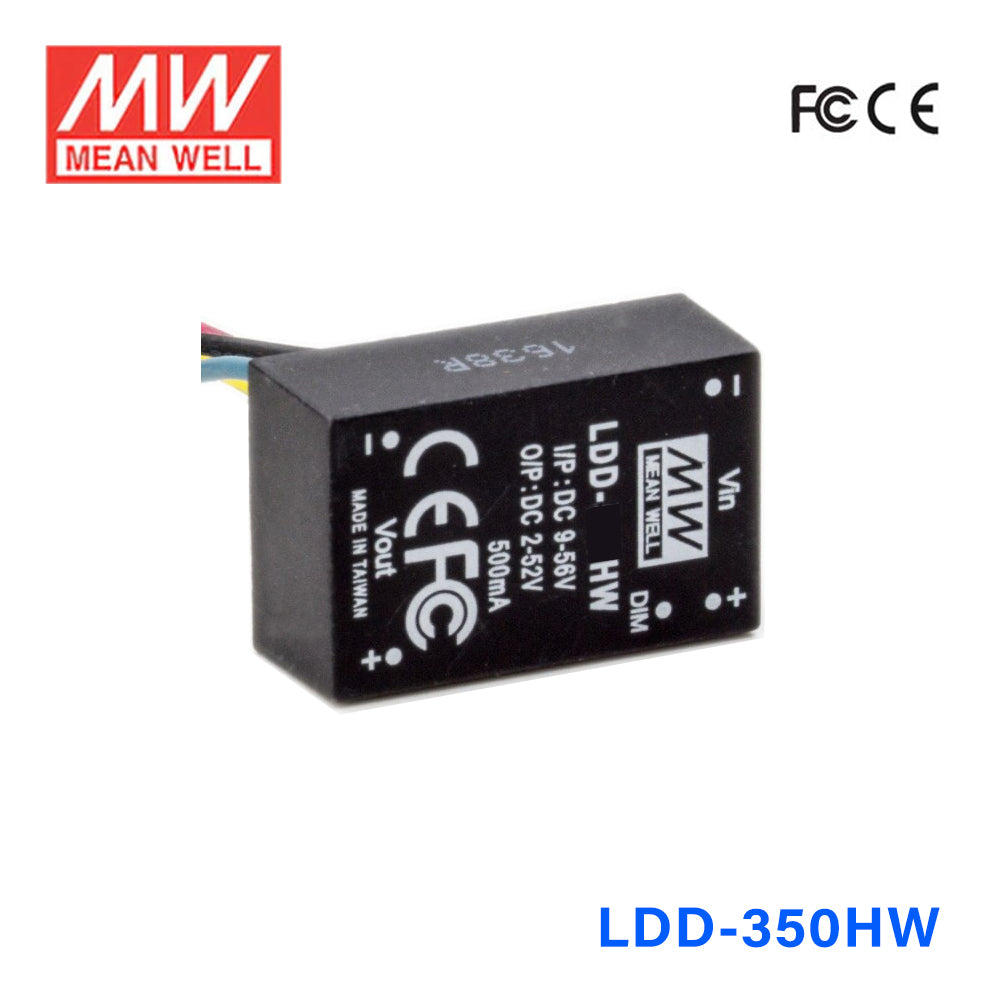

Mean Well LDD-350HW DC/DC LED Driver CC 350mA - Step-down
Please Login for Pricing
Description
Description
The LDD is a Mean Well power converter (input range: 2~52VDC).
Key Features
- ✓ Input voltage range: 2~52VDC
- ✓ Protections: Short circuit / Over temperature
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating18.2 Watt
-
Output Voltage52 Volt
-
Rated Current0.35 Ampere
-
Input Voltage9V~56V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LDD-350HW for a 350mA LED downlight with a higher forward voltage string?
Yes, this model is useful for 350mA constant current downlight loads that need a wider voltage window. Its constant current range is 2-52V with up to 18.2W, so it supports higher-voltage LED strings than the 3-45V versions.
Is the LDD-350HW a good fit for LED signage modules?
It can be used for signage modules that are specified for 350mA constant current operation. The load needs to remain within the 2-52V constant current range, and this driver should not be used as a constant voltage source.
Can this model power a small LED array in a compact housing?
Yes, it is designed for compact constant current LED systems and measures 31.8 × 20.3 × 12.2 mm. The LED array must be a 350mA load with a total forward voltage inside 2-52V and a total load within 18.2W.
How do I size LED strings for the LDD-350HW?
This driver delivers 350mA constant current over a 2-52V range. The number of LEDs depends on each LED's forward voltage, so you size the string by total forward voltage rather than assuming a specific LED count.
Can the LDD-350HW handle outdoor or industrial temperature swings?
It is rated IP67 and has an operating temperature range of -40°C to +85°C. That makes it suitable for sealed LED assemblies that may see water exposure, dust, and wide temperature variation.
How does the LDD-350HW differ from other 350mA LDD options?
At 350mA, LDD-350H, LDD-350HS, and LDD-350HW are 18.2W with a 2-52V constant current range, LDD-350H-DA and LDD-350H-WDA are 15.75W with a 3-45V range, LDD-350L and LDD-350LW are 11.2W with a 2-32V range, and LDD-350LS is 9.8W with a 2-28V range. The LDD-350HW matches the highest 350mA voltage range and power in the wire-style version.
