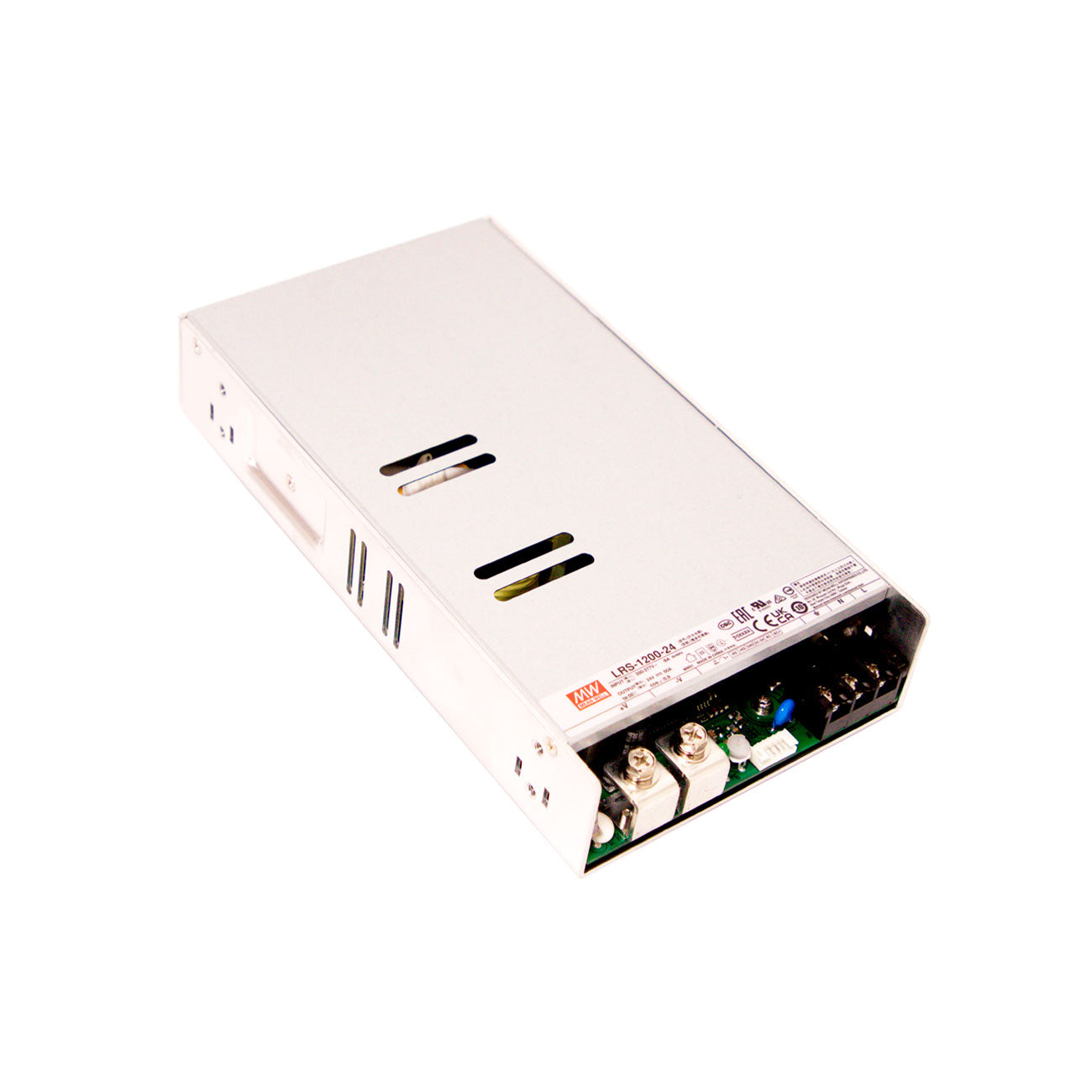

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well LRS-1200-24 Enclosed Power supply 1200W 24V

Name: Mean Well LRS-1200-24 Enclosed Power supply 1200W 24V
Brand: Mean Well
SKU: LRS-1200-24
Price: 521.4 NZD
Availability: InStock

AC input 180~305Vac, compact size with low profile, 150% peak power 5s, conformal coating

SKU:

LRS-1200-24

Please for Pricing

Notify me when it's back in stock

Description

Features:

AC input 180~305Vac input
Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16)
Compact size with low profile (17W/inch³)
150% peak power @5s
High efficiency up to 94%
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling, cooling fan speed control
Built-in DC OK/Remote Control/Remote Sense
-30~+70℃ wide range operation temperature
Over voltage category (OVC III)
Operating altitude up to 5000 meters
Conformal coating
3 years warranty

General Specification

AC input voltage range

180 ~ 305Vac 255 ~ 431Vdc

AC inrush current (max.)

60A/230Vac 75A/277Vac

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Constant current limiting for output power >150% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover

Over-voltage protection

(16 - 20V ) (29 - 36V) (41 - 50V) (57 - 67V)

Protection type : Shut down o/p voltage, re-power on to recover

Over Temperature

Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:4.2KVac I/P-FG:2.1KVac O/P-FG:1.25KVac

Working temperature

-30 - +70℃ (Refer to "Derating Curve")

Safety standards

CB IEC62368-1,IEC61558-1/-2-16

UL UL62368-1

DEKRA BS EN/EN62368-1,BS EN/EN61558-1/-2-16

RCM AS/NZS 62368-1,AS/NZS 61558-1/-2-16

CQC GB 4943.1

BSMI CNS15598-1

EAC TPTC 004 approved

Dimension (LxWxH)

225x124x41mm

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

1200 Watt
Output Voltage

24 Volt
Rated Current

50 Ampere
Input Voltage

180V~305V
Standards Met

CB,CE,CQC,DEKRA,EAC,KC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

22.5 cm
Width

12.4 cm
Height

4.1 cm
Weight

1.28 kg
