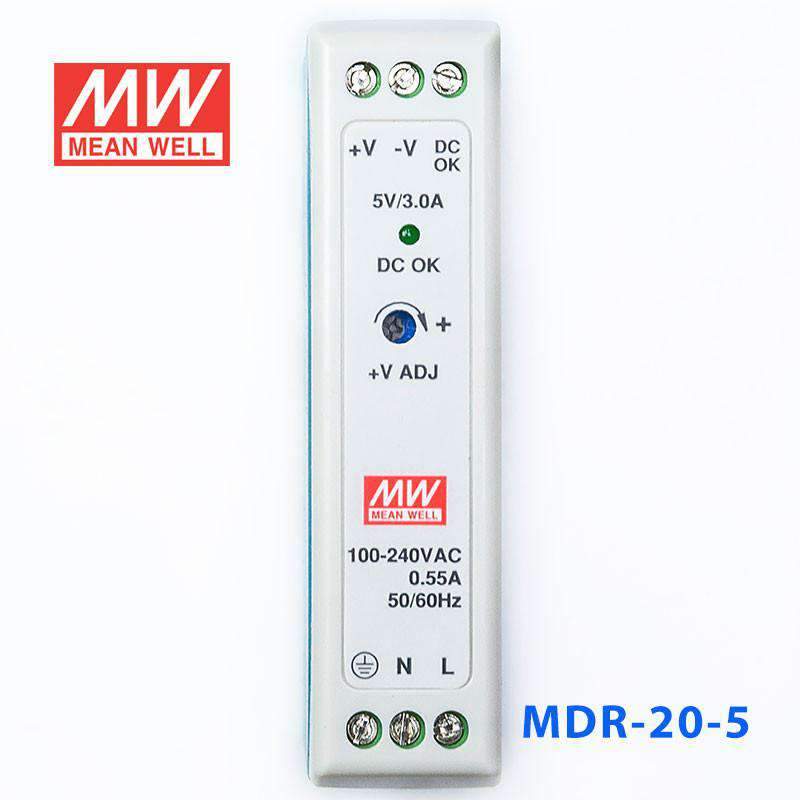

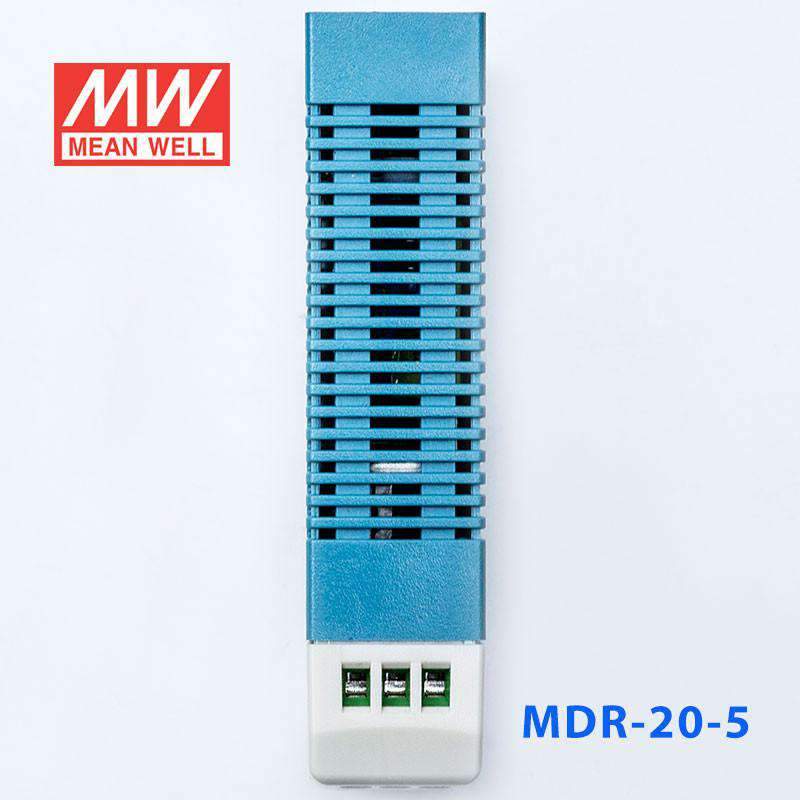

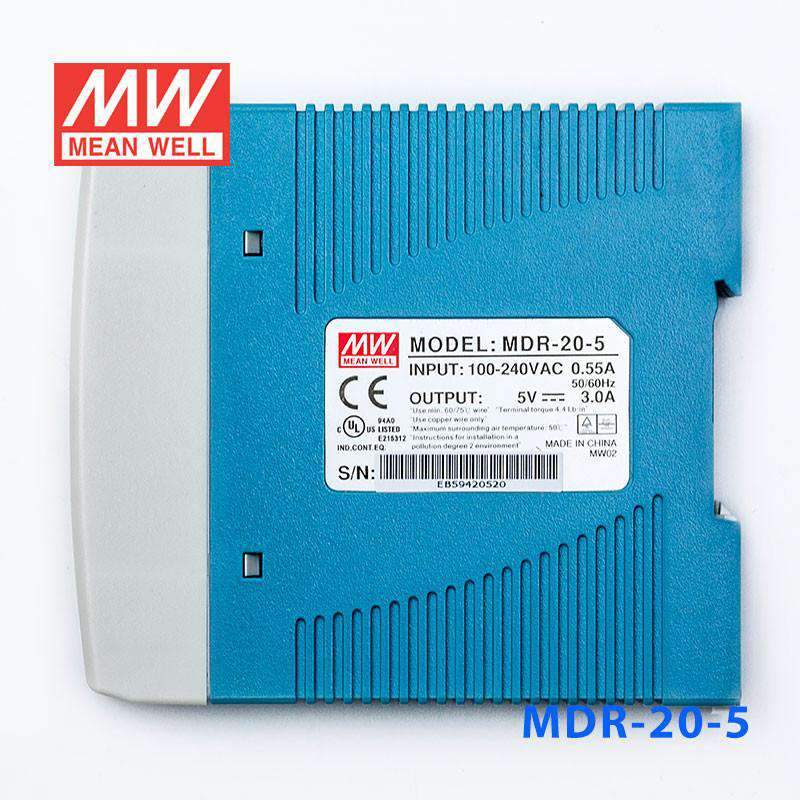

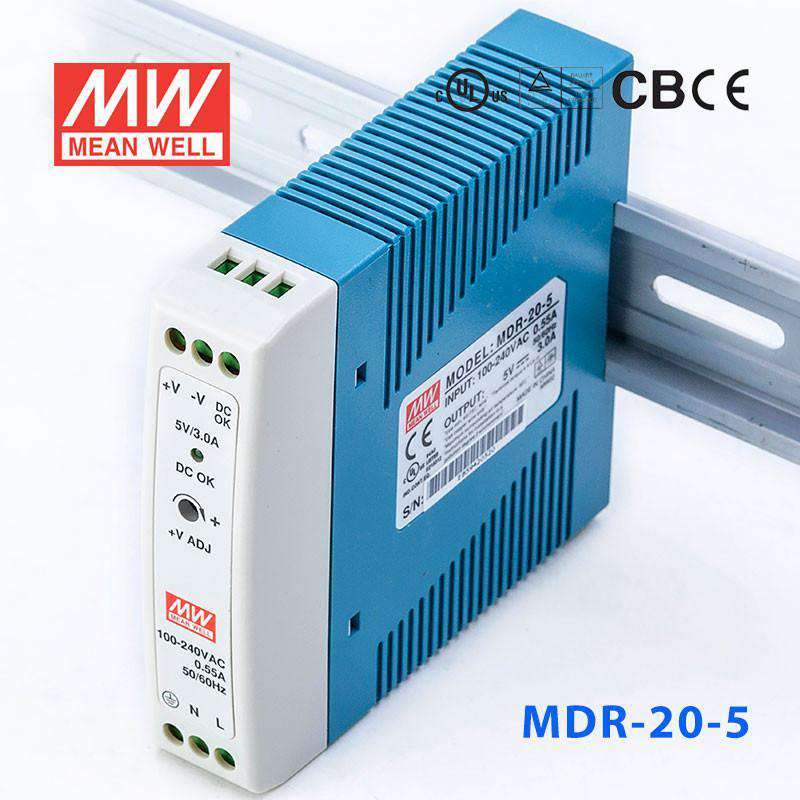

Mean Well MDR-20-5 Single Output Industrial Power Supply 20W 5V - D...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |

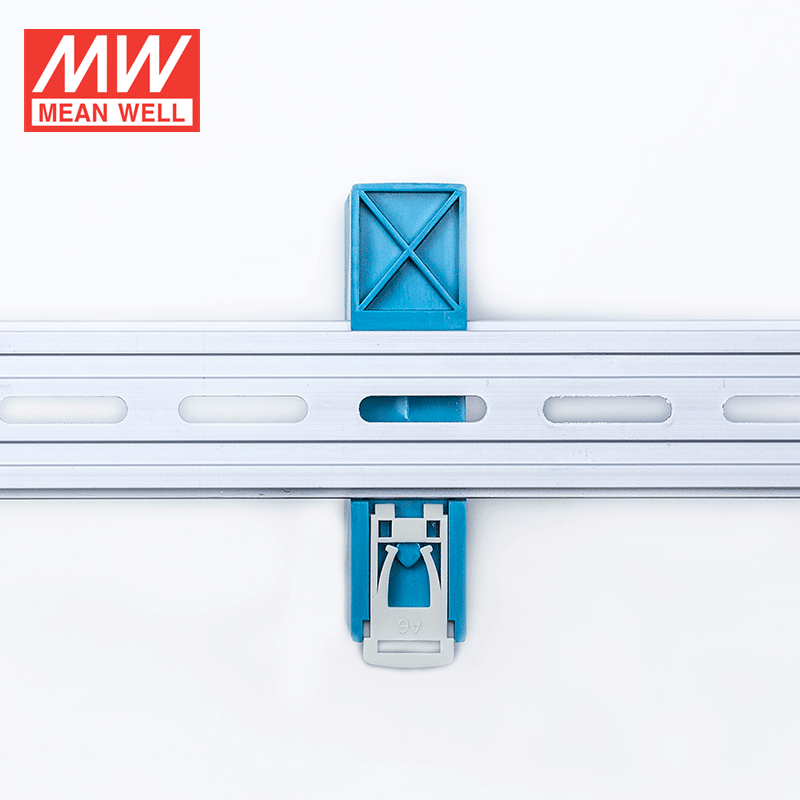

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.75W |
| LED indicator for power on |
| DC OK signal output |
| Cooling by free air convection |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start, 20A at 115VAC, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~160% constant current limiting, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| DC OK signal | Open collector |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3 |
| Connection | I/P: 3 poles, O/P: 3 poles screw DIN terminal |
| Dimension (LxWxH) | 22.5x90x100 |
| Packing | 72pcs / 14.7kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length10 cm
-
Width9 cm
-
Height2.25 cm
-
Weight0.17 kg
