Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

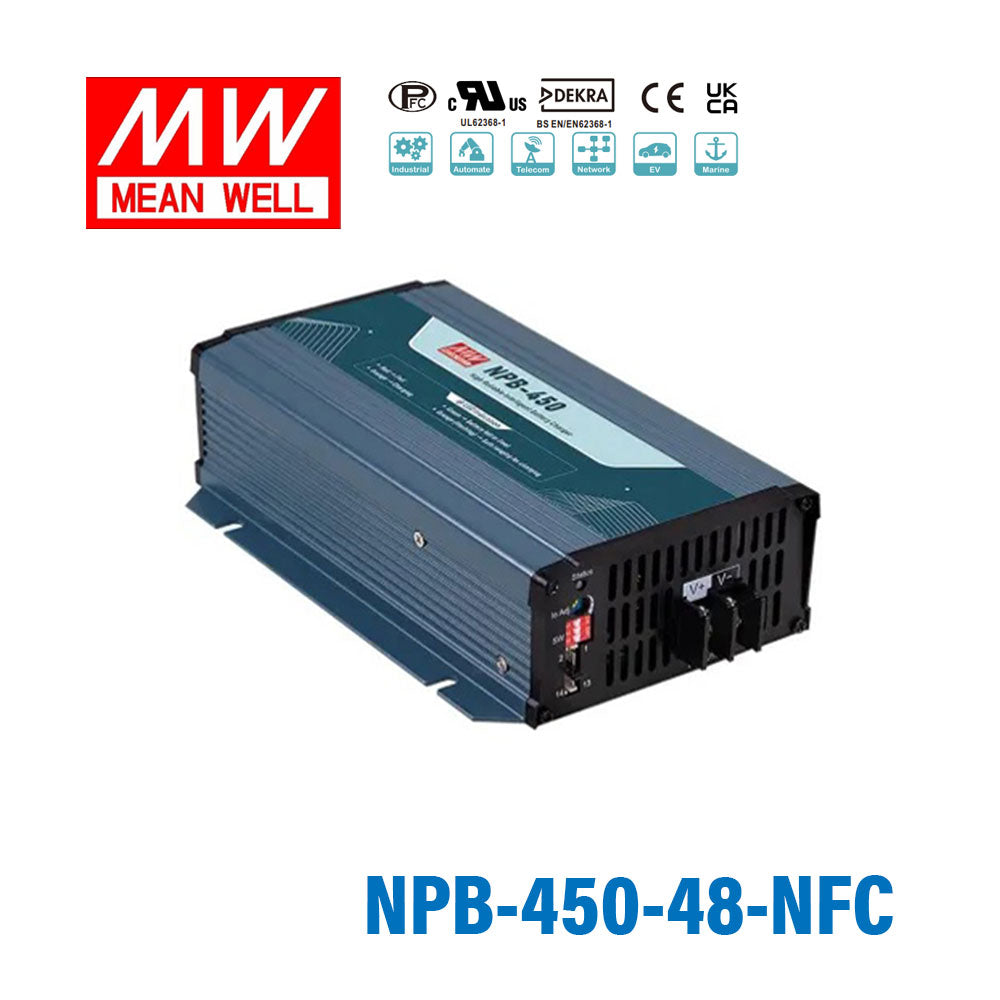

Mean Well NPB-450-48-NFC Battery Charger 450W 48V - Ultra Wide Output, NFC Programmable Charging Parameters
ultra wide charging range auto sensing function, charging voltage/current/timeout can be programmed through SBP-001, charging curves/stages can be selected through dip switch
SKU:
NPB-450-48-NFC
|
Notify me when it's back in stock
Mean Well NPB-450-48-NFC Battery Charger 450W 48V - Ultra Wide Outp...
Please Login for Pricing
Description
Description
Features
| Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V, 54~100V; Please refer to page 9 for setting) |
| Built-in CANBus protocol for control, setting and monitoring |
| Set up charging parameters easily via NFC interface(NPB-450-xxNFC) |
| Programable charging curve via SBP-001 |
| Manual setting for 2/3 stage and 4 built-in charging vurves via DIP S.W |
| Multiple Protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery reverse polarity (No damage) |
| Charger OK and Battery Full signal |
| Temperature compensation function to prolong battery life (Lead-acid only) |
| Temperature compensation function to prolong battery life (Lead-acid only) |
| -30°C ~+70°C wide operating temperature |
| Thermal controlled DC fan for noise reduction |
| Remote ON/OFF control |
| Smart programmer available (Order NO.: SBP-001, sold separately) |
| Carry handle accessory available(Order No.: Carry handle, sold separately) |
| Comply with 62368-1 + 60335-1/-2-29 dual certification |
| Suitable for leac-acide (Pb) and li-ion batteries |
| 3 years warranty |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating450 Watt
-
Output Voltage57.6 Volt
-
Rated Current6.8 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,DEKRA,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length20.5 cm
-
Width13 cm
-
Height5.5 cm
-
Weight1.02 kg
File Downloads
File Downloads
::specification::
