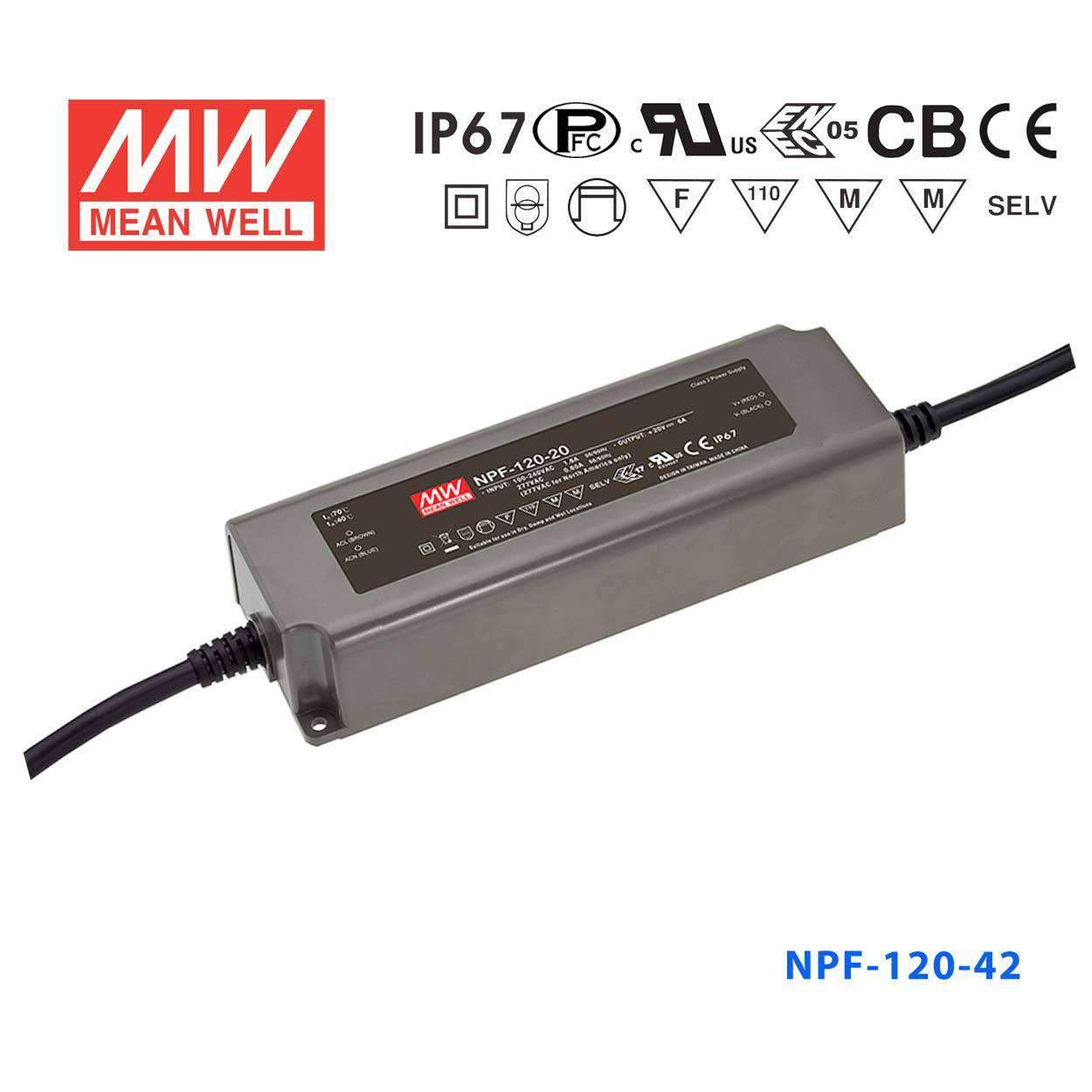

Mean Well NPF-120-42 Power Supply 120W 42V 2.9A
Please Login for Pricing
Description
Description
The NPF-120 is a 120W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating121.8 Watt
-
Output Voltage42 Volt
-
Rated Current2.9 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length19.1 cm
-
Width6.3 cm
-
Height3.75 cm
-
Weight0.97 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Is the NPF-120-42 suitable for use in humid or wet industrial environments?
Yes. The NPF-120-42 has an IP67 ingress protection rating, meaning it is fully sealed against dust and can withstand temporary submersion in water. Its operating temperature spans -40°C to +90°C, covering both hot industrial environments and cold outdoor sites.
What LED driver applications match the NPF-120-42's 42V output?
The NPF-120-42 delivers 42V DC at 2.9A (121.8W) in constant-current mode with a CC range of 25–42V. It is appropriate for high-bay LED fixtures, outdoor wall-pack luminaires, and street lighting modules that specify a 42V LED string. The 90–305VAC input makes it usable across international mains voltages.
How does the NPF-120-42 compare to the NPF-120-36 and NPF-120-48?
All three share the IP67 rating, 191.0 × 63.0 × 37.5 mm housing, and 0.97 kg weight. NPF-120-36 is 122.4W at 36V/3.4A (CC range 21–36V); NPF-120-42 is 121.8W at 42V/2.9A (CC range 25–42V); NPF-120-48 is 120W at 48V/2.5A (CC range 28–48V). The differences are strictly in output voltage, current, and CC range.
Does the NPF-120-42 carry UL certification?
Yes. The NPF-120-42 is certified to UL standards, along with CB, CCC, CE, EAC, and ENEC. UL certification is typically required for luminaire integration in North American commercial and industrial projects, and these marks together satisfy requirements across major global markets.
