Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

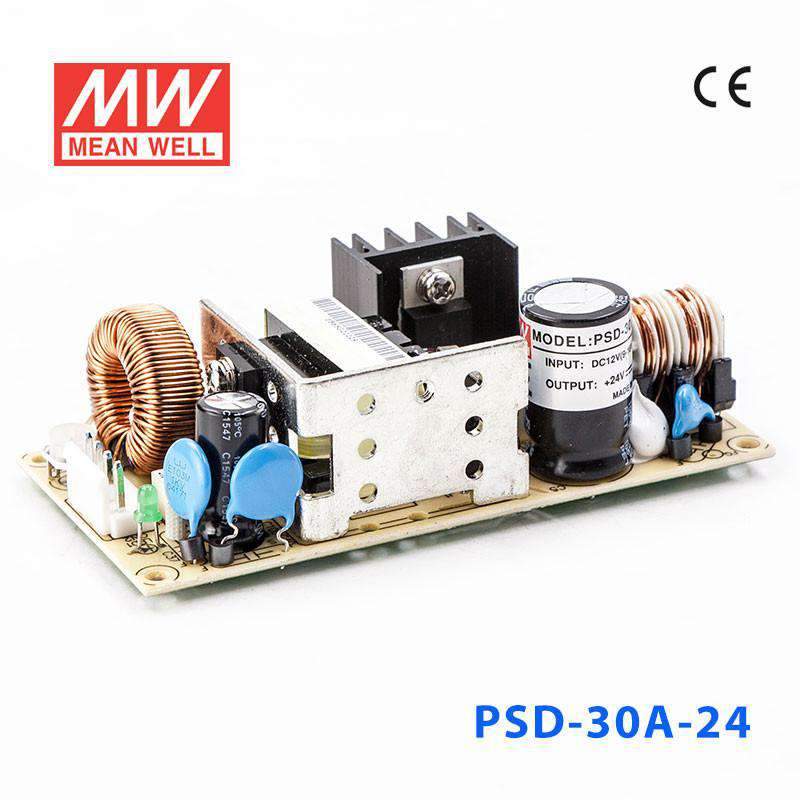

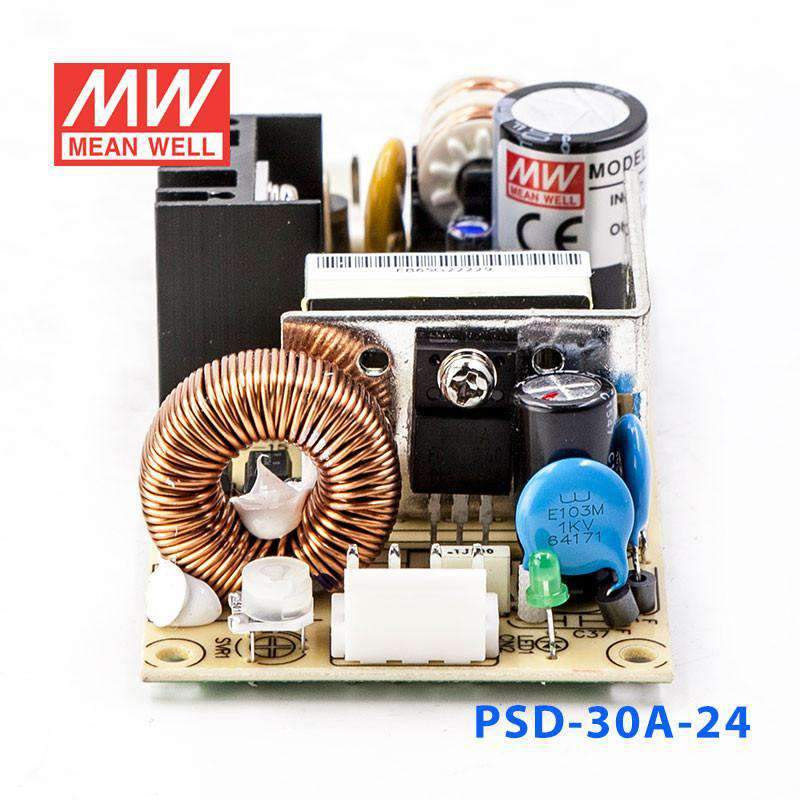

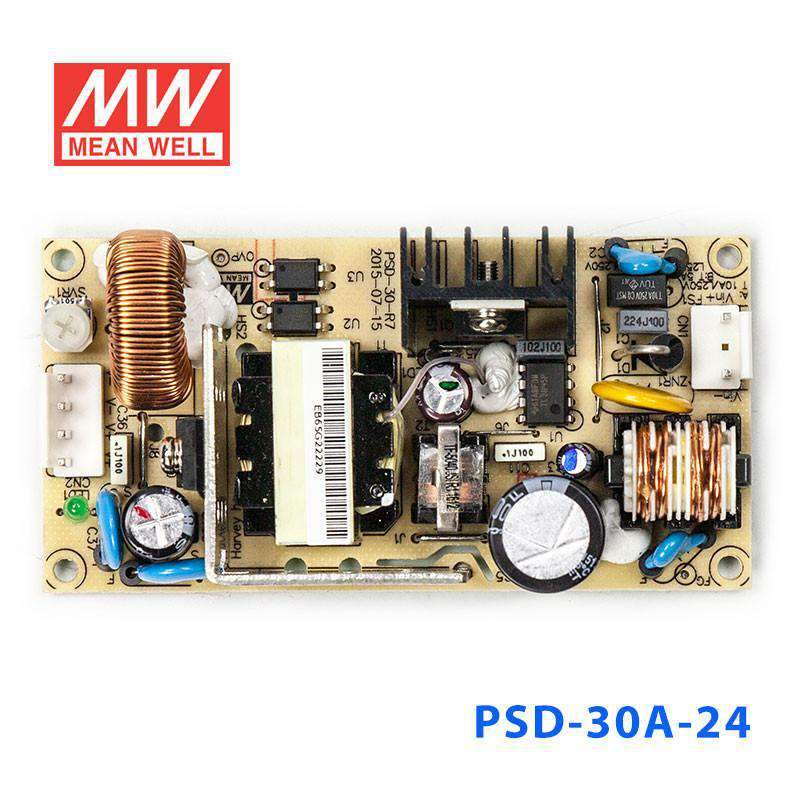

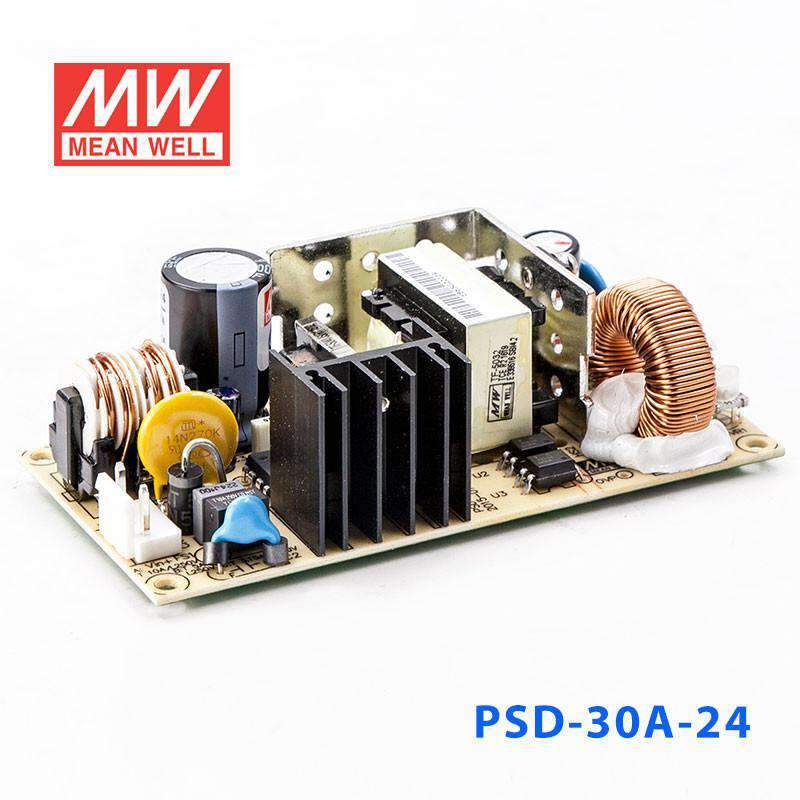

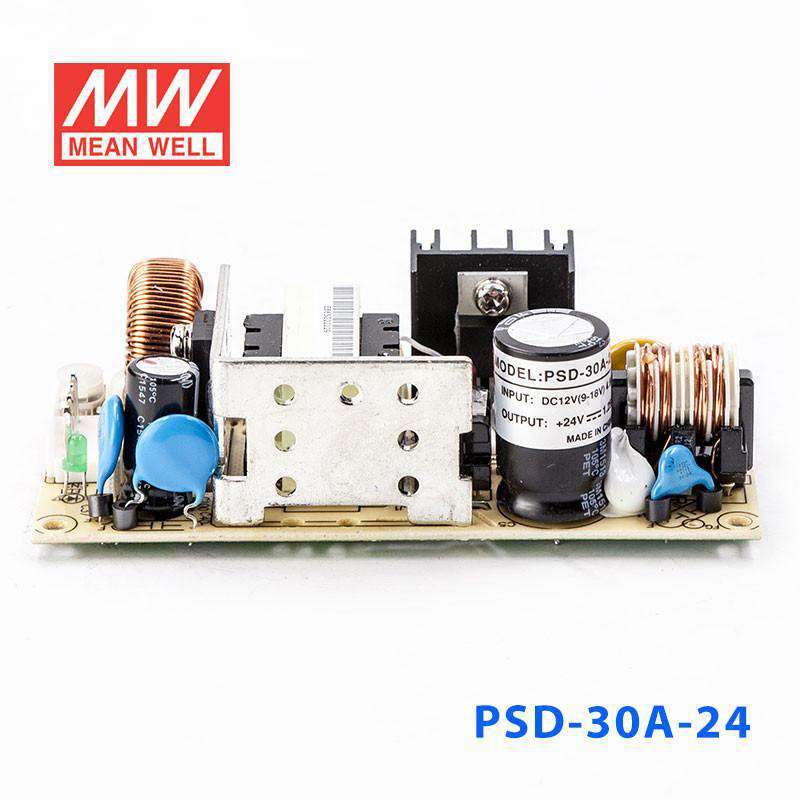

Mean Well PSD-30A-24 DC-DC Converter - 30W - 9~18V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

PSD-30A-24

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

1500VAC I / O isolation

Built-in EMI filter, low ripple noise

Protections: Short circuit / Overload / Over voltage / Reverse polarity

100% full load burn-in test

Low cost, high reliability

Cooling by free air convection

2 years warranty

General Specification

DC adjustment range	5V: 4.5 to 5.5 V, 12 V: 11 to 13.5 V, 24 V 22 to 26 V
Overload protection	105% ~ 150% hiccup mode, auto-recovery
Over voltage protection	115% ~ 150% rated output voltage
Withstand voltage	I / PO / P: 1.5 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Line and load regulation	± 1% (max.)
Working temperature	-20 ~ + 60 ° C (refer to output derating curve)
Connection	3P, 4P / 3.96mm pitch, JST B3P / B4P-VH-B
EMC standards	EN55022 class B, EN61000-4-2,3,4,6,8, EN55024
Dimension (LxWxH) (mm)	101.6x 50.8x 30 mm

Specifications

Brand

Mean Well
Series

PSD Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

9V~18V
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

2 Year
Length

10.16 cm
Width

5.08 cm
Height

3 cm
Weight

0.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PSD-30A-24 for 24V industrial control circuits?

Yes, it is a constant voltage 24V DC-DC converter rated for up to 1.25A and 30W. It fits 24V industrial control or automation circuits when the load stays within the 24V, 1.25A, 30W output rating.

Is the PSD-30A-24 a good fit for 24V sensors, relays, or monitoring devices?

It can be a fit for 24V sensors, relays, or monitoring devices that need constant-voltage 24V power. The key limit is output capacity: 24V at up to 1.25A, with 30W total available.

Can this converter be used in embedded or OEM equipment that runs on 24V?

Yes, for 24V embedded or OEM equipment with moderate power demand, this model provides constant 24V output up to 1.25A. Its input range is 9-18VAC, so the source side needs to stay within that range.

How does the PSD-30A-24 compare with other 24V options in the PSD family?

For 24V siblings listed here, PSD-15A-24, PSD-15B-24, and PSD-15C-24 are 14.4W, 24V, 666A as listed; PSD-30A-24, PSD-30B-24, PSD-30C-24, and PSD-45A-24 are 30W, 24V, 1.25A. PSD-45B-24 and PSD-45C-24 are 45W, 24V, 1.88A.

Can I use the PSD-30A-24 in outdoor equipment?

The product data gives an operating temperature range of -20°C to +60°C, so that is the defined environmental performance in the specs. Because no IP rating is listed, the specs do not establish outdoor or weather-exposed suitability on their own.

Model	Power	Voltage	Current	IP Rating
Mean Well PSD-30A-5 DC-DC Converter - 25W - 9~18V in 5V out	25W	5V	5A	Indoor	View
Mean Well PSD-30A-12 DC-DC Converter - 30W - 9~18V in 12V out	30W	12V	2.5A	Indoor	View
