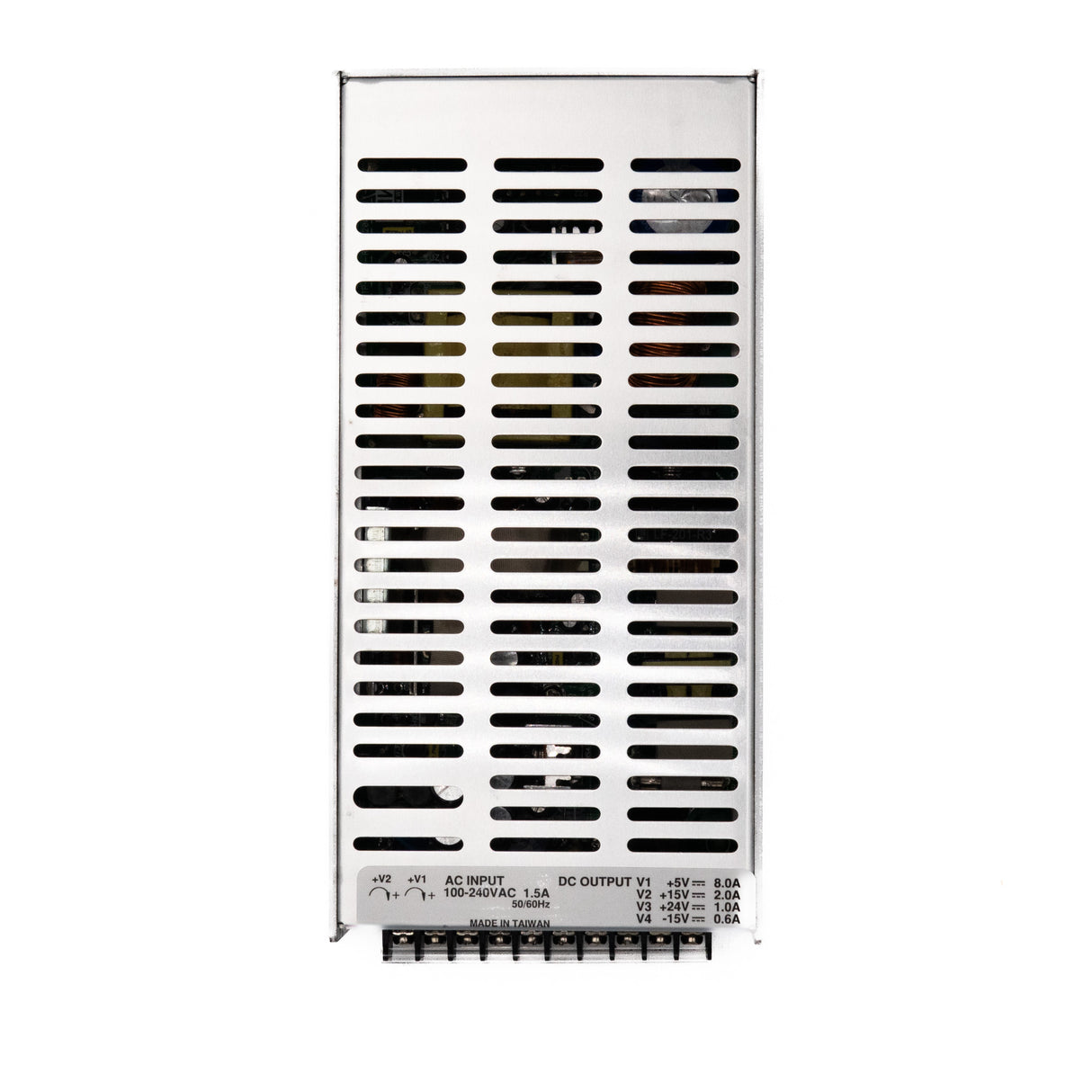

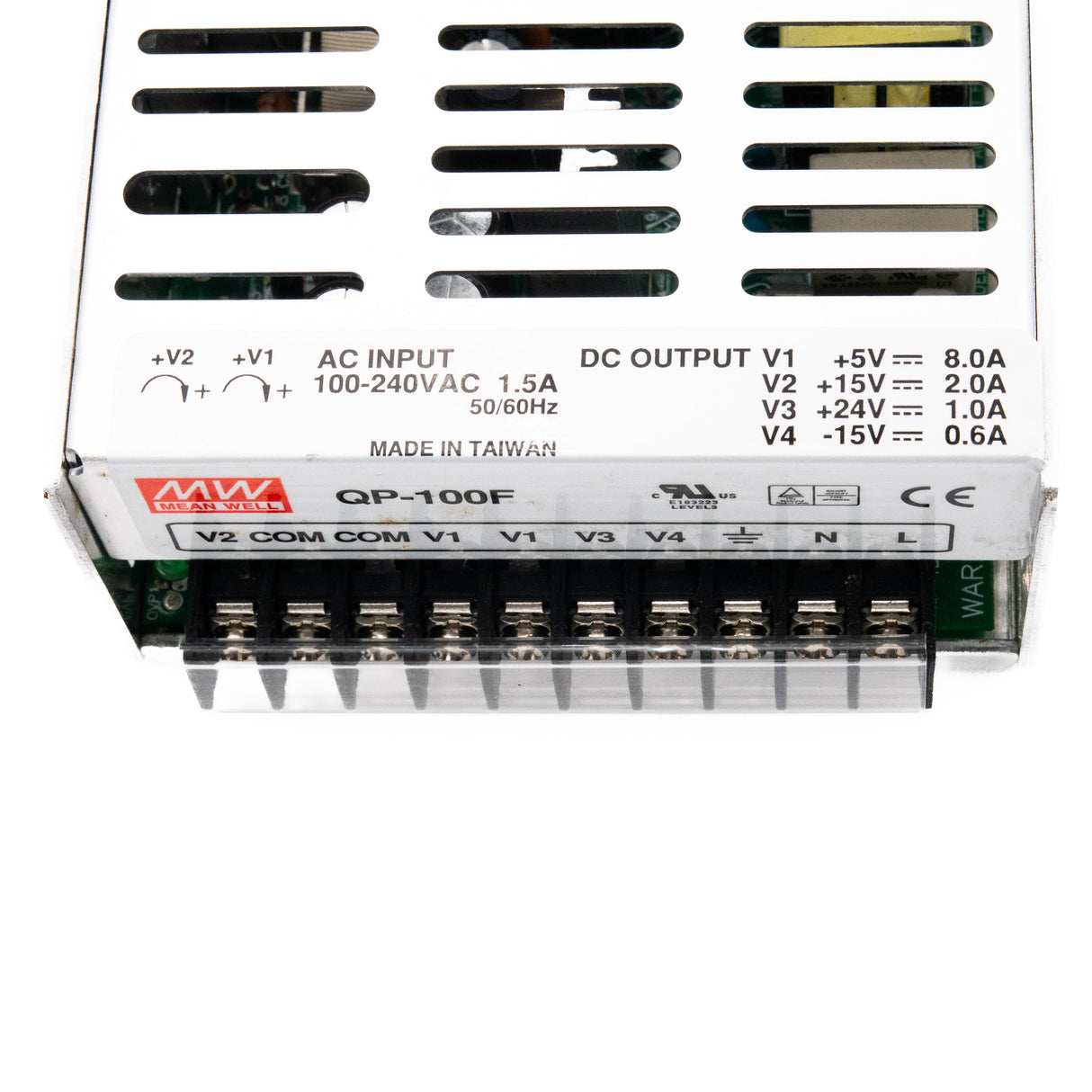

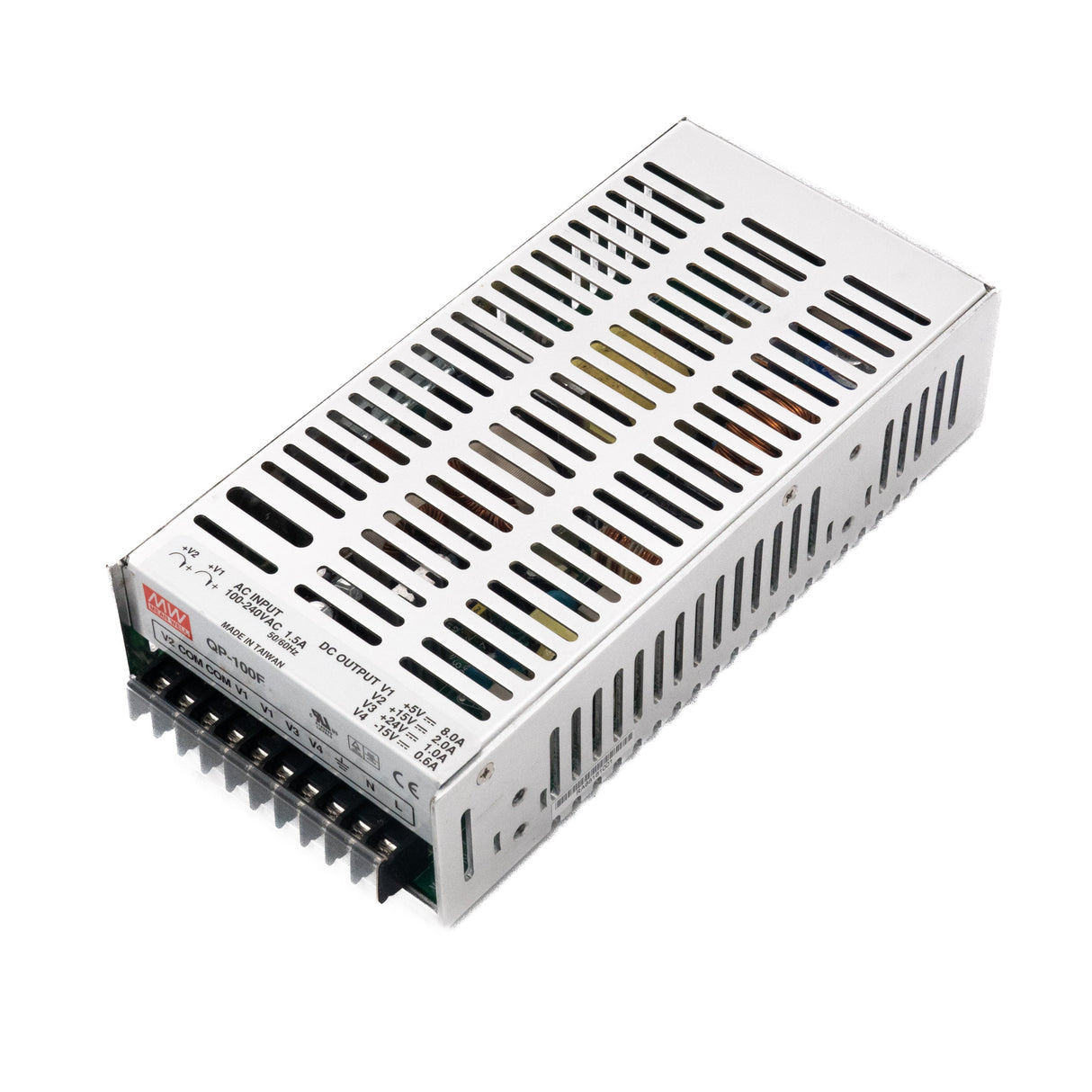

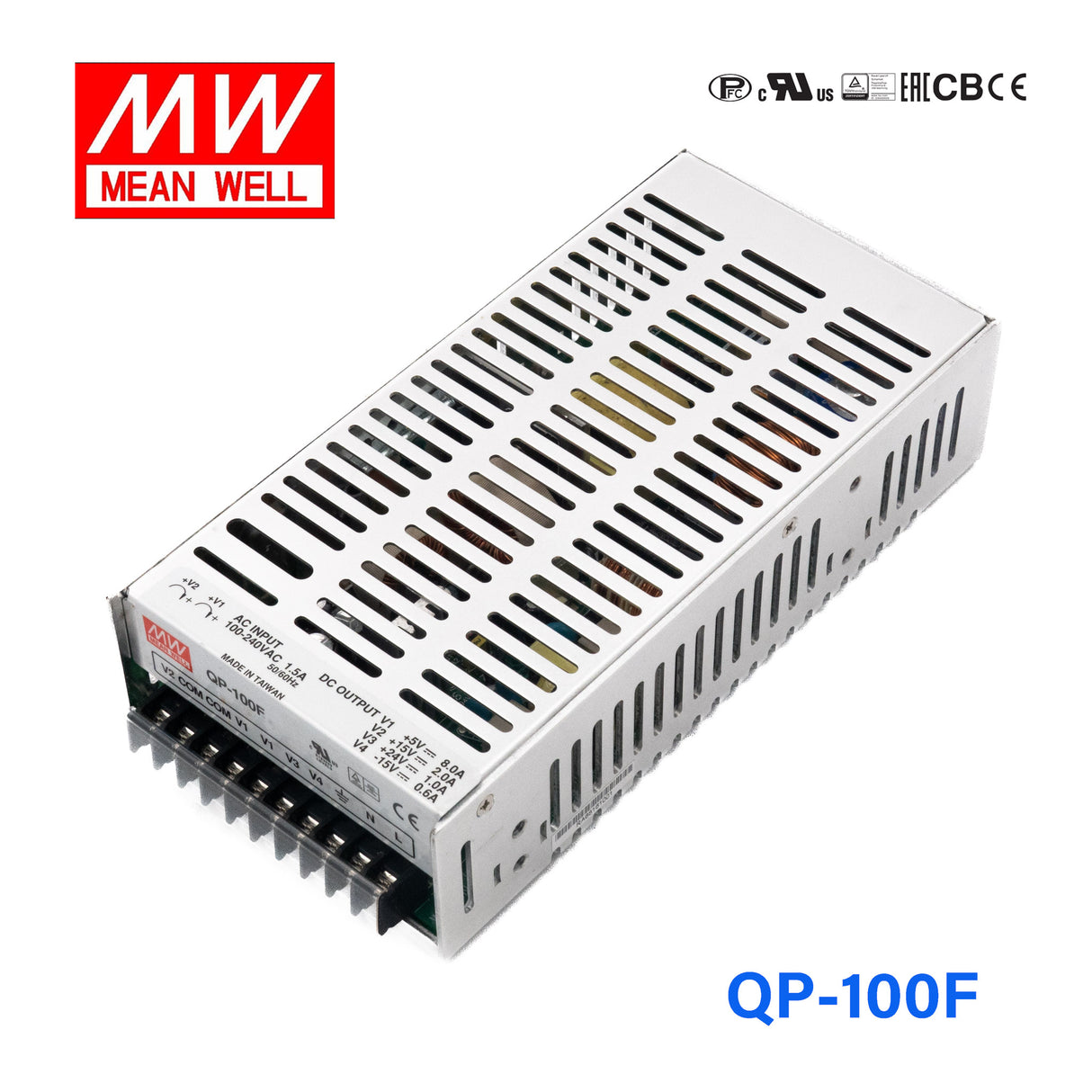

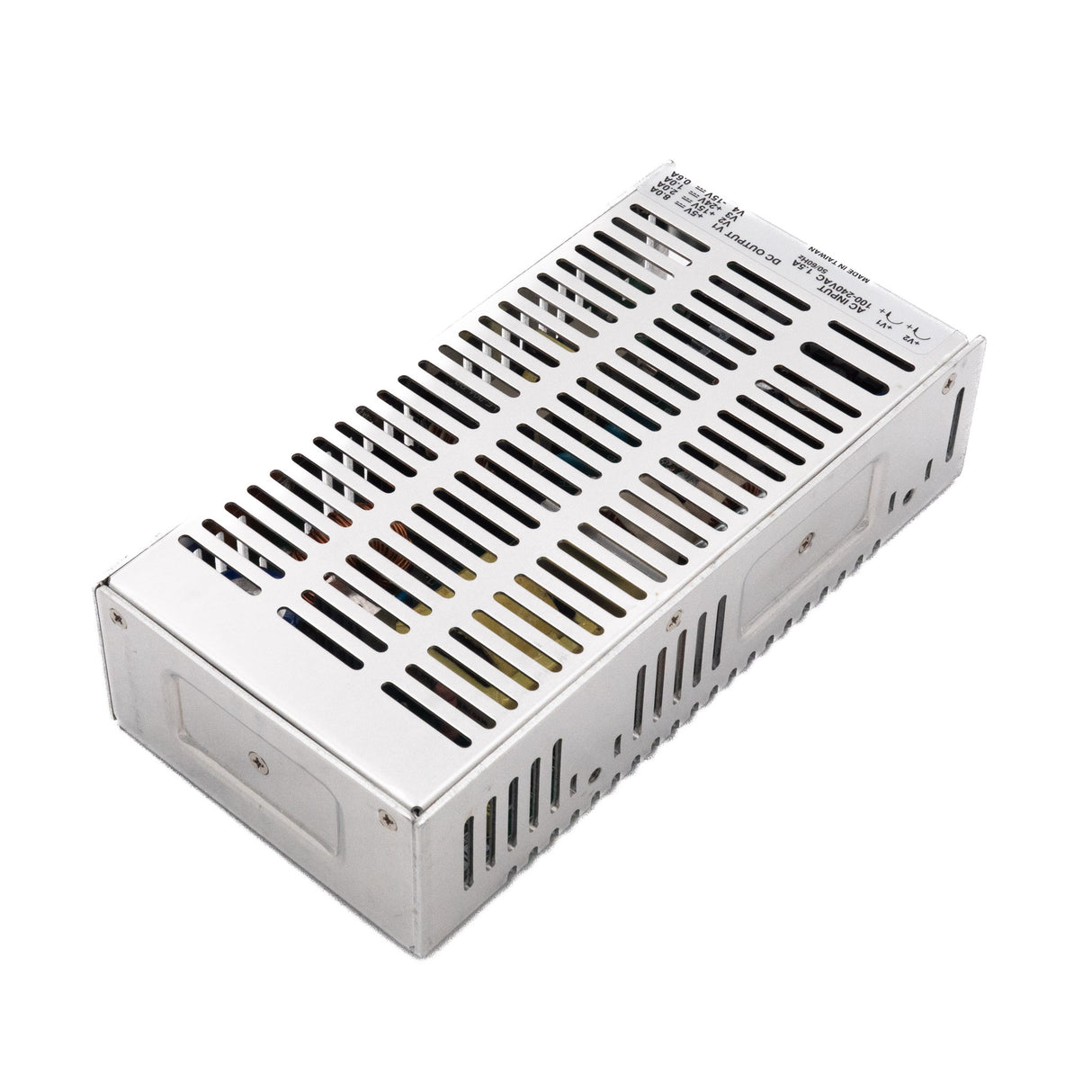

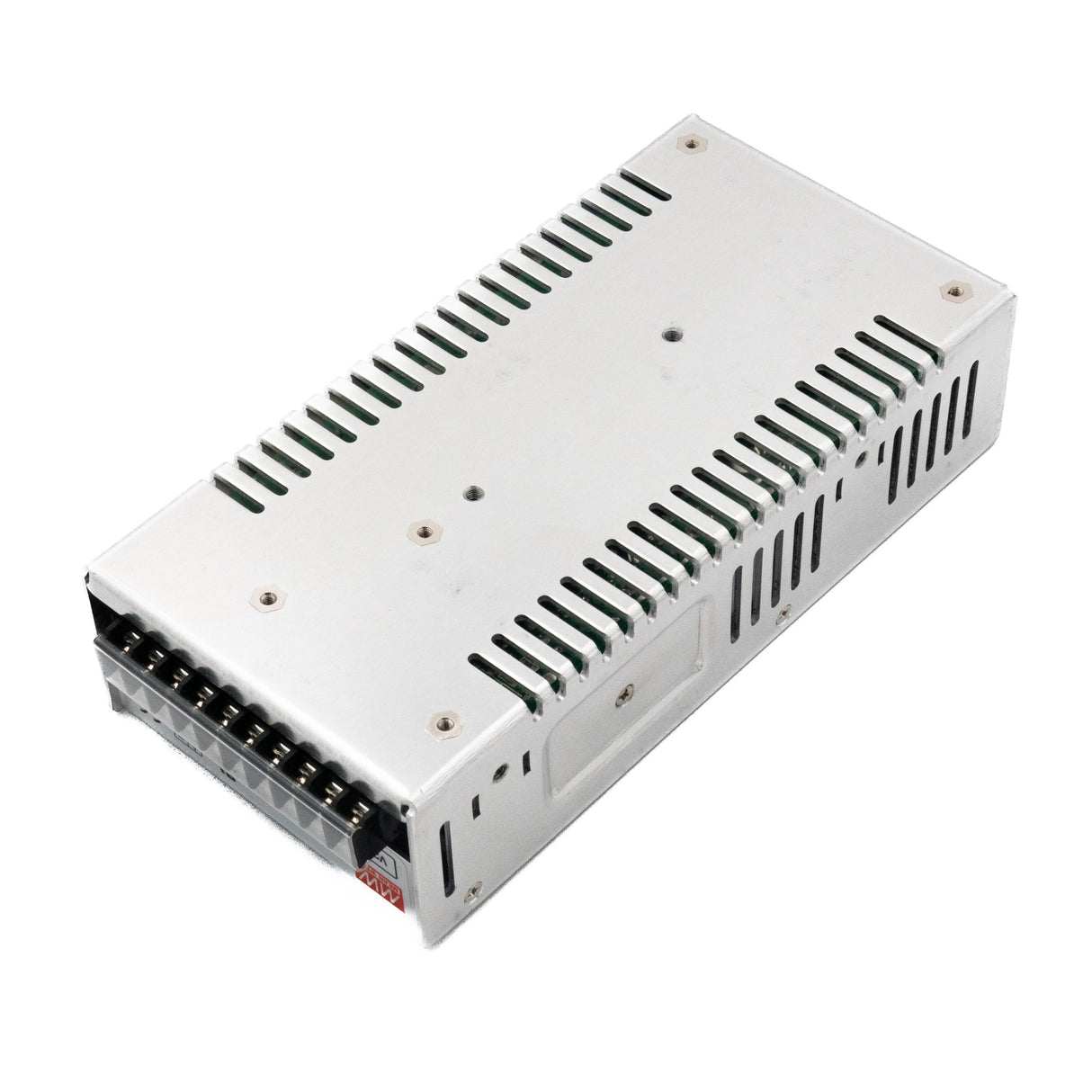

Mean Well QP-100F AC-DC Quad output enclosed power supply 100W
Please Login for Pricing
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| Built-in active PFC function, PF>0.95 |
| Universal AC input/Full range |
| Cooling by free air convection |
| High operating temperature up to 60°C |
| CH4: ±Polarity is selectable |
| Fixed switching frequency at 100KHz |
| High efficiency, long life and high reliability |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC, 127~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1, CH2 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -10~+60°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 199x 99x 50 |
| Case No. | 916A |
| Packing | 20pcs /18.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesQP Series
-
Power Rating100 Watt
-
Output Voltage-15 Volt
-
Rated Current0.6 Ampere
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length19.9 cm
-
Width9.9 cm
-
Height5 cm
-
Weight0.87 kg
