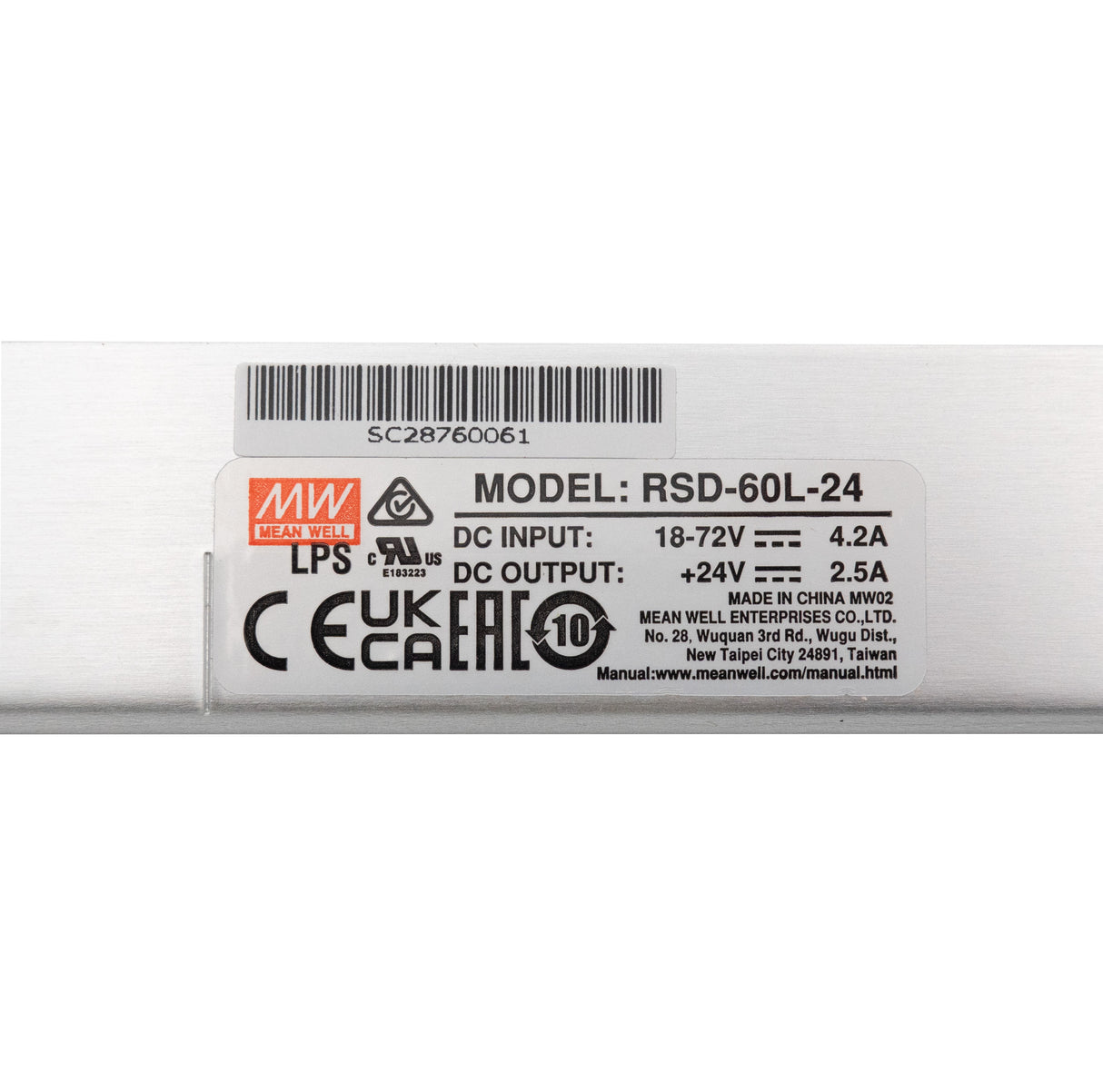

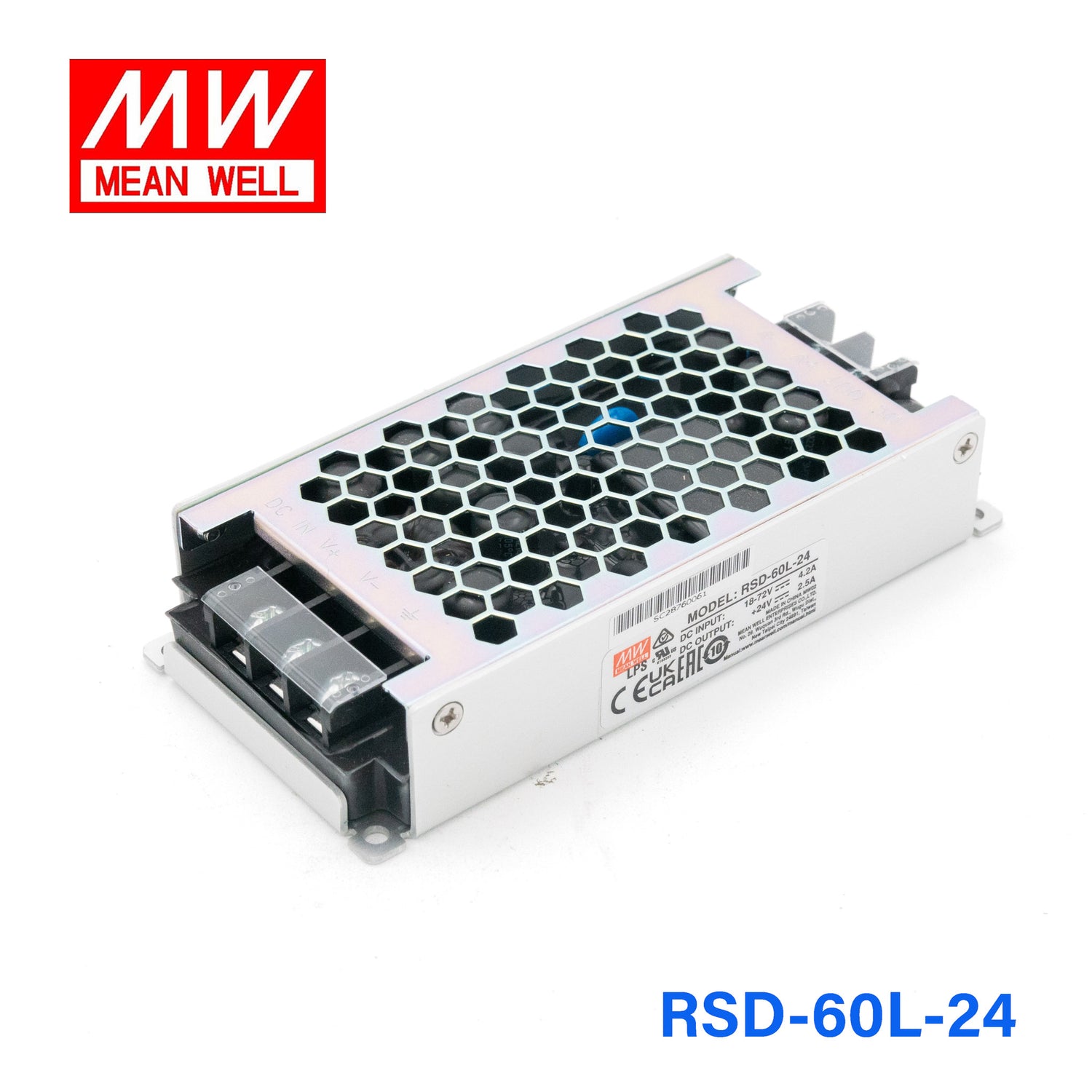

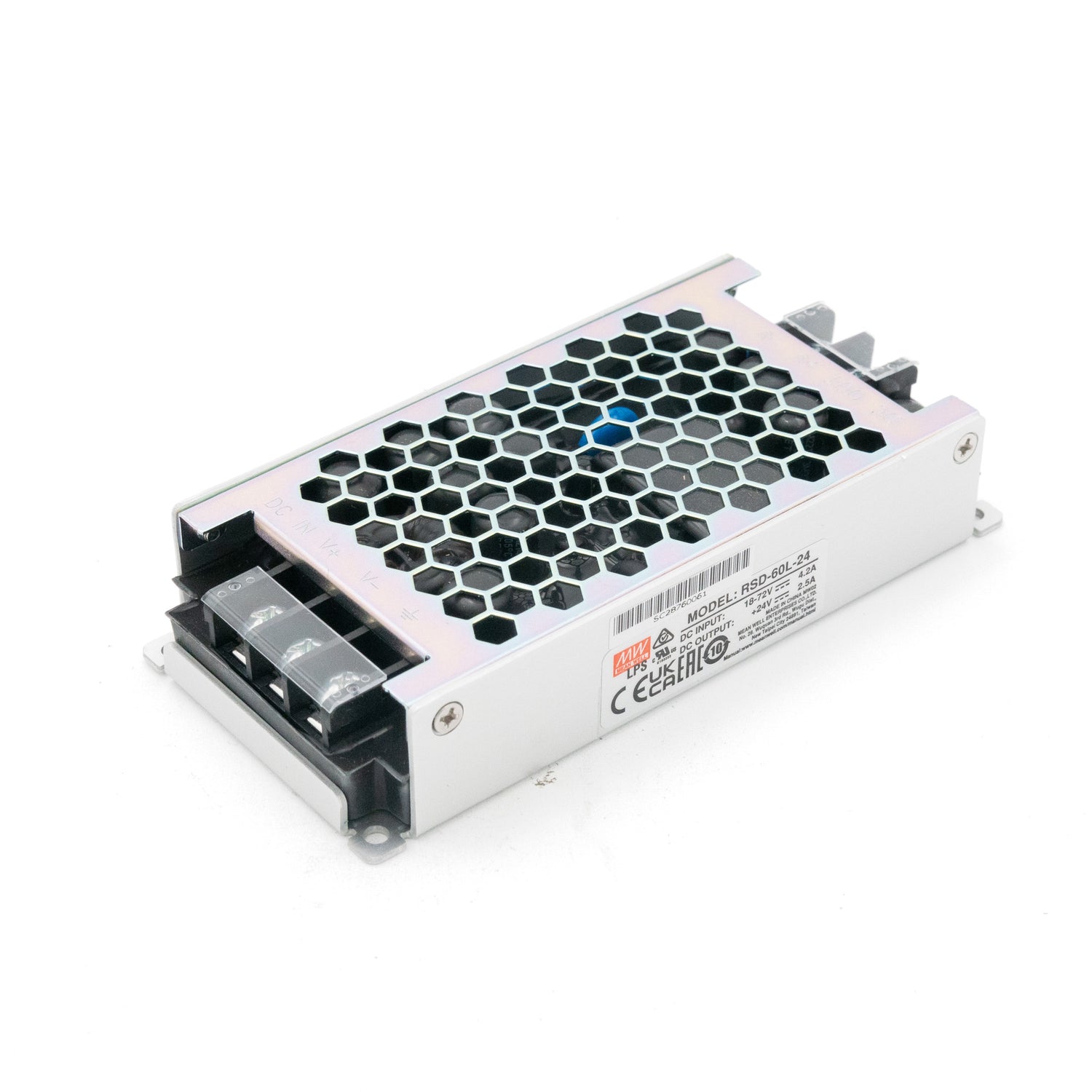

Mean Well RSD-60L-24 DC-DC Converter - 30W - 18~72V in 24V out

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RSD-60L-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard

Ultra compact and 1U low profile(25mm

4:1 wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.

4000VDC I / O isolation

Half encapsulated, cooling by free air convection

-40~+70℃ wide working temperature

The built-in constant current limiting circuit

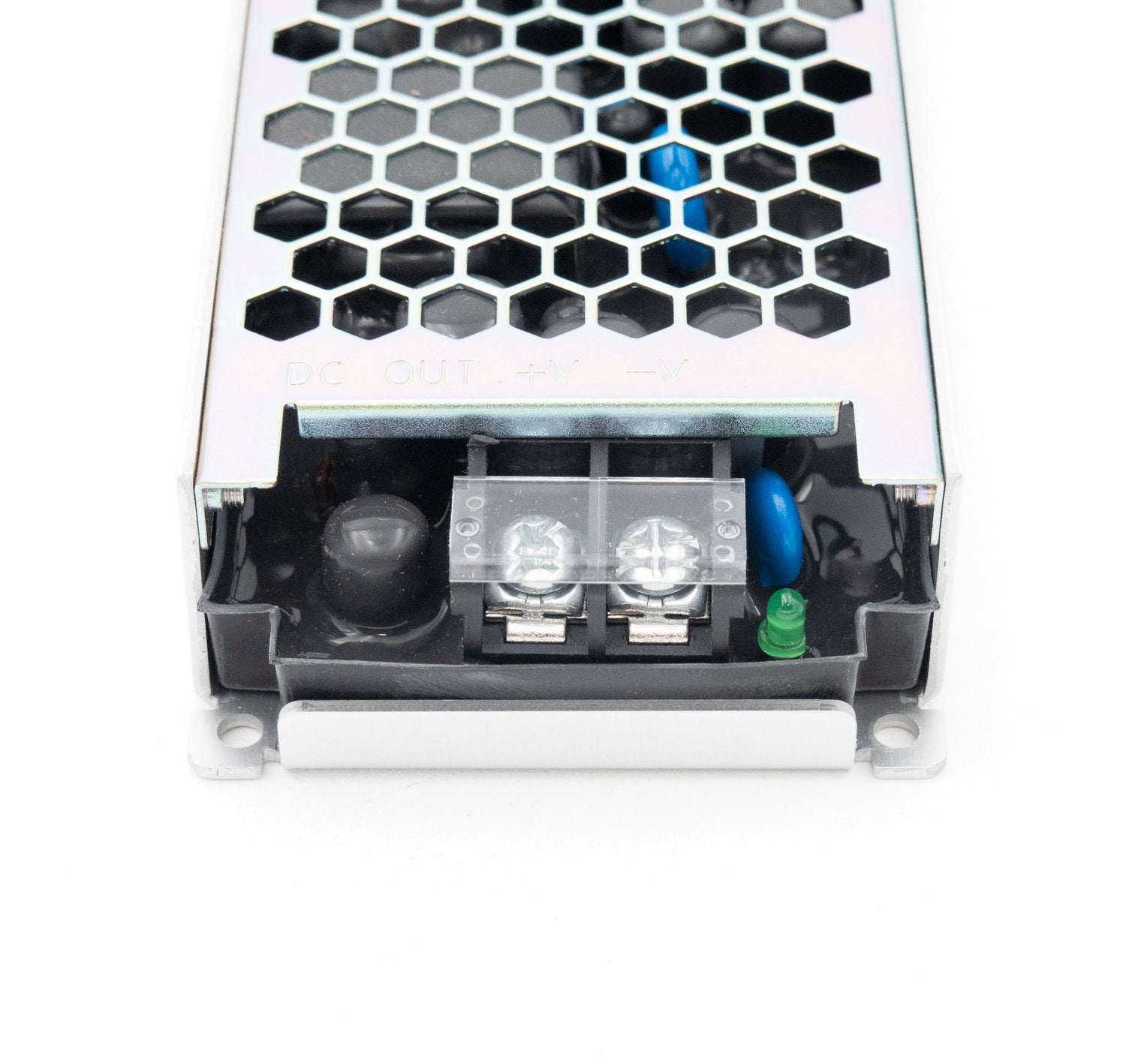

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

Line regulation (max.)	± 0.5%
Load regulation (max.)	± 0.5%
Overload protection Range	105% ~ 135%
Overload protection Type	Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection	115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage	I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-40 ~ + 85°C (refer to output derating curve)
Safety standards	IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard	EN50155 / IEC60571
Dimension (LxWxH) (mm)	128 x 60 x 25mm
Packing	0.29Kg; 48pcs/14.9Kg/0.75CUFT

Specifications

Brand

Mean Well
Series

RSD Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

2.5 Ampere
Input Voltage

18V~72V
Standards Met

CB,CE,EAC,EMC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

12.8 cm
Width

6 cm
Height

2.5 cm
Weight

0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RSD-60L-24 for 24V sensors, actuators, or industrial control hardware?

This converter provides a constant 24V output at up to 2.5A, with a total rating of 30W. It is suitable for 24V automation loads when the required power stays within 30W and the source is within the specified 18-72VAC input range.

Is the RSD-60L-24 a fit for 24V telemetry, monitoring, or communications equipment in industrial systems?

It can be used where the load needs regulated 24V constant-voltage power. The output limit is 2.5A at 24V, so the application needs to remain within the 30W rating.

Can this model support 24V embedded equipment in transportation or mobile machinery?

The unit is specified to withstand 5G vibration and operate from -40°C to +70°C. Those figures make it relevant for 24V embedded and industrial equipment used in environments with vibration and broad temperature variation.

Is the RSD-60L-24 suitable for indoor panels only, or can it be used outdoors?

The published environmental data includes -40°C to +70°C operation and 5G vibration resistance. No IP rating is provided, so the specs here do not confirm suitability for outdoor, wet, or dust-exposed locations.

What are the differences between the RSD-60L-24 and the other RSD-60L models?

The RSD-60L-24 is rated for 30W and outputs 24V at 2.5A. The other listed RSD-60L versions are RSD-60L-3.3 at 19.8W, 3.3V, 12A; RSD-60L-5 at 30W, 5V, 12A; and RSD-60L-12 at 30W, 12V, 5A.

Model	Power	Voltage	Current	IP Rating
Mean Well RSD-60L-5 DC-DC Converter - 30W - 18~72V in 5V out	30W	5V	12A	Indoor	View
Mean Well RSD-60L-3.3 DC-DC Converter - 19.8W - 18~72V in 3.3V out	19.8W	3.3V	12A	Indoor	View
Mean Well RSD-60L-12 DC-DC Converter - 30W - 18~72V in 12V out	30W	12V	5A	Indoor	View
