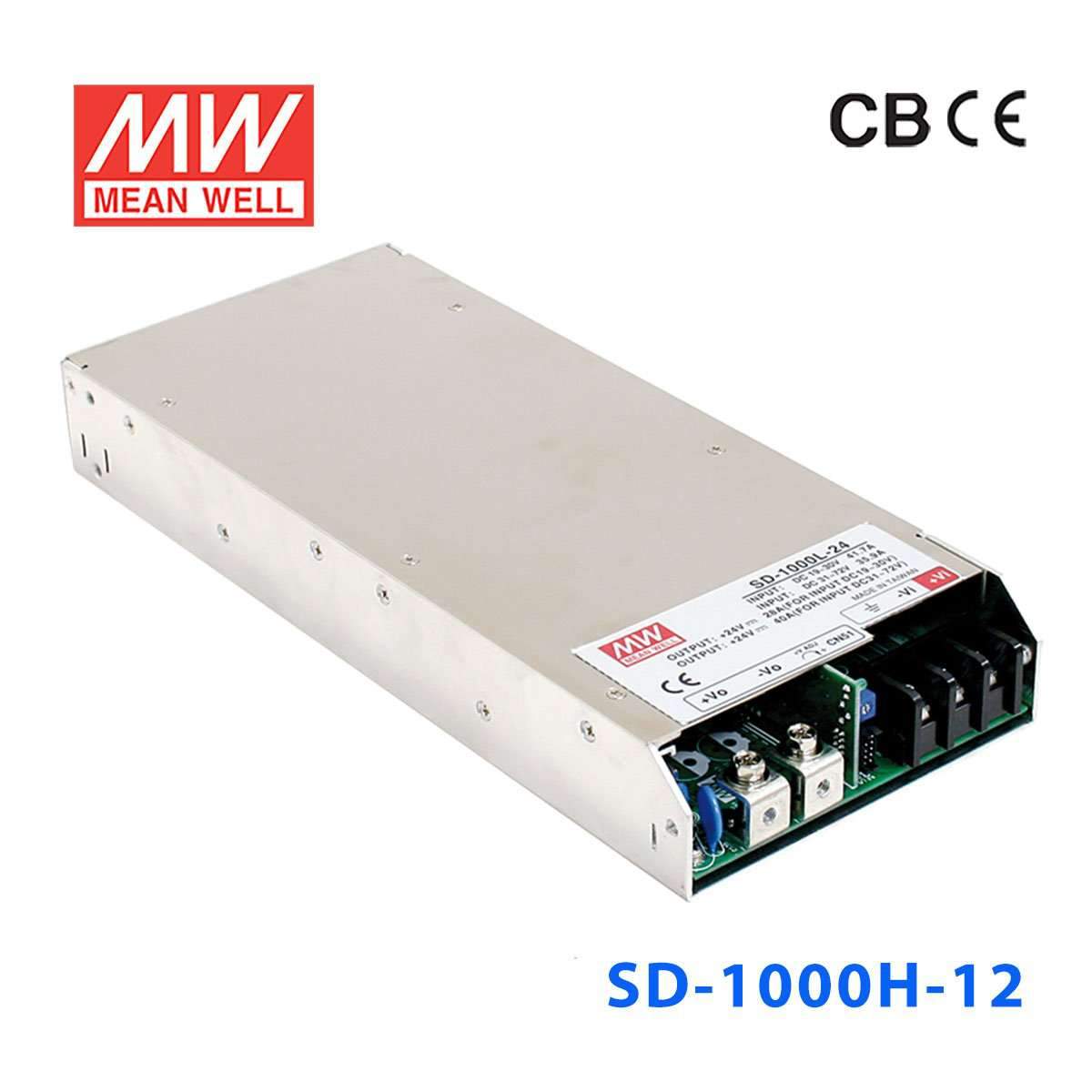

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SD-1000H-12 DC-DC Converter - 720W - 72~144V in 12V out

4:1 wide input range, 1.5~2KVAC isolation by models, 12V/0.25A auxiliary output, built-in remote ON/OFF control and remote sense, 1U low profile

SKU:

SD-1000H-12

Please for Pricing

Notify me when it's back in stock

Description

Features : 1U low profile 41mm · High power density 10.7w/inch3 · 2000VAC I/O Isolation · Protections: Short circuit / Overload / Over voltage / Over temperature · Output OK signal · Built-in remote ON-OFF control · Built-in remote sense function · Forced air cooling by built-in DC fan with fan speed control · 12V, 0.25A auxiliary output · 3 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

720 Watt
Output Voltage

12 Volt
Rated Current

60 Ampere
Input Voltage

72V~144V
Standards Met

EAC,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

3 Year
Length

29.5 cm
Width

12.7 cm
Height

4.1 cm
Weight

1.94 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-1000H-12 to power a 12V industrial control or automation system from a high-voltage DC bus?

Yes, this converter is built for constant-voltage 12V output from a 72-144V input range. With 720W available and up to 60A output current, it fits higher-power 12V industrial control, automation, and auxiliary DC loads that need substantial current.

Is the SD-1000H-12 a fit for vehicle, rolling stock, or mobile equipment electronics that use a 72-144V source?

It can be a fit where the source voltage falls within the 72-144V input range and the load requires a regulated 12V output. The available 720W and 60A output support heavier 12V electronics than low-power converters.

Can this model support 12V communication, monitoring, or computing loads in an IT or industrial rack?

Yes, the 1U low-profile format and 12V constant-voltage output make it relevant for rack or cabinet-based DC power conversion. Its 720W rating, 60A output, and built-in remote ON/OFF control and remote sense are useful where the 12V load is concentrated in enclosed equipment.

What is the difference between the SD-1000H-12 and the other SD-1000H or SD-1000L versions?

In this output class, SD-1000H-12 and SD-1000L-12 are 720W models with 12V at 60A, SD-1000H-24 and SD-1000L-24 are 960W models with 24V at 40A, and SD-1000H-48 and SD-1000L-48 are 1008W models with 48V at 21A. The H version shown here has a 72-144V input range, while the L versions in this family are listed separately.

Can the SD-1000H-12 be used outdoors or in wide-temperature industrial environments?

The listed operating temperature range is -20°C to +60°C, so the temperature window is intended for industrial environments within that range. No IP rating is shown on this page, so the specs here do not indicate outdoor or washdown protection.
