Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

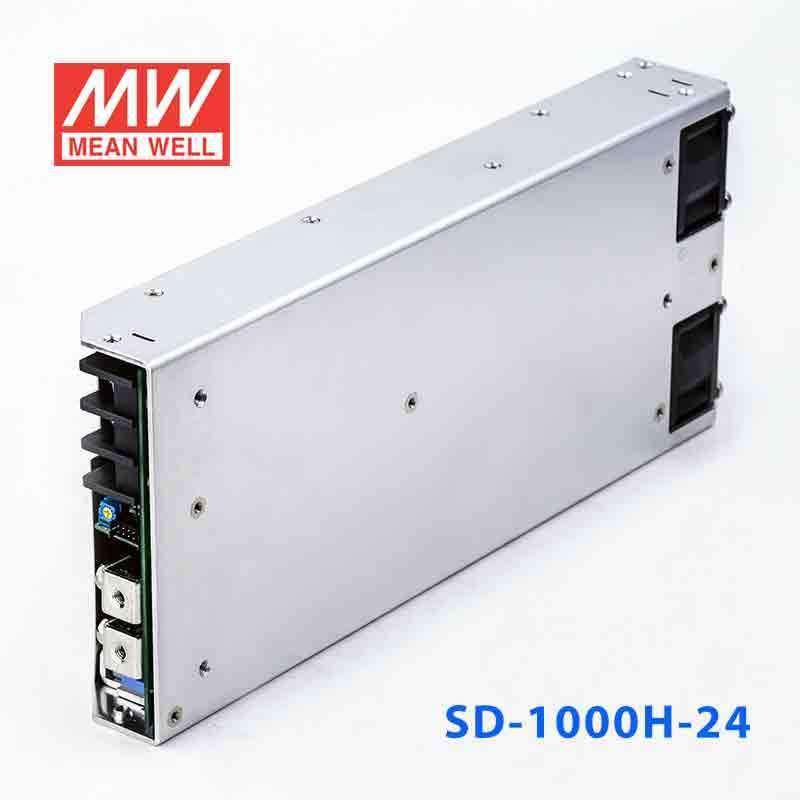

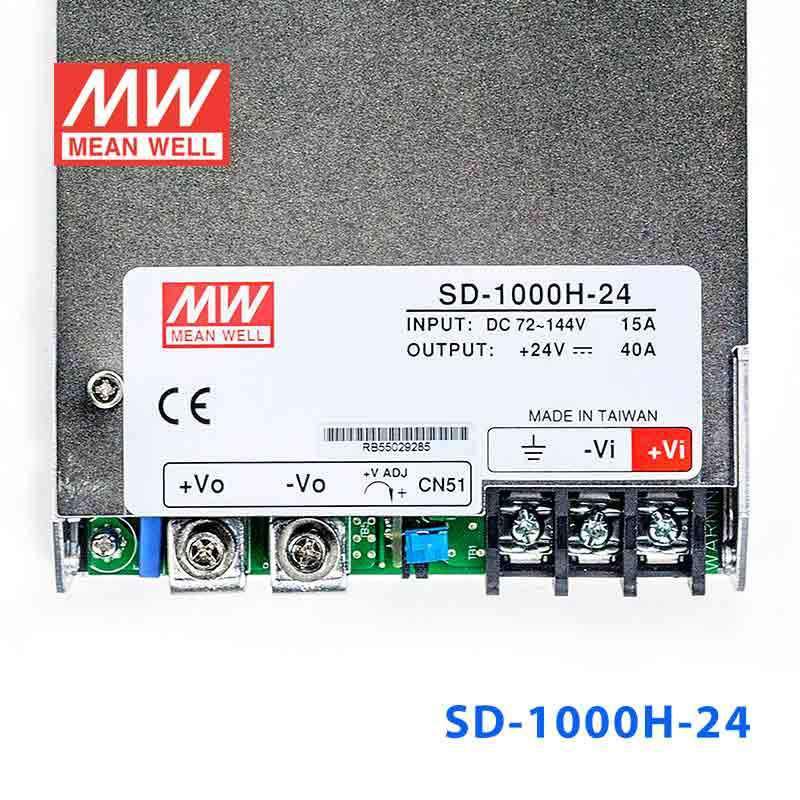

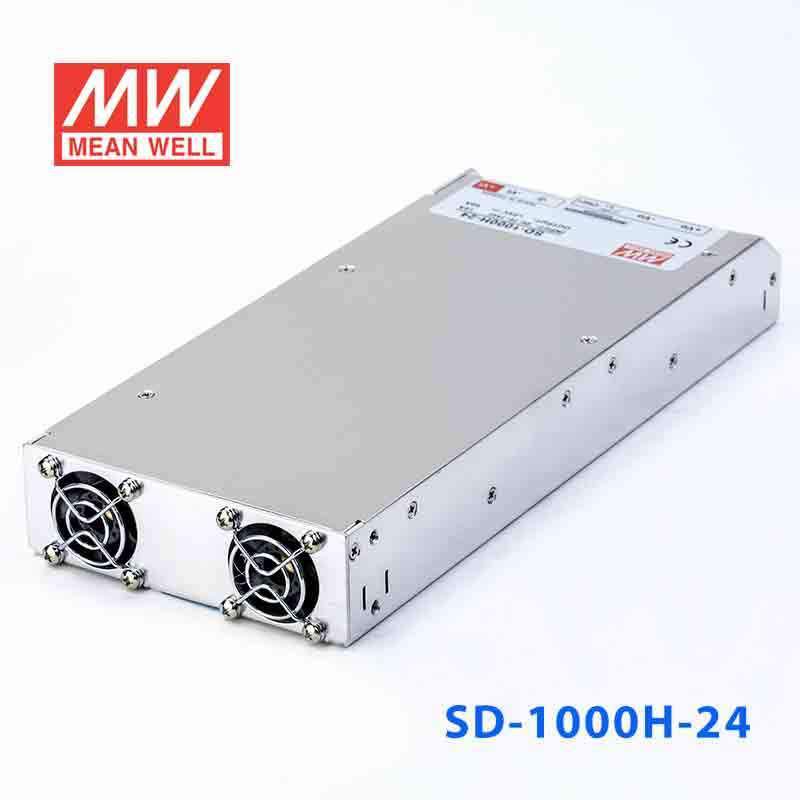

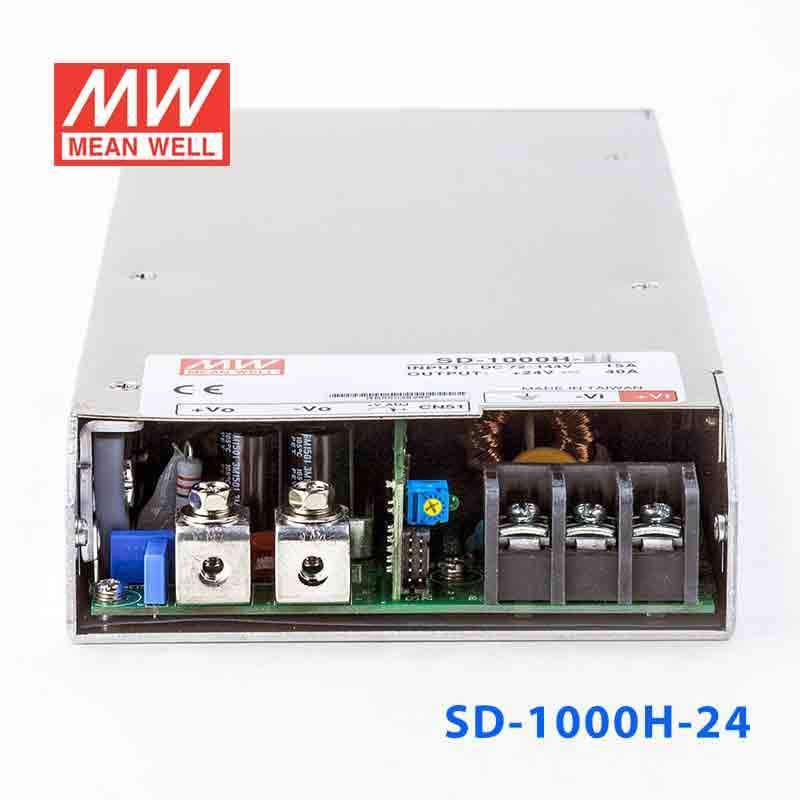

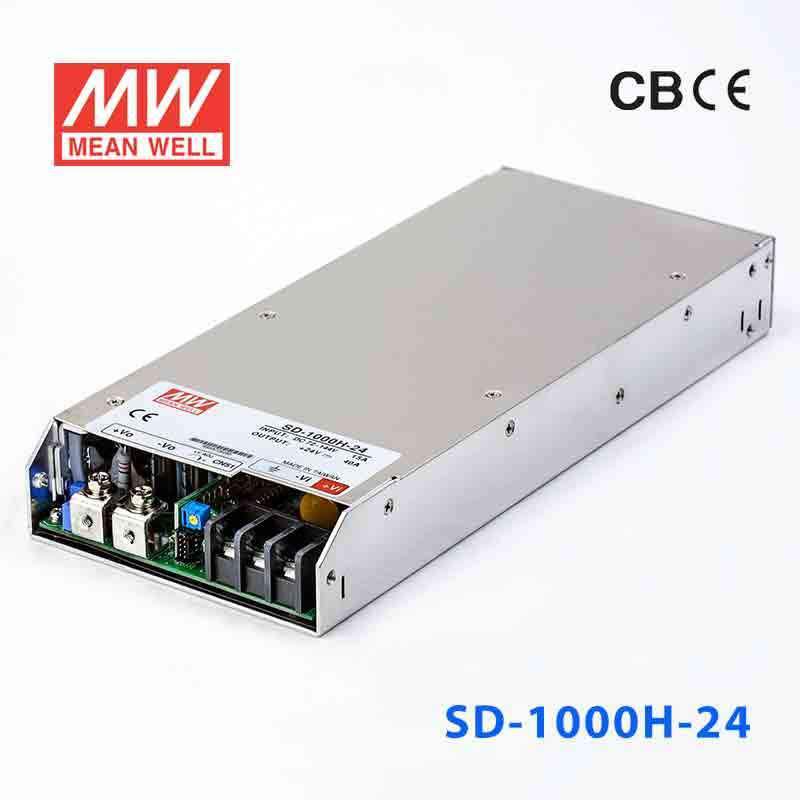

Mean Well SD-1000H-24 DC-DC Converter - 980W - 72~144V in 24V out

4:1 wide input range, 1.5~2KVAC isolation by models, 12V/0.25A auxiliary output, built-in remote ON/OFF control and remote sense, 1U low profile

SKU:

SD-1000H-24

Please for Pricing

Notify me when it's back in stock

Description

Features : 1U low profile 41mm · High power density 10.7w/inch3 · 2000VAC I/O Isolation · Protections: Short circuit / Overload / Over voltage / Over temperature · Output OK signal · Built-in remote ON-OFF control · Built-in remote sense function · Forced air cooling by built-in DC fan with fan speed control · 12V, 0.25A auxiliary output · 3 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

960 Watt
Output Voltage

24 Volt
Rated Current

40 Ampere
Input Voltage

72V~144V
Standards Met

EAC,TUV
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

3 Year
Length

29.5 cm
Width

12.7 cm
Height

4.1 cm
Weight

1.94 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-1000H-24 for 24V PLC, relay, and automation equipment?

Yes, this model provides a constant-voltage 24V output from a 72-144V input range, which fits many industrial automation power architectures. Its 960W rating and 40A output current support substantially larger 24V loads than smaller DC-DC converters.

Is the SD-1000H-24 suitable for powering 24V control panels from a high-voltage DC source?

It is designed for exactly that type of conversion when the source is within 72-144V and the load requires regulated 24V DC. With up to 40A output and a 1U low-profile form factor, it is a practical option for higher-power enclosed panel or rack systems.

Can this converter run 24V industrial networking or embedded systems with remote monitoring needs?

It can fit 24V industrial or embedded equipment where the total demand stays within 960W and 40A. The built-in remote ON/OFF control, remote sense, and 12V/0.25A auxiliary output are relevant in monitored equipment platforms.

How does the SD-1000H-24 compare with the other 1000-series DC-DC models?

Among the listed high-power siblings, SD-1000H-12 and SD-1000L-12 are 720W models at 12V and 60A, SD-1000H-24 and SD-1000L-24 are 960W models at 24V and 40A, and SD-1000H-48 and SD-1000L-48 are 1008W models at 48V and 21A. This SD-1000H-24 version specifically combines a 72-144V input range with a 24V, 40A output.

Is the SD-1000H-24 rated for outdoor use or temperature extremes?

The specified operating temperature range is -20°C to +60°C. No IP rating is listed, so the product data here supports temperature evaluation but does not state outdoor enclosure protection.
