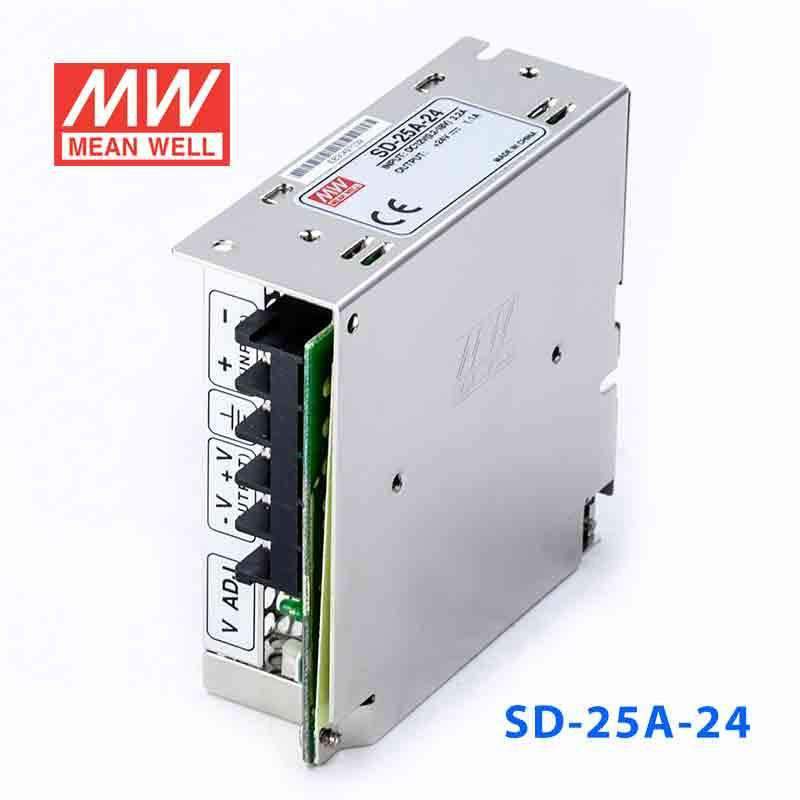

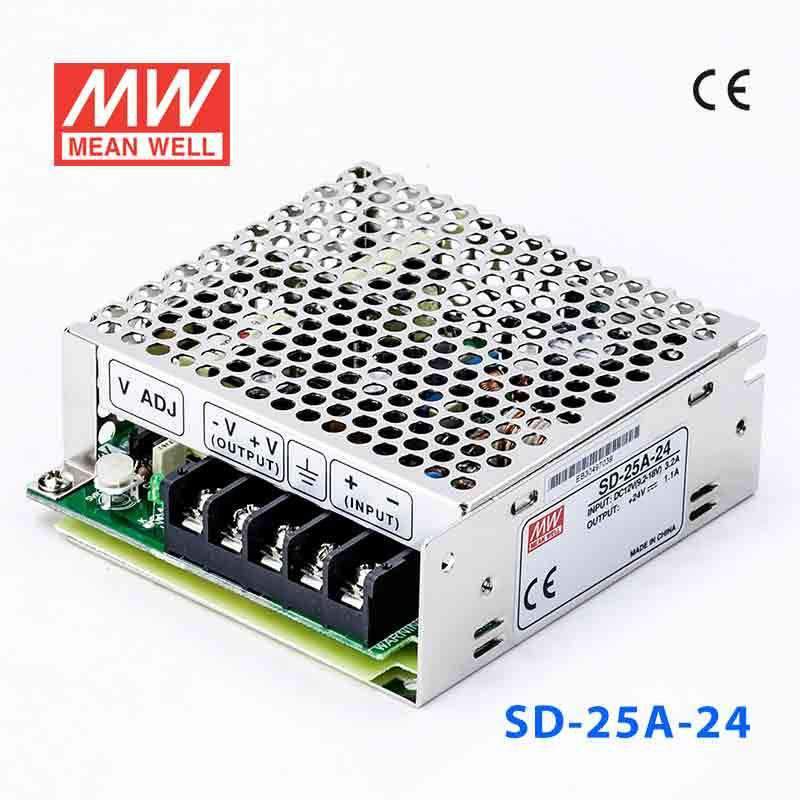

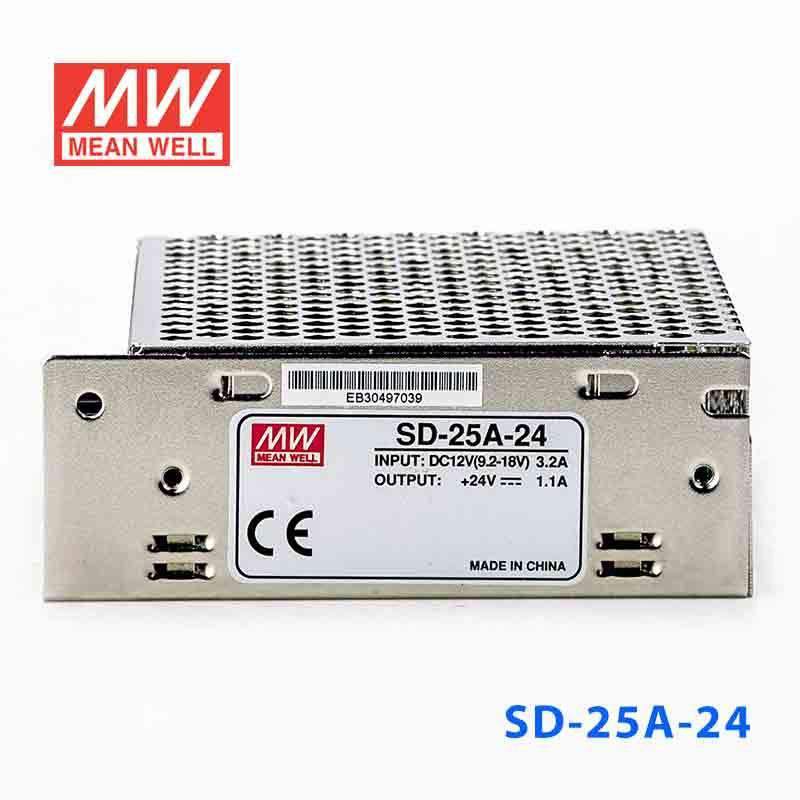

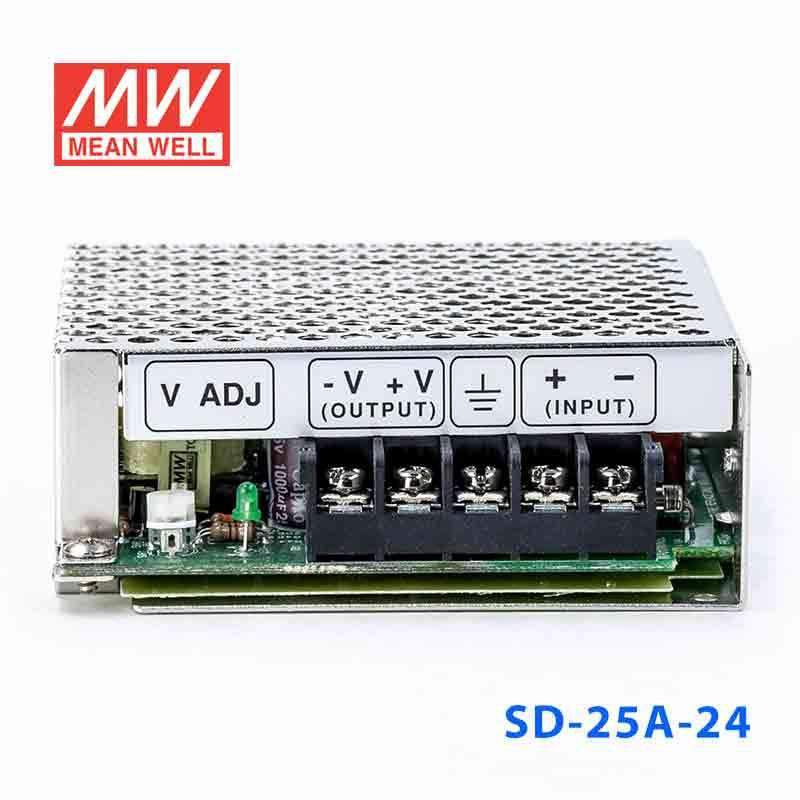

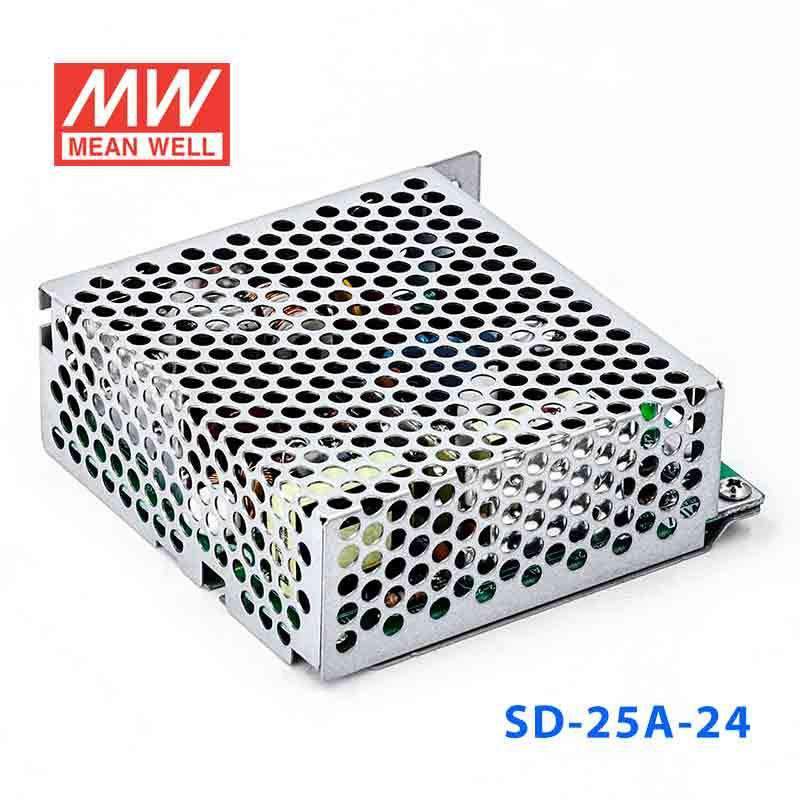

Mean Well SD-25A-24 DC-DC Converter - 25W - 9.2~18V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-25A-24

Please for Pricing

Notify me when it's back in stock

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage

· 1500VAC I/O isolation

· Built-in EMI filter, low ripple noise

· 100% full load burn-in test

· Fixed switching frequency at 83KHz

· Low cost

· High reliability

2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

26.4 Watt
Output Voltage

24 Volt
Rated Current

1.1 Ampere
Input Voltage

9.2V~18V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-25A-24 for a low-power 24V automation device?

It can be used for a 24V constant-voltage automation load that stays within 1.1A and 26.4W. The listed input range is 9-18VAC.

Is the SD-25A-24 suitable for 24V industrial sensors or transmitters?

Yes, if the 24V sensor or transmitter requires constant-voltage power and draws no more than 1.1A. The converter is rated for 26.4W output.

Can this converter power a 24V embedded control module?

It is appropriate for a 24V embedded control module when the load remains at or below 1.1A and 26.4W. It is designed as a constant-voltage unit with 9-18VAC input.

How does the SD-25A-24 compare with the other SD-25A output options?

The SD-25A family includes SD-25A-12 at 25.2W, 12V, 2.1A; SD-25A-24 at 26.4W, 24V, 1.1A; and SD-25A-5 at 25W, 5V, 5A. They share the same listed 9-18VAC input range, with the output rating changing by model.

Is the SD-25A-24 rated for outdoor environments?

The specs show an operating temperature range of -10°C to +60°C, but no IP rating is provided. That supports temperature planning, but it does not confirm outdoor or moisture-resistant use.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-25A-5 DC-DC Converter - 25W - 9.2~18V in 5V out	25W	5V	5A	Indoor	View
Mean Well SD-25A-12 DC-DC Converter - 25W - 9.2~18V in 12V out	25.2W	12V	2.1A	Indoor	View
