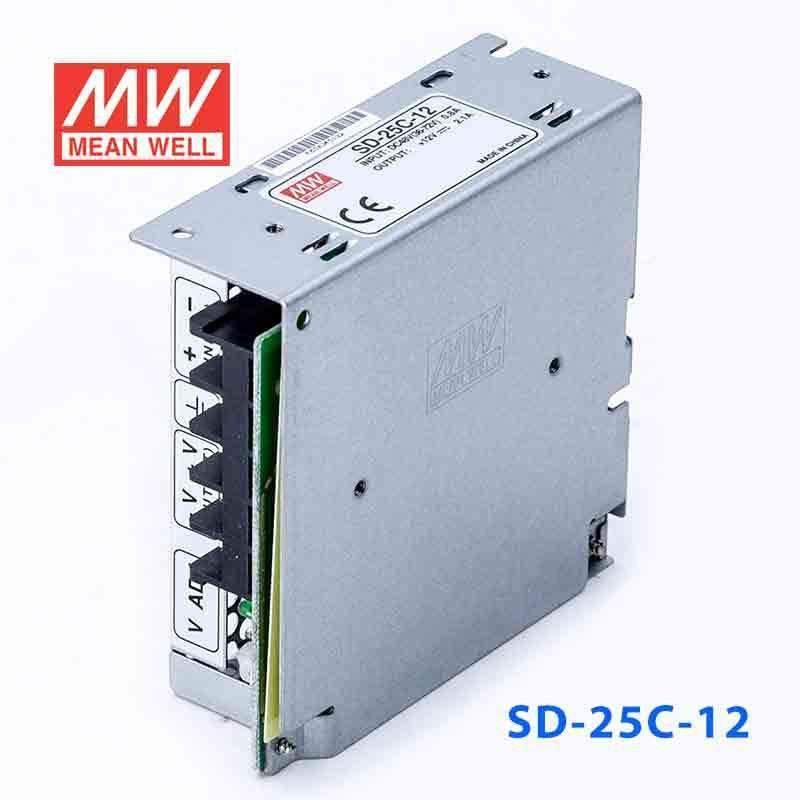

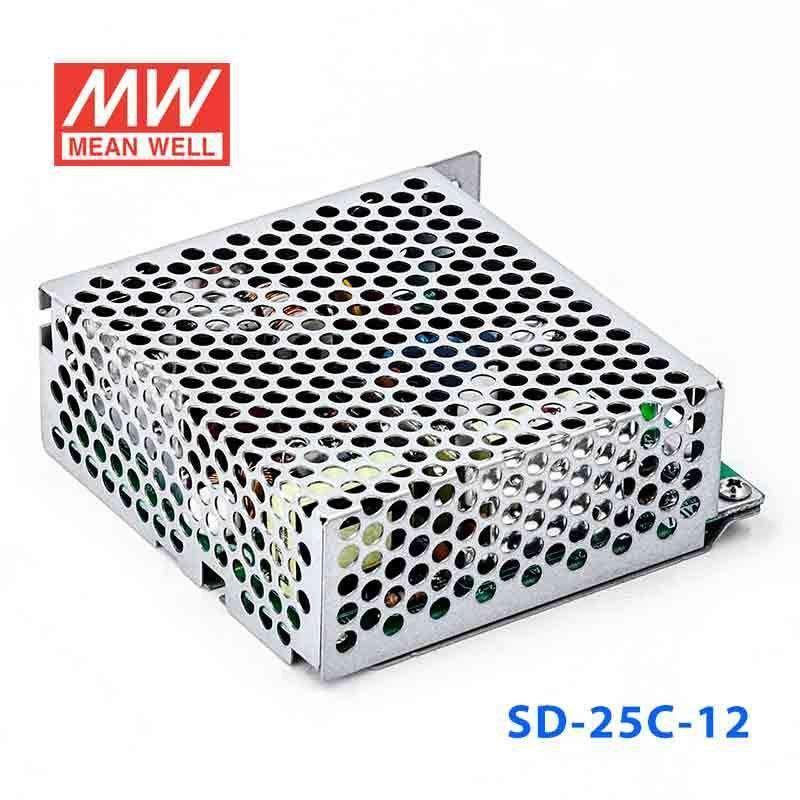

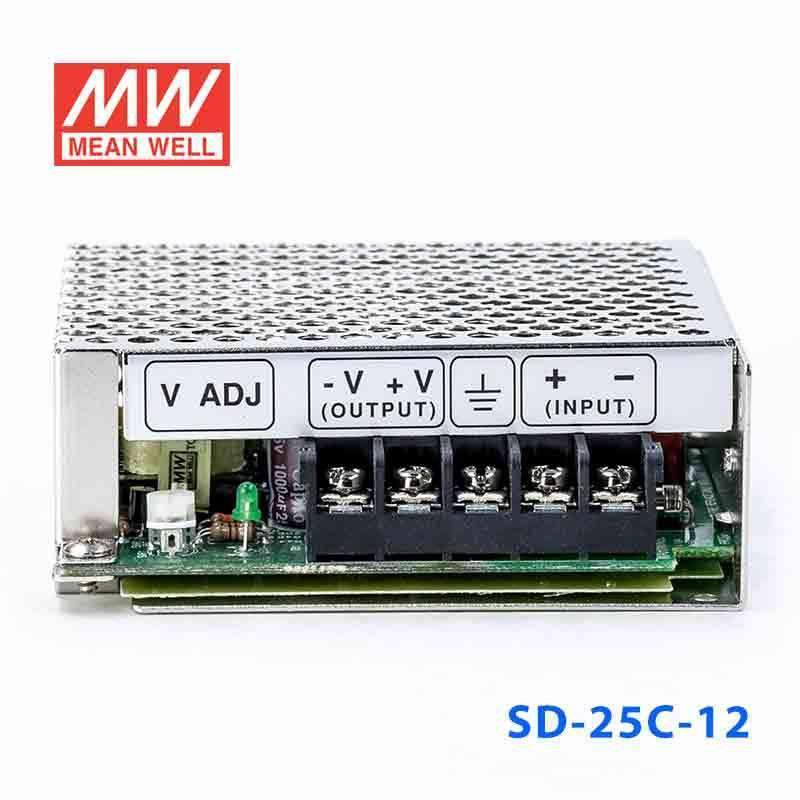

Mean Well SD-25C-12 DC-DC Converter - 25W - 36~72V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-25C-12

Please for Pricing

Notify me when it's back in stock

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage

· 1500VAC I/O isolation

· Built-in EMI filter, low ripple noise

· 100% full load burn-in test

· Fixed switching frequency at 83KHz

· Low cost

· High reliability

2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

25.2 Watt
Output Voltage

12 Volt
Rated Current

2.1 Ampere
Input Voltage

36V~72V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-25C-12 to run a small 12V control device from a 36-72V source?

Yes, it is built for applications where the input stays within 36-72V and the load needs 12V constant voltage output. The available output is 2.1A and 25.2W, so it fits smaller 12V control and embedded loads rather than heavier 12V equipment.

Is the SD-25C-12 suitable for 12V relays, sensors, or alarm/control electronics in industrial systems?

It can support low-power 12V electronics as long as the total demand stays within 2.1A and 25.2W. That makes it appropriate for compact industrial control, signaling, or embedded support circuits that need regulated 12V output.

Can this converter power a small 12V fan or accessory in a telecom or automation cabinet?

It can be used for smaller 12V loads when the source voltage is within 36-72V and the load stays under 2.1A. The 25.2W output rating means it is intended for lighter-duty 12V accessories, not high-draw 12V devices.

How does the SD-25C-12 compare with the other SD-25C models?

The SD-25C family includes SD-25C-5 at 25W, 5V, 5A; SD-25C-12 at 25.2W, 12V, 2.1A; and SD-25C-24 at 26.4W, 24V, 1.1A. These models share the same 36-72V input range and differ by output voltage, current, and rated power.

Is the SD-25C-12 rated for outdoor conditions?

No IP rating is provided in the listed specs, so the product data does not support treating it as an outdoor-rated converter. The specified operating temperature range is -10°C to +60°C, which points to use in protected environments that remain within that temperature span.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-25C-5 DC-DC Converter - 25W - 36~72V in 5V out	25W	5V	5A	Indoor	View
Mean Well SD-25C-24 DC-DC Converter - 25W - 36~72V in 24V out	26.4W	24V	1.1A	Indoor	View
