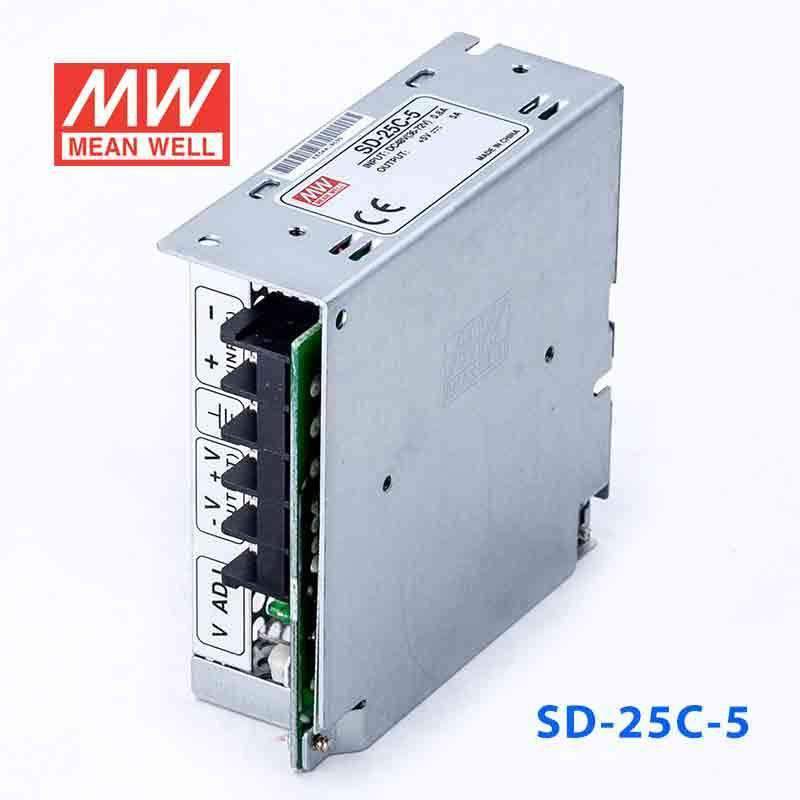

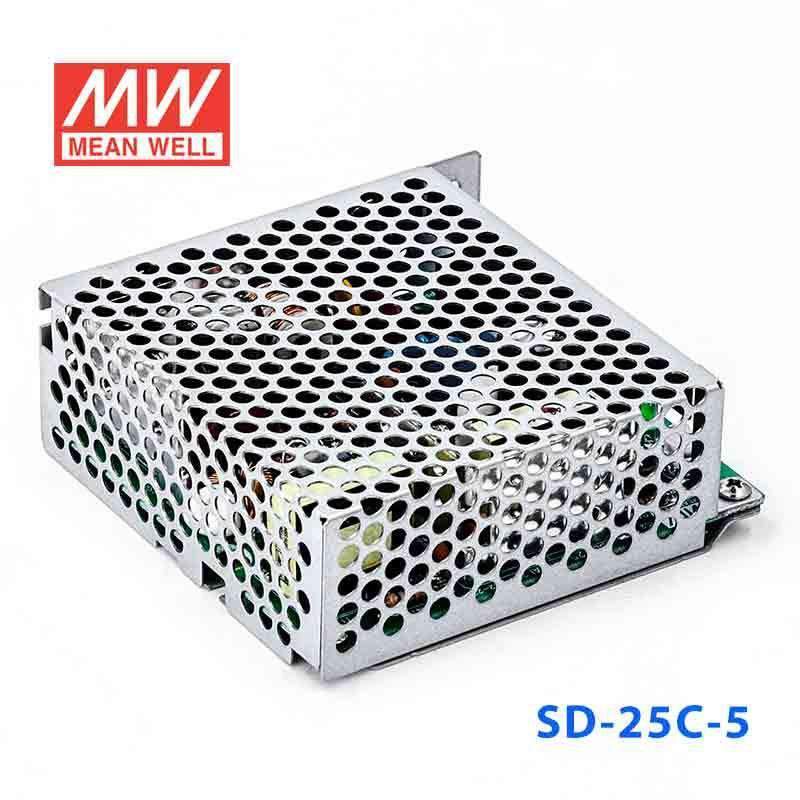

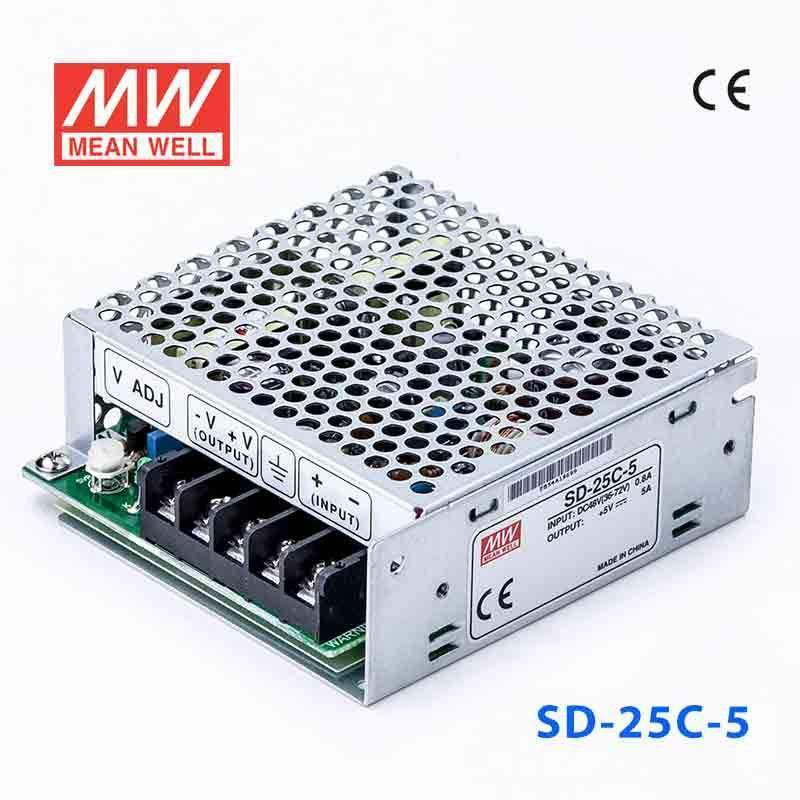

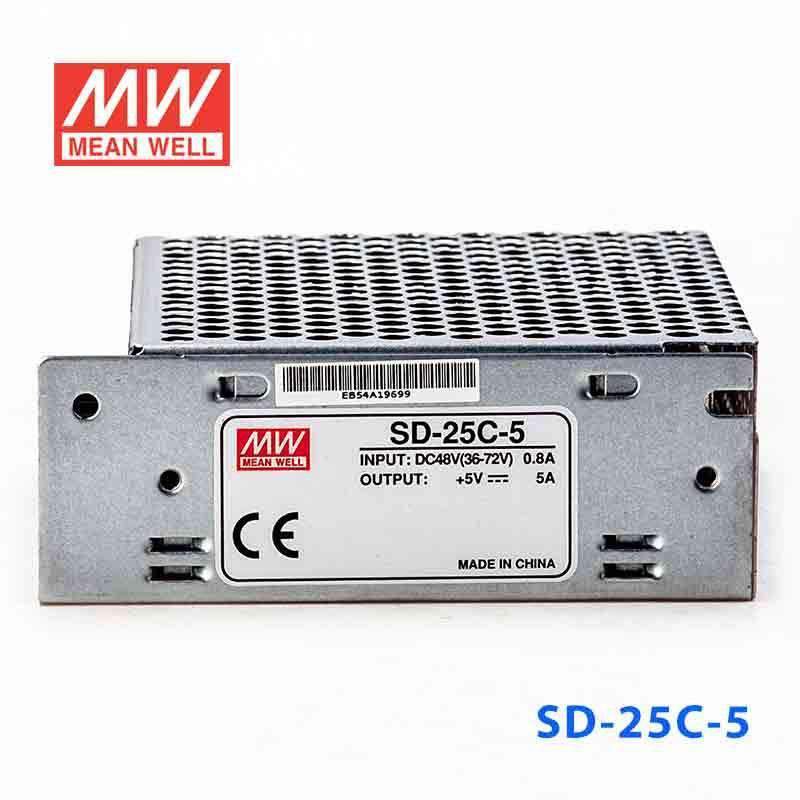

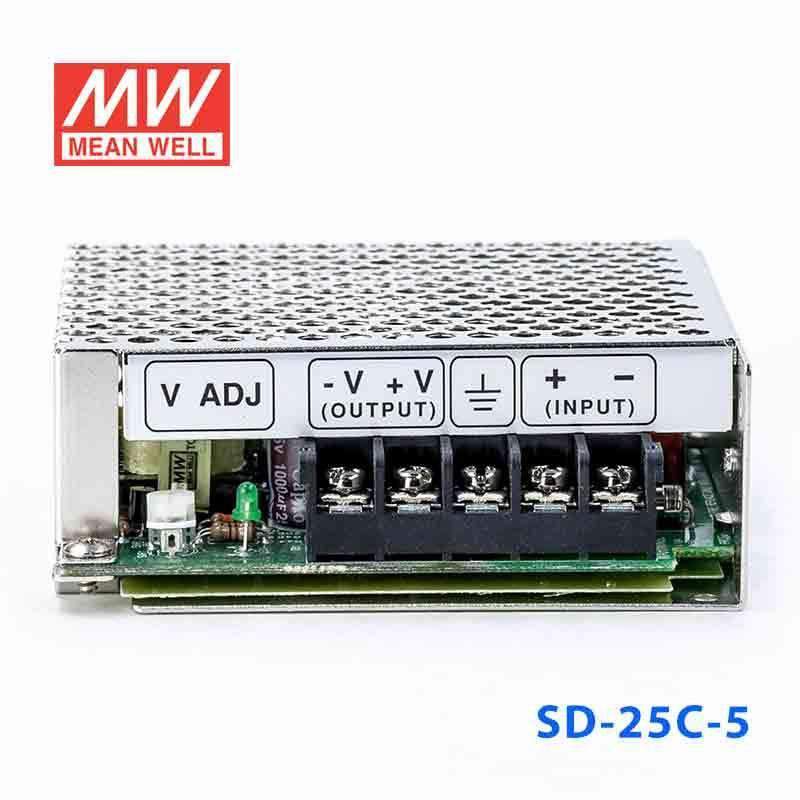

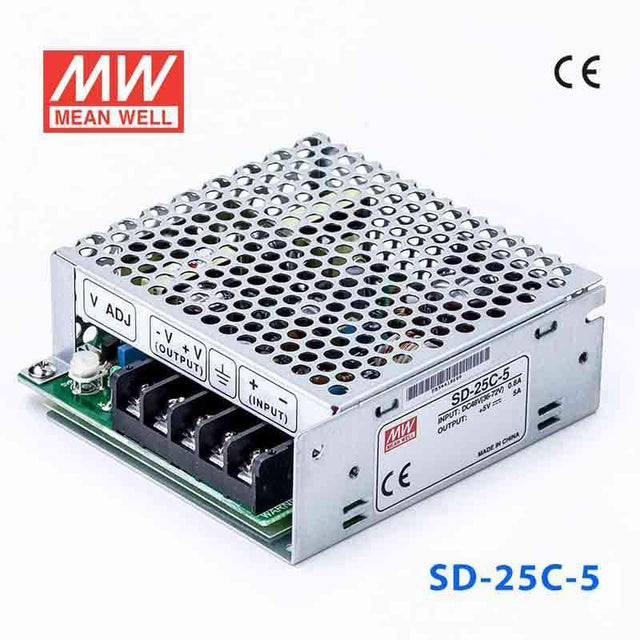

Mean Well SD-25C-5 DC-DC Converter - 25W - 36~72V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-25C-5

Please for Pricing

Notify me when it's back in stock

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage

· 1500VAC I/O isolation

· Built-in EMI filter, low ripple noise

· 100% full load burn-in test

· Fixed switching frequency at 83KHz

· Low cost

· High reliability

2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

25 Watt
Output Voltage

5 Volt
Rated Current

5 Ampere
Input Voltage

36V~72V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-25C-5 to power 5V industrial logic or embedded electronics from a 36-72V source?

Yes, it provides 5V constant voltage output with up to 5A and 25W available. That makes it suitable for compact 5V control electronics, embedded boards, and similar low-voltage loads when the source is within 36-72V.

Is the SD-25C-5 appropriate for 5V communication modules or monitoring hardware in an automation cabinet?

It can fit those types of applications if the total output demand stays within 5A and 25W. The regulated 5V output is intended for low-power electronics, not larger 5V systems that need more than 25W.

Can this converter be used in telecom or industrial control systems that need a small 5V rail?

It is designed for systems with input voltage in the 36-72V range that need a 5V constant-voltage output. With 25W total output capacity, it suits modest 5V auxiliary electronics and embedded devices.

How does the SD-25C-5 compare with the other SD-25C output options?

In the SD-25C range, SD-25C-5 is rated at 25W, 5V, 5A; SD-25C-12 is 25.2W, 12V, 2.1A; and SD-25C-24 is 26.4W, 24V, 1.1A. All three use the same 36-72V input range and differ by output voltage, current, and wattage.

Is the SD-25C-5 suitable for outdoor equipment or harsh washdown areas?

No IP rating is listed in the available specs, so the published data does not indicate outdoor or washdown suitability. The operating temperature range is -10°C to +60°C, which supports use in enclosed or otherwise protected equipment environments within that range.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-25C-12 DC-DC Converter - 25W - 36~72V in 12V out	25.2W	12V	2.1A	Indoor	View
Mean Well SD-25C-24 DC-DC Converter - 25W - 36~72V in 24V out	26.4W	24V	1.1A	Indoor	View
