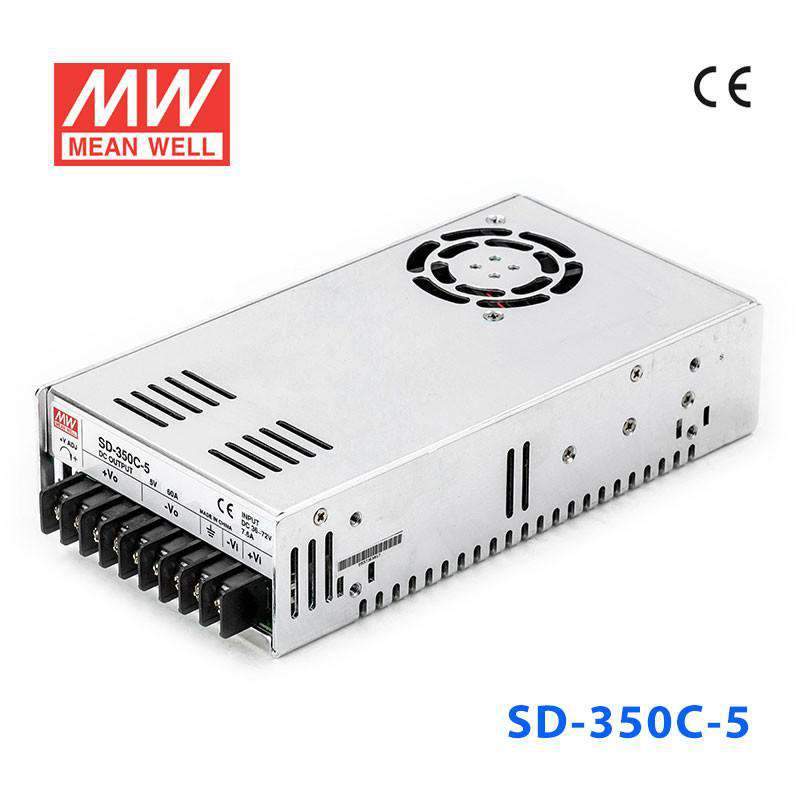

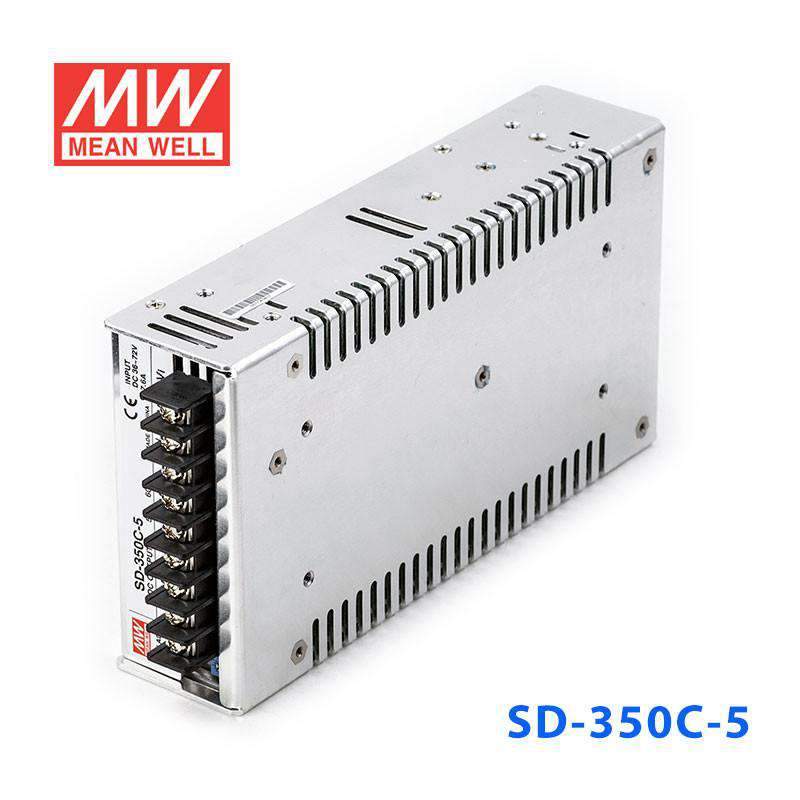

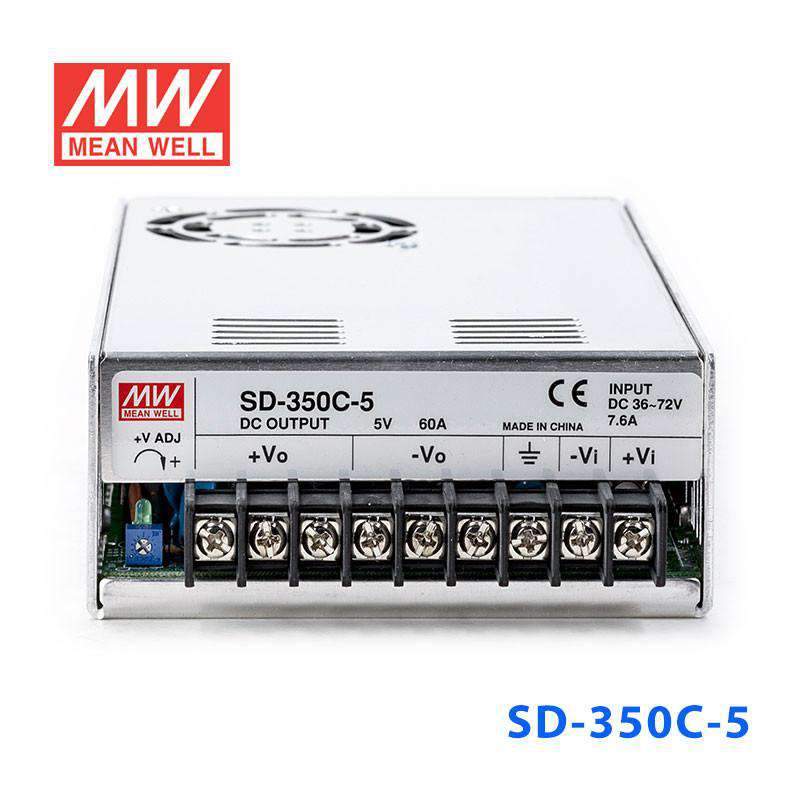

Mean Well SD-350C-5 DC-DC Converter - 300W - 36~72V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-350C-5

Please for Pricing

Notify me when it's back in stock

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage / Over temperature

· 1500VAC I/O isolation

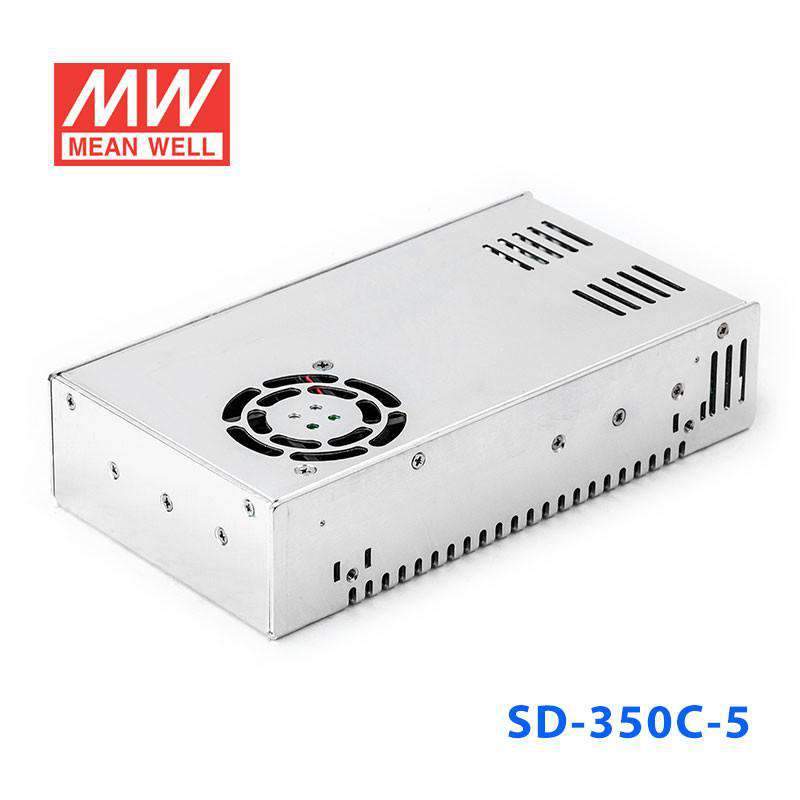

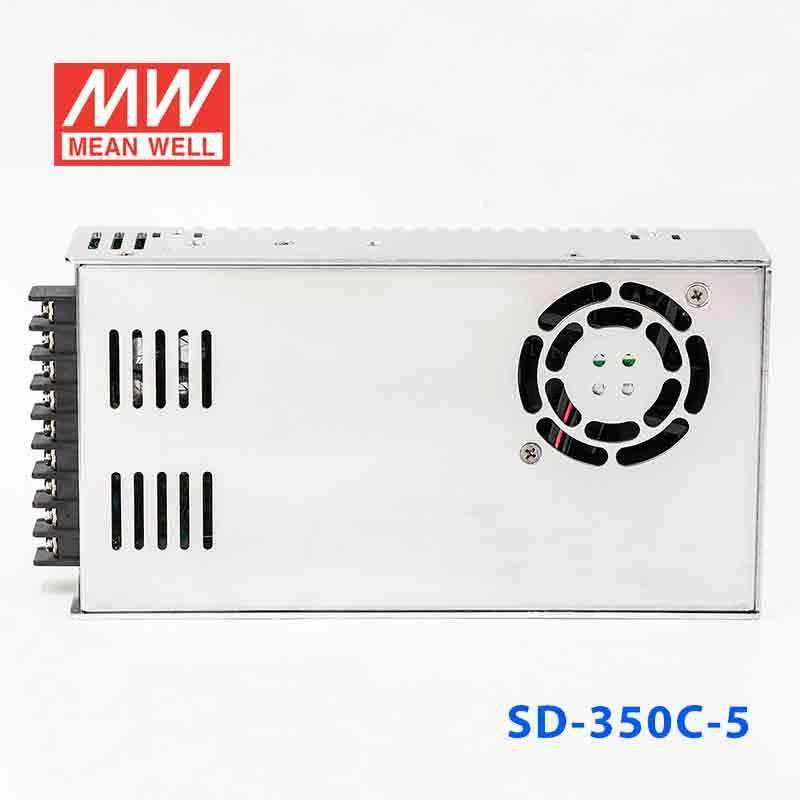

· Forced air cooling by built-in DC Fan

· 100% full load burn-in test

· 24V and 48V input voltage design refer to LVD

· 2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

300 Watt
Output Voltage

5 Volt
Rated Current

60 Ampere
Input Voltage

36V~72V
Standards Met

CB,CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

3 Year
Length

21.5 cm
Width

11.5 cm
Height

5 cm
Weight

1.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-350C-5 for 5V industrial logic or processor boards that need high current?

Yes, this model delivers a constant 5V output up to 60A with a 300W power rating from a 36-72V input range. It is suited to 5V loads that need high current, provided the total draw stays within 60A and 300W.

Is the SD-350C-5 suitable for powering multiple 5V embedded devices from one converter?

It can support multiple 5V embedded loads on one rail because the output is regulated at 5V and rated for 60A total. System sizing should stay within the 300W maximum output power.

Can this converter be used for 5V backplanes, controller cards, or industrial computing hardware?

Yes, the 5V constant-voltage output is appropriate for 5V electronic loads where a 36-72V source is available. The available output capacity is 60A, with total power limited to 300W.

Is the SD-350C-5 meant for outdoor installations or only protected enclosures?

The operating temperature range is -20°C to +60°C, which defines the temperature conditions in the published specs. An IP rating is not listed, so protection against water and dust is unspecified and use in exposed outdoor conditions should not be assumed from the product data provided.

How does the SD-350C-5 compare with the other SD-350C models?

The SD-350C series shown here includes SD-350C-12 at 330W, 12V, 27.5A; SD-350C-24 at 350.4W, 24V, 14.6A; SD-350C-48 at 350.4W, 48V, 7.3A; and SD-350C-5 at 300W, 5V, 60A. This unit is the 5V version and has the highest listed output current of the four at 60A.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-350C-48 DC-DC Converter - 350W - 36~72V in 48V out	350.4W	48V	7.3A	Indoor	View
Mean Well SD-350C-24 DC-DC Converter - 350W - 36~72V in 24V out	350.4W	24V	14.6A	Indoor	View
Mean Well SD-350C-12 DC-DC Converter - 330W - 36~72V in 12V out	330W	12V	27.5A	Indoor	View
