Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

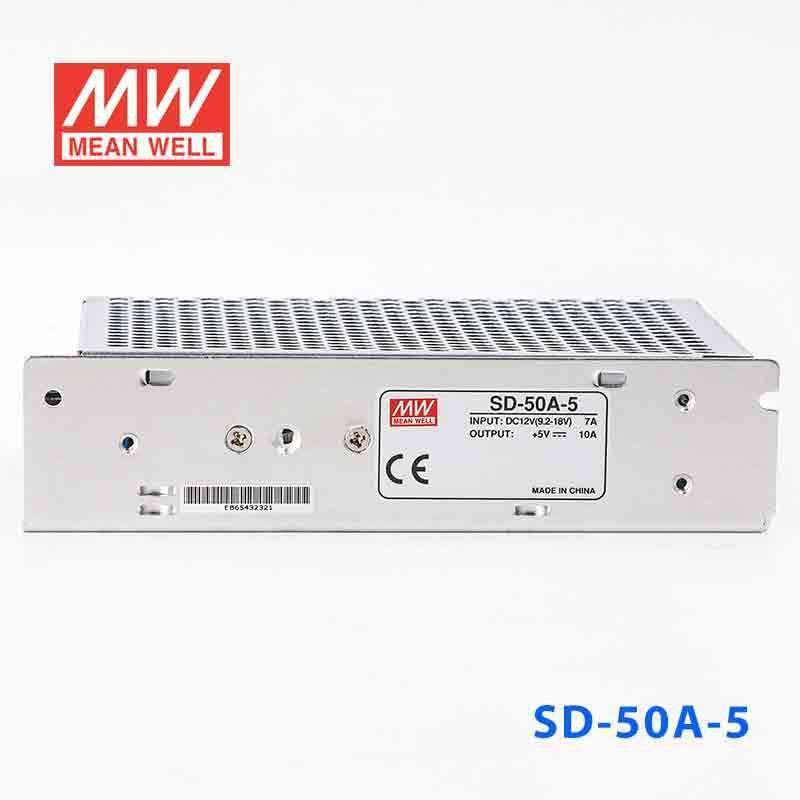

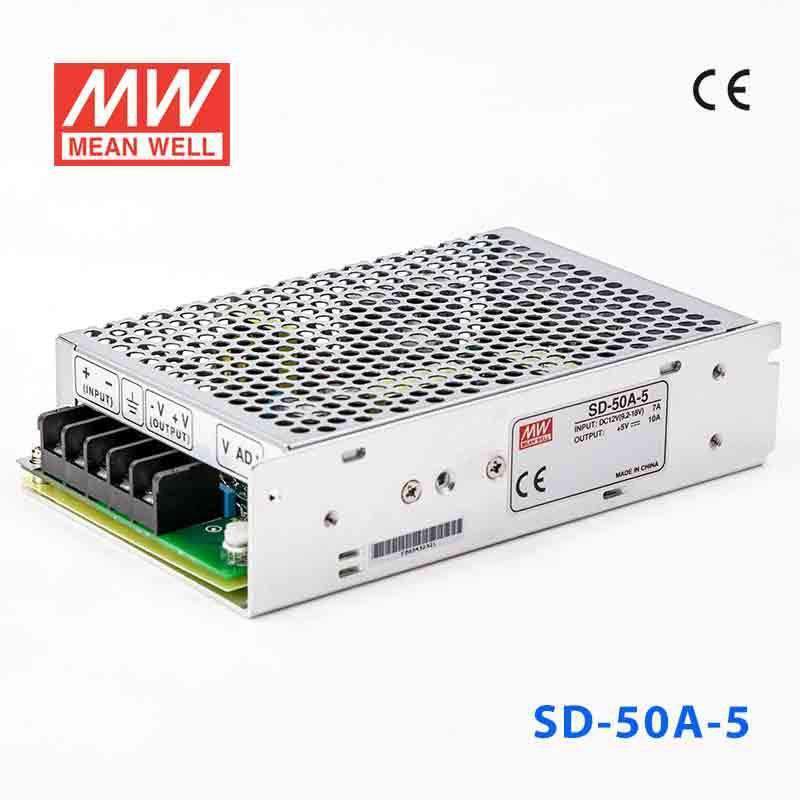

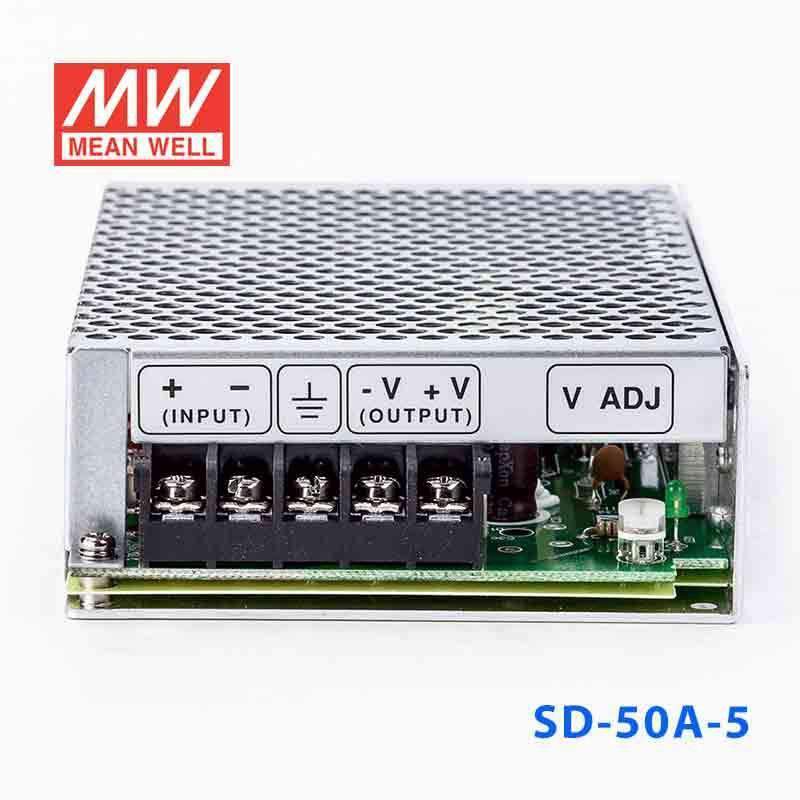

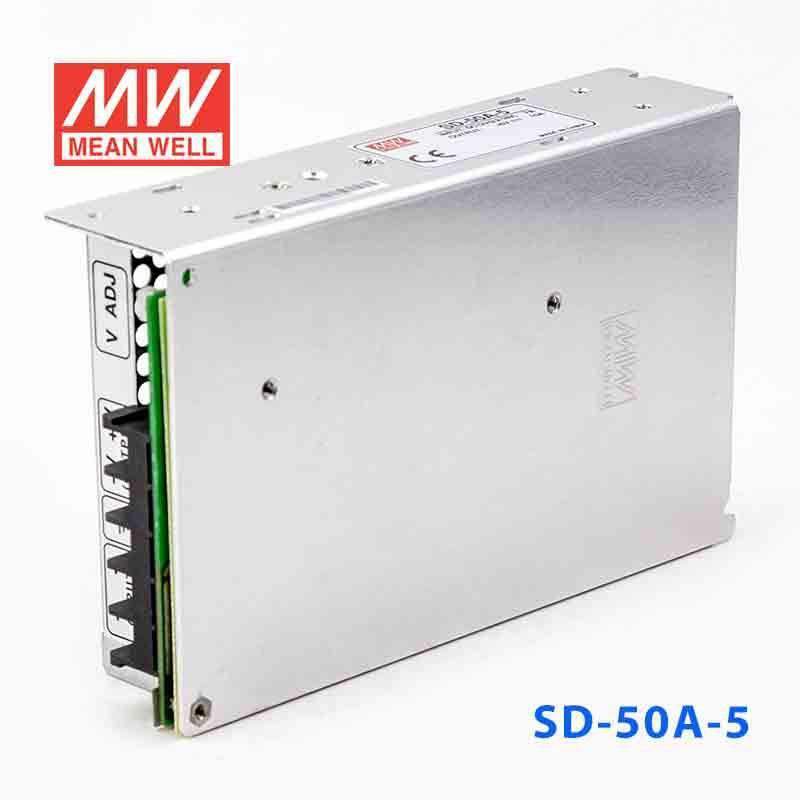

Mean Well SD-50A-5 DC-DC Converter - 50W - 9.2~18V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-50A-5

Notify me when it's back in stock

Description

Features : · 2:1 wide input range · Protections: Short circuit / Overload / Over voltage · 1500VAC I/O isolation · Built-in EMI filter, low ripple noise · 100% full load burn-in test · Fixed switching frequency at 83KHz · Low cost · High reliability · 2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

504 Watt
Output Voltage

5 Volt
Rated Current

10 Ampere
Input Voltage

9.2V~18V
Standards Met

CE,EAC,RCM
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

2 Year
Length

15.9 cm
Width

9.7 cm
Height

3.8 cm
Weight

0.48 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-50A-5 to power a 5V industrial control board from a 9-18V source?

Yes, this model provides a 5V constant-voltage output and is rated for 10A. Its specified input range is 9-18V and it is intended as a DC-DC converter for systems that need regulated 5V from that input window.

Is the SD-50A-5 suitable for embedded computing or edge devices that need high-current 5V power?

It can fit embedded or IT hardware that requires a 5V constant-voltage supply and draws up to 10A. The converter is designed for 9-18V input, so the upstream power source needs to stay within that range.

Can this converter run 5V automation I/O, sensors, or interface modules in a cabinet?

It is appropriate for 5V automation loads that need constant voltage and stay within the 10A output rating. The 5V output and 9-18V input range make it a fit for low-voltage control and interface applications rather than higher-voltage loads.

Is the SD-50A-5 meant for outdoor or washdown environments?

The provided specs list an operating temperature of -10C to +60C, but no IP rating is shown. That means the temperature range is defined, while outdoor or wet-location suitability is not specified in the listed data.

How does the SD-50A-5 compare with the other 5V SD-50 models?

The SD-50A-5 is rated at 5V, 10A with a 9-18V input range. The SD-50B-5 is also 5V, 10A but uses a 19-36V input range, and the SD-50C-5 is 5V, 10A with a 36-72V input range.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-50A-24 DC-DC Converter - 50W - 9.2~18V in 24V out	504W	24V	2.1A	Indoor	View
Mean Well SD-50A-12 DC-DC Converter - 50W - 9.2~18V in 12V out	504W	12V	4.2A	Indoor	View
