Introduction

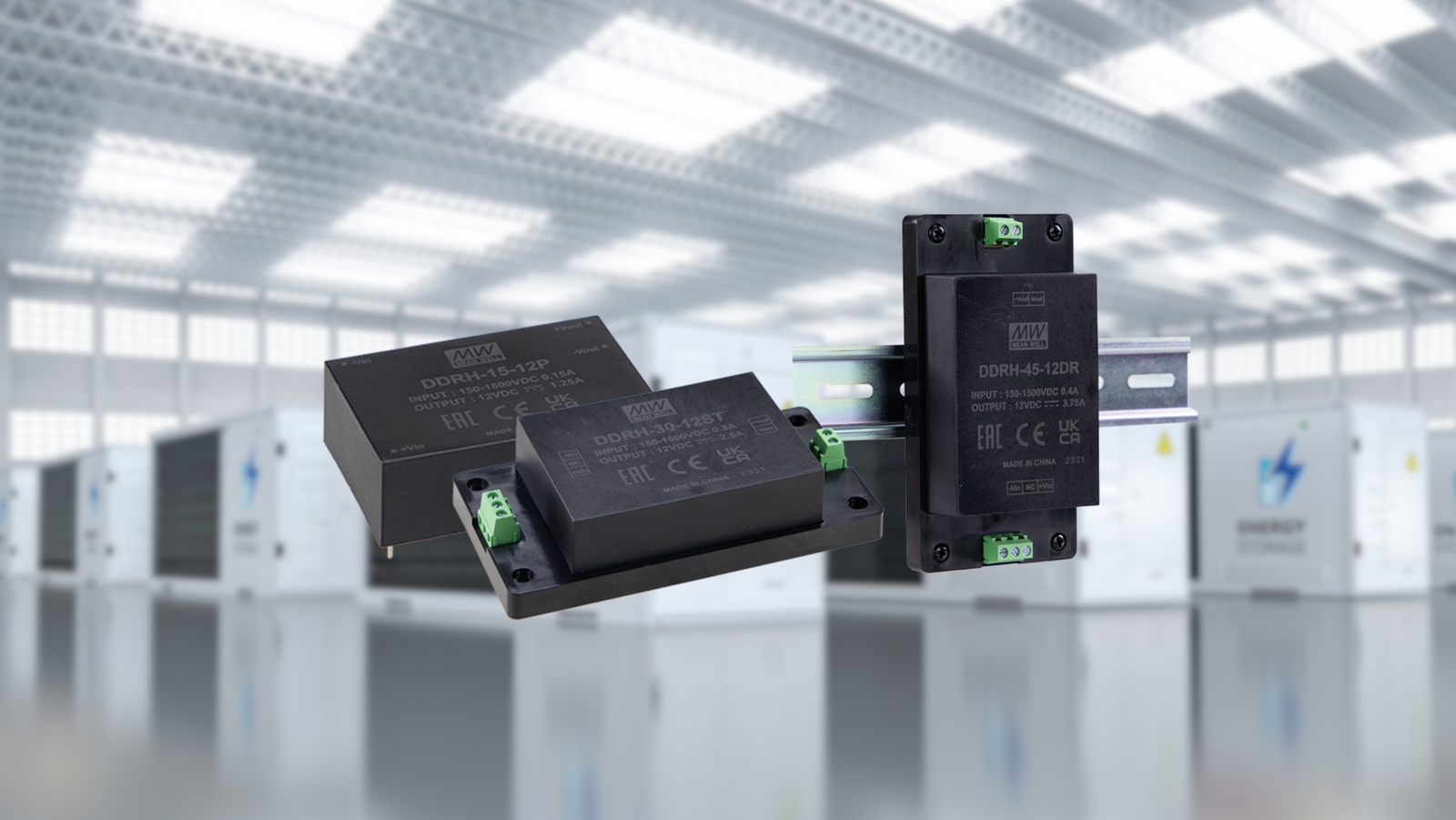

Building on the success of MEAN WELL’s 60-300W DDRH-60/120/240 and RSDH-150/300 series, we are now introducing the DDRH-15/30/45 series. This new addition offers small wattage ultra-wide input DC-DC converters with a high voltage range of 150~1500 Vdc, designed for applications requiring compact and reliable power solutions.
Key Features
The DDRH-15/30/45 series is versatile, with multiple installation options (PCB mounting, screw terminal, or DIN rail) to suit various project needs. The ultra-wide input voltage of 150-1500Vdc, paired with its high temperature tolerance(-40+80°C) makes this series ideal for use in demanding environments. Its 4K Vac high isolation between input and output ensures safety, especially for systems deployed at high altitudes of up to 5,000 meters.
The series has been certified with the IEC62109-1 photovoltaic standard, allowing it to be widely used in applications such as photovoltaic systems, energy storage solutions, charging stations, and other HV-LV conversion setups.
Features and Benefits
-
Multiple Installation Options: Flexible mounting choices including PCB, screw terminal, and DIN rail to accommodate different design requirements.
-
Ultra-Wide Input Range: The 150~1500 Vdc input voltage range is suitable for high voltage DC power applications.
-
High Isolation Protection: 4K Vac isolation between input and output ensures safety in sensitive environments.
-
Wide Temperature Operation: With a temperature range of -40°C to +80°C, the DDRH series can be used in harsh conditions, with derating applied above +50°C.
-
Robust Protections:
-
Input Protection: Undervoltage and reverse polarity protection (no damage in case of reverse wiring).
-
Output Protection: Short circuit, overload, and overvoltage protection.
-
-
Certifications: CE/UKCA (IEC62109-1), EAC certified, providing reliability and compliance with international standards.
-
Warranty: 3 years, offering long-term peace of mind.
Application
Product Information
Dimensions (L x D x H)
Conclusion
The DDRH-15/30/45 series offers a highly versatile, reliable solution for high voltage DC-DC conversion in small wattage applications. It’s ideal for use in renewable energy systems, energy storage, charging infrastructure, and other industrial settings requiring HV-LV conversion. With flexible installation options and extensive protection features, this series is designed to meet the needs of modern power systems.
For more information or to discuss your project requirements, please contact our sales team.
