Introduction
Choosing the correct LED driving method is essential for achieving optimal performance, efficiency, brightness consistency, and LED lifetime. Different driving approaches offer different trade-offs in terms of cost, efficiency, and system reliability.

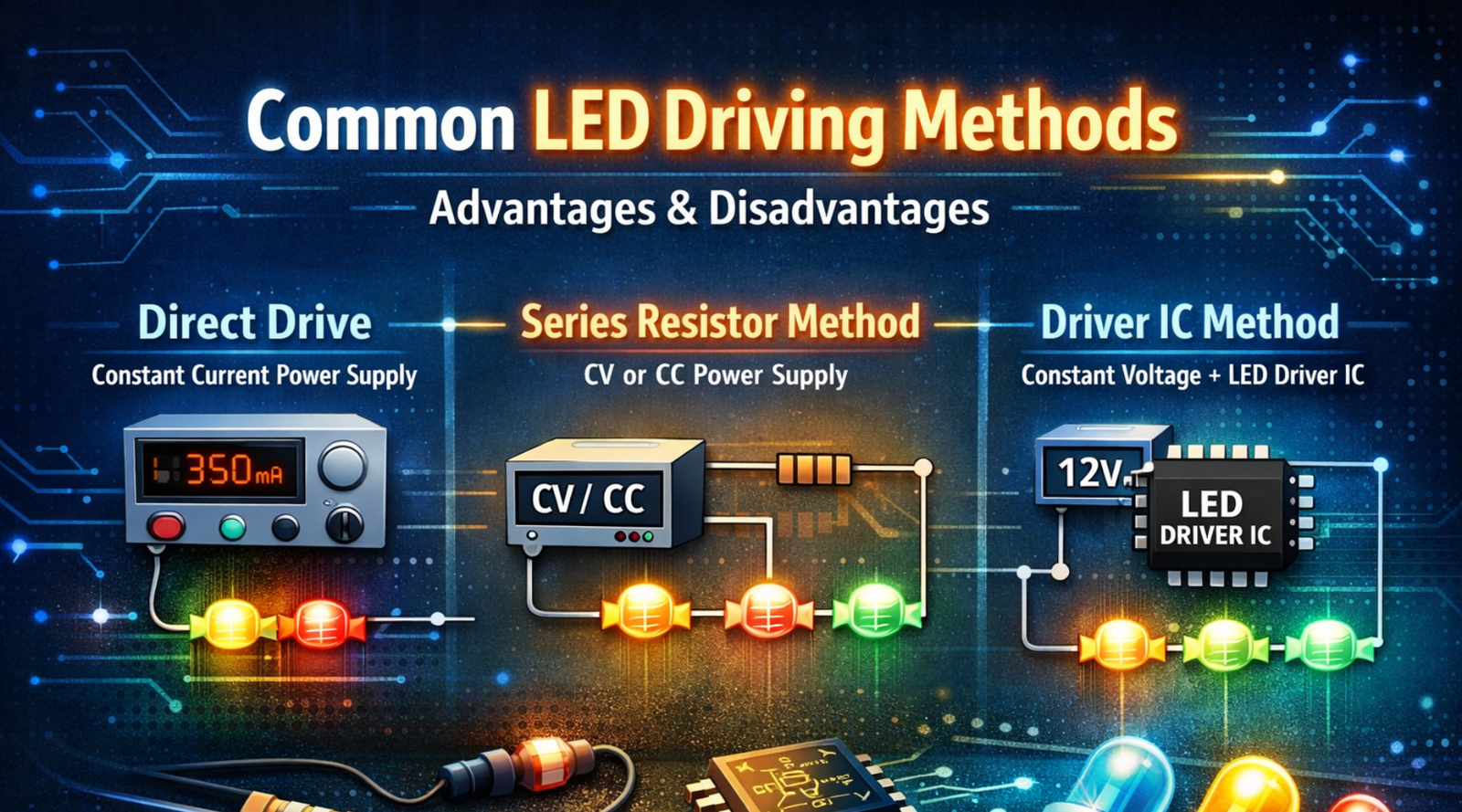

This blog explains the three most common LED driving methods, how they work, and the key advantages and disadvantages of each — helping you select the most suitable solution for your LED lighting application.
1. Direct Drive (Using Constant Current Power Supply)
How It Works
In direct drive systems, a constant current (C.C.) power supply is used to drive LEDs directly. The output voltage of the power supply automatically adjusts to match the total forward voltage (VF) of the connected LEDs.
However, LED forward voltage and current are affected by temperature, meaning the LED current (IF) can vary as operating temperature changes.
Advantages
-
Lowest system cost
-
Highest electrical efficiency
-
Simple system design
Disadvantages
-
Uneven current distribution when multiple LED strips are connected in parallel
-
Uneven brightness between parallel LED strips
-
Faster lumen depreciation
-
Shorter LED lifetime due to current and thermal stress
Typical Applications
-
Cost-sensitive projects
- Simple single-string LED configurations
2. Series Resistor Method (Using CV or CC Power Supply)
How It Works
In this method, a series resistor is added to each LED string. The excess voltage above the total LED forward voltage is dropped across the resistor. This helps stabilise the LED current to a moderate level.
Both constant voltage (C.V.) and constant current (C.C.) power supplies can be used with this approach.
Advantages
-
Low system cost
-
Improved current stability compared to direct drive
-
Simple and easy to implement
Disadvantages
-
Lowest overall efficiency due to power loss in the resistor
-
Additional heat generation
-
Reduced energy efficiency
Typical Applications
-
Low-cost designs
- Small-scale LED systems where efficiency is not critical
3. Driver IC Method (Using Constant Voltage Power Supply + LED Driver IC)
How It Works
This method uses a constant voltage (C.V.) power supply together with a dedicated LED driver IC for each LED string. The driver IC precisely regulates and limits the LED forward current (IF), ensuring stable and balanced current to each LED strip.
This provides the highest current stability and best protection against temperature and voltage variations.
Advantages
-
Best current regulation and stability
-
Uniform brightness across all LED strings
-
Slow lumen depreciation
-
Longest LED lifetime
-
Best for professional and high-reliability systems
Disadvantages
-
Highest system cost
-
Lower system efficiency compared to direct drive (due to conversion losses)
-
More complex system design
Typical Applications
-
Architectural lighting
-
Commercial and professional LED systems
- Applications requiring long lifetime and consistent brightness
Comparison Summary
Conclusion
Each LED driving method has its own strengths and limitations.
-
Direct drive offers the highest efficiency and lowest cost, but with reduced lifetime and brightness consistency.
-
Series resistor provides a simple and low-cost improvement but sacrifices efficiency.
-
Driver IC solutions deliver the best performance and longest lifetime, making them ideal for professional and long-term installations.
Selecting the right method depends on your priorities: cost, efficiency, lifetime, or brightness stability.
If you need help selecting an LED power supply, feel free to contact our team at contact@wellforces.co.nz. We provide professional technical support and a wide range of lighting solutions.
