Introduction

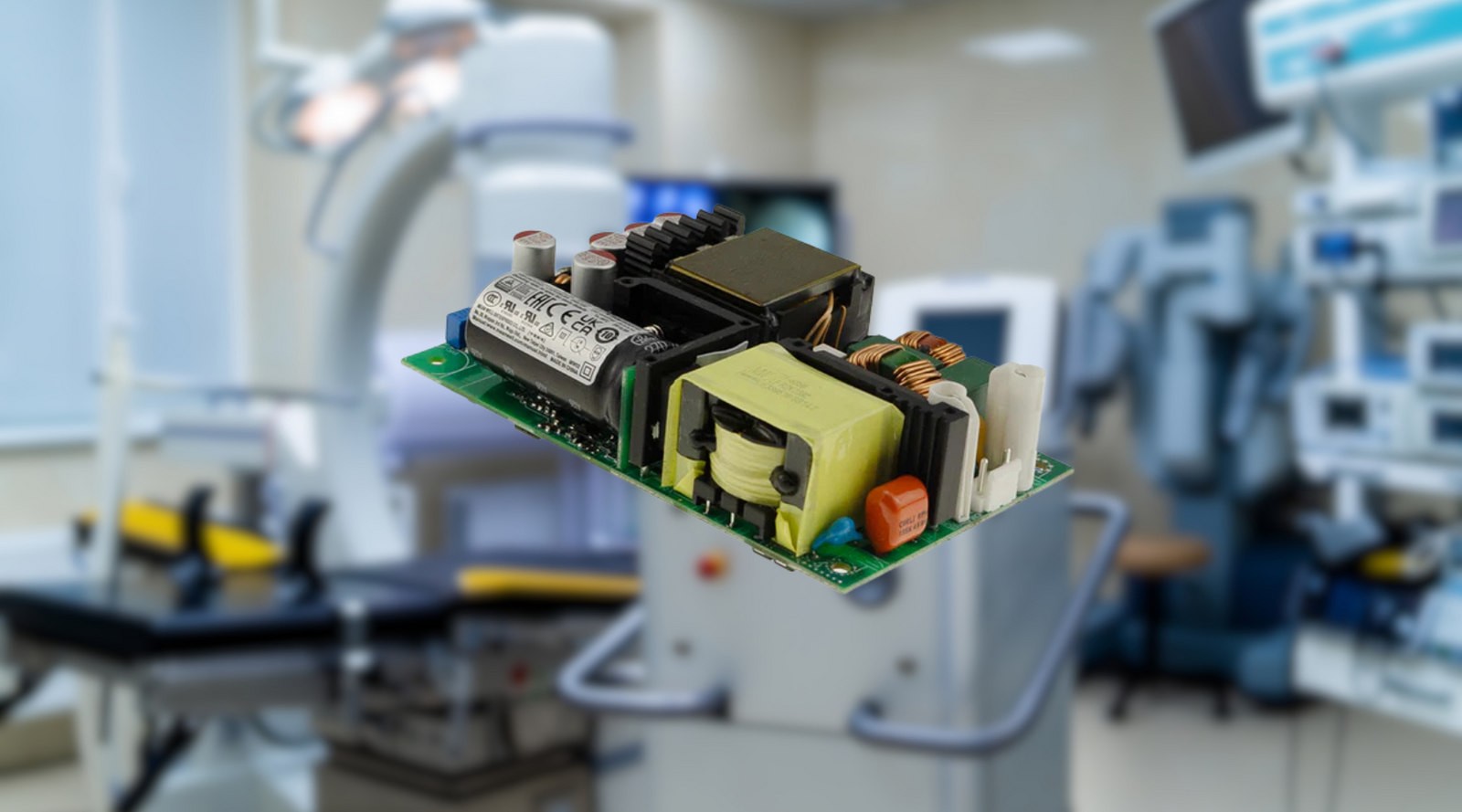

Following the launch of the ultra-compact LOP-200/300 series (4" x 2", 200W/300W), MEAN WELL has expanded the LOP family with the LOP-400/500/600 series. Featuring a slightly larger 5" x 3" footprint and delivering 400W, 500W, or 600W output, these ultra-low-profile PCB-type power supplies combine high performance, high reliability, and excellent EMC compliance in a cost-effective package.
Engineered for both Class I and Class II systems, the LOP series supports a broad range of electronic instruments and devices, offering a robust solution where space-saving, efficiency, and safety are critical.
Key Upgrades Over EPP/RPS Series
Compared to the existing EPP/RPS-300/400/500 models, the LOP-400/500/600 offers:
- Lower profile design (height: 1.08" ~ 1.31") for compact integration
- Expanded voltage options from 12V to 54V
- Increased output power up to 600W within the same 5" x 3" footprint
- 150% peak load capacity for up to 3 seconds
- Wider temperature range: -40°C to +80°C
- OVCIII compliance and 2xMOPP isolation for medical and BF-type applications
- Multiple international safety certifications: IEC/UL 62368-1, IEC 60601-1, IEC 615581, IEC 60335-1
Applications
With its multi-standard safety compliance and high power density, the LOP-400/500/600 is ideal for:
- Communication and networking equipment
- Medical devices (including BF-type)
- Industrial control systems
- Security systems
- Home automation products
- Other high-reliability electronics
Features
- MEAN WELL patent ZL 202223277512.1
- 5" x 3" standard universal dimensions with ultra-low profile
- 80–264Vac input with built-in PFC, no-load power <0.5W
- Multiple certifications: ITE / Medical / Industrial / Household
- 150% peak power for up to 3 seconds
- Class I or Class II compatibility
- Operating temperature: -40°C ~ +80°C
- Efficiency up to 95%
- Protections: Short circuit, overload, overvoltage, overtemperature
- Ultra-low leakage current (<500µA to ground, <70µA to contact)
- Operates up to 5,000m altitude
- Built-in 12V/0.5A auxiliary power
- 3-year warranty
Product Information
If you are interested, please feel free to contact us at contact@wellforces.co.nz.
