Introduction

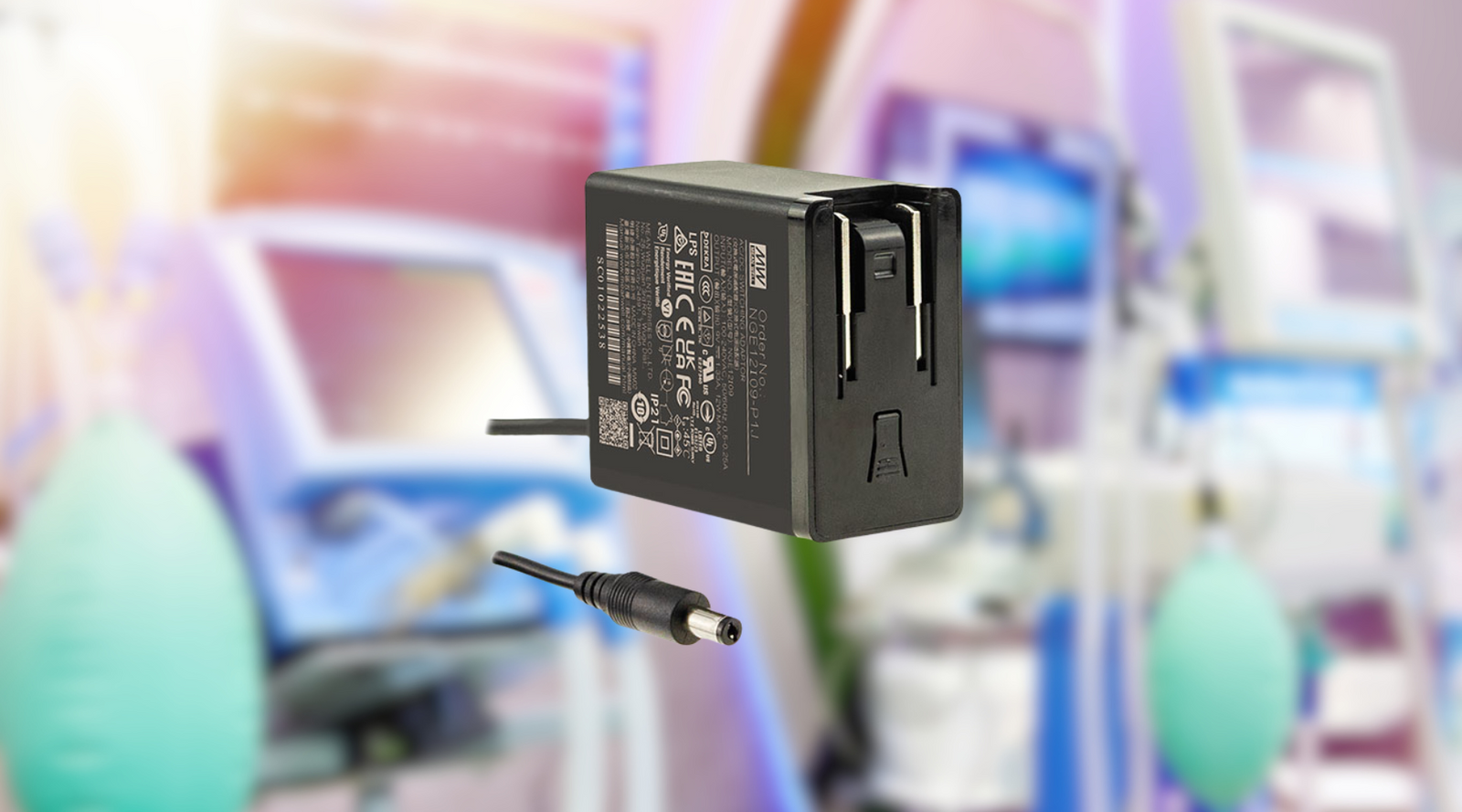

MEAN WELL, a global leader in power supply solutions, has expanded its lineup of next-generation energy-efficient AC wall mount adaptors. Building upon the success of the NGE 12/18 series (12W/18W), MEAN WELL now introduces the NGE 30/45/65/90 series, covering power output from 30W to 90W. With this launch, MEAN WELL offers the most comprehensive interchangeable adaptor range on the market: 12W, 18W, 30W, 45W, 65W, and 90W—meeting the diverse power needs of modern electronic devices and systems.

This new series stands out from long-standing 24~60W models such as SGA, SGAS, GSM, GE, and GEM by incorporating an advanced design and broader certification scope. The NGE 30/45/65/90 series complies with a wide range of international safety standards, including IEC/UL 62368-1, IEC 60601-1, IEC 61558-1, and IEC 60335-1, as well as additional certifications like CCC, BSMI, and PSE.

With a slim 30mm profile that avoids blocking adjacent outlets, and a wide operating temperature range of -30°C to +70°C, this series is suitable for global applications and compact installations. The entire line is designed to comply with 2xMOPP and supports medical BF-rated equipment, making it ideal for medical, household, industrial, and ITE (Information Technology Equipment) applications.

These adaptors are not only compact and durable, but also meet stringent international energy efficiency requirements, making them ideal for travel electronics, global consumer devices, and portable systems requiring interchangeable AC plugs.

* The NGE 30 / 45 / 65 / 90 series can replace the old-generation models in this table. It is strongly recommended to consider adopting the NGE 30 / 45 / 65 / 90 series for the new project.

Key Features

Exterior Design Patent Number: 202330347779.4.
Interchangeable AC Plugs: Includes EU, US, UK, AU, CN plug options.
Certifications: Complies with ITE, Medical (BF class), Household, and Industrial safety standards.
Global Input Range: 80–264VAC, ultra-low no-load power consumption (<0.075W).
Meets Level VI Energy Efficiency: In line with EISA 2007/DoE, NRCan, MEPS, ErP, CoC v5 standards.
Ultra-Low Leakage Current: <100 μA, suitable for 2xMOPP applications.
Wide Temperature Range: Operates from -30°C to +70°C.
Built-in Protections: Short circuit, overload, and overvoltage protection.
LPS Compliance: (NGE30~65).
Durable Housing: 94V-0 high flame-retardant plastic for enhanced safety.
Flexible Output Options: Multiple DC plugs available (sold separately).
Warranty: 3-year warranty.
