Introduction

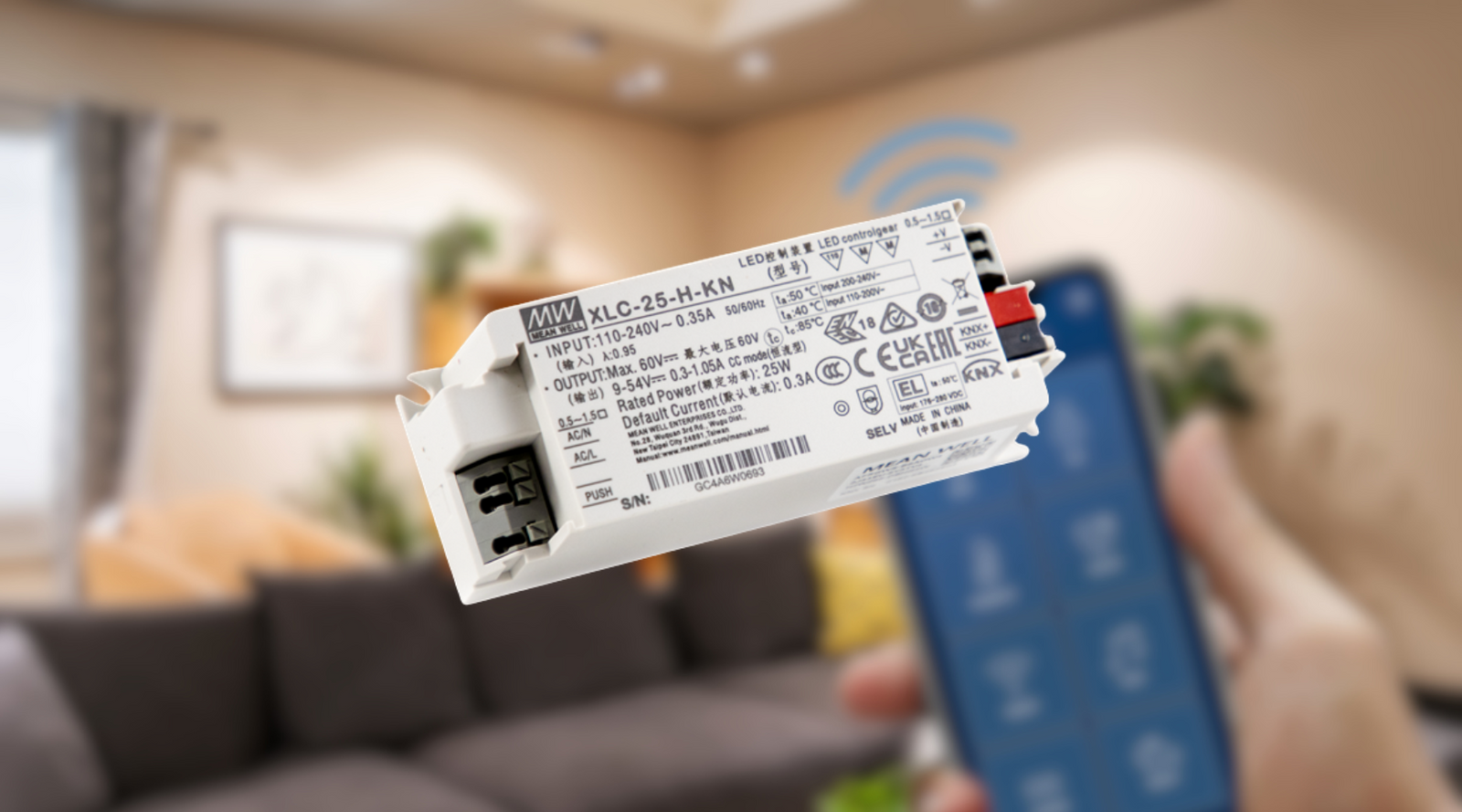

As a global leader in standard power supply solutions, MEAN WELL has continually pushed the boundaries of KNX building automation since launching its first KNX-integrated power supply in 2017. Building on the success of our LCM-KN (constant current) and PWM-KN (constant voltage) LED driver series, we are proud to introduce the XLC-25/40/60KN series—KNX-certified constant current LED drivers with built-in KNX Data Secure support.
The XLC-KN series offers power ratings of 25W, 40W, and 60W, and is designed for seamless integration into KNX lighting control systems. With an input voltage range of 100–305VAC and adjustable output currents from 350mA to 1700mA (model-dependent), these drivers offer excellent flexibility and performance.
Engineered for high efficiency (up to 90%), the XLC-KN series ensures reliable operation with natural air cooling and a wide case temperature range of -25°C to +85°C (up to +90°C for some models).
The XLC-25/40/60KN series offers a comprehensive range of features, including standalone push-button dimming, group control for switching and scenes, cumulative runtime monitoring, energy feedback, constant illuminance output, scheduled dimming, power temperature detection, and characteristic curve calibration. These advanced capabilities make it the ideal choice for LED lighting systems in modern smart buildings, reflecting MEAN WELL's dedication to delivering innovative and reliable solutions.
Thanks to KNX Data Secure support, the series also meets the highest standards for data security in building automation systems.Ideal for smart buildings and energy-efficient lighting systems, the XLC-KN series exemplifies MEAN WELL's commitment to innovation, quality, and smart energy solutions.
Key Features
-
Power ratings: 25W, 40W, 60W with 100–305VAC input
-
Adjustable output current (350mA–1700mA) via ETS
-
Built-in KNX interface with Data Secure support
-
Flicker-free, CE ErP compliant
-
Push-dimming and KNX group/scene control
-
Dimming down to 0.5%
-
CLO (Constant Lumen Output) with presets (L70/L80/L90)
-
Energy and runtime monitoring
-
Emergency lighting compatibility
-
Intelligent temperature and power detection
-
Natural convection cooling, -25°C to +85/90°C operation
- 5-year warranty
Application
Product Information
If you are interested, please feel free to contact us at contact@wellforces.co.nz.
