Introduction
MEAN WELL's long-standing SIP (Single Inline Package) DC-DC converter series—including single-output models (SPA01, SPAN02, SPBW03, SPBW06, SPB09) and dual-output models (DPAN02, DPBW03, DPBW06, DPB09)—have earned widespread adoption across industries such as power systems, electronic instrumentation, communication equipment, industrial automation, and IoT. With annual shipments reaching hundreds of thousands of units, these compact, reliable converters have become industry mainstays.

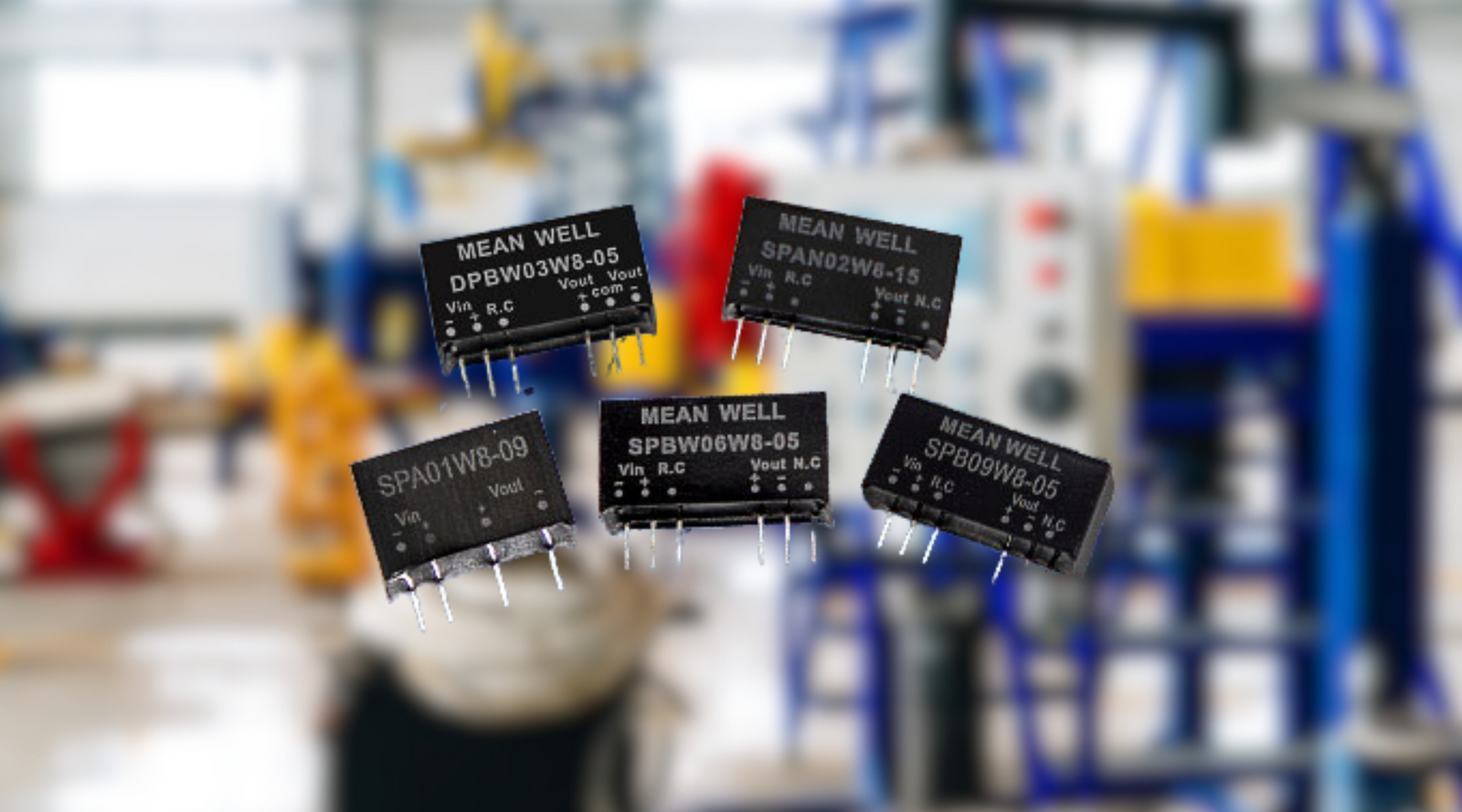

To meet evolving application demands and streamline product selection, MEAN WELL now introduces a new generation of SIP DC-DC converters featuring an ultra-wide 8:1 input voltage range (9~75Vdc). The new product lines include:
- Single Output Models: SPA01W8, SPA02W8, SPBW03W8, SPBW06W8, SPB09W8
-
Dual Output Models: DPA01W8, DPAN02W8, DPBW03W8, DPBW06W8, DPB09W8
These updated modules simplify inventory and system integration by standardizing input requirements across the board. Additionally, they are pin-to-pin compatible with the previous generation, allowing for direct replacement in existing designs without re-engineering.
For a comparison of the key features and specifications between the new and previous generations, please refer to the table below:
Key Features
- SIP (Single Inline Package) form factor with industry-standard pin configuration
-
Ultra-wide 8:1 input voltage range (9~75Vdc)
-
Operates under free air convection from -40°C to +95°C (model dependent)
-
Complies with EN55032 Class A EMI standards (select models) without additional components
-
No minimum load required for stable operation
-
Comprehensive protection: short circuit, overload, over voltage, and under voltage
-
Certified for EAC, CE, and UKCA
- Backed by a 3-year warranty
Application
Product Information
These advanced DC-DC modules deliver greater flexibility, simplified system design, and robust reliability—making them ideal for a wide range of power conversion needs.
