What dimming inputs does the NPF-40D-36 support?

The NPF-40D-36 has built-in 3-in-1 dimming: PWM signal, 1–10V analog, and resistance (potentiometer) control. All three are built in, enabling integration with most commercial and industrial lighting control systems without external dimming hardware.

Is the NPF-40D-36 suitable for outdoor or damp-location installations?

Yes. The NPF-40D-36 is IP67 rated and operates from -40°C to +85°C. Its compact 150.0 × 53.0 × 35.0 mm sealed housing allows mounting inside outdoor low-wattage luminaires, horticultural enclosures, and damp industrial installations.

What 36V LED applications match the NPF-40D-36's dimmable 40W output?

The NPF-40D-36 provides 36V DC at 1.12A (40.32W) in constant-current mode (CC range 21–36V) with 3-in-1 dimming. It suits compact dimmable 36V LED systems in architectural accent lighting, small commercial display fixtures, and point-of-sale lighting where 1–10V or PWM scene control at low wattage is specified.

How does the NPF-40D-36 compare to the NPF-40D-42?

Both share IP67, 3-in-1 dimming, the 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40D-36 outputs 36V at 1.12A (40.32W, CC range 21–36V); NPF-40D-42 outputs 42V at 0.96A (40.32W, CC range 25–42V). The only difference is the output voltage; select based on your LED module's rated voltage.

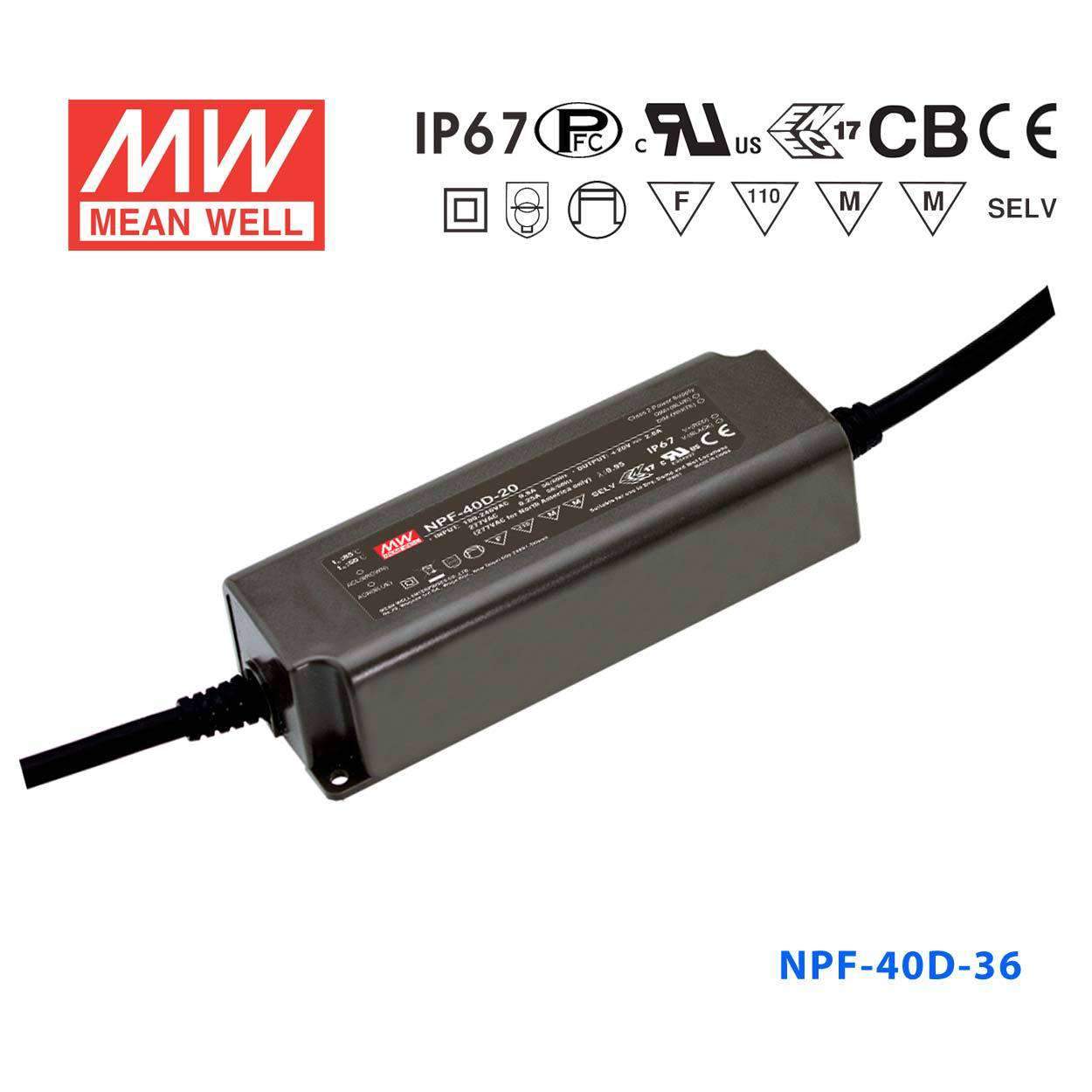

Buy Mean Well NPF-40D-36 Power Supply - Ideal for LED Lighting

The NPF-40D is a 40.32W Mean Well AC-DC LED driver (input: 90~305VAC, output: 36V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 36V
✓ Rated output current: 1.12A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-40D-12 Power Supply 40W 12V - Dimmable 3.34A	40.08W	12V	3.34A	IP67	View
Mean Well NPF-40D-54 Power Supply 40W 54V - Dimmable 760mA	41.04W	54V	0.76A	IP67	View
Mean Well NPF-40D-48 Power Supply 40W 48V - Dimmable 840mA	40.32W	48V	0.84A	IP67	View
Mean Well NPF-40D-42 Power Supply 40W 42V - Dimmable 960mA	40.32W	42V	0.96A	IP67	View
Mean Well NPF-40D-30 Power Supply 40W 30V - Dimmable 1.34A	40.2W	30V	1.34A	IP67	View
Mean Well NPF-40D-24 Power Supply 40W 24V - Dimmable 1.67A	40.08W	24V	1.67A	IP67	View
Mean Well NPF-40D-20 Power Supply 40W 20V - Dimmable 2A	40W	20V	2A	IP67	View
Mean Well NPF-40D-15 Power Supply 40W 15V - Dimmable 2.67A	40.08W	15V	2.67A	IP67	View
