What dimming inputs are available on the NPF-40D-15?

The NPF-40D-15 features built-in 3-in-1 dimming supporting PWM signal, 1–10V analog, and resistance (potentiometer) control. All three interfaces are natively supported, making it compatible with a wide range of commercial dimming panels and controllers.

Is the NPF-40D-15 suitable for wet or outdoor environments?

Yes. The NPF-40D-15 is IP67 rated and operates from -40°C to +85°C. Its 150.0 × 53.0 × 35.0 mm sealed housing can be mounted directly inside outdoor compact fixtures, landscape lighting channels, and damp industrial enclosures.

What 15V LED applications suit the NPF-40D-15's dimmable output?

The NPF-40D-15 provides 15V DC at 2.67A (40.08W) in constant-current mode (CC range 9–15V) with 3-in-1 dimming. It suits dimmable 15V LED modules in small hospitality or retail accent fixtures, display cabinets with 1–10V brightness control, and compact architectural installations requiring smooth dimming.

How does the NPF-40D-15 compare to the NPF-40D-12 and NPF-40D-20?

All three share IP67, 3-in-1 dimming, the 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40D-12 is 12V/3.34A (40.08W, CC 7–12V); NPF-40D-15 is 15V/2.67A (40.08W, CC 9–15V); NPF-40D-20 is 20V/2A (40W, CC 12–20V). Select the voltage matching your LED module's rating.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

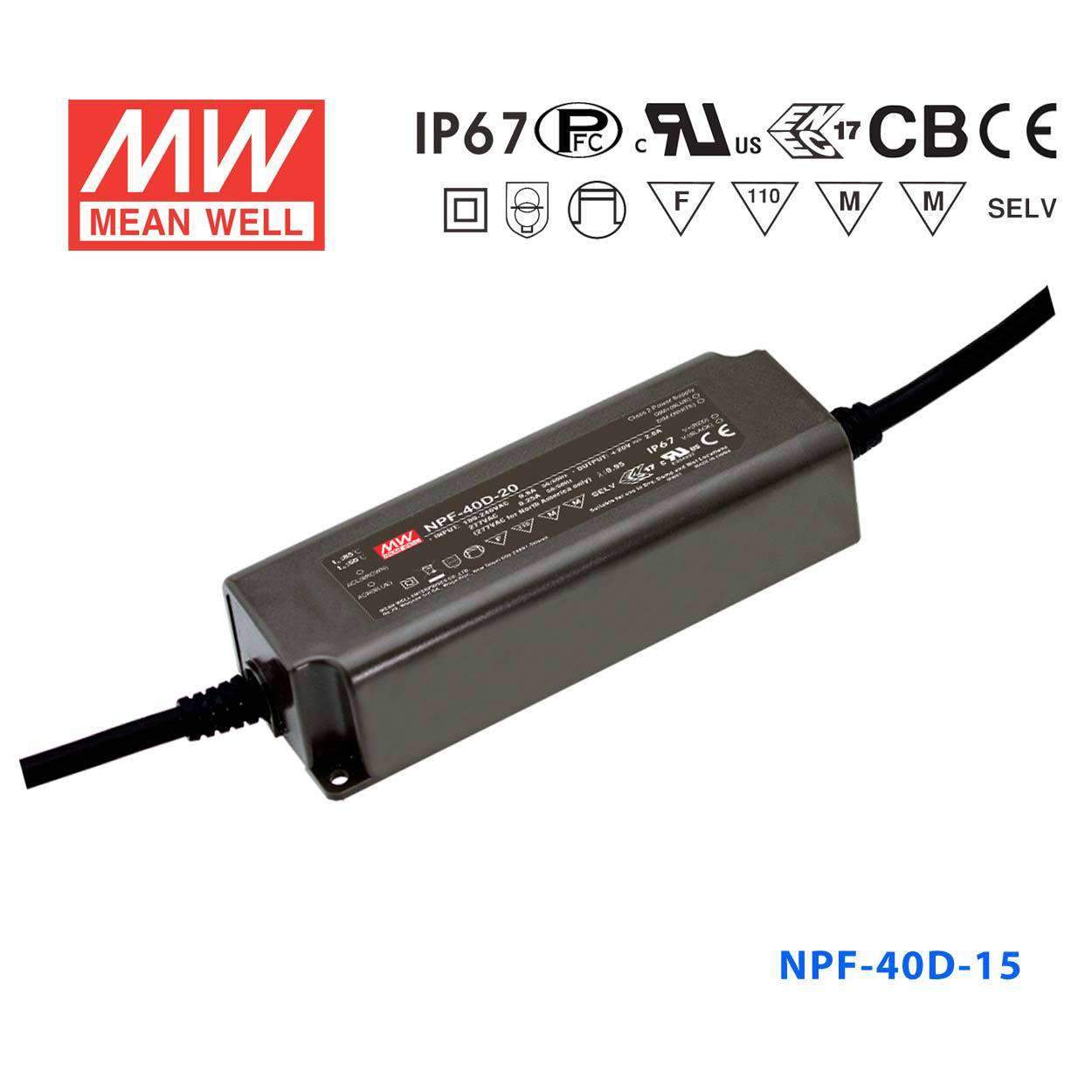

Mean Well NPF-40D-15 Power Supply 40W 15V - Dimmable 2.67A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU NPF-40D-15

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

NPF-40D-15

NPF-40-15 Fixed output Backorder

NPF-120-15 Fixed output Backorder

NPF-120D-15 Dimmable Backorder

NPF-40D-15 Dimmable Backorder

NPF-60-15 Fixed output Backorder

NPF-60D-15 Dimmable Backorder

NPF-90-15 Fixed output Backorder

NPF-90D-15 Dimmable Backorder

Product variants

Notify me when it's back in stock

The NPF-40D is a 40.08W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 15V
✓ Rated output current: 2.67A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-40D-12 Power Supply 40W 12V - Dimmable 3.34A	40.08W	12V	3.34A	IP67	View
Mean Well NPF-40D-54 Power Supply 40W 54V - Dimmable 760mA	41.04W	54V	0.76A	IP67	View
Mean Well NPF-40D-48 Power Supply 40W 48V - Dimmable 840mA	40.32W	48V	0.84A	IP67	View
Mean Well NPF-40D-42 Power Supply 40W 42V - Dimmable 960mA	40.32W	42V	0.96A	IP67	View
Mean Well NPF-40D-36 Power Supply 40W 36V - Dimmable 1.12A	40.32W	36V	1.12A	IP67	View
Mean Well NPF-40D-30 Power Supply 40W 30V - Dimmable 1.34A	40.2W	30V	1.34A	IP67	View
Mean Well NPF-40D-24 Power Supply 40W 24V - Dimmable 1.67A	40.08W	24V	1.67A	IP67	View
Mean Well NPF-40D-20 Power Supply 40W 20V - Dimmable 2A	40W	20V	2A	IP67	View
