What dimming methods does the NPF-40D-42 support?

The NPF-40D-42 features built-in 3-in-1 dimming accepting PWM signal, 1–10V analog, and resistance (potentiometer) control. All three interfaces are integrated into the driver, covering the most common lighting control protocols used in commercial and industrial projects.

Is the NPF-40D-42 rated for outdoor or wet installations?

Yes. The NPF-40D-42 is IP67 rated and operates from -40°C to +85°C. Its 150.0 × 53.0 × 35.0 mm sealed plastic housing can be installed directly inside compact outdoor luminaires and damp industrial enclosures.

What LED applications suit the NPF-40D-42's 42V dimmable output at 40W?

The NPF-40D-42 supplies 42V DC at 0.96A (40.32W) in constant-current mode (CC range 25–42V) with 3-in-1 dimming. It suits compact dimmable 42V LED modules in small outdoor accent fixtures, display or shelf lighting with 1–10V controllers, and low-power 42V industrial work lights requiring brightness control.

How does the NPF-40D-42 compare to the NPF-40D-36 and NPF-40D-48?

All three share IP67, 3-in-1 dimming, the 150.0 × 53.0 × 35.0 mm housing, and 0.49 kg weight. NPF-40D-36 is 36V/1.12A (40.32W, CC 21–36V); NPF-40D-42 is 42V/0.96A (40.32W, CC 25–42V); NPF-40D-48 is 48V/0.84A (40.32W, CC 28–48V). Select based on your LED string's rated voltage.

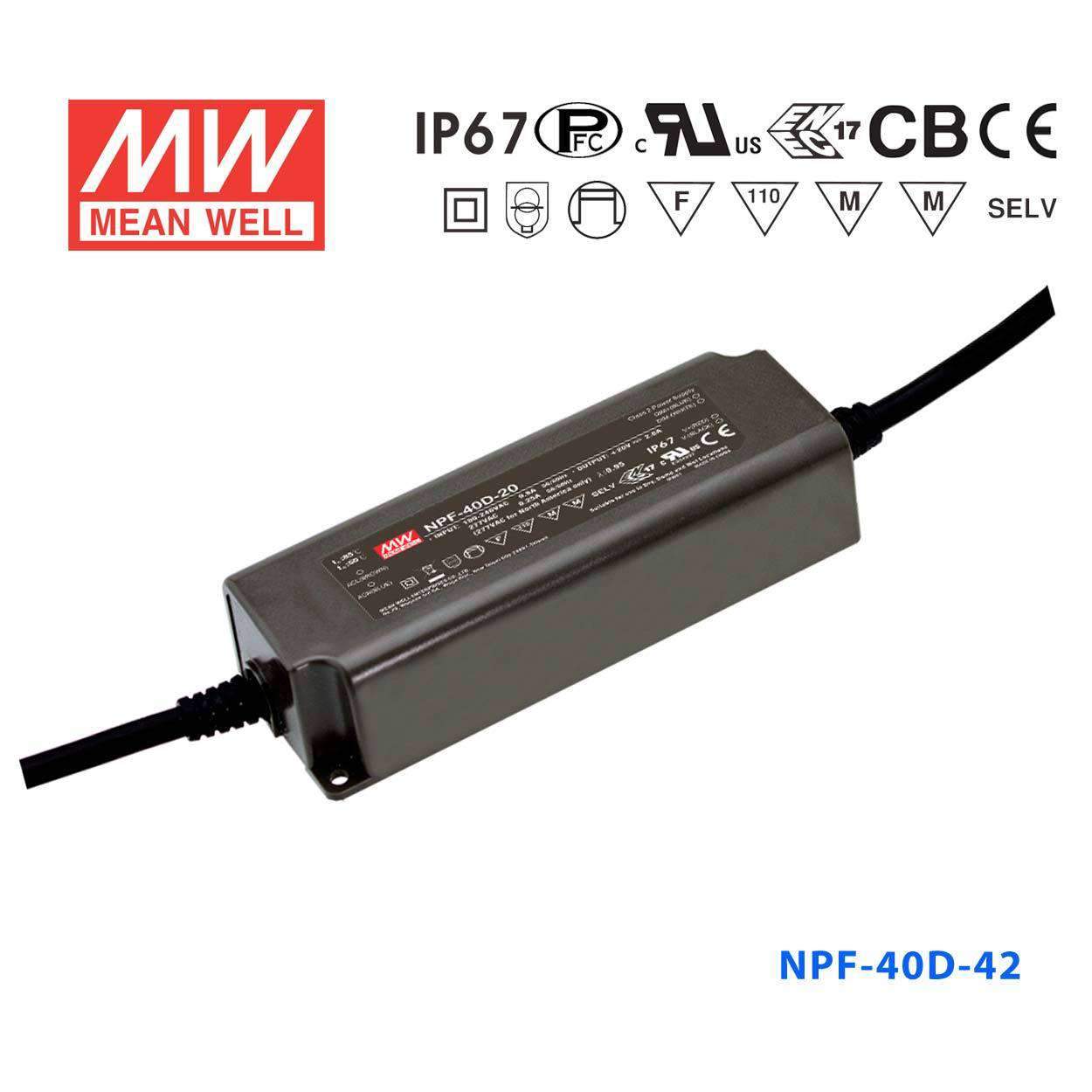

Mean Well NPF-40D-42 Power Supply 40W 42V - Dimmable | Auckland Distributor

The NPF-40D is a 40.32W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 42V
✓ Rated output current: 0.96A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-40D-12 Power Supply 40W 12V - Dimmable 3.34A	40.08W	12V	3.34A	IP67	View
Mean Well NPF-40D-54 Power Supply 40W 54V - Dimmable 760mA	41.04W	54V	0.76A	IP67	View
Mean Well NPF-40D-48 Power Supply 40W 48V - Dimmable 840mA	40.32W	48V	0.84A	IP67	View
Mean Well NPF-40D-36 Power Supply 40W 36V - Dimmable 1.12A	40.32W	36V	1.12A	IP67	View
Mean Well NPF-40D-30 Power Supply 40W 30V - Dimmable 1.34A	40.2W	30V	1.34A	IP67	View
Mean Well NPF-40D-24 Power Supply 40W 24V - Dimmable 1.67A	40.08W	24V	1.67A	IP67	View
Mean Well NPF-40D-20 Power Supply 40W 20V - Dimmable 2A	40W	20V	2A	IP67	View
Mean Well NPF-40D-15 Power Supply 40W 15V - Dimmable 2.67A	40.08W	15V	2.67A	IP67	View
