Mean Well SBT01M-09 DC-DC Converter - 1W 12V DC in 9V out 111mA
Log in to see priceOverview
SBT01M-09 is the model of this series: rated power 1W, typical efficiency 75%.
Features
- 1000VDC I/O isolation
- Internal SMD technology
- Protection: Short circuit
- Cooling by free air convection
- Non-conductive plastic case
- SMD package styles
- 100% full load burn-in test
- Low cost / High reliability
- Approved: UL / CUL
- 1 year warranty
Specifications

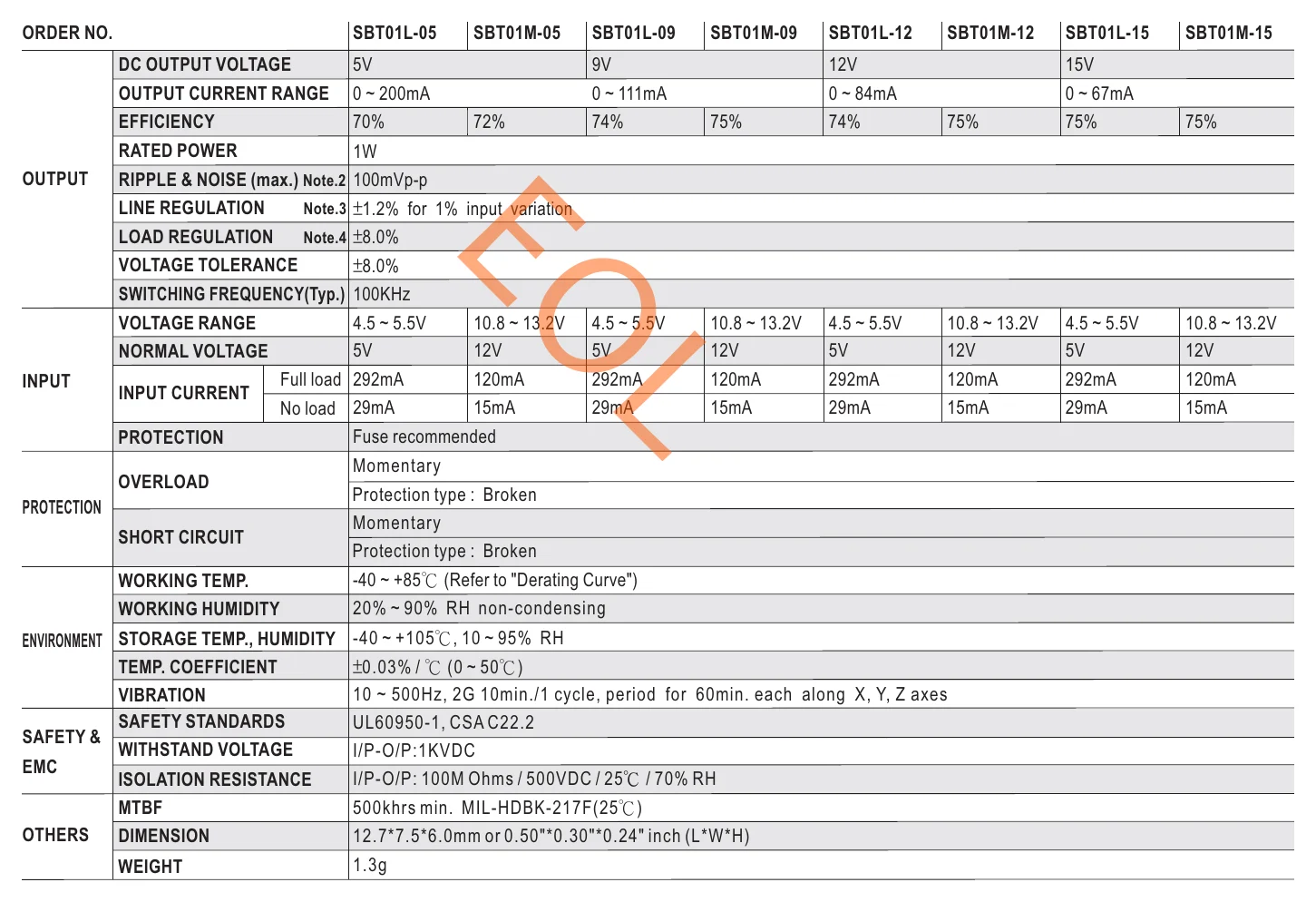

SBT01M-09Specifications from the official datasheet (2015-12-15 edition)Download datasheet PDF
OUTPUT
- DC OUTPUT VOLTAGE
- 9V
- OUTPUT CURRENT RANGE
- 0 ~ 111mA
- EFFICIENCY
- 75%
- RATED POWER
- 1W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATIONNote.3
- ±1.2% for 1% input variation
- LOAD REGULATIONNote.4
- ±8.0%
- VOLTAGE TOLERANCE
- ±8.0%
- SWITCHING FREQUENCY(Typ.)
- 100KHz
INPUT
- VOLTAGE RANGE
- 10.8 ~ 13.2V
- NORMAL VOLTAGE
- 12V
- INPUT CURRENT Full load
- 120mA
- INPUT CURRENT No load
- 15mA
- PROTECTION
- Fuse recommended
PROTECTION
- OVERLOAD
- Momentary Protection type : Broken
- SHORT CIRCUIT
- Momentary Protection type : Broken
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, CSA C22.2
- WITHSTAND VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
OTHERS
- MTBF
- 500khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 12.7*7.5*6.0mm or 0.50"*0.30"*0.24" inch (L*W*H)
- WEIGHT
- 1.3g
Test conditions and notes4
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.

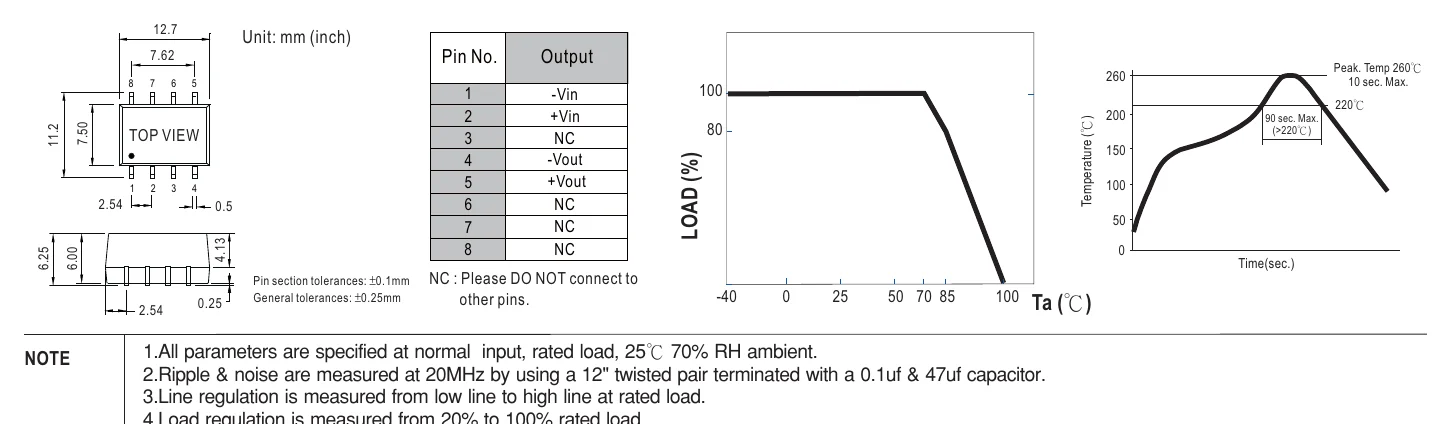

Technical drawings
