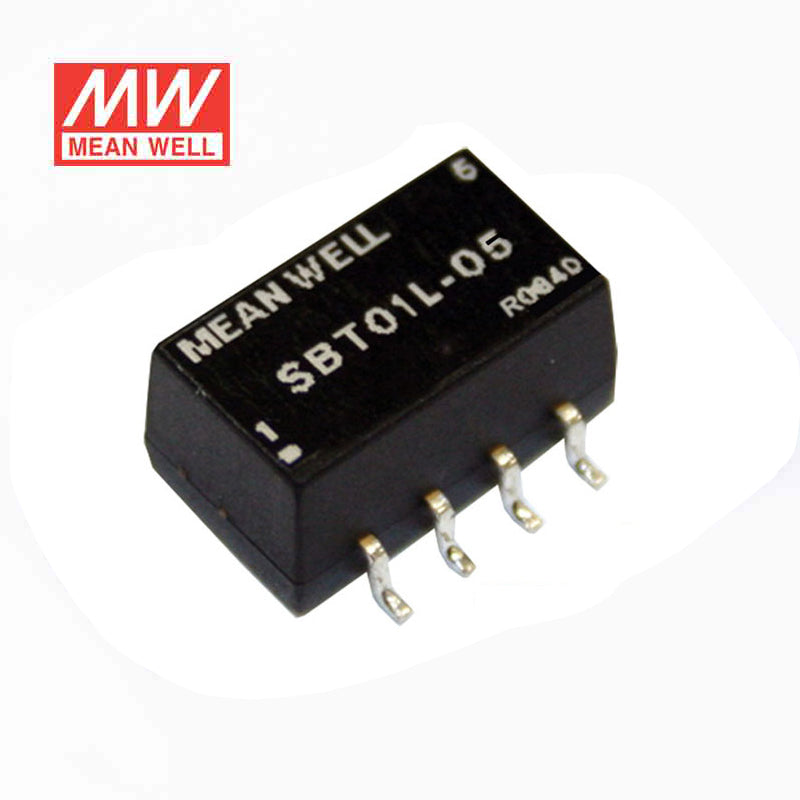

Mean Well SBT01L-05 DC-DC Converter - 1W 5V DC in 5V out
Please Login for Pricing
Description
Description
• 1000VDC I/O isolation
• Internal SMD technology
• Protection: Short circuit
• Cooling by free air convection
• Non-conductive plastic case
• SMD package styles
• 100% full load burn-in test
• Low cost / High reliability
• Approved: UL / CUL
• 1 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSBT Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage4.5V~5.5V
-
Standards MetCSA,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty1 Year
-
Length1.27 cm
-
Width0.75 cm
-
Height0.6 cm
-
Weight0 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SBT01 Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SBT01M-15 DC-DC Converter - 1W 12V DC in 15V out | 1W | 15V | 0.06A | — | View |
| Mean Well SBT01M-12 DC-DC Converter - 1W 12V DC in 12V out | 1W | 12V | 0.08A | — | View |
| Mean Well SBT01M-09 DC-DC Converter - 1W 12V DC in 9V out | 1W | 9V | 0.11A | — | View |
| Mean Well SBT01M-05 DC-DC Converter - 1W 12V DC in 5V out | 1W | 5V | 0.2A | — | View |
| Mean Well SBT01L-15 DC-DC Converter - 1W 5V DC in 15V out | 1W | 15V | 0.06A | — | View |
| Mean Well SBT01L-12 DC-DC Converter - 1W 5V DC in 12V out | 1W | 12V | 0.08A | — | View |
| Mean Well SBT01L-09 DC-DC Converter - 1W 5V DC in 9V out | 1W | 9V | 0.11A | — | View |
{
