Ltech Ultra-small ON/OFF CC Driver, 45W, 300-1050mA Current Selecta...
Log in to see priceOverview
SN-45-300-1050-G1NF is the 9-42Vdc output model of this series.
Features
- The housing is made from V0 flame retardant PC materials.
- Ultra-small, thin and light screwless end cap.

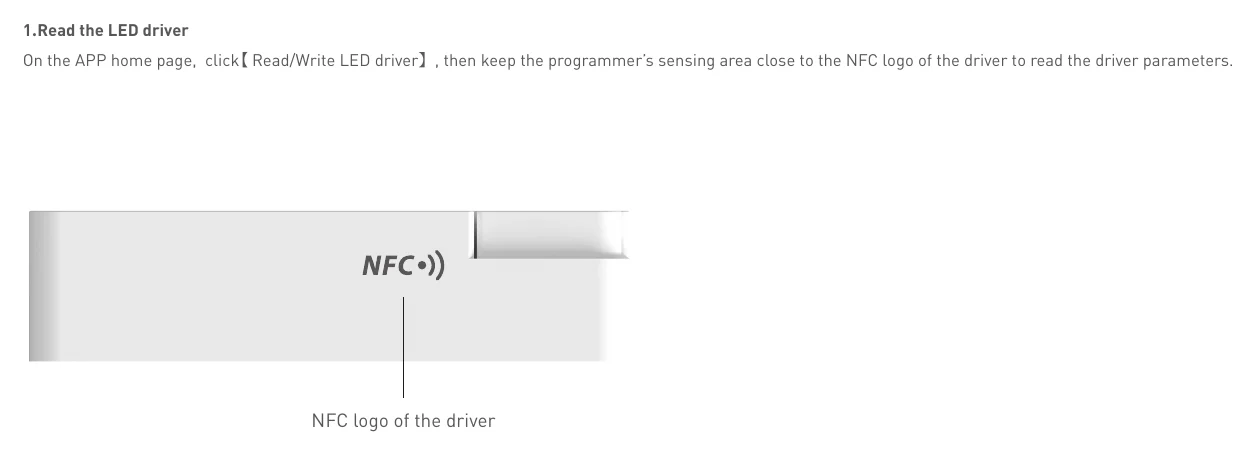

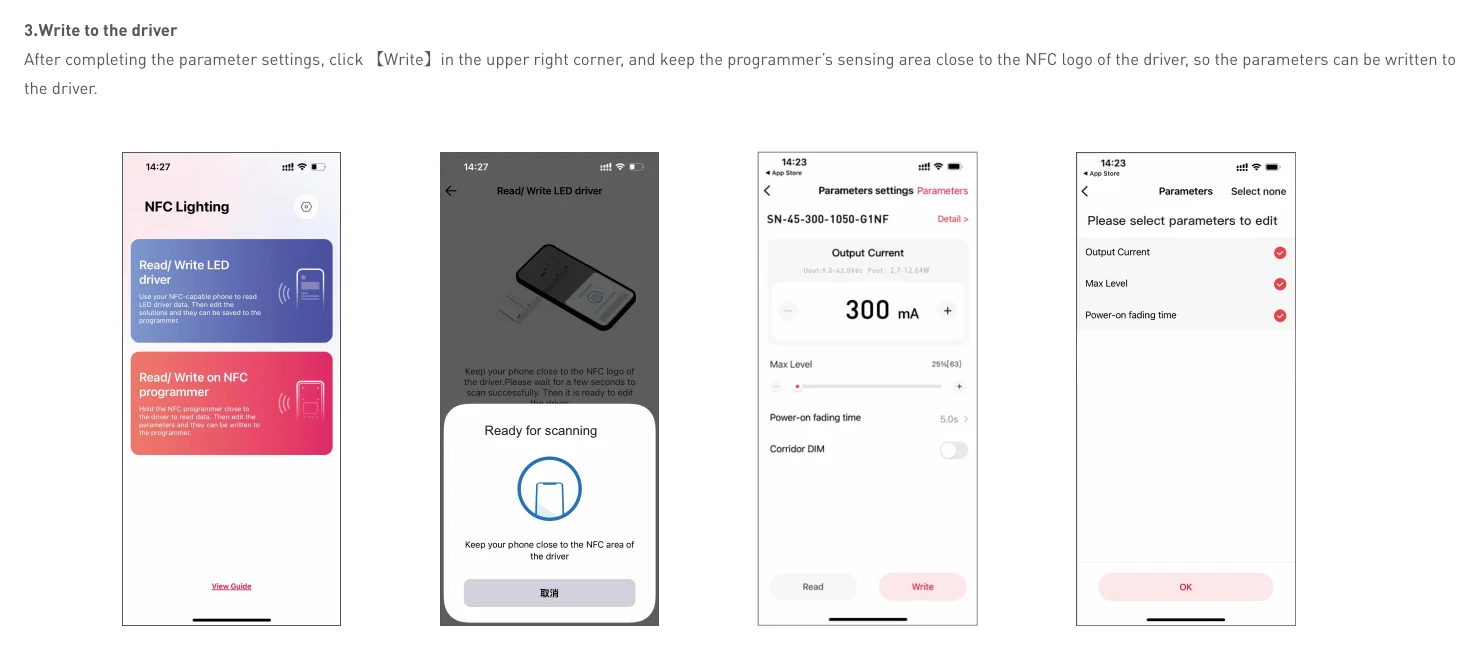

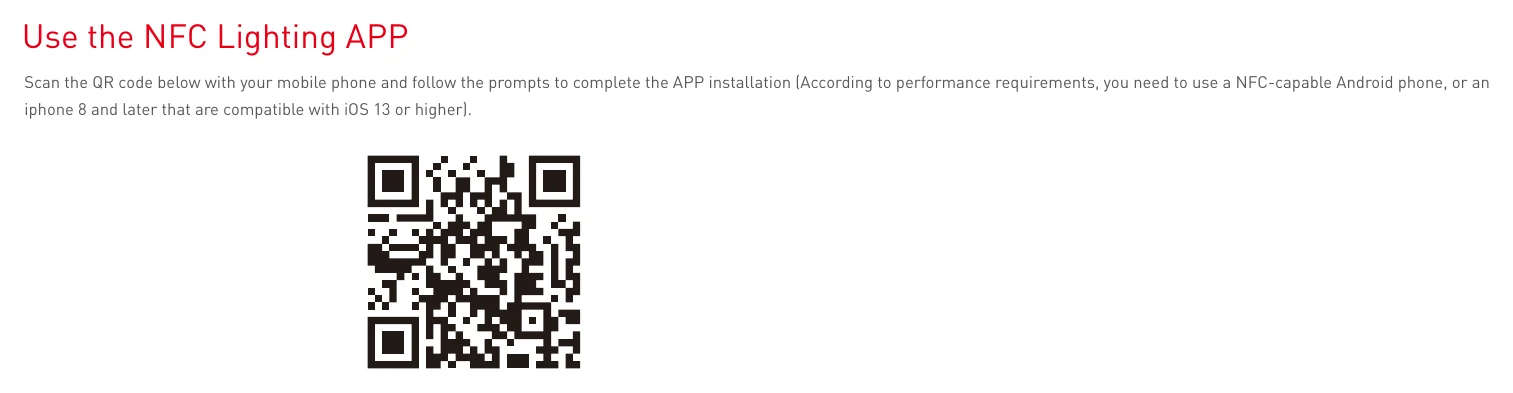

- Change the output current, Max Level and other parameters via the APP.
- Adjustable output current with 1mA step.
- Soft-on and fade-in dimming function enhances your visual comfort.
- High performance, high efficiency, low THD.
- Innovative thermal management technologyintelligently protects the life of the LED driver.
- Overheat, overvoltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- 5-year warranty.
Specifications
Features
- Output Type
- Constant Current
- Output Feature
- Isolation
- Protection Grade
- IP20
- Insulation Grade
- Class II (Suitable for class I/ II /III light fixtures)
OUTPUT
- Output Voltage
- 9-42Vdc
- Maximum output voltage
- ≤55Vdc
- Output Current Range
- 300-1050mA
- Output Power Range
- Max.45W
- Current Accuracy
- ±5%
- Current Ripple
- <5% ( When outputting maximum current )
INPUT
- DC Voltage Range
- 220-240Vdc
- Input Voltage
- 220-240Vac
- Frequency
- 50/60Hz
- Input Current
- ≤0.09A
- Power Factor
- PF>0.9 (full load)
- THD
- THD<10% (at full load)
- Efficiency (Typ.)
- ≥88% (at full load)
- Inrush Current
- 15A (tested under 50% Ipeak)/230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20~45°C, tc: 90°C
- Working Humidity
- 20~95%RH,non-condensing
- Storage Temperature/Humidity
- -40~80°C/10~95%RH
- Temperature Coefficient
- ±0.03%/°C(0-50°C)
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overload Protection
- Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
- Overheat Protection
- Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. automatically recover normal output
- Overvoltage Protection
- Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Withstand Voltage
- I/P-O/P: 3750Vac
- Insulation Resistance
- I/P-O/P: 1 Insulation Resistance 00MΩ/500VDC/25°C/70%RH
SAFETY & EMC
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1, GB19510.14 TUV Germany EN61347-1, EN61347-2-13, EN62493 CB CB Member States IEC61347-1, IEC61347-2-13 CE European Union EN61347-1, EN61347-2-13, EN62384 KC Korea KC61347-1, KC61347-2-13 EAC Russia IEC61347-1, IEC61347-2-13 RCM Australia AS61347-1, AS61347-2-13 ENEC Europe EN61347-1, EN61347-2-13, EN62384 UKCA England BS EN61347-1,BSEN61347-2-13,BSEN62493 BIS India IS 15885 (PART 2/SEC 13) - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743, GB17625.1 CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547 KC Korea KN15, KN61547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA England BS EN IEC 55015，BS EN IE C61000-3-2，BS EN 61000-3-3，BS EN 61547 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547
ErP
- Power Consumption
- No-load power consumption <0.5W

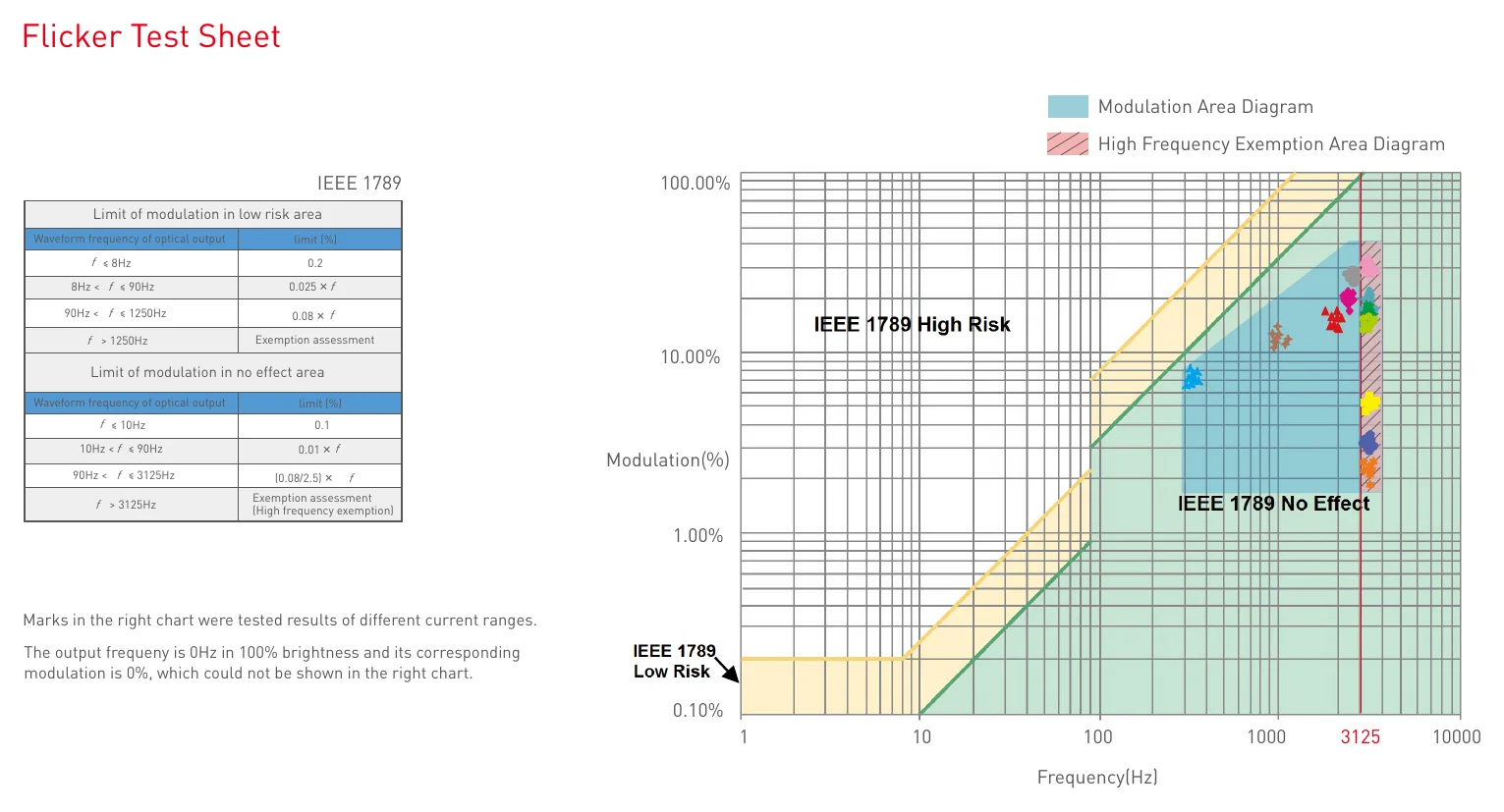

- Flicker/Stroboscopic Effect
-
Parameter Standard IEEE1789 Meet IEEE 1789 standard/High frequency exemption level CIE SVM Pst LM≤1.0，SVM≤0.4 - DF
-
Parameter Standard Phase factor DF≥0.9
OTHERS
- Weight(N.W.)
- 112g±10g

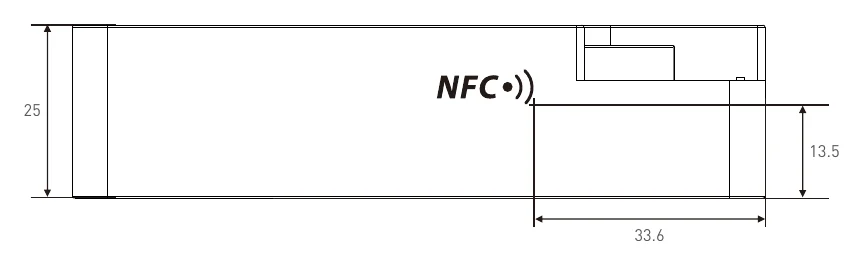

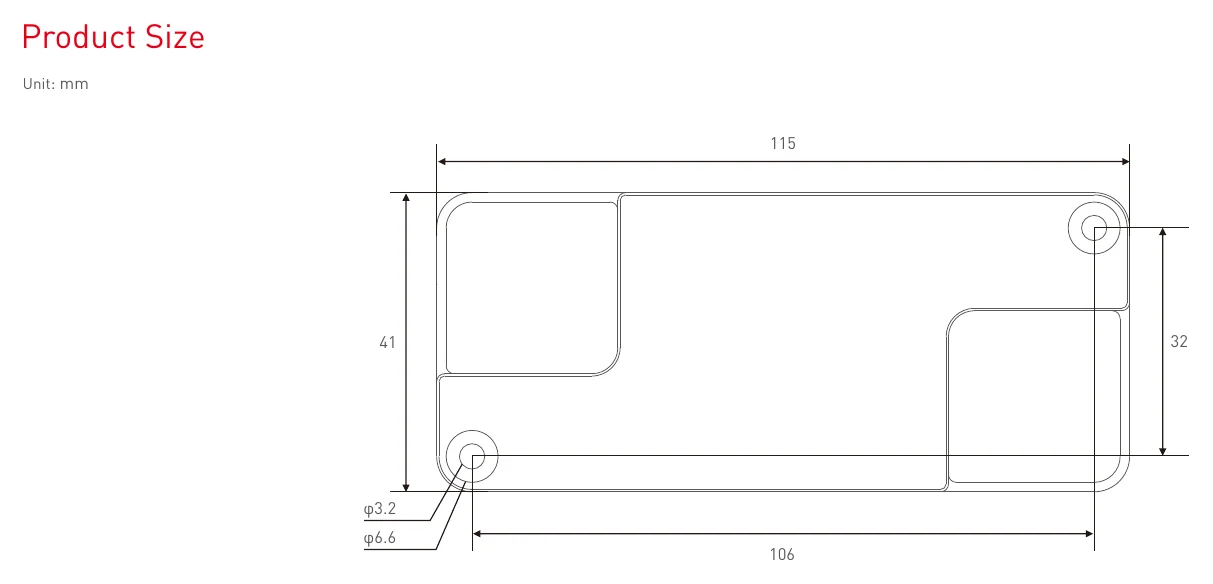

- Dimensions
- 115×41×25mm(L×W×H)
- Warranty
- 5-year warranty

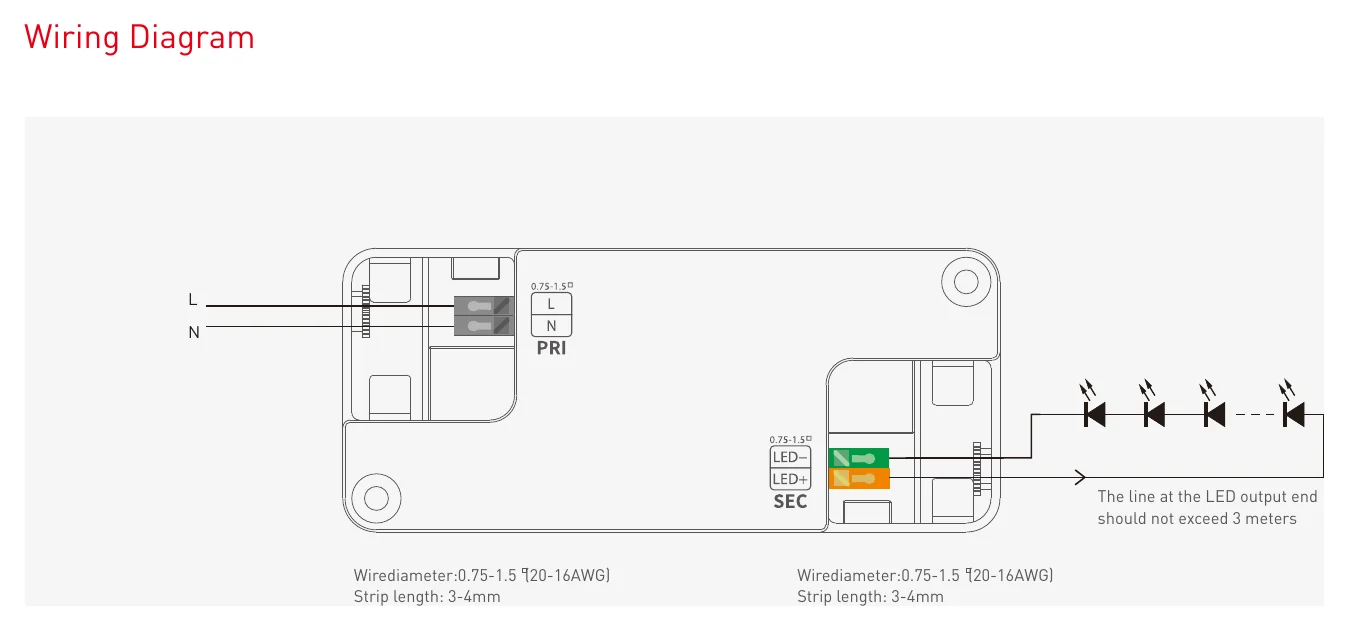

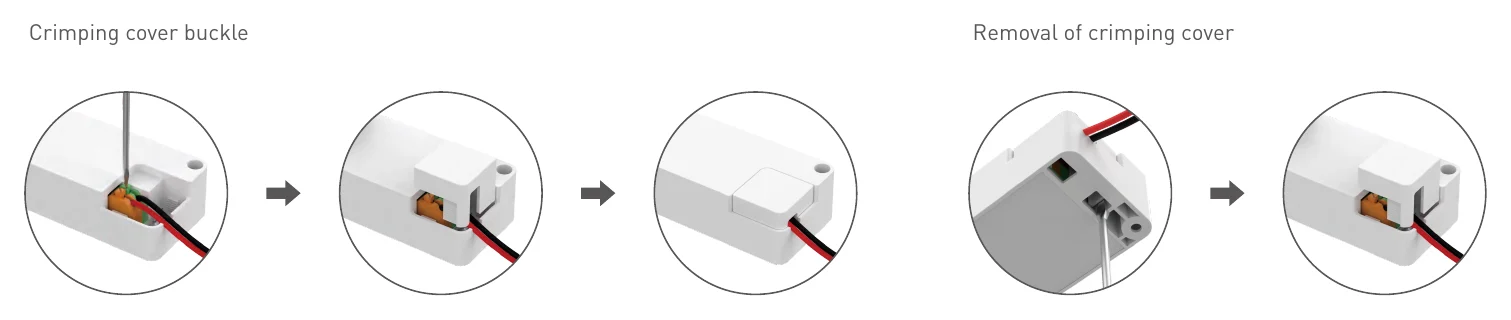

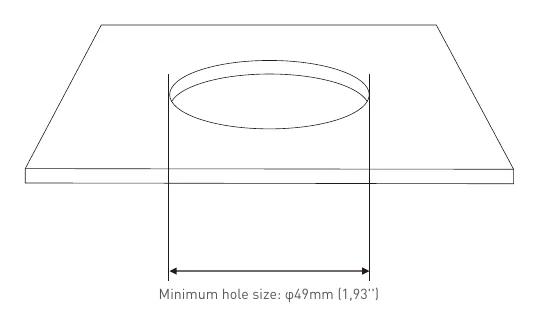

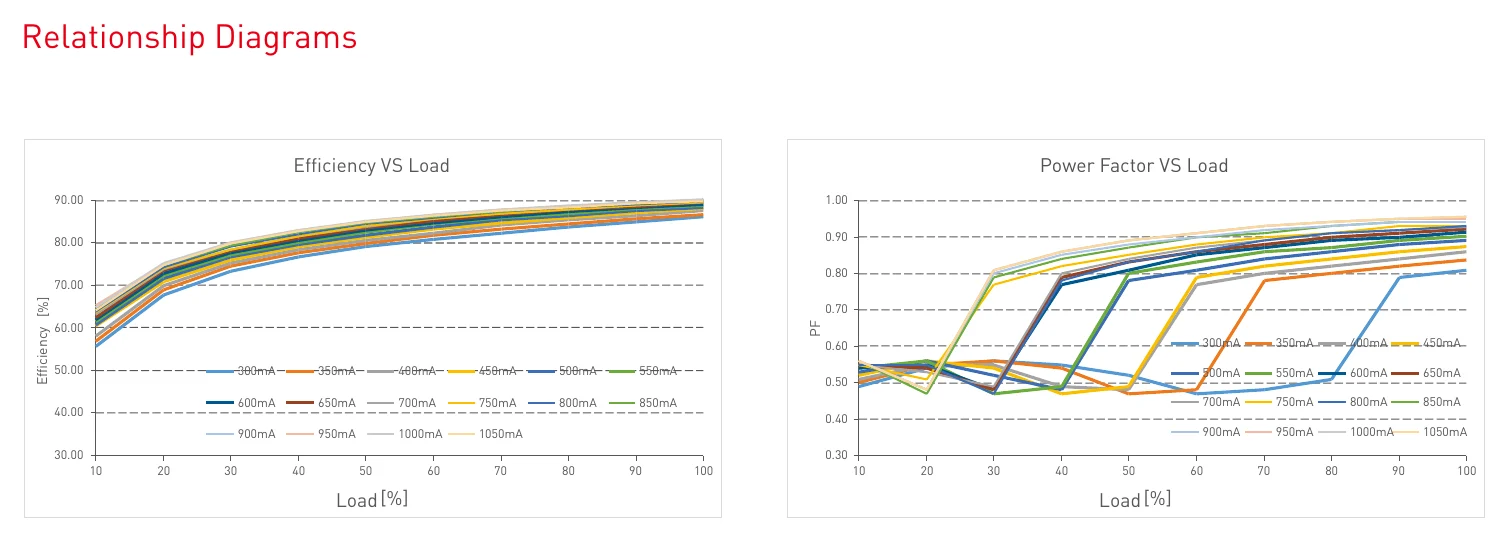

Technical drawings
Typical applications
- Indoor office lighting, decorative lighting and commercial lighting.
Downloads
Datasheet1
FAQ
What is the Ltech SN-45-300-1050-G1NF designed for?
The SN-45-300-1050-G1NF is a constant current LED driver for professional indoor lighting applications. It is intended for luminaires that need precise current control and supports use with Class I, II, and III fixtures.
What makes this LED driver different from fixed-current models?
This model allows the output current to be adjusted from 300mA to 1050mA. That gives more flexibility than a fixed-current driver when matching one driver model to different luminaire requirements.
What are the main electrical ratings of the SN-45-300-1050-G1NF?
This driver is rated at 45W power with an output voltage range of 9-42Vdc. The adjustable current range is 300-1050mA.
Is the SN-45-300-1050-G1NF dimmable?
The product data lists this model as non-dimmable. It does not support dimming control interfaces.
Can this driver be used in demanding indoor lighting environments?
It is built for indoor professional lighting use and has an operating temperature range of -20°C to 45°C. That makes it suitable for many commercial and architectural indoor applications within those environmental limits.
What warranty and physical size considerations apply to this model?
The SN-45-300-1050-G1NF comes with a 5-year warranty. Its listed weight is 112g, which supports its positioning as an ultra-small driver for space-conscious luminaire designs.
