Ltech Ultra-small ON/OFF CC Driver, 45W, 300-1050mA Current Selecta...
Please Login for Pricing
Description
Description

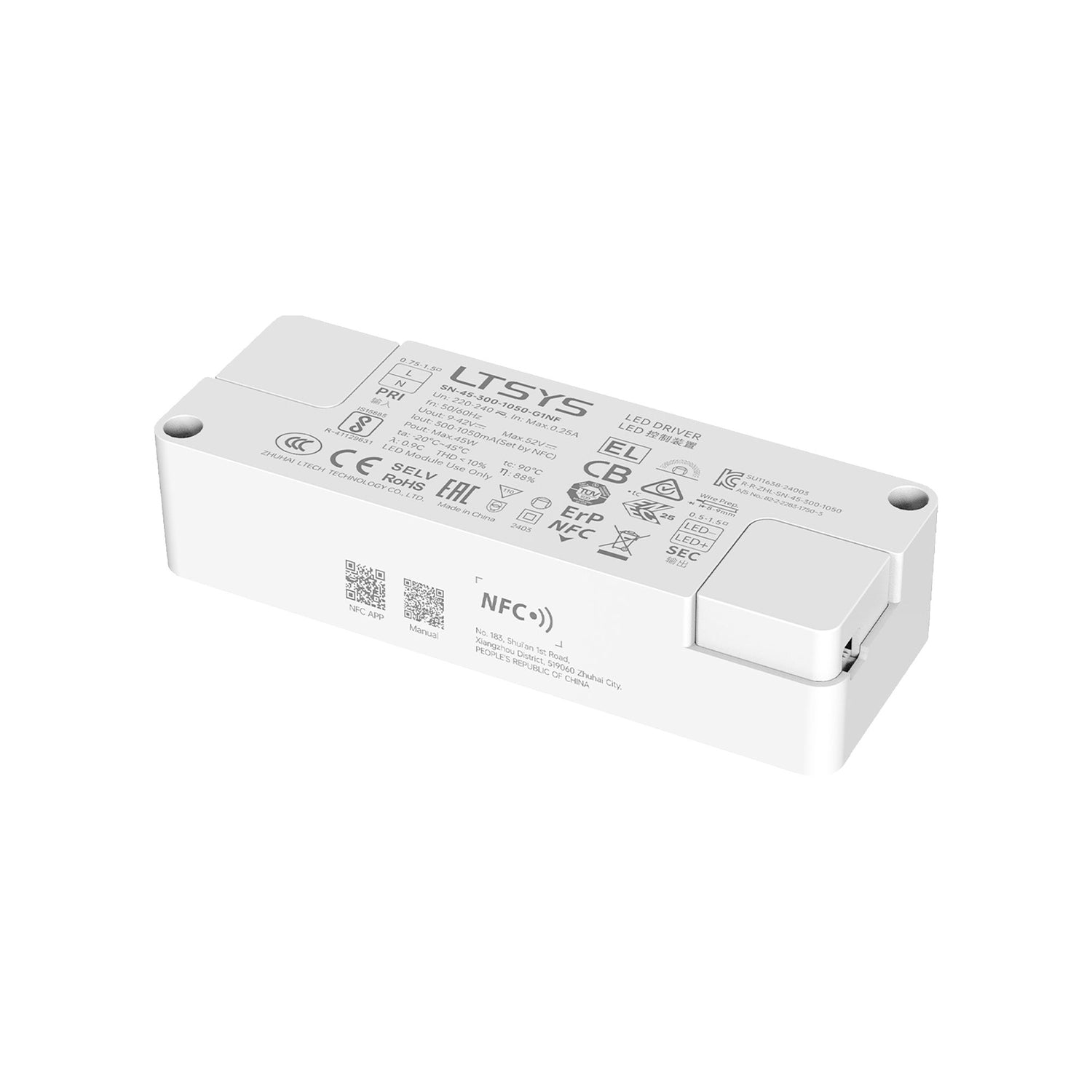

The SN-45-300-1050-G1NF is a high-performance constant current LED driver engineered for professional indoor lighting applications. With an adjustable output current range of 300–1050mA in 1mA steps via NFC programming, it offers precise and flexible control for Class I, II, and III luminaires. Featuring high efficiency, low THD, and soft-on/fade-in dimming, it ensures superior visual comfort with 0.01% flicker-free dimming that meets IEEE 1789 high-frequency exemption standards. Built with a V0 flame-retardant PC housing, this compact driver provides reliable performance, robust protection features, and a long service life backed by a 5-year warranty.
Key Features
-
Constant current LED driver with NFC programming (300–1050mA adjustable in 1mA steps)
-
Output voltage: 9–42VDC
-
Maximum output power: 45W
-
Soft-on and fade-in dimming for enhanced visual comfort
-
Flicker-free performance meeting IEEE 1789 high-frequency exemption standards
-
High efficiency (≥88%) and low THD (<10%) at full load
-
Multiple protections: overheat, overvoltage, overload, short circuit (auto recovery)
-
Suitable for Class I, II, III indoor luminaires
-
Compact size: 115×41×25 mm, lightweight design (112 g)
-
Operating temperature: -20°C to 45°C, tc: 90°C
-
Housing made from V0 flame-retardant PC materials
-
5-year warranty
Specifications
Specifications
-
BrandLtech
-
SeriesLtech ON/OFF
-
Power Rating45 Watt
-
Output Voltage42 Volt
-
Rated Current0.7 Ampere
-
Input Voltage220V~240V
-
Standards MetCCC,KC,RCM,RED,ROHS,SAA
-
Operation ModeConstant Current
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length11.5 cm
-
Width4.1 cm
-
Height2.5 cm
-
Weight0.11 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech SN-45-300-1050-G1NF designed for?
The SN-45-300-1050-G1NF is a constant current LED driver for professional indoor lighting applications. It is intended for luminaires that need precise current control and supports use with Class I, II, and III fixtures.
What makes this LED driver different from fixed-current models?
This model allows the output current to be adjusted from 300mA to 1050mA in 1mA steps through NFC programming. That gives more flexibility than a fixed-current driver when matching one driver model to different luminaire requirements.
What are the main electrical ratings of the SN-45-300-1050-G1NF?
This driver is rated at 45W power with an output voltage of 42V. The listed rated current is 700mA, and the adjustable current range is 300-1050mA.
Is the SN-45-300-1050-G1NF dimmable?
The product data lists this model as non-dimmable. It does include soft-on and fade-in behavior and is described as offering 0.01% flicker-free dimming performance for visual comfort, but its control category is non-dimmable.
Can this driver be used in demanding indoor lighting environments?
It is built for indoor professional lighting use and has an operating temperature range of -20°C to 45°C. That makes it suitable for many commercial and architectural indoor applications within those environmental limits.
What warranty and physical size considerations apply to this model?
The SN-45-300-1050-G1NF comes with a 5-year warranty. Its listed weight is 112g, which supports its positioning as an ultra-small driver for space-conscious luminaire designs.
