Mean Well LCM-40BLE Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - Casambi and Push

selectable output current using dip switchflicker-freeClass II without FG

SKU LCM-40BLE

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

LCM-40BLE is the model of this series: rated power 42W, typical efficiency 90%.

LCM-40BLE series is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and integration of Casambi Bluetooth control so that the installation is greatly simplified. LCM-40BLE operates from 180～295VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -30℃ ~+90℃ case temperature under free air convection. In addition, LCM-40BLE is equipped with push dimming and synchronization so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output with multiple levels selectable by dip switch
Flicker free design
Plastic housing with class II design
Built-in active PFC function
Functions: Casambi Bluetooth low energy protocol, push dimming, synchronization up to 10units
3 years warranty

Specifications

LCM-40BLESpecifications from the official datasheet (2019-08-13 edition)Download datasheet PDF

OUTPUT

CURRENT LEVEL: Current level selectable via DIP switch, please refer to "DIP SWITCH TABLE" section: 350mA / 500mA / 600mA / 700mA(default) / 900mA / 1050mA
RATED POWER: 42W
DC VOLTAGE RANGE: 350mA: 2 ~ 100V / 500mA: 2 ~ 80V / 600mA: 2 ~ 67V / 700mA: 2 ~ 57V / 900mA: 2 ~ 45V / 1050mA: 2 ~ 40V
OPEN CIRCUIT VOLTAGE (max.): 110V (350mA ~ 600mA) / 65V (700mA ~ 1050mA)
CURRENT RIPPLE^Note.5: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
AUXILIARY DC OUTPUT: Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only
SETUP TIME^Note.3: 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 295VAC 254 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.975/230VAC, PF≧0.96/277VAC@ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.4: 90%
AC CURRENT (Typ.): 0.23A/230VAC 0.2A/277VAC
INRUSH CURRENT (Typ.): COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 130V Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE: Shutdown o/p voltage,re-power on to recover

FUNCTION

WIRELESS PROTOCOL: Casambi Bluetooth low energy 2.4GHz protocol
DIMMING: Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION: Please refer to "SYNCHRONIZATION OPERATION” section
TEMP. COMPENSATION: By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No.250.13-12, EN61347-1, EN61347-2-13, EN62384 independent approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.7: Compliance to EN55015, EN61000-3-2 Class C(@load≧40%) ; EN61000-3-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Line 2KV)

OTHERS

MTBF: 193.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 123.5*81.5*23mm (L*W*H)
PACKING: 0.24Kg ; 54pcs/15Kg/1.12CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. Efficiency is measured at 500mA/80V output set by DIP switch.
5. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

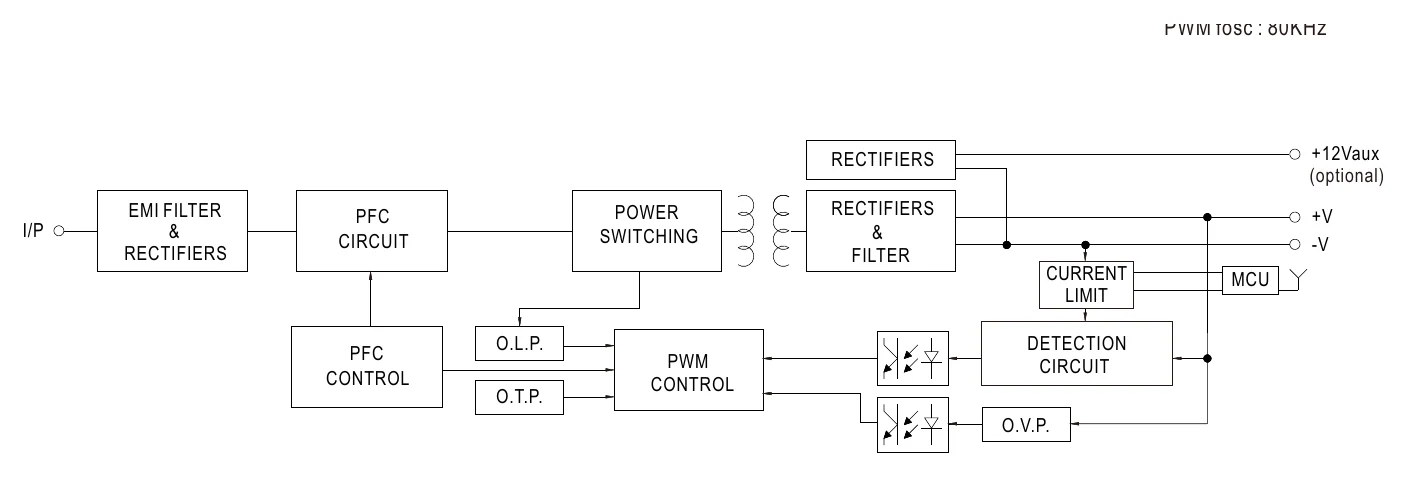

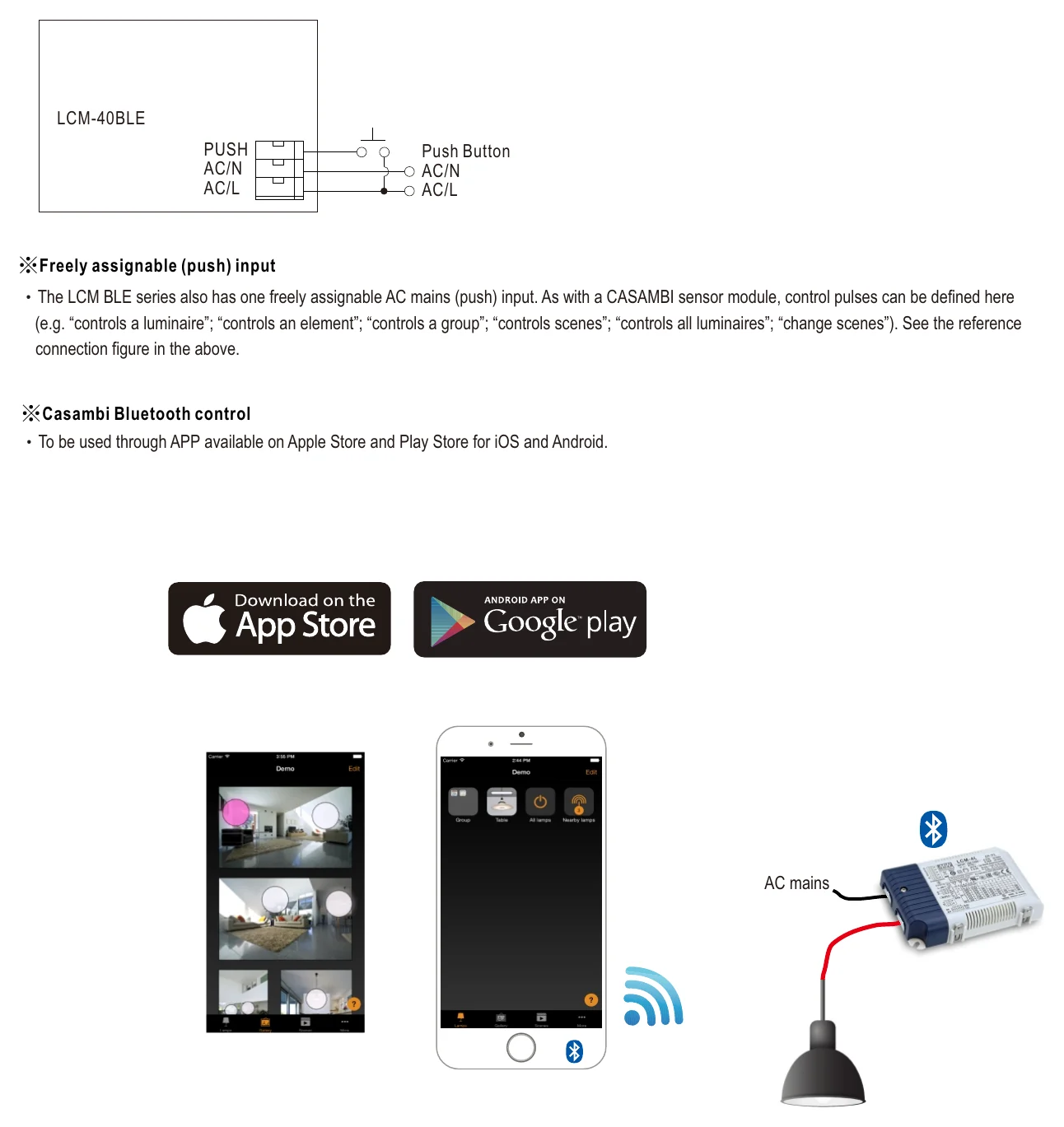

LCM-40BLE DIMMING OPERATION — DIMMING OPERATION

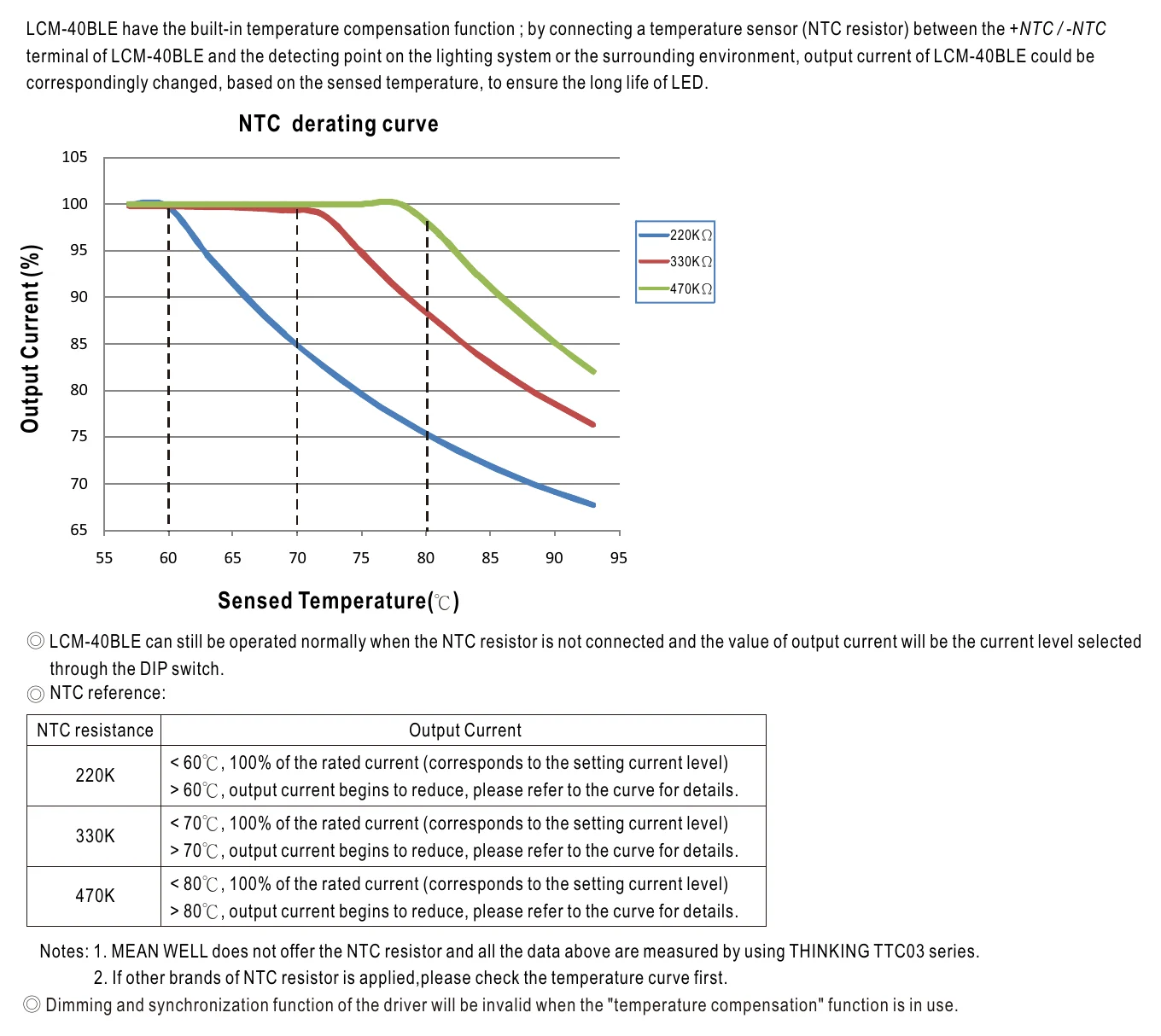

LCM-40BLE TEMPERATURE COMPENSATION — TEMPERATURE COMPENSATION

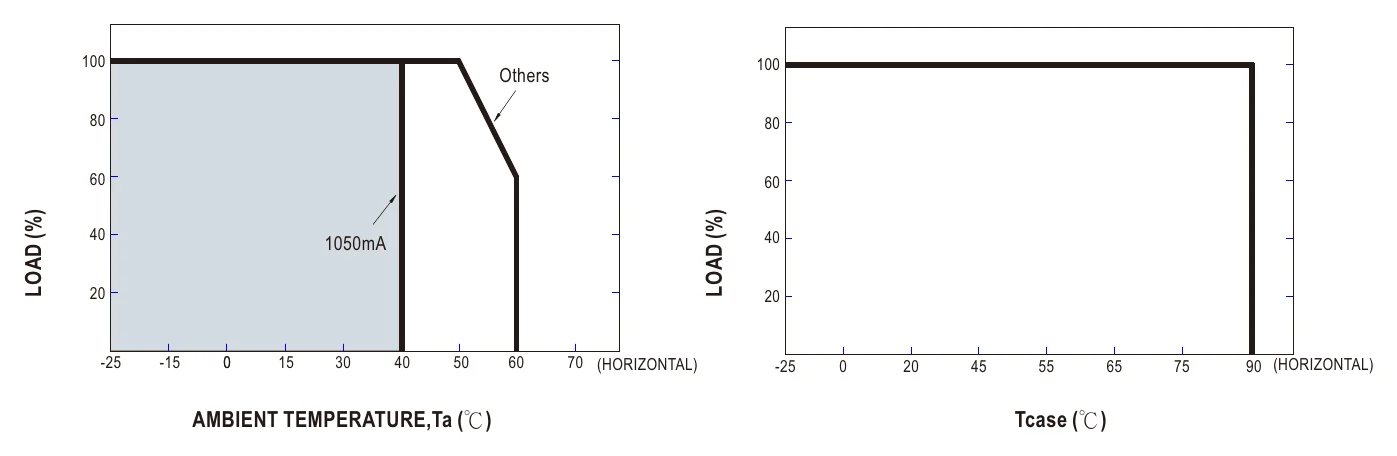

LCM-40BLE OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

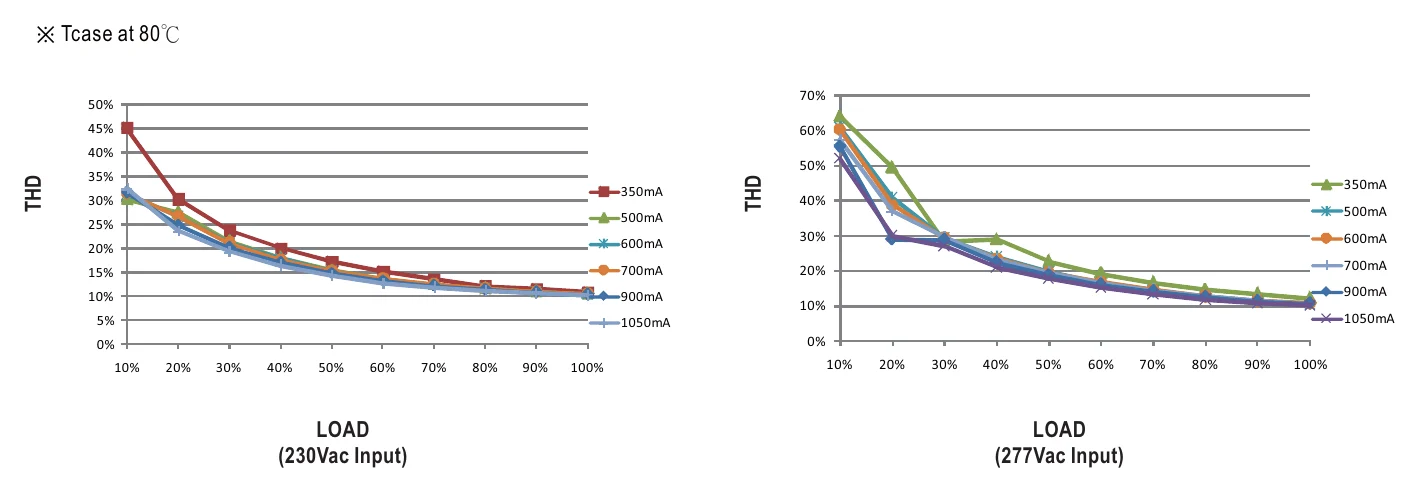

LCM-40BLE TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

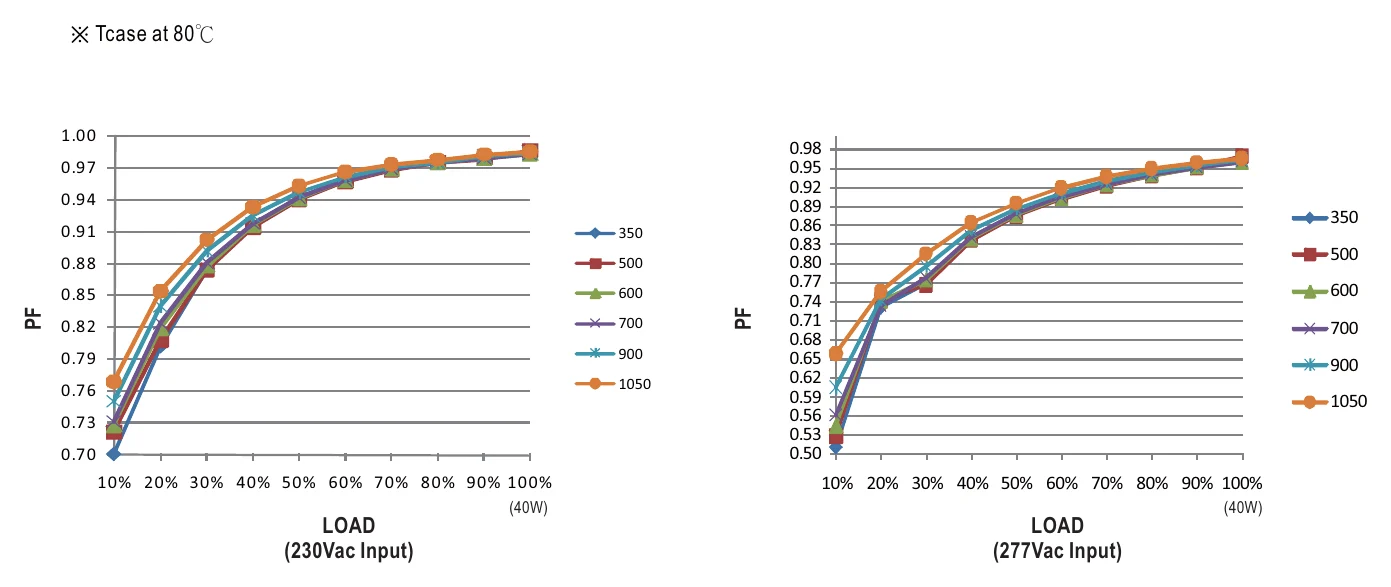

LCM-40BLE POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

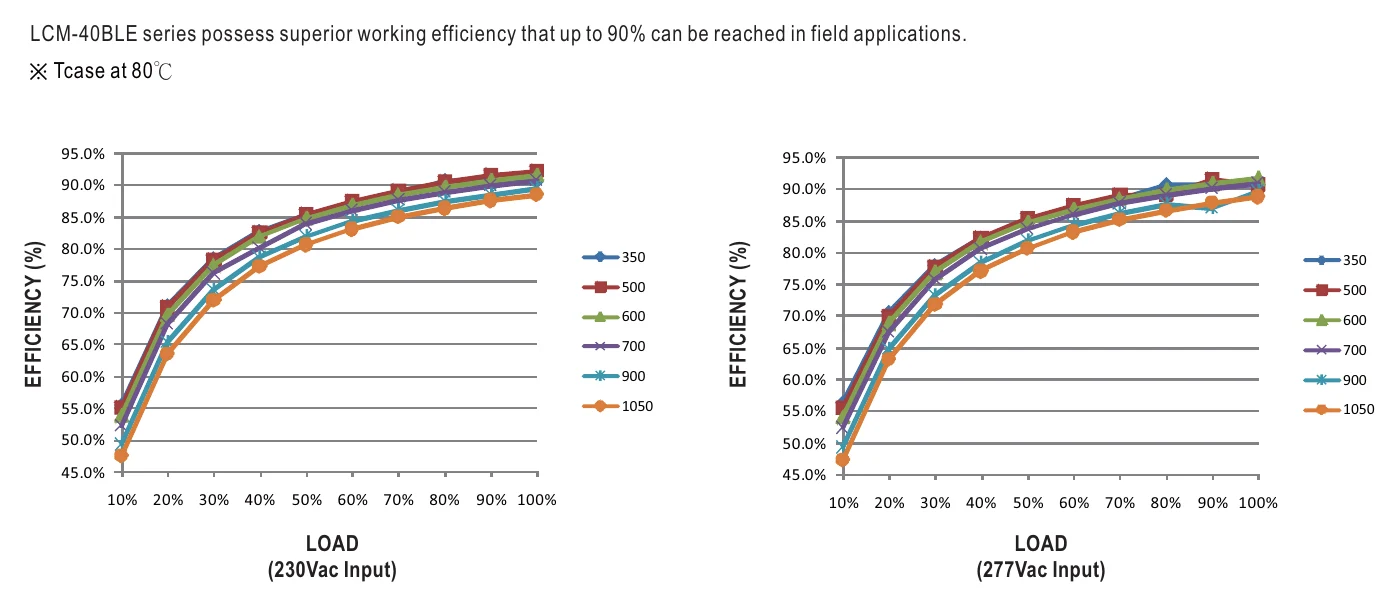

LCM-40BLE EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

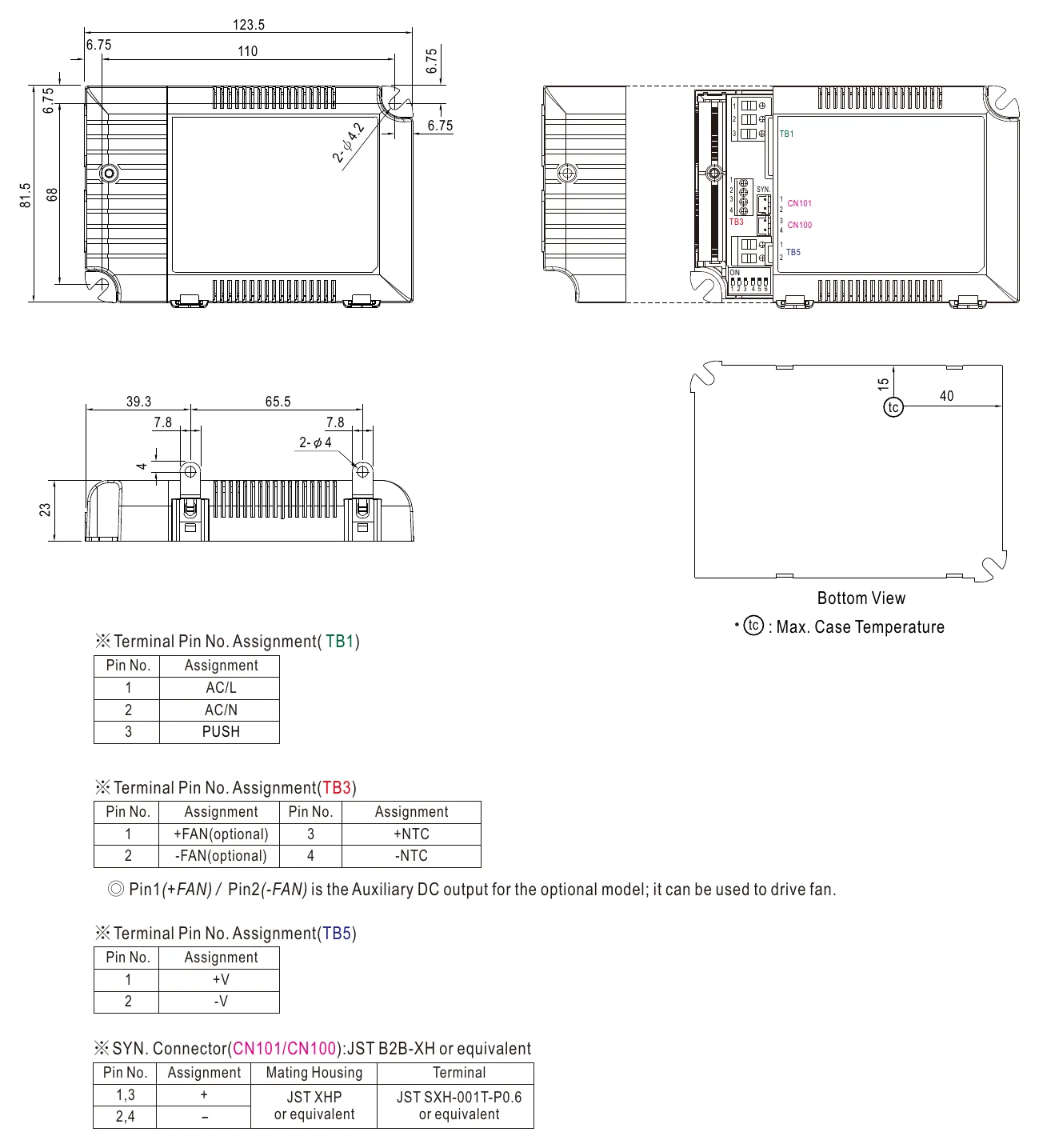

LCM-40BLE MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED indoor lighting
LED office lighting
LED architectural lighting
LED panel lighting

Downloads

Datasheet1

LCM-40BLE datasheetlcm_40ble_spec.pdf · 2019-08-13 edition PDF Download

Certificates4

UL Certificate(LCM-40)(EN) PDF Download

CB Certificate(LCM-40)(EN) PDF Download

ENEC Certificate(LCM-40)(EN) PDF Download

EMC Certificate(LCM-40)(EN) PDF Download

Test reports1

Test Report (LCM-40)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What applications is the Mean Well LCM-40BLE best suited for?

The LCM-40BLE is a constant current LED driver for commercial and architectural lighting where wireless dimming or push-dim control is needed. Its 42W rating and selectable output currents make it suitable for LED fittings that need a driver matched to one of the supported current levels.

Does the LCM-40BLE support Casambi control?

Yes. This model supports Casambi Bluetooth control through the Casambi app for iOS and Android, plus a freely assignable AC mains push input, which makes it a good fit for projects that want wireless lighting control alongside local push-button dimming.

What output current options are available on the LCM-40BLE?

The LCM-40BLE supports multiple selectable constant current levels: 350mA, 500mA, 600mA, 700mA, 900mA, and 1050mA. The default rated current listed for this model is 700mA.

What input voltage range does the LCM-40BLE accept?

This driver accepts 180 to 295VAC input, and it also supports 254 to 417VDC. That wide input range makes it suitable for commercial mains-powered LED lighting applications using the published electrical limits for this model.

Is the LCM-40BLE suitable for demanding temperature conditions?

The published working temperature is Tcase -25 to +90C, with output load derating at higher temperatures as shown in the output load vs temperature curve. That makes it appropriate for LED lighting environments where thermal performance matters, provided the application stays within the model's stated limits.

How does the LCM-40BLE compare with a fixed-current LED driver?

The main advantage of the LCM-40BLE is flexibility, because one model covers several output current options instead of only one fixed current. It also combines constant current operation with Casambi and push dimming, which can reduce the need to source different driver variants for similar projects.
