Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well A302-1K7-B2 Modified sine wave 1500W 110V - DC-AC Inverter
Log in to see priceFeatures
| 12V or 24V DC input |
| Power ON-OFF switch |
| Input voltage range: -15% ~ +25% |
| Output voltage regulation ±10% |
| Protections: Input reverse polarity/Bat. low shutdown/Over voltage/ Overload/Over temperature/Output short |
| Output waveform: Modified sine wave |
| Cooling fan ON-OFF control |
| ON/OFF remote control(Optional) |
| Approvals: E13 / EAC / CE / UKCA |
| 1 year warranty |
General Specification
| AC output voltage range | 110V; 230V |
| AC output waveform | Modified sine wave |
| Overload temperature | 60±5℃ / 140±9°F |
| Overvoltage | 125~133% load |
| Output short | Shut-off |
| Working temperature | 0 ~ 30°C@ 100% load, 40°C@ 70% load |
| Safety standards | EAC TP TC 004 approved |
| EMC standards | IEC61000-4-2,3, EAC TP TC 020 |

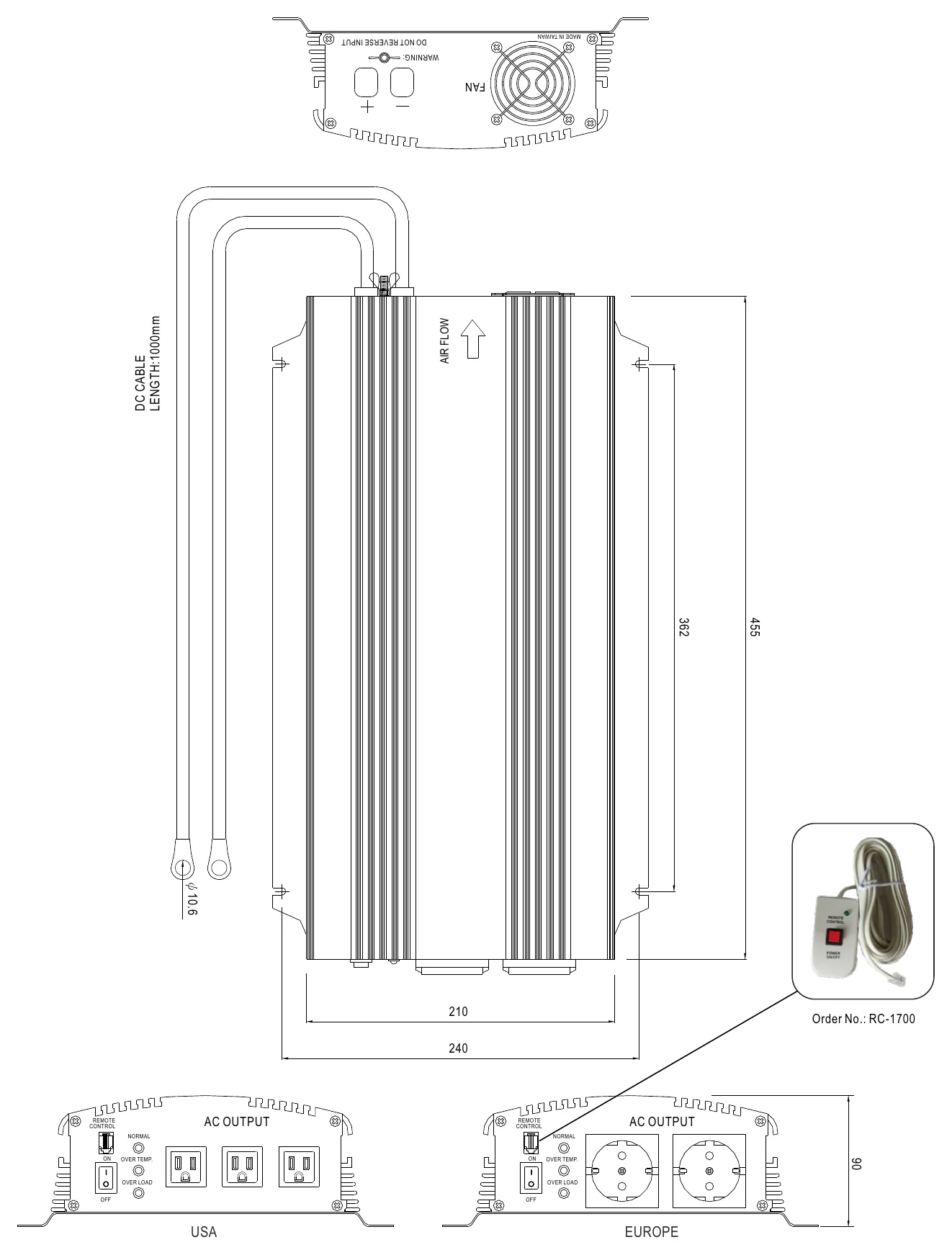

| Dimension (LxWxH) | 455*210*85mm |
| Packing | 3pcs / 19.6kg |
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating1500 Watt
-
Output Voltage110 Volt
-
Input Voltage21V~30V
-
Standards MetCE,E13,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~30°C
-
Warranty1 Year
-
Length45.5 cm
-
Width21 cm
-
Height8.5 cm
-
Weight5.5 kg
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other A302-1K7 Models
1 other model| Model | Power | Voltage | Waveform | Frequency | |
|---|---|---|---|---|---|
| Mean Well A302-1K7-F5 Modified sine wave 1500W 230V - DC-AC Inverter | 1500W | 230V | Modifined Sine Wave | 50Hz | View |
