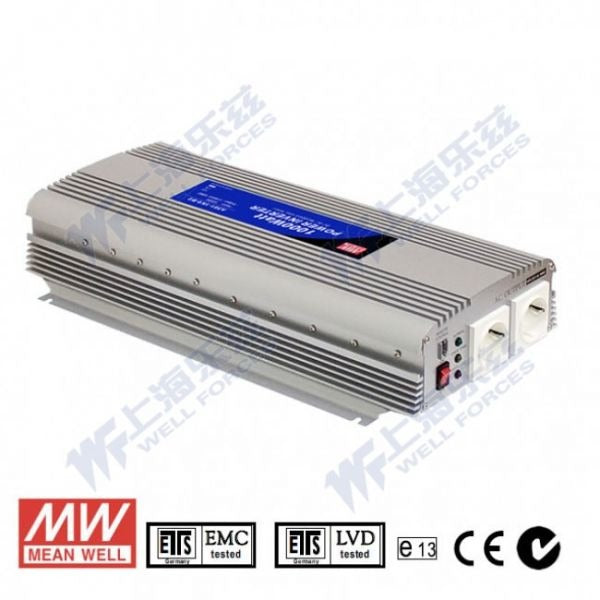

Mean Well A302-1K7-F5 Modified sine wave 1500W 230V - DC-AC Inverter
Log in to see priceOverview
A302-1K7-F5 is the model of this series: rated power 1500W, typical efficiency 85%.
Features
- 12V or 24V DC input
- Power ON-OFF switch
- Input voltage range: -15% ~ +25%
- Output voltage regulation:±10%
- Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
- Output waveform: Modified sine wave
- Cooling fan ON-OFF control
- ON/OFF remote control(Optional/Order No.: RC-1700)
- Approvals: E13/ EAC / CE / UKCA
- 1 year warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- A302-1K7
- AC VOLTAGE
- 230V
- RATED POWER
- 1500W
- PEAK POWER
- 1700W 30min.
- SURGE POWER
- 3000W
- WAVEFORM
- Modified Sine Wave
- FREQUENCY
- 50Hz±1%
- AC REGULATION
- ±10%
- STANDARD RECEPTACLES
- TYPE-5 (Australia)
- LED INDICATOR
- Green LED for power on; Red LED for power failure status
INPUT
- DC CURRENT
- 85A
- NO LOAD CURRENT DRAW
- 0.36A
- DC VOLTAGE
- 24V
- VOLTAGE RANGE
- 21 ~ 30VDC
- EFFICIENCY (Typ.)
- 85%
- DC CONNECTOR
- 1000mm R type terminal
- FUSE
- 20A*10
PROTECTION
- BAT. LOW ALARM
- 21±0.8V
- BAT. LOW SHUTDOWN
- 20±0.8V
- OVER LOAD
- >1700W shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 29 ~ 31V
- OVER TEMPERATURE
- 60±5℃/ 140±9oF
- OUTPUT SHORT
- Shut-off
- BAT. POLARITY
- By fuse open
ENVIRONMENT
- WORKING TEMP.
- 0 ~ 30℃@ 100% load, 40℃@70% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05% / ℃ (0 ~ 50℃)
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMI RADIATION
- Compliance to BS EN/EN55014-1, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
- LVD
- Compliance to BS EN/EN62368-1
OTHERS
- MTBF
- 86852Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 455*210*85mm (L*W*H)
- PACKING
- 5.5kg; 3pcs / 19.6kg / CARTON
- COOLING
- >40℃ (NTC) fan on
- APPLICATIONS
- Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
Technical drawings
Downloads
FAQ
What type of inverter is the Mean Well A302-1K7-F5?
The A302-1K7-F5 is a DC-AC inverter with a modified sine wave output. It is rated at 1500W and provides a 230V AC output for applications that can use a modified sine wave supply.
What DC input options does the A302-1K7-F5 support?
This model is the 24V DC input version, with an input voltage range of 21 to 30VDC. The 12V input version of the series is the A301 model.
Is the A302-1K7-F5 a pure sine wave inverter?
No. The A302-1K7-F5 uses a modified sine wave output rather than a pure sine wave output. Buyers comparing inverter types should confirm that their equipment is suitable for modified sine wave operation before selecting this model.
What protection features are included on the A302-1K7-F5?
This inverter includes battery low alarm and shutdown, over voltage, overload, over temperature, and output short circuit protection, and battery reverse polarity is protected by fuse open. The output short condition is specified as shut-off protection.
What operating temperature range is specified for this inverter?
The A302-1K7-F5 is rated for 0 to 30°C at 100% load. It is also specified for 40°C at 70% load, which is useful when evaluating it for warmer operating environments.
What approvals and standards are listed for the A302-1K7-F5?
This model lists EAC TP TC 004 safety approval, and the sheet shows the E13 mark. The specification also states EMI compliance to BS EN/EN55014-1 and EAC TP TC 020, EMS immunity compliance to BS EN/EN55014-2 and IEC61000-4-2,3, and LVD compliance to BS EN/EN62368-1.
What are the physical size and warranty for the A302-1K7-F5?
The listed dimensions are 455 x 210 x 85 mm, and the product weight is 5.5 kg. The spec sheet does not state a warranty period for this model.
