Boxco BC-AGD-354513 Dual Door Enclosure 350×450×130mm ABS Plastic
Log in to see priceOverview
BC-AGD-354513 is a 350×450×130 mm ABS enclosure from the Boxco D Series.
Features
- BOXCO All in one dual door is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
- This enclosures are easy to separate cover and base so that user can assemble them for processing and printing.
- It has reasonable product price in cost down for assembly by making integrated cover and transparent window.
- Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.
Specifications
Dimensions
- Size W × L × H (cover included)
- 350×450×130 mm (13.78×17.72×5.12 in)
- Mounting plate size
- 306×407 mm
- Dual door model
- D3545
- Dual door size
- 314×313 mm
Material
- Material
- ABS
- Mounting plates
- 3545 P (Plastic), 3545 S (Steel)
Protection & environment
- Operating temperature
- -40 ~ +70℃
- Flammability rating (UL 94)
- 94-HB
Test conditions and notes1
- Dimensions and specifications are subject to change without notice.

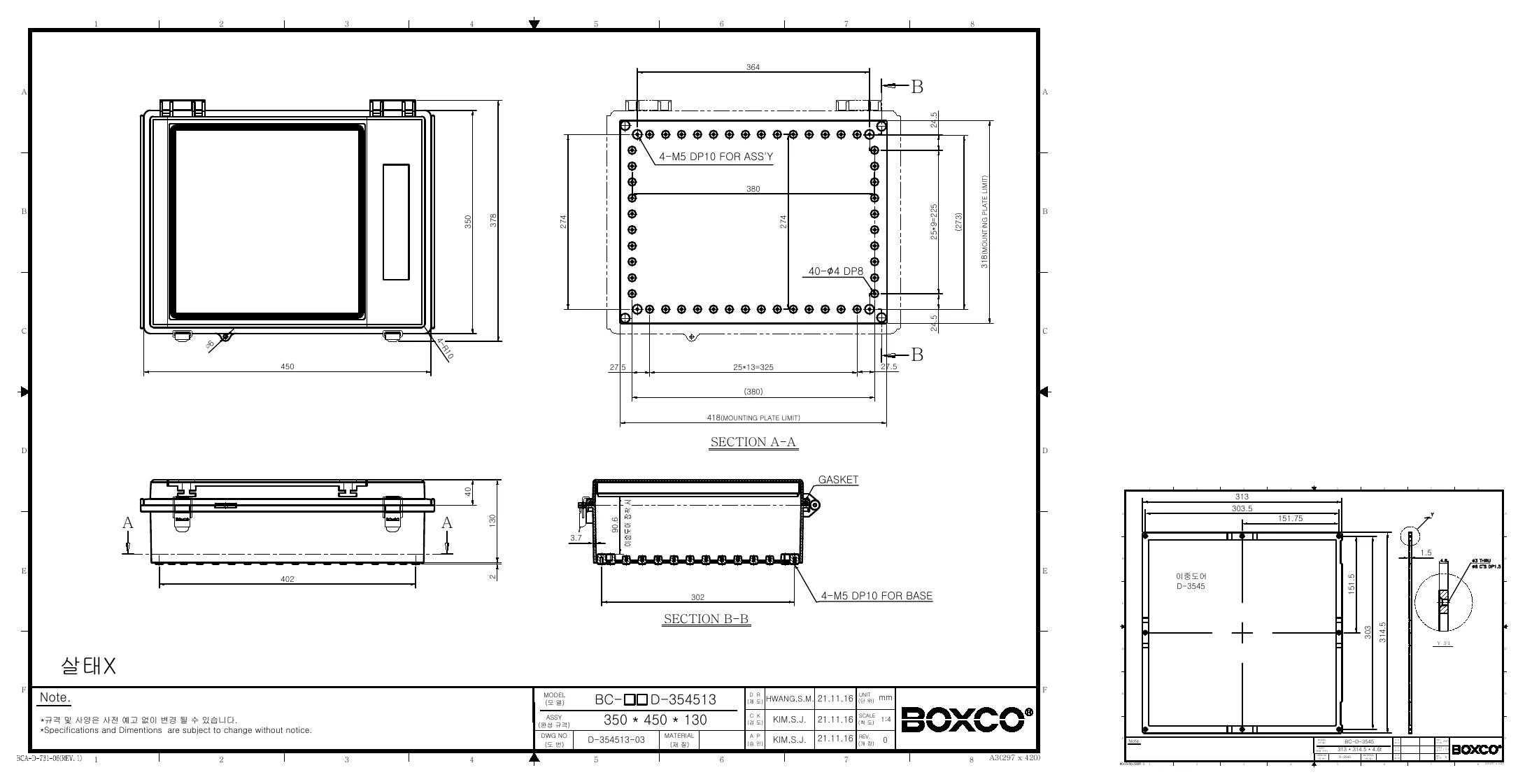

Technical drawings
Downloads
Datasheet1
FAQ
What applications is the Boxco BC-AGD-354513 dual door enclosure best suited for?
This model is suited for industrial and commercial enclosure applications where a durable non-metallic housing is needed with frequent access to internal components. Its dual door design, detachable cover, and stainless steel latches make it a practical choice for control and protection uses in demanding environments.
What are the exact dimensions of the BC-AGD-354513 enclosure?
The Boxco BC-AGD-354513 measures 17.72 x 13.78 x 5.12 inches, which corresponds to 450 x 350 x 130 mm. The product name and description identify it as a 450 mm length, 350 mm width, and 130 mm height enclosure.
How durable is this ABS plastic enclosure for harsh environments?
This enclosure is rated IP66/67 and NEMA 4X/6X, indicating strong protection against dust, water ingress, and washdown-style environments. It also carries an impact rating of IK07/08 and uses ABS plastic construction with UL94-HB non-flammable material characteristics.
What temperature range can the Boxco BC-AGD-354513 handle?
This enclosure is rated for operation from -40 C to 86 C, which is -40 F to 185 F. That wide temperature range makes it suitable for both cold and hot industrial environments within those stated limits.
What distinguishes this model from a standard single-door enclosure?
The BC-AGD-354513 is a dual door enclosure with a detachable cover for better access, which can be an advantage over simpler single-door designs when access and serviceability matter. It also includes built-in hinges, stainless steel latches, and an integrated key ring as part of this specific model.
What material and finish does this enclosure use?
This model is made from ABS plastic and comes in a grey finish. The material selection provides a lightweight non-metallic enclosure option, and the listed unit weight for this model is 3.63 kg.
Does the BC-AGD-354513 meet common compliance and certification expectations?
Yes, this model is listed with TUV and RoHS in the provided product data. It is also described as meeting IP66/67, NEMA 4X/6X, and UL94-HB specifications for this enclosure.
