Boxco BC-CTP-353515 Enclosure Clear Hinged Lid Polycarbonate
Log in to see priceOverview

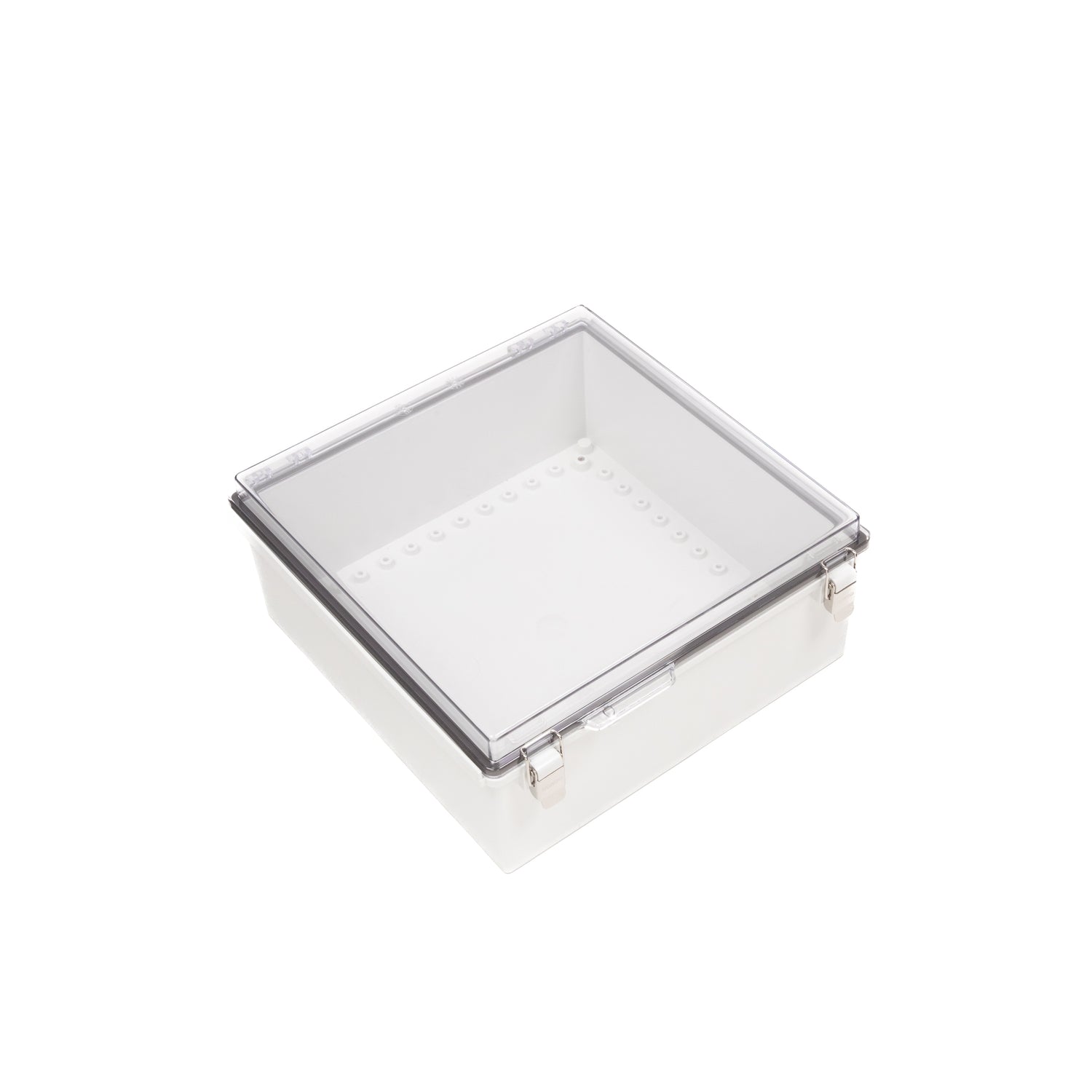

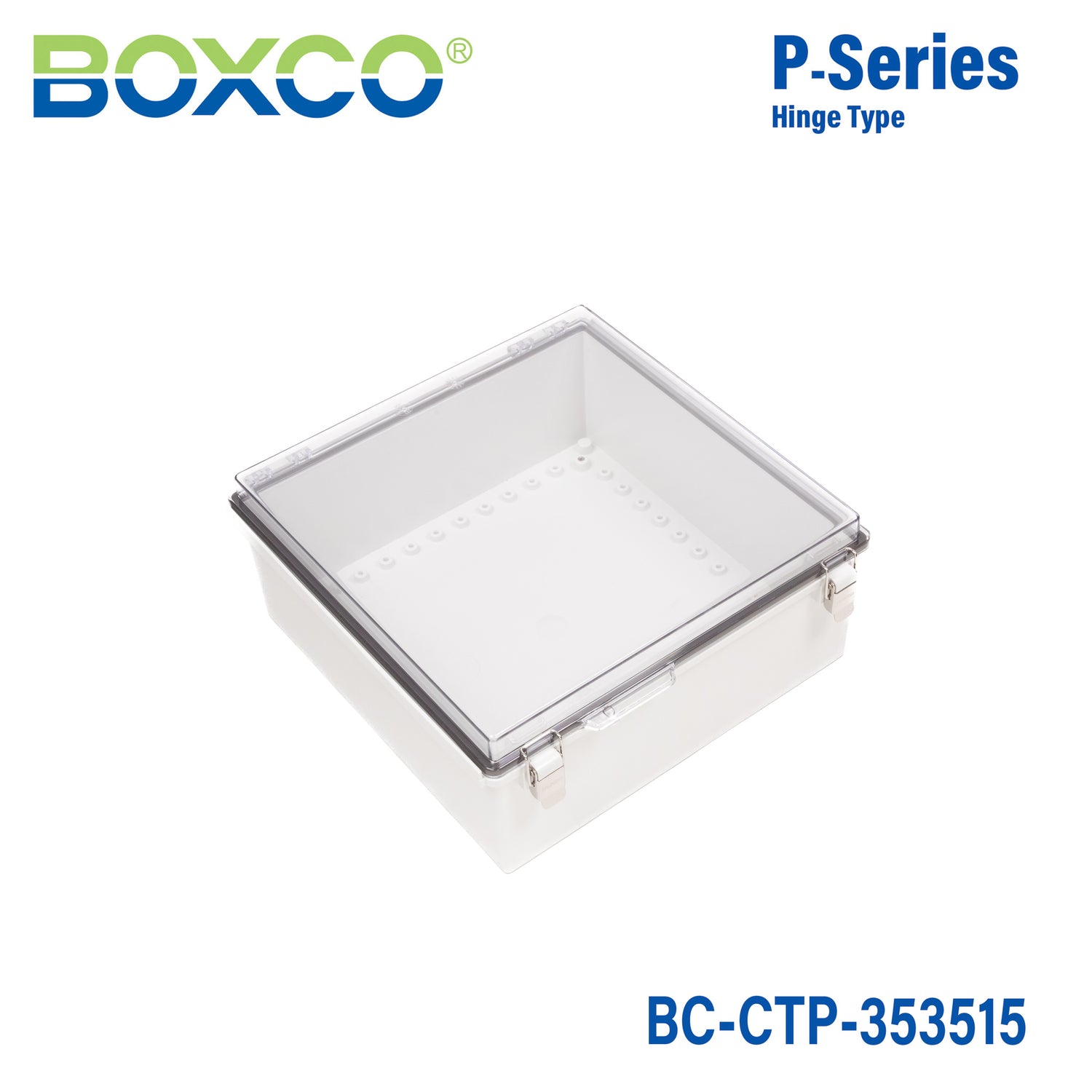

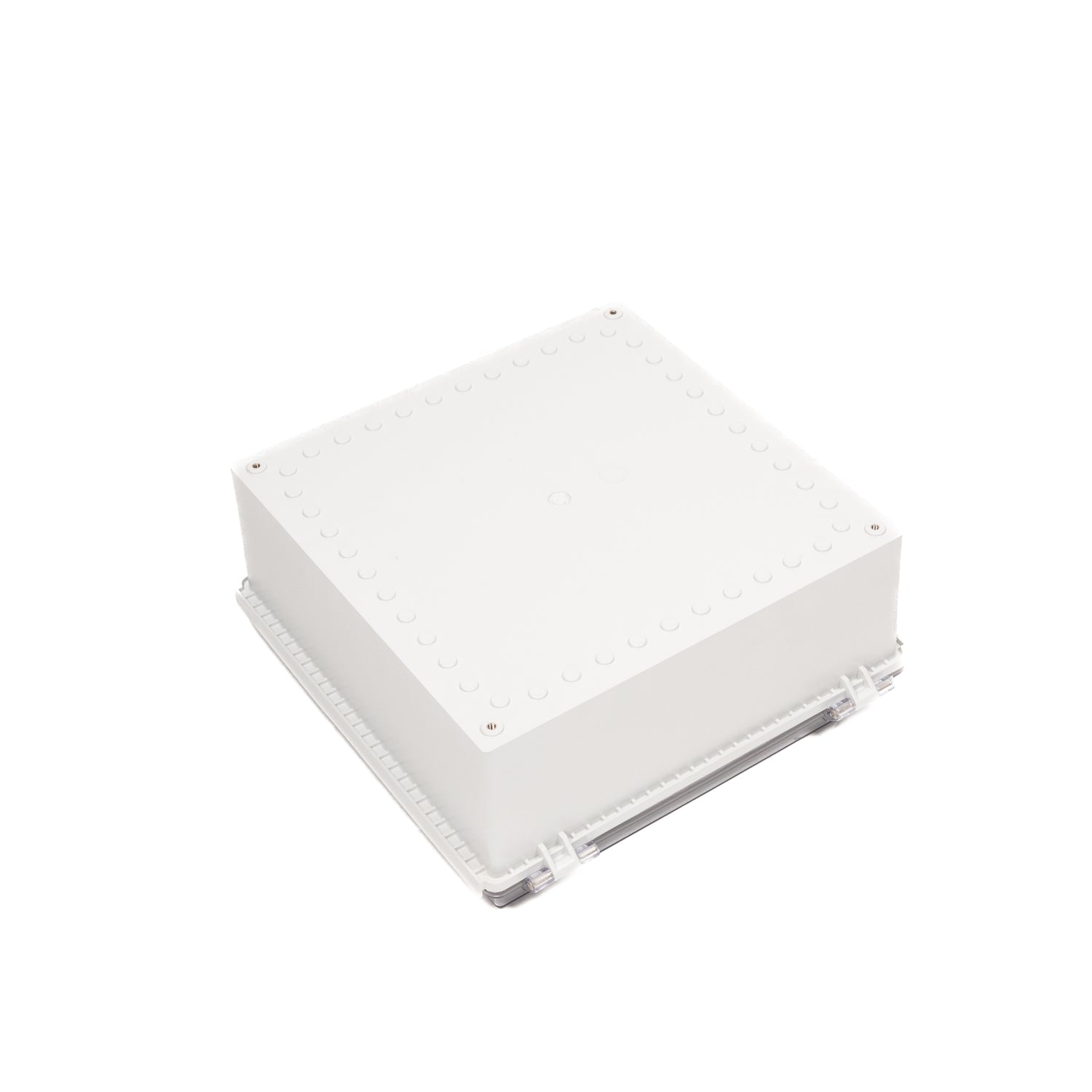

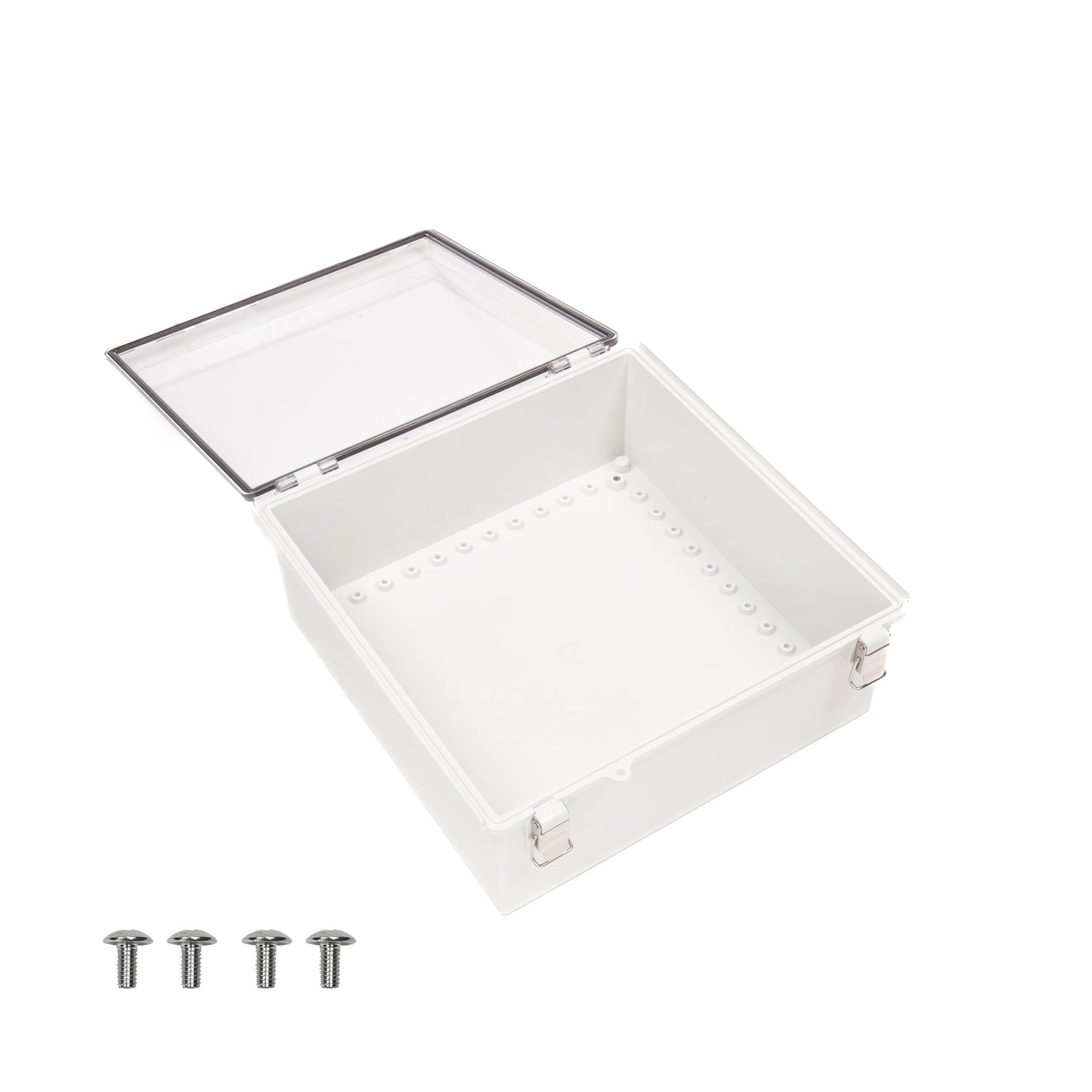

BC-CTP-353515 is a 350Γ350Γ150 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco P Series.
Features
- BOXCO control box with polyurathane gasket is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
- Our thermoplastic enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
- Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
- Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.
Specifications
Dimensions
- Size W Γ L Γ H (cover included)
- 350Γ350Γ150 mm (13.78Γ13.78Γ5.91 in)
- Mounting plate dimension M1 Γ M2
- 314 Γ 314 mm
Material
- Material
- Polycarbonate (PC)
- Cover
- Transparent
- Mounting plates
- 3535 P (Plastic, P type), 3535 S (Steel, S type)
Protection & environment
- IP rating
- IP66/67
- IK rating
- IK08
- Operating temperature
- -40 ~ +110β
- Flammability rating (UL 94)
- 94-V-0, 5VA, HB
Test conditions and notes1
- Dimensions and specifications are subject to change without notice.
Downloads
FAQ
What is the Boxco BC-CTP-353515 used for?
The Boxco BC-CTP-353515 is a polycarbonate enclosure intended to protect components in industrial or commercial applications. Its clear hinged lid makes it suitable for situations where contents need to be viewed without removing the cover.
What are the dimensions of the BC-CTP-353515 enclosure?
This model is listed as 350 x 350 x 150. That size can help buyers evaluate whether it fits the space and component volume needed for their enclosure application.
What material is the Boxco BC-CTP-353515 made from?
The BC-CTP-353515 is made from polycarbonate. This model also features a clear hinged lid, which distinguishes it from enclosure options with opaque covers.
What temperature range is this enclosure rated for?
The specified operating temperature range for the Boxco BC-CTP-353515 is -40 Β°C to 110 Β°C. That range makes it relevant for environments that experience both low and high temperatures within those limits.
How heavy is the Boxco BC-CTP-353515?
The listed weight for this enclosure is 5.44 kg. That can be a useful reference when planning handling, support, or overall product selection for a larger enclosure build.
Does this enclosure include a hinged lid?
Yes, the BC-CTP-353515 is specified with a clear hinged lid. Buyers looking for repeated access and quick visual inspection often prefer this style over a non-hinged cover.
What warranty period is listed for this model?
The Boxco BC-CTP-353515 is listed with a 1-year warranty period. This gives buyers a defined warranty term for this specific enclosure model.
