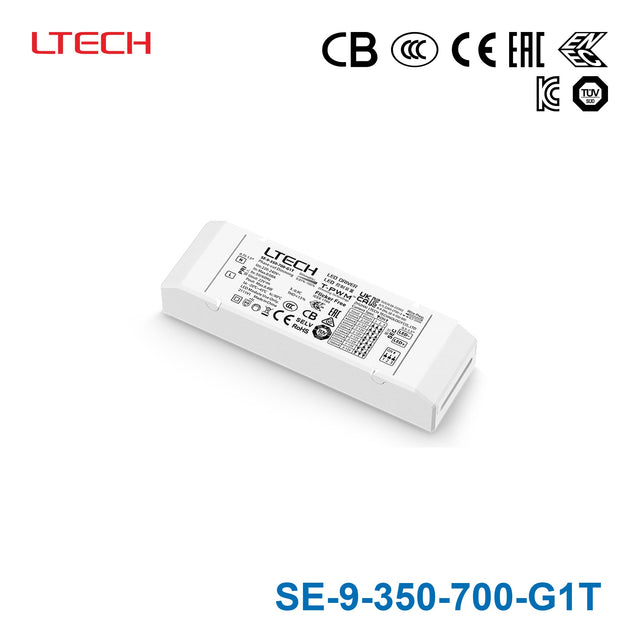

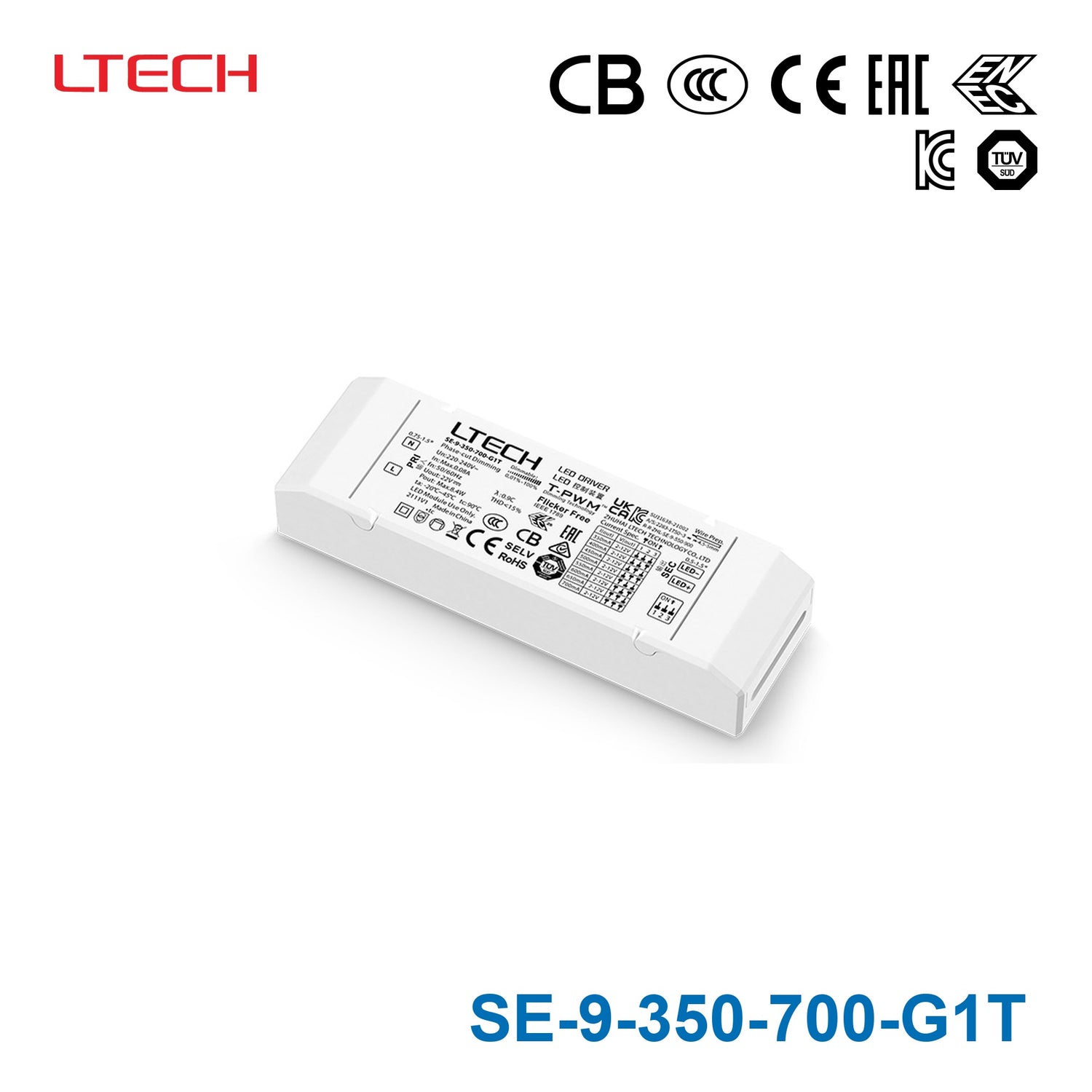

Ltech SE-9-350-700-G1T 9W 350mA ~ 700mA CC Triac LED Driver - Selectable Output

2-12V voltage rangeactual wattage depending on current

SKU SE-9-350-700-G1T

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SE-9-350-700-G1T is a constant-current LED driver intended for LED loads that require controlled current rather than constant voltage. It is part of LTECH's CC Triac driver range and is suited to low-power LED lighting applications within its stated electrical limits.

Input 220~240VAC. Operating temperature -20~+45°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: AC phase cut (TRIAC)
✓Output voltage: 22V
✓Output current: 350~700mA, selectable by DIP switch
✓Rated power: 8.4W
✓Operating temperature: -20~+45°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 111 x 35 x 20mm
✓5 year warranty

Frequently Asked Questions

What type of LED load is the LTECH SE-9-350-700-G1T designed for?

This model is a constant-current LED driver intended for LED loads that require controlled current rather than constant voltage. It is part of LTECH's CC Triac driver range and is suited to low-power LED lighting applications within its stated electrical limits.

What dimming method does the SE-9-350-700-G1T support?

The SE-9-350-700-G1T supports AC phase-cut dimming, commonly referred to as Triac dimming. That makes it a fit for applications where phase-cut dimming compatibility is required from the driver itself.

What are the main electrical specifications of this LED driver?

This model is rated at 8.4W with an output voltage of 22V. The listed rated current is 350mA, and the product name identifies it within LTECH's 350mA to 700mA constant-current Triac driver series.

What makes this driver different from a constant-voltage LED power supply?

The SE-9-350-700-G1T is a constant-current driver, so it is intended for LED loads that are specified by drive current rather than by a fixed output voltage supply. Buyers comparing it to constant-voltage power supplies should match it only to fixtures or modules that call for a constant-current driver.

What operating temperature range is this driver rated for?

This LED driver is rated for ambient temperatures from -20°C to 45°C. That range is important when evaluating whether the product is suitable for the intended operating environment.

What physical and durability features does the LTECH SE-9-350-700-G1T offer?

LTECH describes this model as using a V0 flame-resistant polycarbonate housing from SAMSUNG/COVESTRO, with a compact and lightweight form factor. It also carries a 5-year warranty, which is a useful indicator for long-term commercial and project-based purchasing.
