Ltech

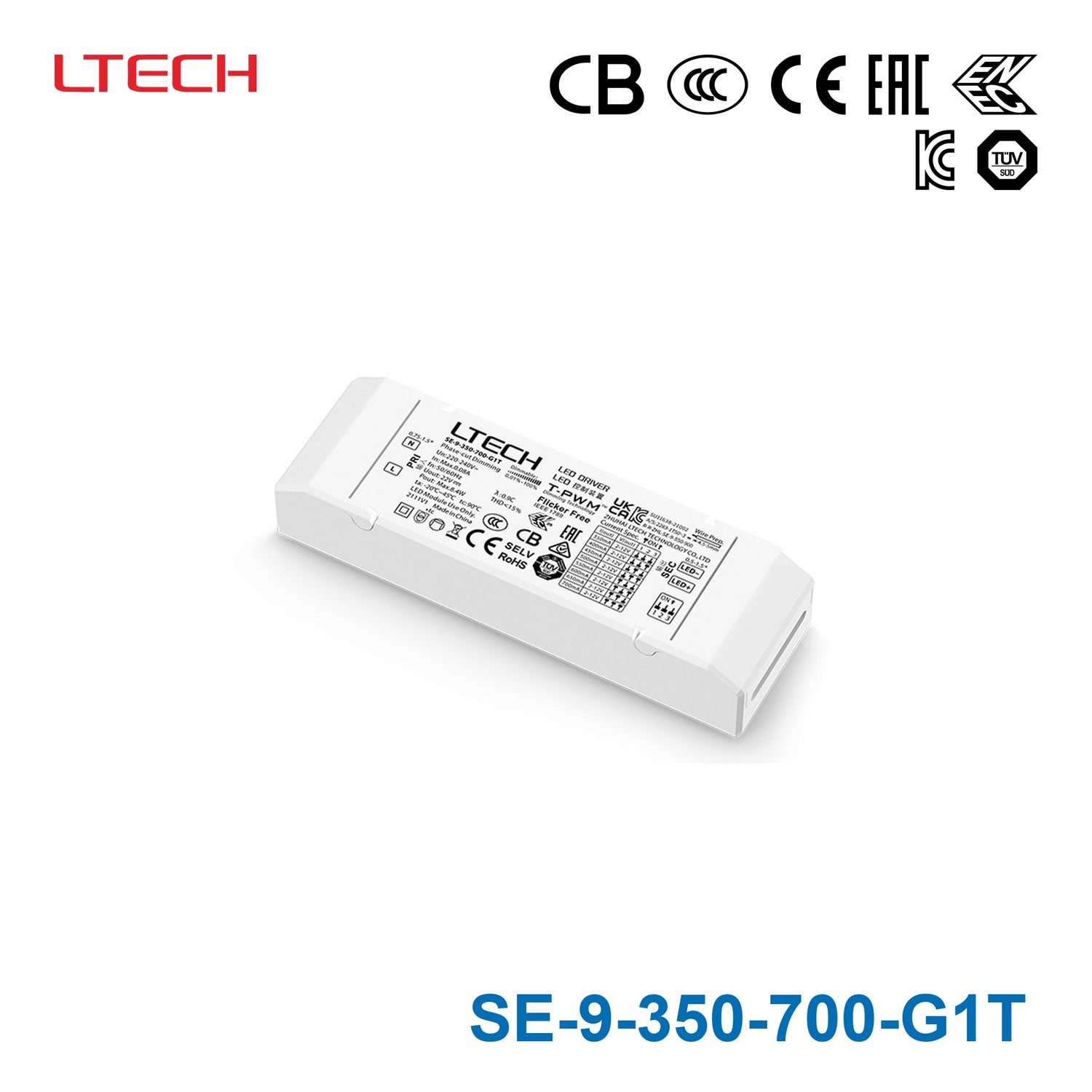

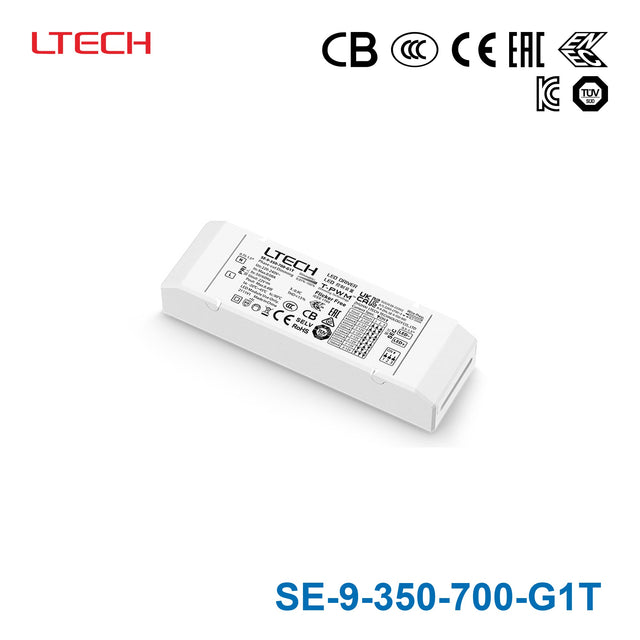

Ltech SE-9-350-700-G1T 9W 350mA ~ 700mA CC Triac LED Driver - Selectable Output

2-12V voltage rangeactual wattage depending on current
SKU SE-9-350-700-G1T
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

SE-9-350-700-G1T is the 2-12Vdc output model of this series.

Features

  • Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
  • The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm²wire diameter 60N tensile test, and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • T-PWM™dimming technology allows continuous and flicker-free images under high-speed shooting.
  • Dimming from 0~100%, down to 0.01%.
  • 0-100% flicker-free dimming with high frequency exemption level.
  • Innovative thermal management technology protects the power life intelligently.
  • Multi-current & wide voltage, suitable for different power LEDs.
  • Class 2 LED driver, full protective plastic housing.
  • Comply with Safety Extra Low Voltage standard.
  • Overvoltage, overload, short circuit protection and automatic recovery.
  • Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲtype.
  • Up to 50000-hour life time.
  • 5 -year warranty (Rubycon capacitor).

Specifications

SE-9-350-700-G1TSpecifications from the official datasheetDownload datasheet PDF

OUTPUT

Output Voltage
2-12Vdc
Max Output Voltage
≤22V
Output Current
350-700mA
Load Power Range
0.7W-8.4W
Strobe Level
No visible flicker/High frequency exemption level
Dimming Range
0~100%, down to 0.01%
LF Current Ripple(<120Hz)
<3%
Current Accuracy
±5%
Ripple & Noise
≤4V
PWM Frequency
3600Hz

INPUT

Dimming Interface
Triac leading edge/ELV trailing edge
Input Voltage Range
220-240Vac
Frequency
50/60Hz
Input Current
≤0.08A/230Vac
Power Factor
PF>0.9/230Vac (Full load)
THD
THD<15%/230Vac (Full load)
Efficiency
>70%@700mA
Inrush Current (typ.)
Cold start 10A@230Vac (Test twidth=200 us tested under 50% Ipeak)
Anti Surge
L-N: 1kV
Leakage Current
<0.5mA/230Vac

ENVIRONMENT

Working Temperature
ta: -20 ~ 45°C tc: 90°C
Working Humidity
20 ~ 95%RH, non-condensing
Storage Temperature, Humidity
-40 ~ 80°C, 10 ~ 95%RH
Temperature Coefficient
±0.03%/°C (-20°C ~ 45°C)
Vibration
10-500HZ, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively.

PROTECTION

Overload Protection
Shut down the output and recover automatically once it exceeds 1.02-1.35 times of the rated power.
Overheat Protection
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output.
Short Circuit Protection
When short circuit occurs, shut down the output and recover automatically.

SAFETY & EMC

Withstand Voltage
I/P-O/P:3750Vac
Insulation Resistance
I/P-O/P:500VdC/25°C/70%RH≥100MΩ
Safety Standards
ParameterStandardTest Level
CCCChinaGB19510.1，GB19510.14
TUVGermanyEN61347-1，EN61347-2-13，EN62493
CEEuropean UnionEN61347-1，EN61347-2-13，EN62384
KCKoreaKC61347-1，KC61347-2-13
RCMAustraliaAS61347-1，AS61347-2-13
ENECEuropeEN61347-1，EN61347-2-13，EN62384
CBCB member statesIEC61347-1，IEC61347-2-13
EACRussiaIEC61347-1，IEC61347-2-13
EMC Emission
ParameterStandardTest Level
CCCChinaGB/T17743，GB17625.1
CEEuropean UnionEN55015，EN61000-3-2，EN61000-3-3，EN61547
KCKoreaKN15，KN61547
RCMAustraliaEN55015，EN61000-3-2，EN61000-3-3，EN61547
EACRussiaIEC62493，IEC61547，EH55015
EMC Immunity
EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard
IEEE 1789

OTHERS

Dimensions
111×35×20mm(L×W×H)
Packing
122×36×22mm(L×W×H)
Weight(G.W.)
77.5g±10g

Certifications & ratings

Marked features
Triac ELV, Multiple Current

Technical drawings

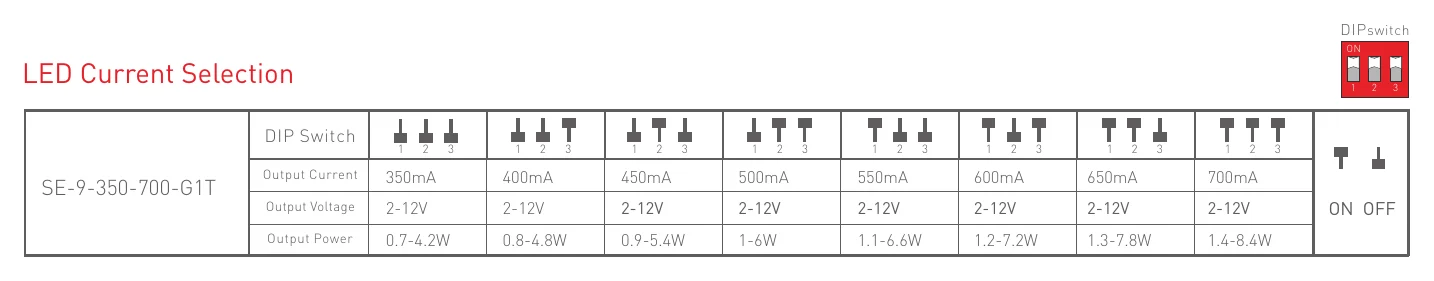

SE-9-350-700-G1T LED Current Selection
LED Current Selection
SE-9-350-700-G1T LED Current Selection (2)
LED Current Selection (2)
SE-9-350-700-G1T LED Current Selection (3)
LED Current Selection (3)
SE-9-350-700-G1T * After
* After

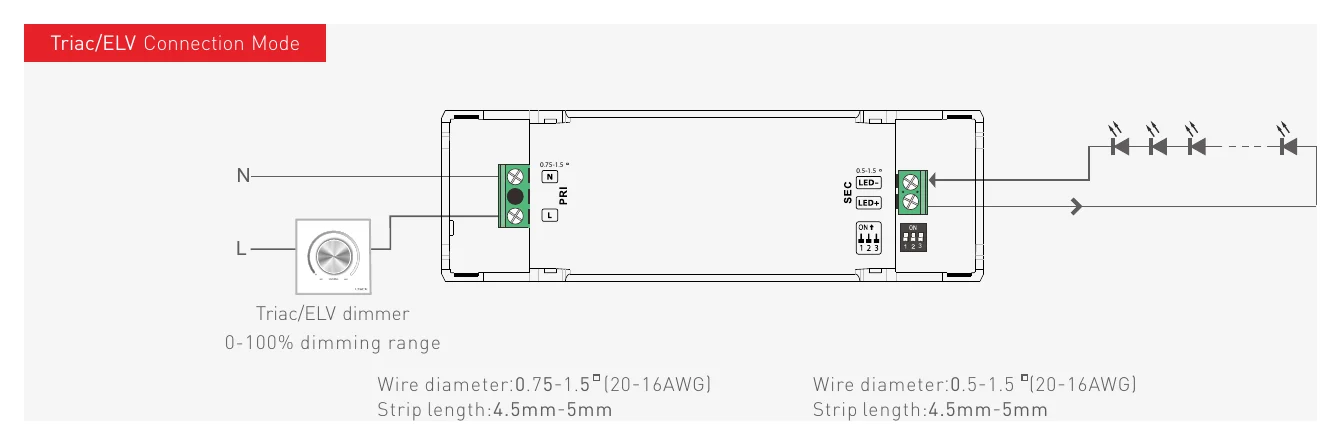

SE-9-350-700-G1T Triac/ELV Connection Mode
Triac/ELV Connection Mode

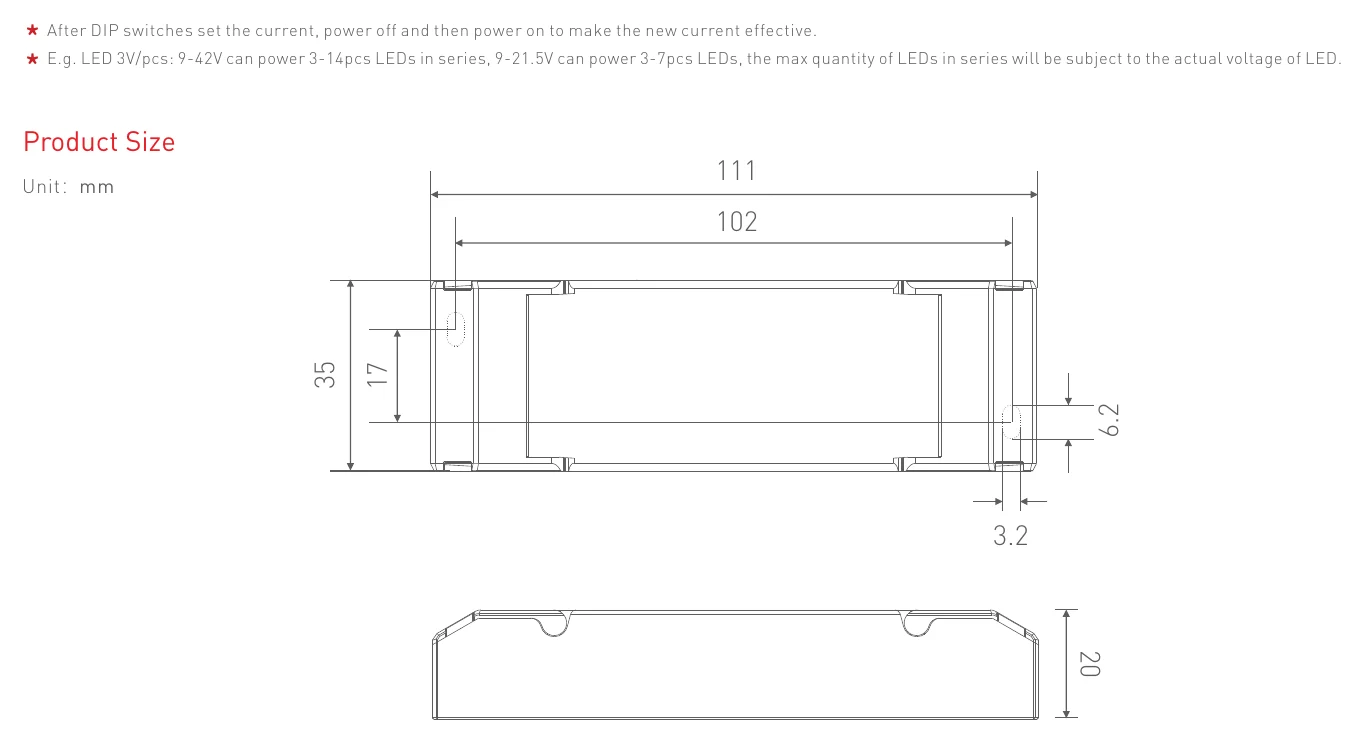

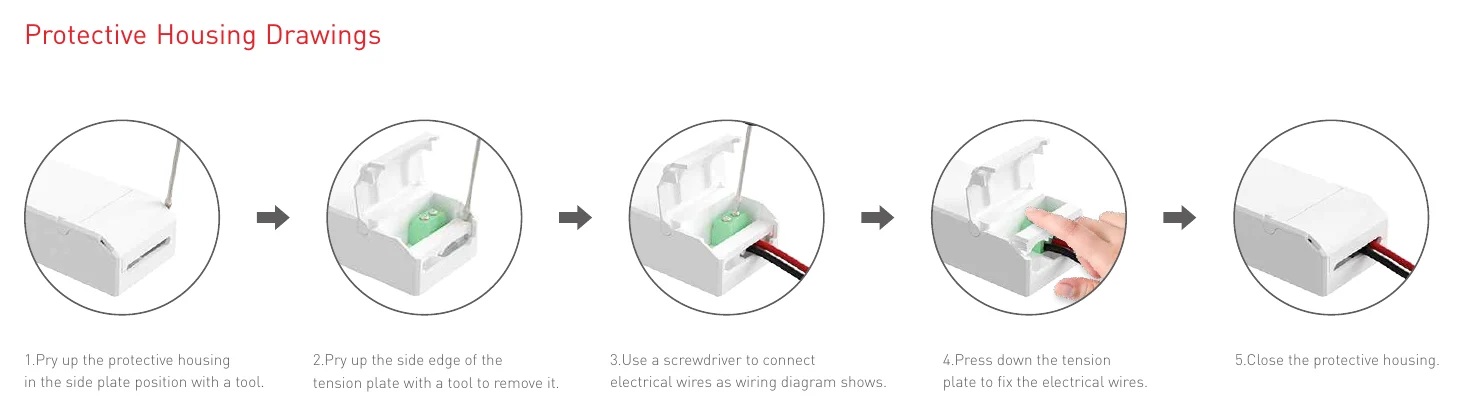

SE-9-350-700-G1T Protective Housing Drawings
Protective Housing Drawings

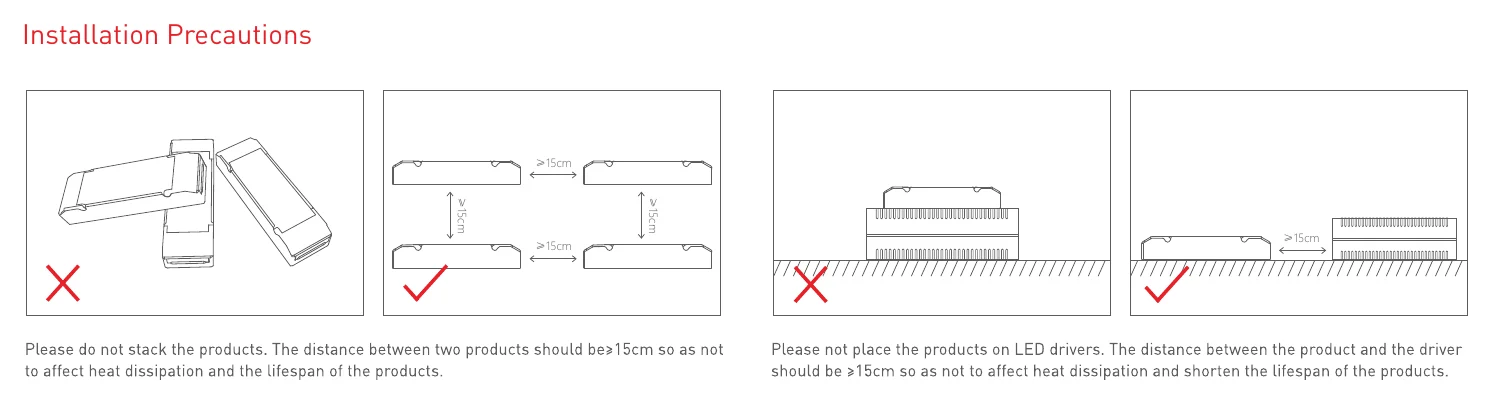

SE-9-350-700-G1T Installation Precautions
Installation Precautions

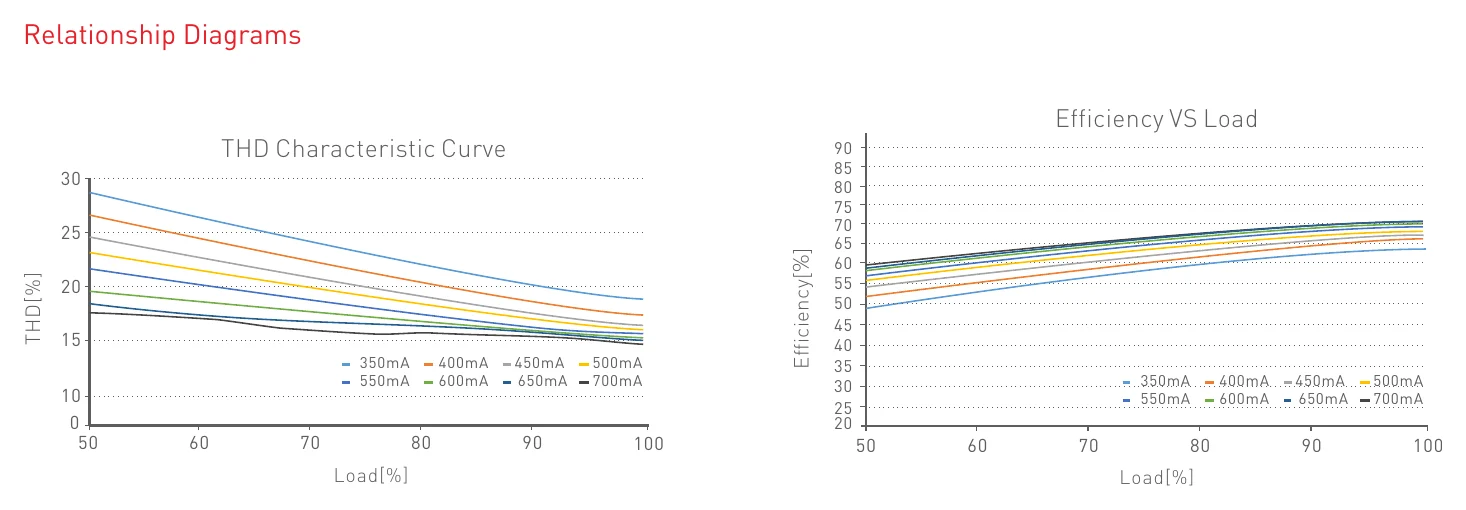

SE-9-350-700-G1T Relationship Diagrams
Relationship Diagrams

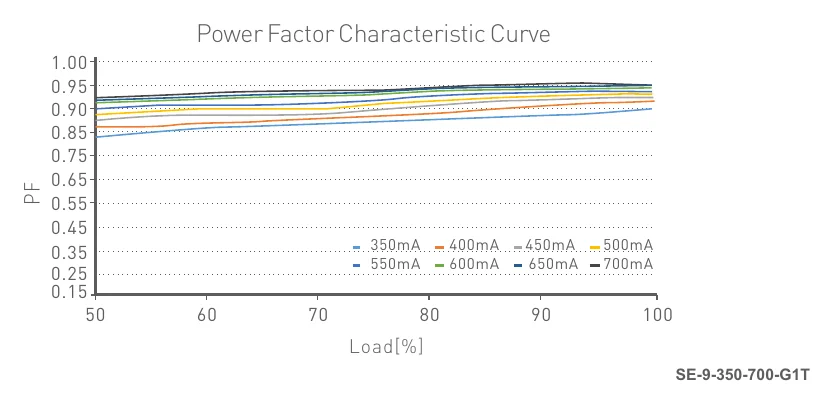

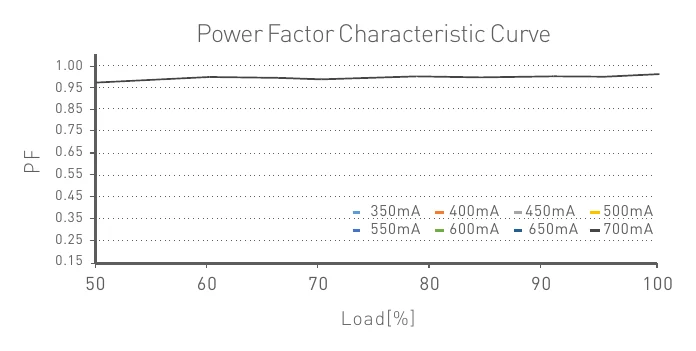

SE-9-350-700-G1T Power Factor Characteristic Curve
Power Factor Characteristic Curve
SE-9-350-700-G1T Efficiency VS Load
Efficiency VS Load
SE-9-350-700-G1T Power Factor Characteristic Curve
Power Factor Characteristic Curve
SE-9-350-700-G1T Efficiency VS Load
Efficiency VS Load
SE-9-350-700-G1T Power Factor Characteristic Curve
Power Factor Characteristic Curve
SE-9-350-700-G1T Modulation Area
Modulation Area

Downloads

FAQ

What type of LED load is the LTECH SE-9-350-700-G1T designed for?

This model is a constant-current LED driver intended for LED loads that require controlled current rather than constant voltage. It is part of LTECH's CC Triac driver range and is suited to low-power LED lighting applications within its stated electrical limits.

What dimming method does the SE-9-350-700-G1T support?

The SE-9-350-700-G1T supports AC phase-cut dimming, commonly referred to as Triac dimming. That makes it a fit for applications where phase-cut dimming compatibility is required from the driver itself.

What are the main electrical specifications of this LED driver?

The SE-9-350-700-G1T supports an output power range of 0.7W to 8.4W with an output voltage range of 2-12Vdc (max ≤22V). The listed output current range is 350-700mA, identifying it within LTECH's constant-current Triac driver series.

What makes this driver different from a constant-voltage LED power supply?

The SE-9-350-700-G1T is a constant-current driver, so it is intended for LED loads that are specified by drive current rather than by a fixed output voltage supply. Buyers comparing it to constant-voltage power supplies should match it only to fixtures or modules that call for a constant-current driver.

What operating temperature range is this driver rated for?

This LED driver is rated for ambient temperatures from -20°C to 45°C. That range is important when evaluating whether the product is suitable for the intended operating environment.

What physical and durability features does the LTECH SE-9-350-700-G1T offer?

The SE-9-350-700-G1T features a compact and lightweight form factor with dimensions of 111×35×20mm. It includes protections for overload, overheat, and short circuit, with automatic recovery for overload and short circuit conditions.
