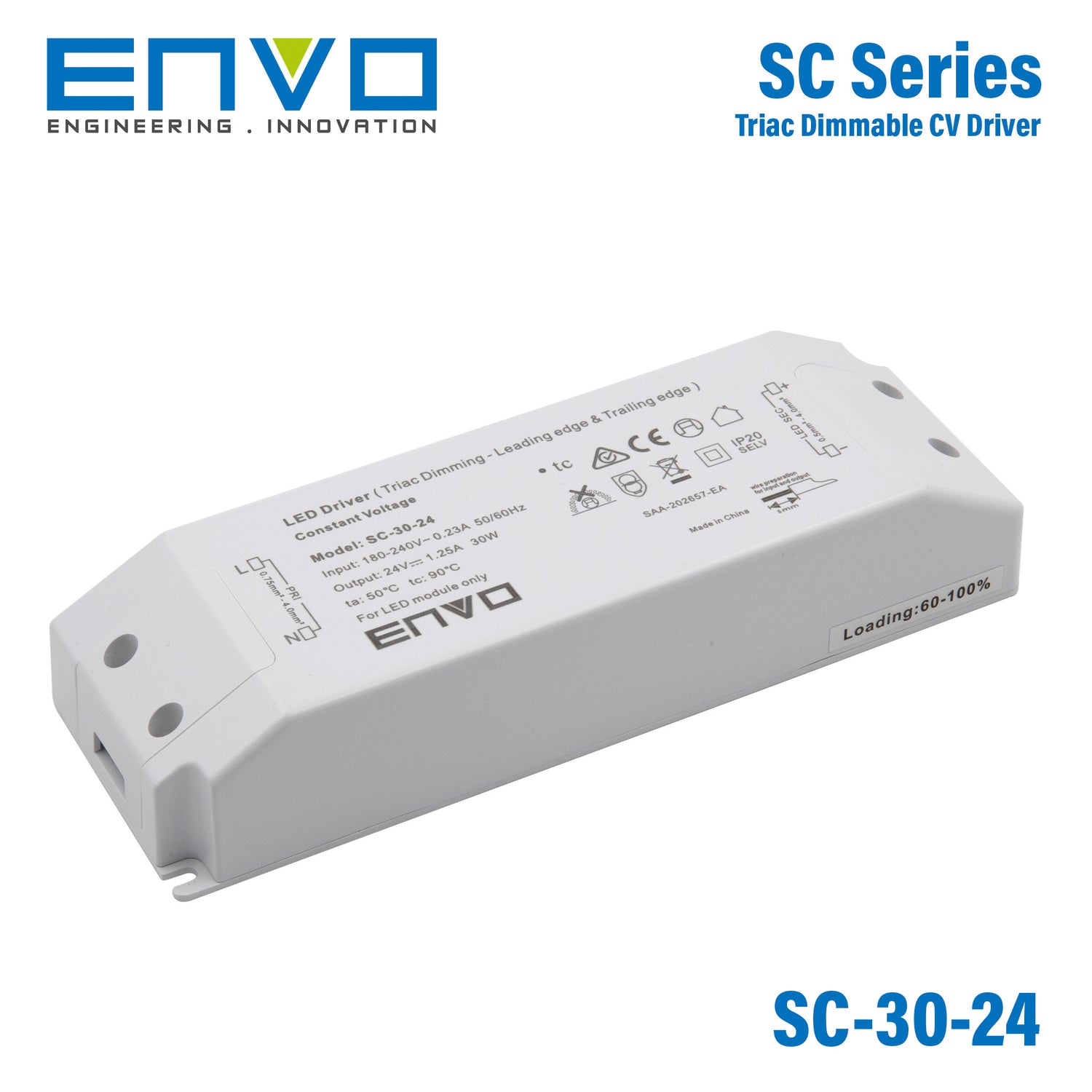

Envo SC-30-24 Power Supply 30W 24V - Triac dimmable 1.25A
Log in to see priceOverview
SC-30-24 is the 24V output model of this series: rated current 1.25A, rated power 30W.
Features
- Output constant voltage
- Range AC input/ :180-240VAC
- Built-in active PFC function
- Efficiency :up to 85%
- Protections:short circuit/over loading/over current
- Full protection plastic housing easy installation
- IP20 design for indoor installation
- Cooling by free air convection

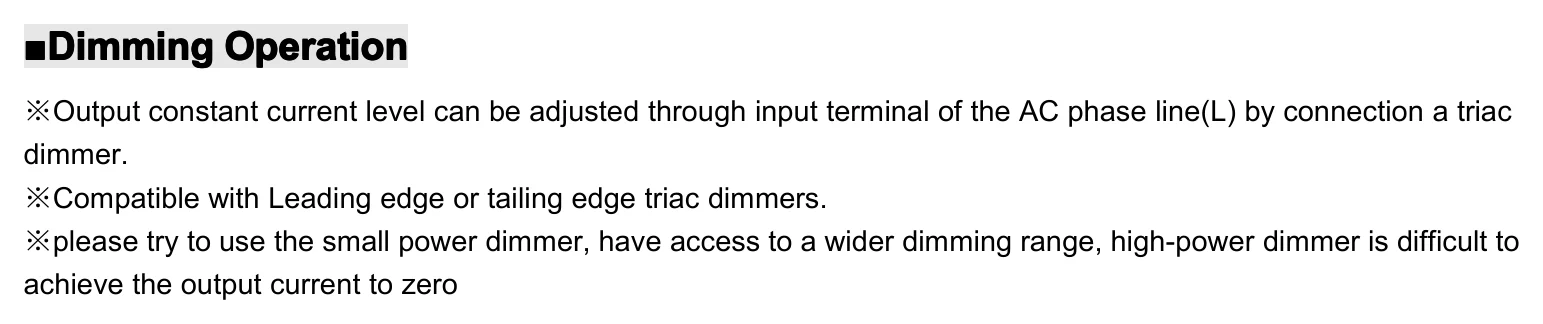

- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Suitable for dry locations
Specifications
output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Rated current
- 1.25A
- Rated power
- 30W
input
- Voltage Range
- 180-240VAC
- Frequency Range
- 47-63Hz
- Power Factor
- PF≥0.98/180VAC, PF≥0.95/230VAC, PF≥0.95/240VAC (Full loading)
- Full Load Efficiency(Typ.)
- 83%
- AC Current(Max.)
- 0.21A
- Leakage Current
- <0.5mA
Protection
- Short Circuit
- Hiccup mode, recovers automatically after fault condition is removed
- Over Load
- ≦120%
- Over Current
- ≤1.2 Iout
- Protection Class
- II
Environment

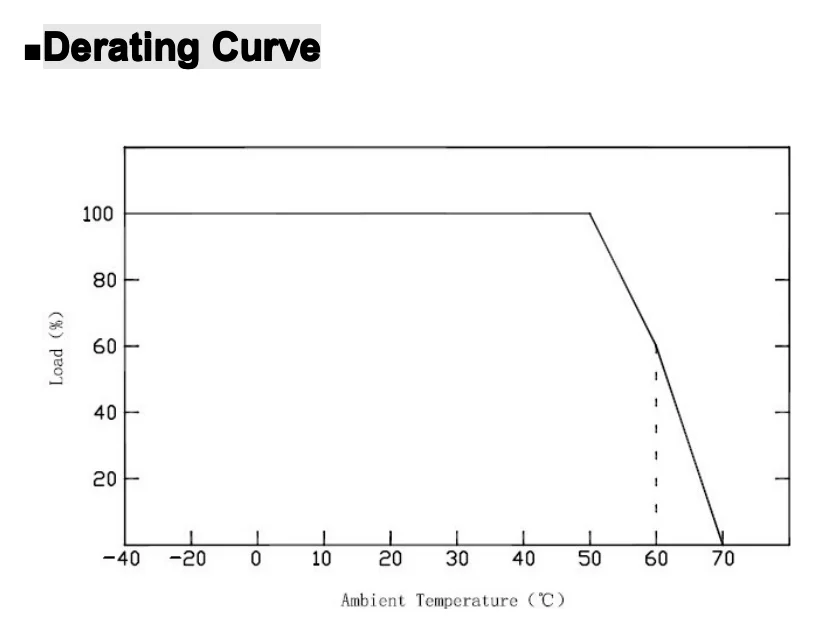

- Working TEMP.
- -40 to +60℃
- Working Humidity
- 20-90%RH, non-condensing
- Storage TEM.,Humidity
- -40 to +80℃, 10-95%RH
- TEMP.coefficient
- ±0.03%/℃ (0-50℃)
- Vibration
- 10-500Hz, 2G, 12min./1 cycle, period for 72min. each along X, Y, Z axes
Safety & EMC
- Safety Standards
- EN61347-1, EN61347-2-13, IP66
- Withstand voltage
- I/P-O/P: 3.75KVAC, I/P-FG: 1.88KVAC, O/P-FG: 0.5KVAC
- Isolation resistance
- 100MΩ/500VDC/25℃/70%RH
- EMC EMISSION
- EN55015, EN61000-3-2,3 (≥60% loading)
- EMC IMMUNITY
- EN61000-4-2,3,4,5,6,11, EN61547, A light industry level (Surge 4KV)
Others
- Net.Weight
- 0.45KG
- Size
- 180*60*35mm (L*W*H)
- packing
- 355*215*215mm/20 pcs/CTN

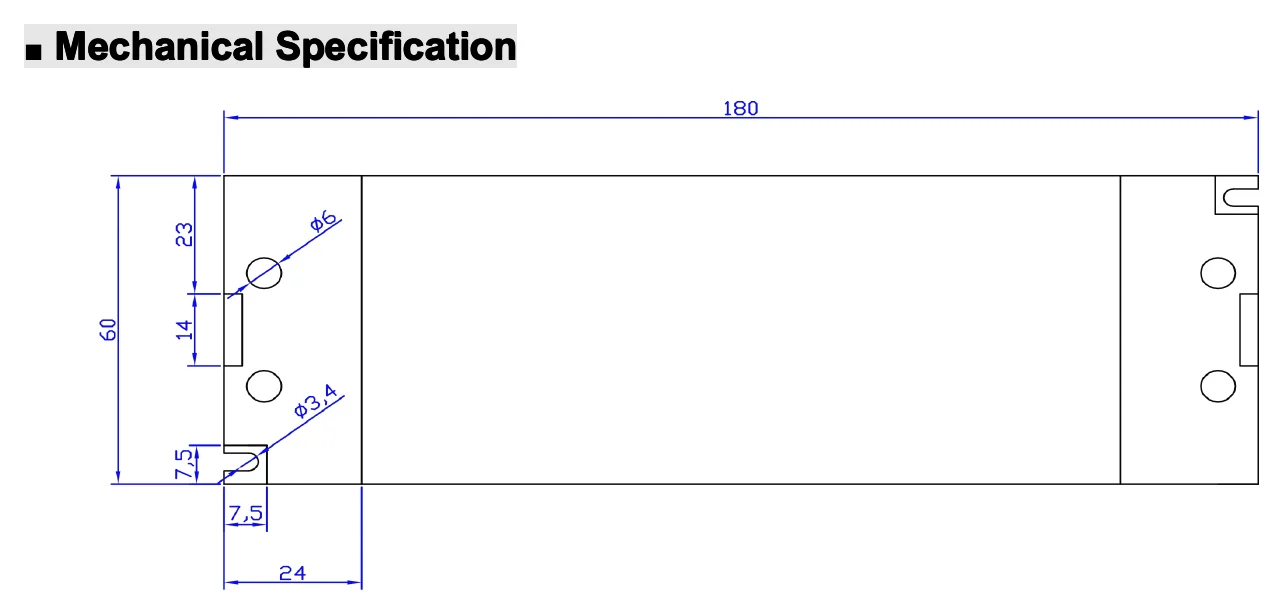

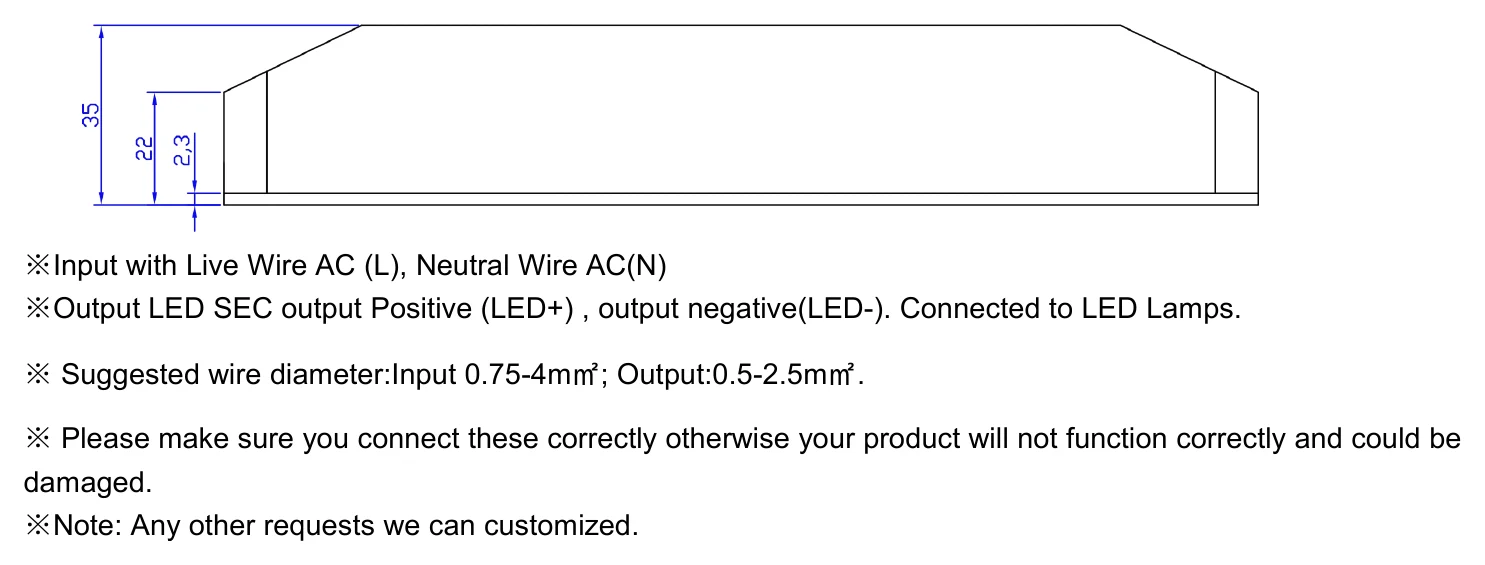

Technical drawings
Downloads
Datasheet1
FAQ
What type of LED application is the Envo SC-30-24 designed for?
The Envo SC-30-24 is a constant voltage 24V LED power supply intended for indoor LED lighting and moving sign applications. Its 30W output makes it suitable for 24V systems that need a compact TRIAC-dimmable driver.
Is the Envo SC-30-24 TRIAC dimmable?
Yes. This model is designed to work with both leading edge and trailing edge TRIAC dimmers. It is described as having strong compatibility and flicker-free dimming for phase-cut dimming applications.
What are the main electrical ratings of the Envo SC-30-24?
This model is rated for 30W output at 24V constant voltage, with a rated current of 1.25A. Its AC input range is 180-240VAC, and efficiency is listed as up to 85%.
Can the Envo SC-30-24 be used outdoors or in wet areas?
No. The SC-30-24 has an IP20 design for indoor installation and is stated to be suitable for dry locations. It should be selected for environments where moisture and weather exposure are not part of the application.
What protection features does the Envo SC-30-24 include?
The product description lists protection against short circuit, over loading, and over current. These built-in protections help make it a safer choice for commercial LED power supply applications.
What makes the Envo SC-30-24 a good choice compared with a non-dimmable 24V power supply?
The SC-30-24 adds AC phase-cut dimming support, including compatibility with leading edge and trailing edge TRIAC dimmers. For projects that need 24V constant voltage output plus dimming performance, this differentiates it from a standard non-dimmable supply.
What operating conditions is the Envo SC-30-24 rated for?
This model is rated for operation from -40°C to 60°C. It also uses free air convection cooling and a full protection plastic housing for indoor use.
What warranty is offered for the Envo SC-30-24?
The listed warranty period for the Envo SC-30-24 is 5 years. That can be relevant for buyers comparing lifecycle value and long-term maintenance expectations across dimmable LED power supplies.
