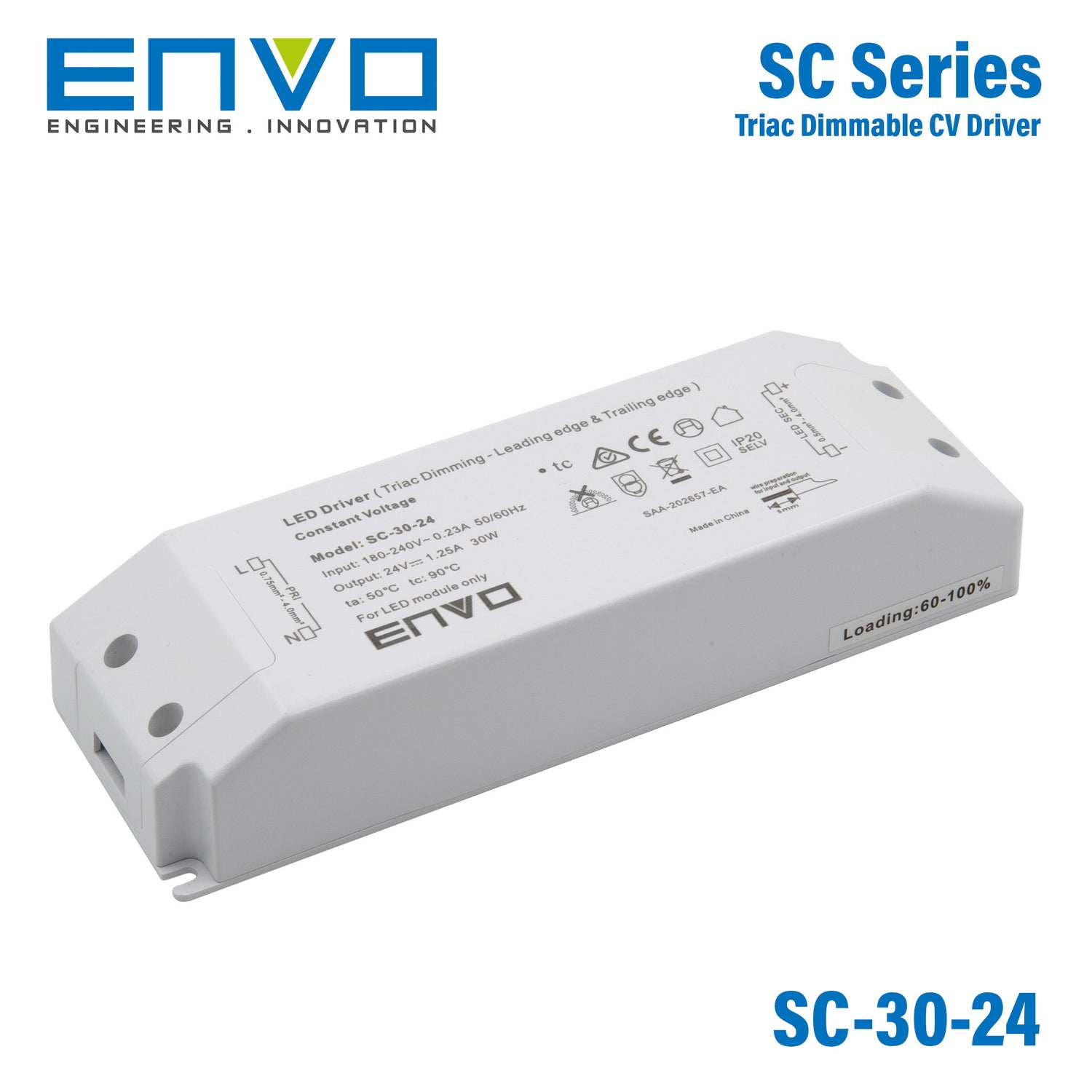

Envo SC-30-24 Power Supply 30W 24V - Triac dimmable 1.25A
Please Login for Pricing
Description
Description
- Output constant voltage
- Range AC input/ :180-240VAC
- Built-in active PFC function
- Efficiency :up to 85%
- Protections:short circuit/over loading/over current
- Full protection plastic housing easy installation
- IP20 design for indoor installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Suitable for dry locations
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage180V~240V
-
Standards MetCE,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length18 cm
-
Width6 cm
-
Height3.5 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED application is the Envo SC-30-24 designed for?
The Envo SC-30-24 is a constant voltage 24V LED power supply intended for indoor LED lighting and moving sign applications. Its 30W output makes it suitable for 24V systems that need a compact TRIAC-dimmable driver.
Is the Envo SC-30-24 TRIAC dimmable?
Yes. This model is designed to work with both leading edge and trailing edge TRIAC dimmers. It is described as having strong compatibility and flicker-free dimming for phase-cut dimming applications.
What are the main electrical ratings of the Envo SC-30-24?
This model is rated for 30W output at 24V constant voltage, with a rated current of 1.25A. Its AC input range is 180-240VAC, and efficiency is listed as up to 85%.
Can the Envo SC-30-24 be used outdoors or in wet areas?
No. The SC-30-24 has an IP20 design for indoor installation and is stated to be suitable for dry locations. It should be selected for environments where moisture and weather exposure are not part of the application.
What protection features does the Envo SC-30-24 include?
The product description lists protection against short circuit, over loading, and over current. These built-in protections help make it a safer choice for commercial LED power supply applications.
What makes the Envo SC-30-24 a good choice compared with a non-dimmable 24V power supply?
The SC-30-24 adds AC phase-cut dimming support, including compatibility with leading edge and trailing edge TRIAC dimmers. For projects that need 24V constant voltage output plus dimming performance, this differentiates it from a standard non-dimmable supply.
What operating conditions is the Envo SC-30-24 rated for?
This model is rated for operation from -40°C to 60°C. It also uses free air convection cooling and a full protection plastic housing for indoor use.
What warranty is offered for the Envo SC-30-24?
The listed warranty period for the Envo SC-30-24 is 5 years. That can be relevant for buyers comparing lifecycle value and long-term maintenance expectations across dimmable LED power supplies.
