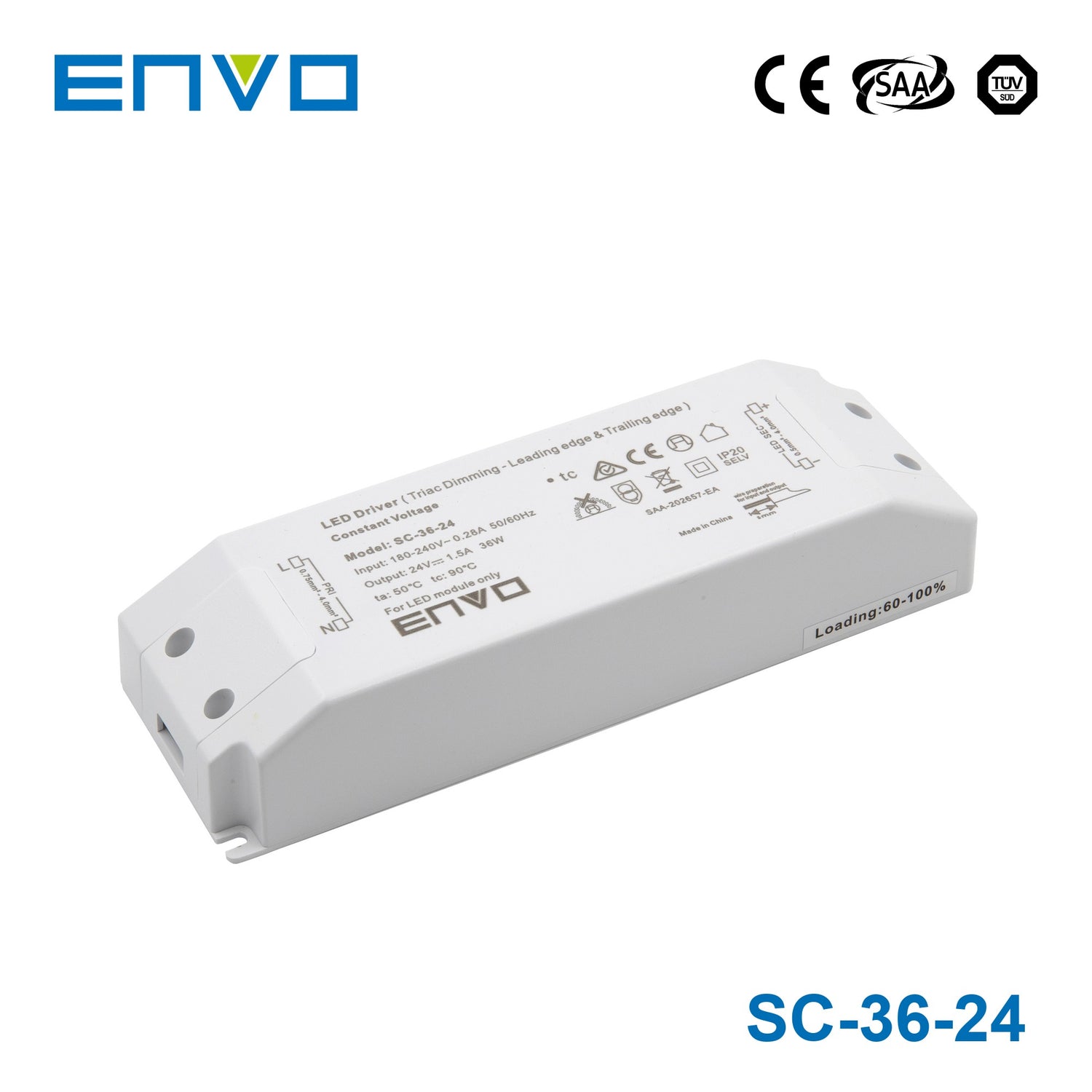

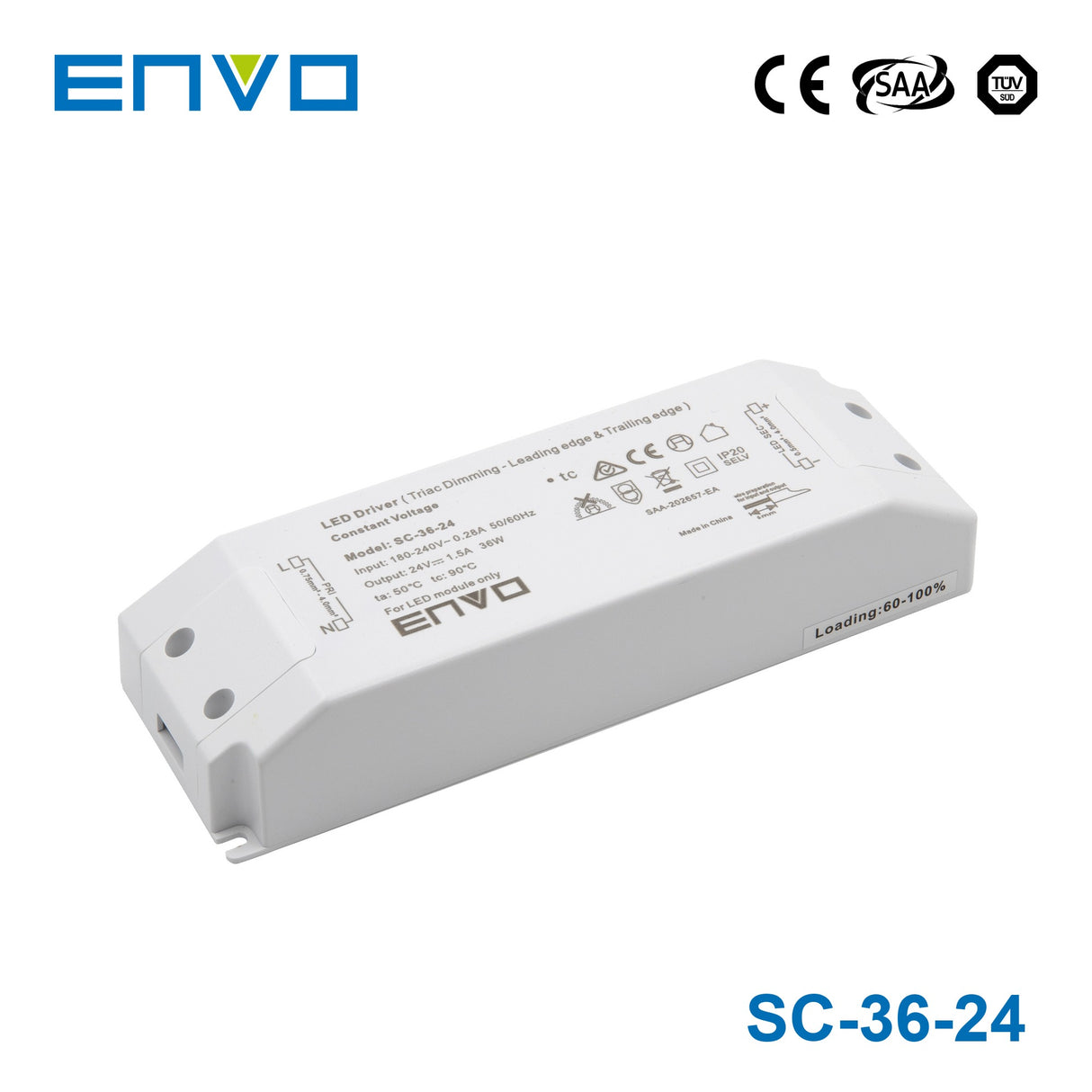

Envo SC-36-24 Power Supply 36W 24V 1.5A - Triac dimmable
Log in to see priceOverview
SC-36-24 is the 24V output model of this series: rated current 1500mA, rated power 36W.
Features
- Output constant voltage
- AC input range: 180-240VAC
- Built-in active PFC function
- Efficiency: up to 85%
- Protections: short circuit / over loading / over current
- Full protection plastic housing, easy installation
- IP20 design for indoor installation
- Cooling by free air convection
- Works with leading-edge and trailing-edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving-sign applications
- Suitable for dry locations
Specifications
output
- DC Voltage
- 24V
- Voltage Tolerance
- ±0.5V
- Rated Current
- 1500mA
- Rated Power
- 36W
input
- Voltage Range
- 180-240VAC
- Frequency Range
- 47 - 63Hz
- Power Factor
- PF≥0.98/180VAC, PF≥0.95/230VAC, PF≥0.95/240VAC (Full loading)
- Full Load Efficiency (Typ.)
- 83%
- AC Current (Max.)
- 0.2A
- Leakage Current
- <0.5mA
Protection
- Short Circuit
- Hiccup mode, recovers automatically after the fault condition is removed
- Over Load
- ≤120%
- Over Current
- ≤1.2 Iout
- Protection Class
- II
Environment
- Working Temp.
- -40 ~ +60°C
- Working Humidity
- 20 - 90%RH, non-condensing
- Storage Temp., Humidity
- -40 ~ +80°C, 10-95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10-500Hz, 2G, 12min./1 cycle, 72min. each along X, Y, Z axes
Safety & EMC
- Safety Standards
- EN61347-1, EN61347-2-13
- Withstand Voltage
- I/P-O/P: 3.75KVAC
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- EMC Emission
- EN55015, EN61000-3-2, EN61000-3-3 (≥60% loading)
- EMC Immunity
- EN61000-4-2,3,4,5,6,11, EN61547, Light industry level (Surge 4KV)
Others
- Net Weight
- 0.45KG
- Size
- 180 × 60 × 35mm (L×W×H)
- Packing
- 185×65×45mm (inner box); 355×215×215mm / 20 pcs / CTN
Technical drawings
Downloads
Datasheet1
FAQ
What is the Envo SC-36-24 designed for?
The Envo SC-36-24 is a 36W constant-voltage 24V power supply intended for indoor LED lighting and moving sign applications. It is designed for dry-location use where a compact, flicker-free dimmable driver is needed.
Is the Envo SC-36-24 dimmable?
Yes. This model supports AC phase-cut dimming and is compatible with both leading-edge and trailing-edge TRIAC dimmers. It is specifically described as offering strong compatibility and flicker-free dimming performance.
What are the main electrical specifications of the Envo SC-36-24?
This model is rated at 36W with a 24V constant-voltage output and a rated current of 1.25A. It accepts 180-240VAC input and includes active PFC, with efficiency listed up to 85%.
Where can the Envo SC-36-24 be used?
The SC-36-24 is intended for indoor installation in dry locations. Its IP20 housing is suited to protected interior environments rather than exposed outdoor or wet-area applications.
What protection and durability features does this power supply include?
The Envo SC-36-24 includes protection against short circuit, over loading, and over current. It also comes with a full plastic housing, uses free-air convection cooling, and carries a 5-year warranty.
What operating temperature range does the Envo SC-36-24 support?
This model is specified for operation from -40°C to 60°C. That range makes it suitable for a broad set of indoor commercial and architectural lighting environments, provided the location remains dry.
