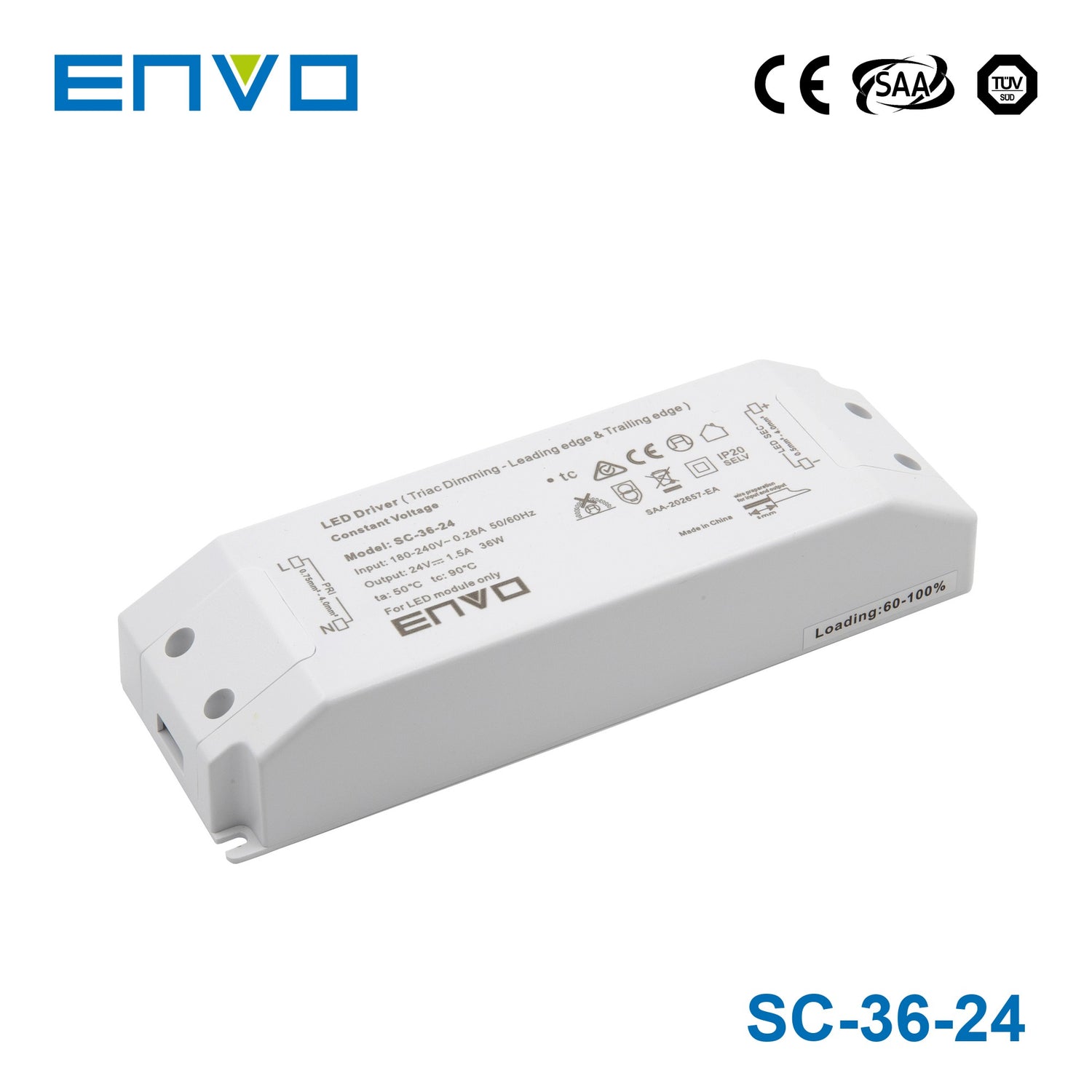

Envo SC-36-24 Power Supply 36W 24V - Triac dimmable 1.25A

triac dimmable

SKU:

SC-36-24

Please for Pricing

Notify me when it's back in stock

Description

Output constant voltage
Range AC input/ :180-240VAC
Built-in active PFC function
Efficiency :up to 85%
Protections:short circuit/over loading/over current
Full protection plastic housing easy installation
IP20 design for indoor installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility
flicker-free dimming
Suitable for LED lighting and moving sign applications
Suitable for dry locations

Specifications

Brand

Envo
Series

SC Envo Series
Power Rating

36 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

180V~240V
Standards Met

CE,SAA,TUV
Operation Mode

Constant Voltage
Operating Temperature

-40°C~60°C
Warranty

5 Year
Length

18 cm
Width

6 cm
Height

3.5 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Envo SC-36-24 designed for?

The Envo SC-36-24 is a 36W constant-voltage 24V power supply intended for indoor LED lighting and moving sign applications. It is designed for dry-location use where a compact, flicker-free dimmable driver is needed.

Is the Envo SC-36-24 dimmable?

Yes. This model supports AC phase-cut dimming and is compatible with both leading-edge and trailing-edge TRIAC dimmers. It is specifically described as offering strong compatibility and flicker-free dimming performance.

What are the main electrical specifications of the Envo SC-36-24?

This model is rated at 36W with a 24V constant-voltage output and a rated current of 1.25A. It accepts 180-240VAC input and includes active PFC, with efficiency listed up to 85%.

Where can the Envo SC-36-24 be used?

The SC-36-24 is intended for indoor installation in dry locations. Its IP20 housing is suited to protected interior environments rather than exposed outdoor or wet-area applications.

What protection and durability features does this power supply include?

The Envo SC-36-24 includes protection against short circuit, over loading, and over current. It also comes with a full plastic housing, uses free-air convection cooling, and carries a 5-year warranty.

What operating temperature range does the Envo SC-36-24 support?

This model is specified for operation from -40°C to 60°C. That range makes it suitable for a broad set of indoor commercial and architectural lighting environments, provided the location remains dry.
