Mean Well ELG-300-24A Power Supply - New Zealand Distributor | Adjustable LED Driver

Overview

ELG-300-24A is the 24V output model of this series: typical efficiency 94%.

ELG-300 series is a 300W LED driver featuring with constant current and Constant voltage mode design. ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications. Thanks to the high efficiency up to 94%, with the fanless design, the ambient temperature can be operated for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world ,as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant current mode output
Protection Functions: OCP,SCP,OVP,OTP
IP67 rating for indoor or outdoor installations
Output adjustable via potentiometer
Typical lifetiem>50000 hours
5 years warranty

Specifications

ELG-300-24ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 14.4~ 24V
RATED CURRENT 200VAC ~ 305VAC: 12.5A
RATED CURRENT 100VAC ~ 180VAC: 10.63A
RATED POWER 200VAC ~ 305VAC: 300W
RATED POWER 100VAC ~ 180VAC: 255W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
VOLTAGE ADJ. RANGE: 22.4 ~25.6V
CURRENT ADJ. RANGE: 6.25 ~ 12.5A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 500ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.95/115VAC, PF≧0.93/230VAC, PF≧0.90/277VAC@full load
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
EFFICIENCY (Typ.): 94%
AC CURRENT: 3A / 115VAC 1.6A / 230VAC 1.3A/277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 34V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL")(Except for 12V), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004; GB/T19510.1,GB/T19510.213; KC61347-1,KC61347-2-13; IS15885(Part2/Sec13), IP67 approved; Designed refer to AS/NZS 61347 & AS/NZS 60598
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T 17743,GB17625.1;KN15
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),KN61547

OTHERS

MTBF: 1827.7K hrs min. Telcordia SR-332 (Bellcore) ; 196.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 246*77*39.5mm (L*W*H)
PACKING: 1.45 Kg; 9pcs /13.5Kg / 0.76CUFT

Certifications & ratings

Type: A

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is 70℃ or less.
9. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
14. This series need to consider build in using to comply with Type HL application.

Technical drawings

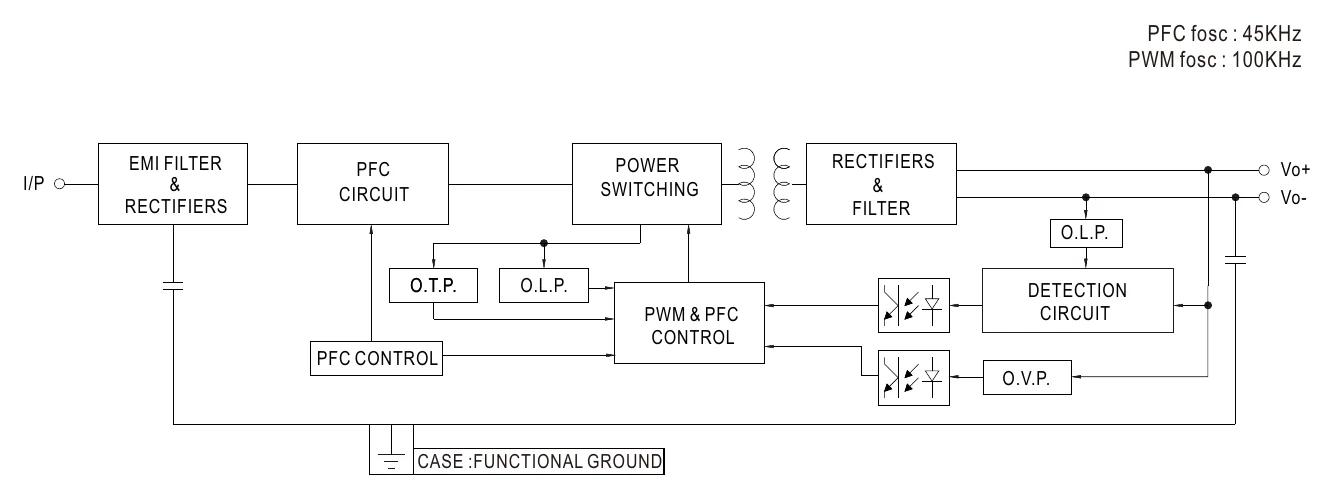

ELG-300-24A Block Diagram — Block Diagram

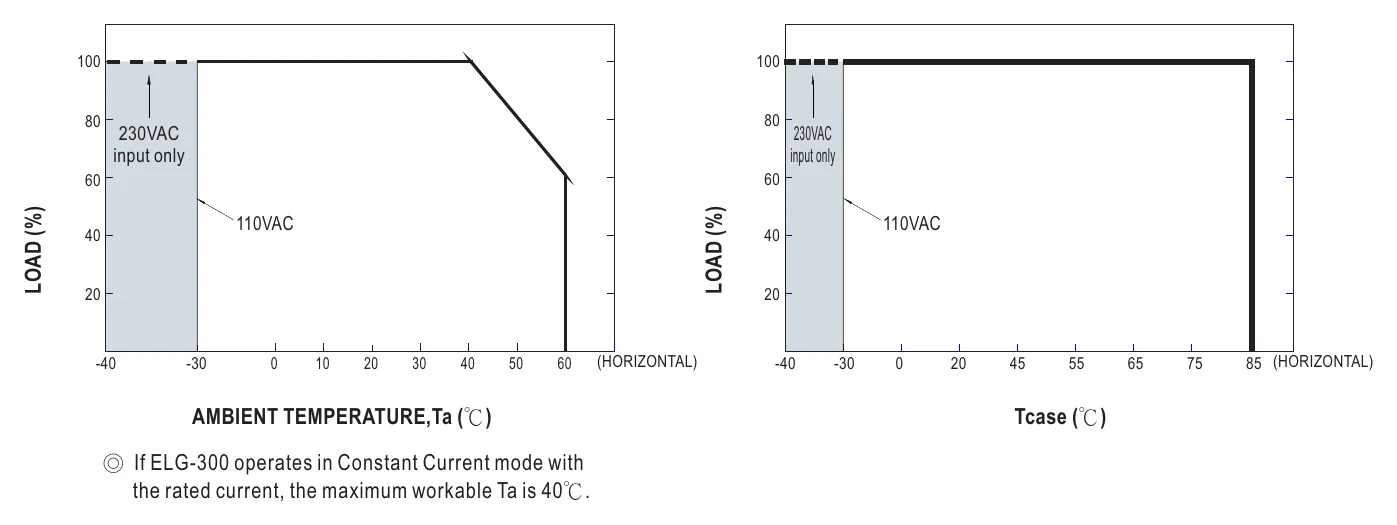

ELG-300-24A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

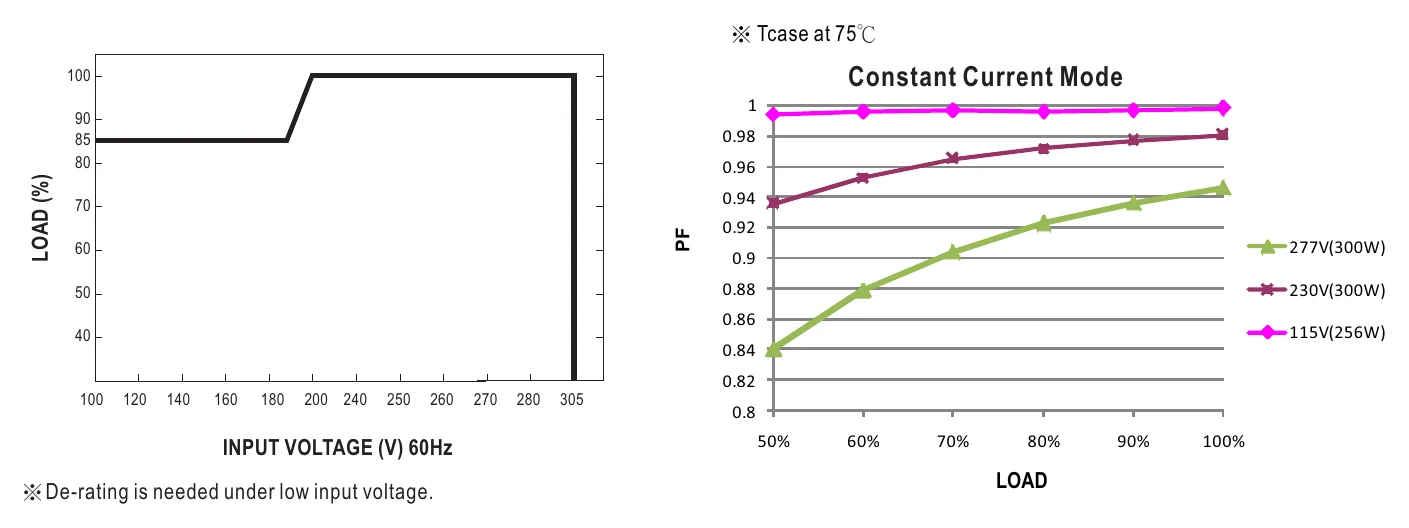

ELG-300-24A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

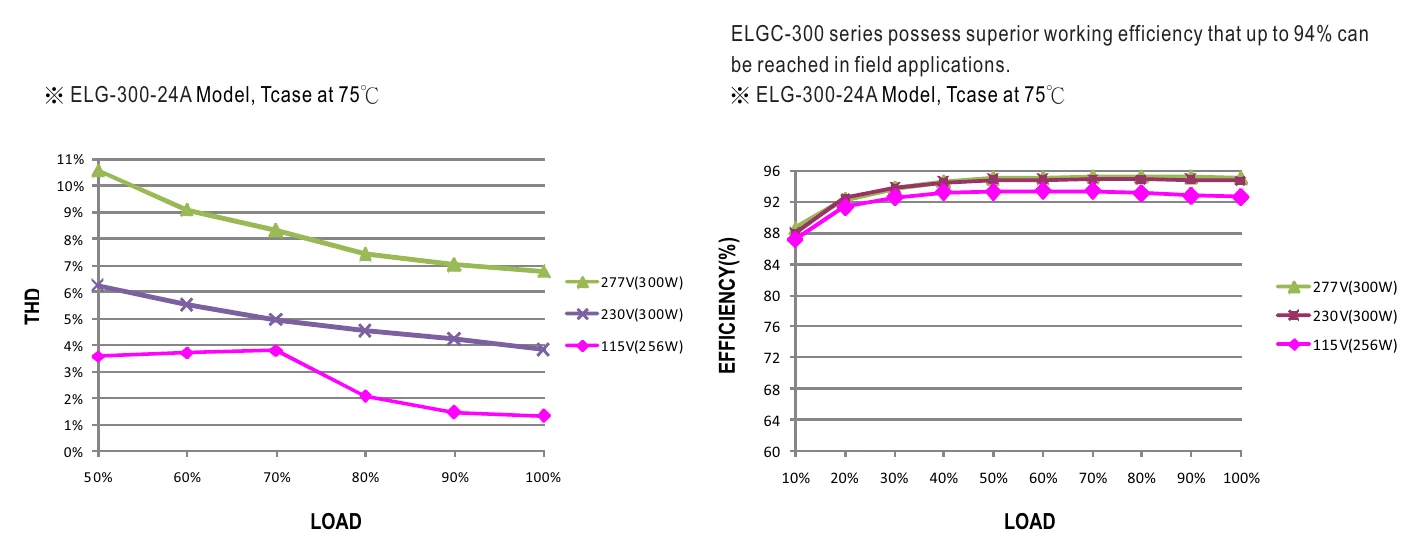

ELG-300-24A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

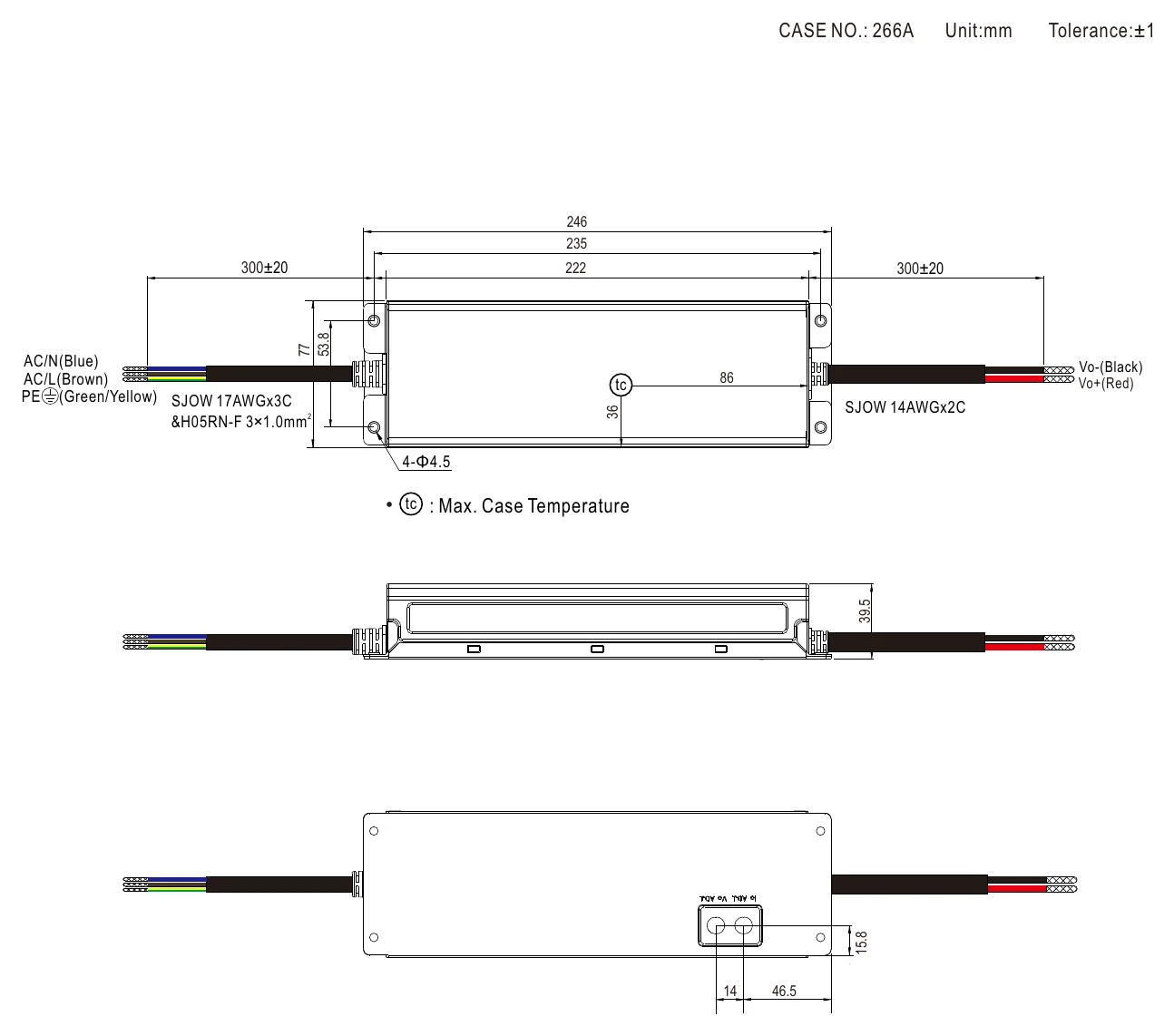

ELG-300-24A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

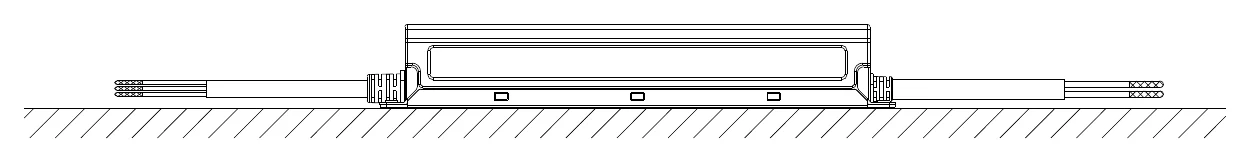

ELG-300-24A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED bay lighting
LED stage lighting
LED flood lighting
LED strip lighting
DMX control system

Downloads

Certificates9

Mean Well ELGC-300 CCC Certificate PDF Download

Mean Well ELGC-300 ENEC Certificate PDF Download

Mean Well ELGC-300 CB Certificate PDF Download

Mean Well ELGC-300 EMC Certificate PDF Download

Mean Well ELGC-300 CE Certificate PDF Download

Mean Well ELGC-300 KC Certificate PDF Download

Mean Well ELGC-300 UK Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well ELG-300-24A Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-300-24A drive 24V LED strip lighting in large commercial or retail environments?

Yes. The ELG-300-24A outputs 300W at 24V with a 12.5A rated current on 200–305VAC input (255W / 10.63A on 100–180VAC), which is well suited for extended 24V LED strip runs in retail shelf lighting, hotel corridor lighting, or large architectural installations. The high wattage allows a single driver to power a substantial section of a lighting system.

How many meters of 24V LED strip can the ELG-300-24A support?

The ELG-300-24A delivers 300W at 24V on 200–305VAC input (255W on 100–180VAC). At 300W, a 10 W/m strip supports approximately 30 meters (300 ÷ 10) and a 14.4 W/m strip approximately 20.8 meters; at 255W, approximately 25.5 and 17.7 meters. Always check your strip's rated power per meter and leave some headroom.

Is the ELG-300-24A suitable for outdoor 24V LED lighting in wet or coastal environments?

Yes. The IP67 rating protects against dust ingress and temporary water immersion, and the working case temperature (Tcase) range of -40°C to +85°C covers outdoor temperature extremes, with output derating at higher temperatures. These characteristics make it appropriate for outdoor area lighting, facade uplighting, or waterfront signage.

Can the ELG-300-24A be used for 24V LED lighting in industrial or manufacturing facility applications?

Yes. IP67 protection and the 100–305VAC wide input range allow installation in industrial environments with humidity, dust, or variable mains voltage (derating may be needed at low input voltage). The 300W output at 24V (255W on 100–180VAC) supports high-lumen LED luminaires or large strip arrays used in factory and warehouse lighting.

What does the 'A' suffix indicate on the ELG-300-24A, and how does adjustment work?

The A type has adjustable output voltage and current. The voltage can be set within 22.4–25.6V and the current within 6.25–12.5A, allowing the output to be fine-tuned to match specific LED loads or to compensate for voltage drop over long cable runs without external components.

Is the ELG-300-24A appropriate for powering 24V LED lighting in museum or gallery display cases?

Yes. The adjustable output allows precise tuning to the LED load requirements typical of display case luminaires, and the IP67 housing and typical life expectancy above 50,000 hours (at Tcase 70°C or less) support long-term operation. With safety approvals including UL8750, ENEC and CSA, it suits permanent exhibition installations; see MEAN WELL's website for the warranty statement.
