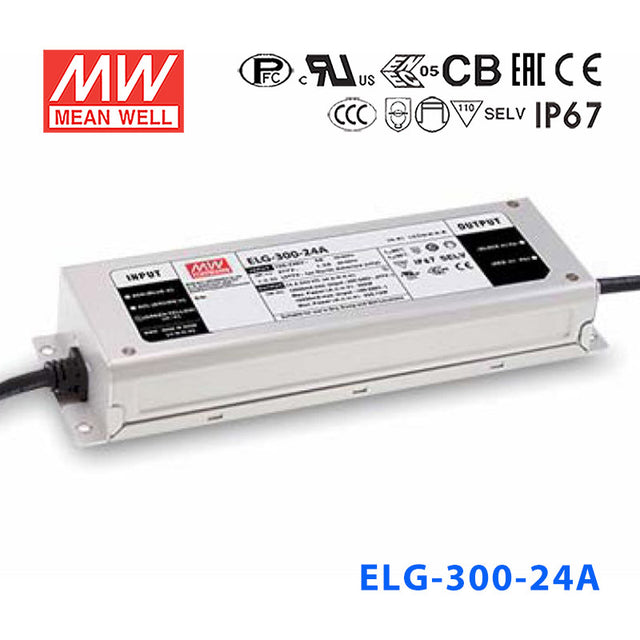

Mean Well ELG-300-24A Power Supply 300W 24V - Adjustable
Please Login for Pricing
Description
Description
Features
| Constant Voltage + Constant Current mode output |
| Protection Functions: OCP,SCP,OVP,OTP |
| IP67 rating for indoor or outdoor installations |
| Output adjustable via potentiometer |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC; 142~431VDC |
| AC inrush current | COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Over-voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms, 100ms/230VAC, 500ms, 100ms/115VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”)(Except for 12V), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004; GB19510.1,GB19510.14; KC61347-1,KC61347-2-13; IS15885(Part2/Sec13),IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 246 x 77 x 39.5 |
| Packing | 16pcs / 13.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating300 Watt
-
Output Voltage24 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length24.6 cm
-
Width7.7 cm
-
Height3.95 cm
-
Weight1.45 kg
