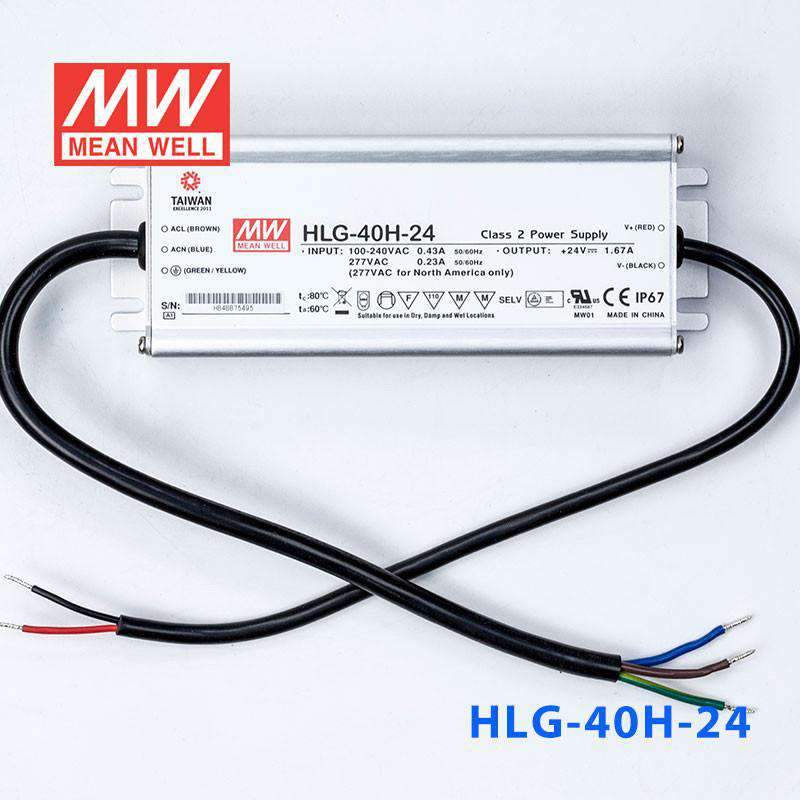

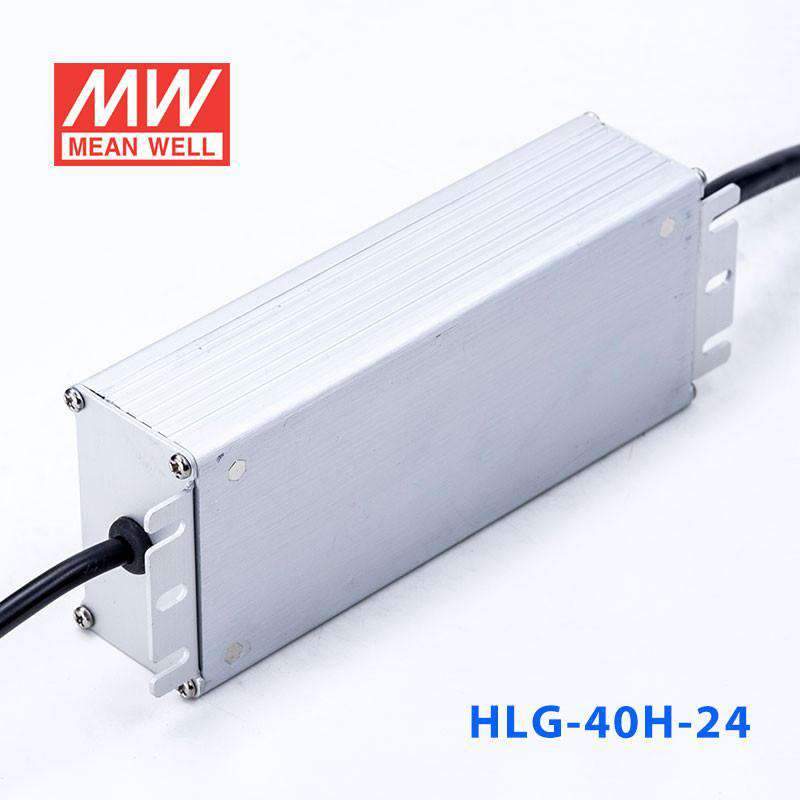

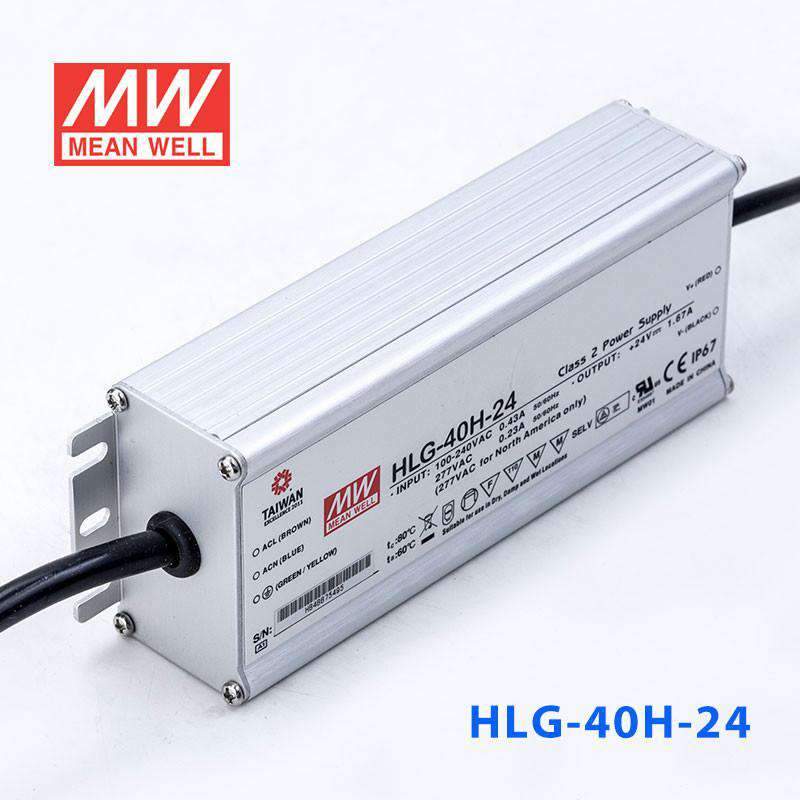

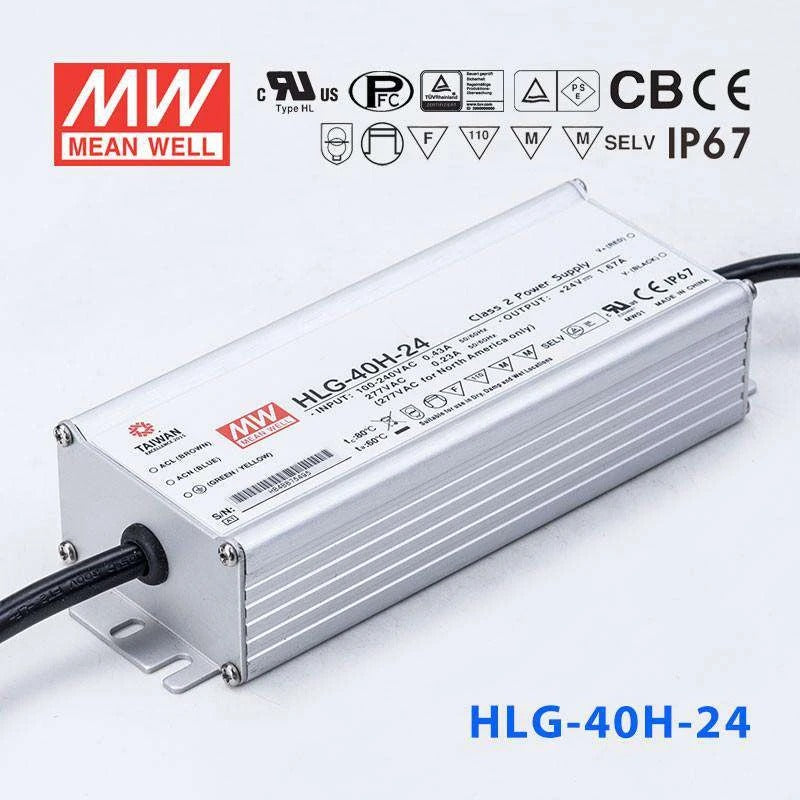

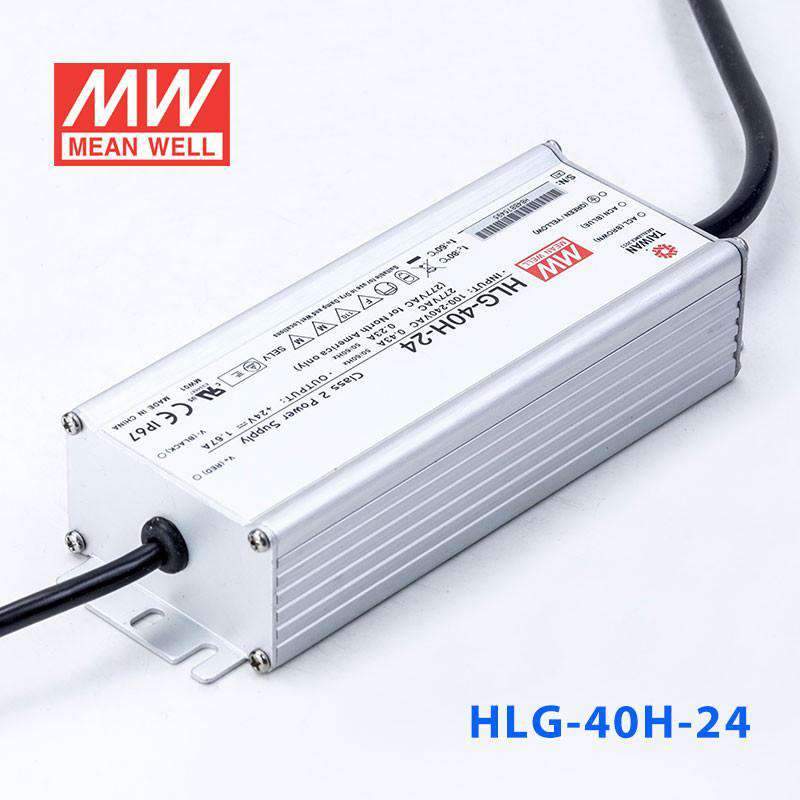

Mean Well HLG-40H-24 Power Supply 40W 24V 1.67A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-40H-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 24 in this family

HLG-40H-24
In stock
|

Overview

HLG-40H-24 is the 24V output model of this series: rated current 1.67A, rated power 40.08W, typical efficiency 88%.

HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-40H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is able to operate for -40 ~ +80 case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-40H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-40H-24Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE
24V
CONSTANT CURRENT REGIONNote.4
14.4 ~ 24V
RATED CURRENT
1.67A
RATED POWER
40.08W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE
22 ~ 27V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
1 ~ 1.67A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
28 ~ 35V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent , GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB-type), IP65 or IP67 approved ; J61347-1 , J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF
3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
171*61.5*36.8mm (L*W*H)
PACKING
0.73Kg; 20pcs/15.6Kg/0.9CUFT

Certifications & ratings

Type
HL
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  13. 13. For A/AB type need to consider build in using to comply with Type HL application.
  14. 14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

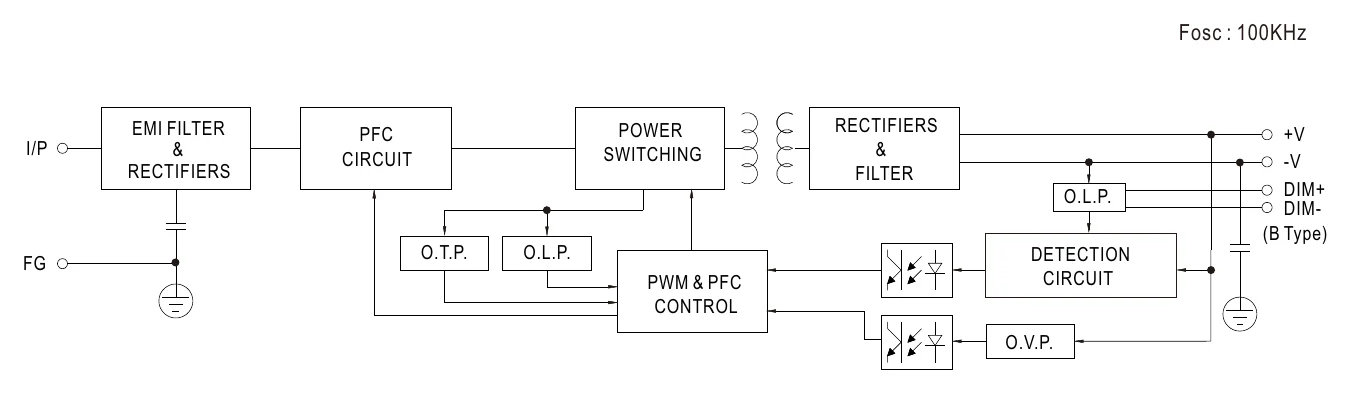

HLG-40H-24 BLOCK DIAGRAM
BLOCK DIAGRAM

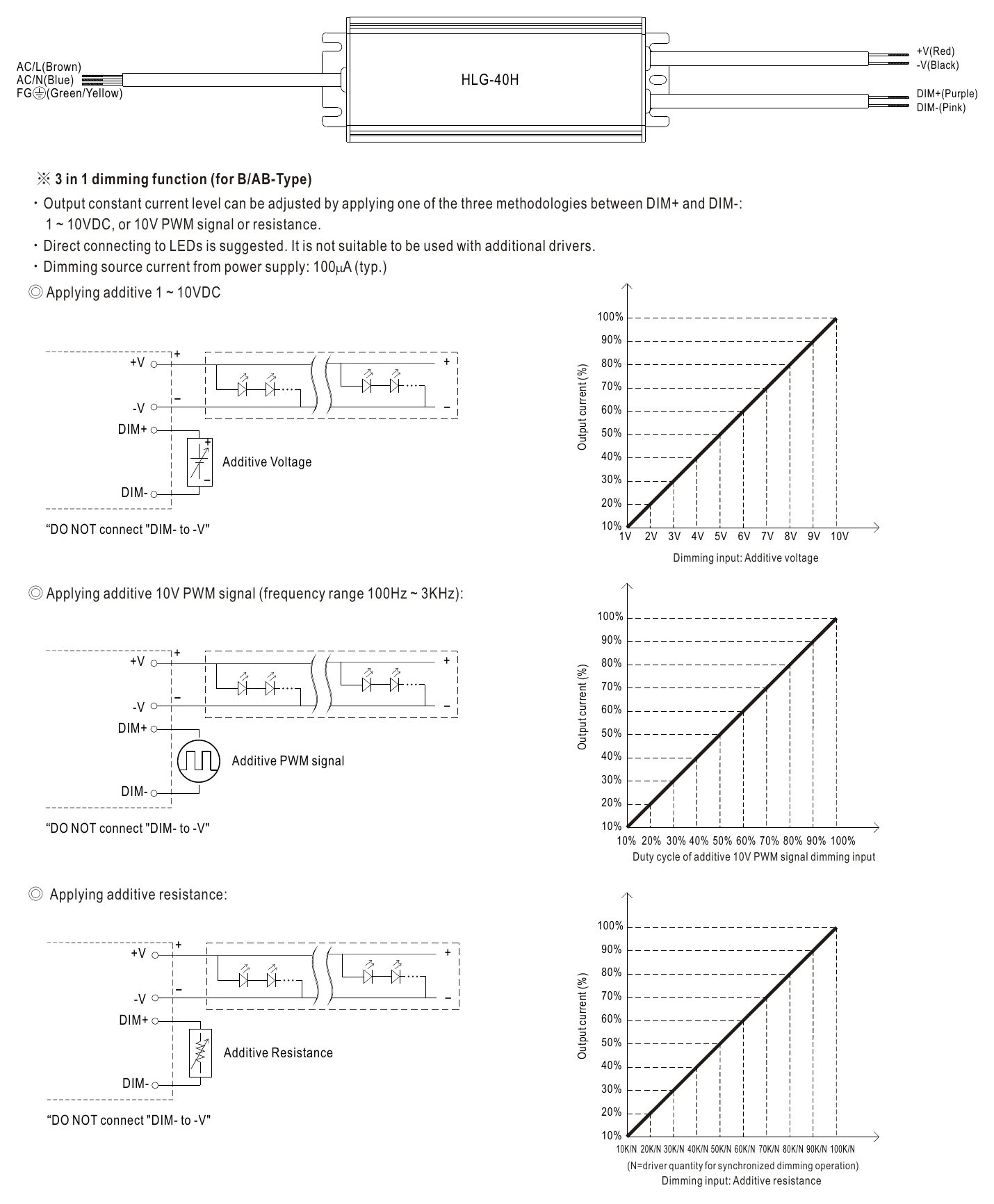

HLG-40H-24 DIMMING OPERATION
DIMMING OPERATION

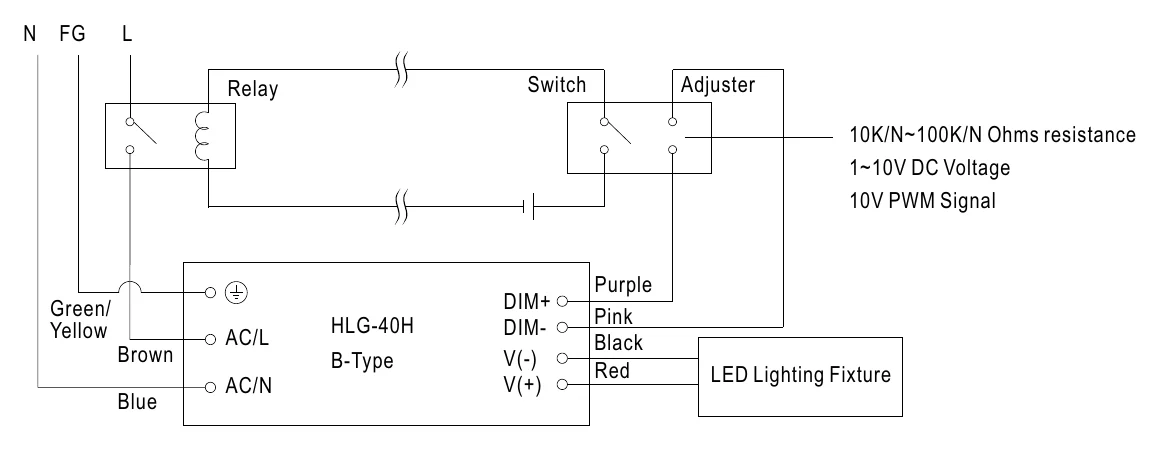

HLG-40H-24 Illustration (page 5)
Illustration (page 5)

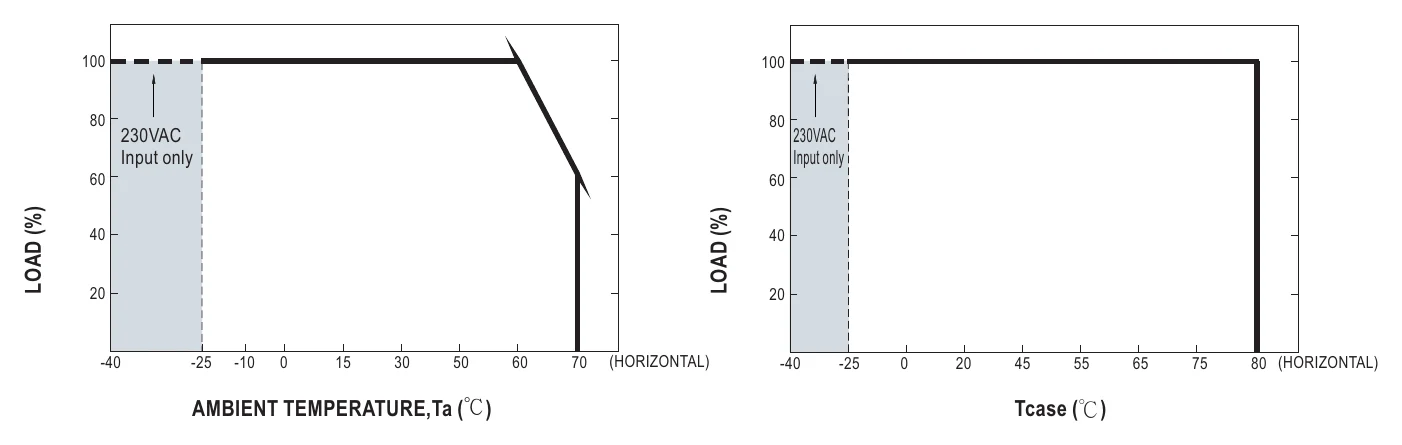

HLG-40H-24 OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)

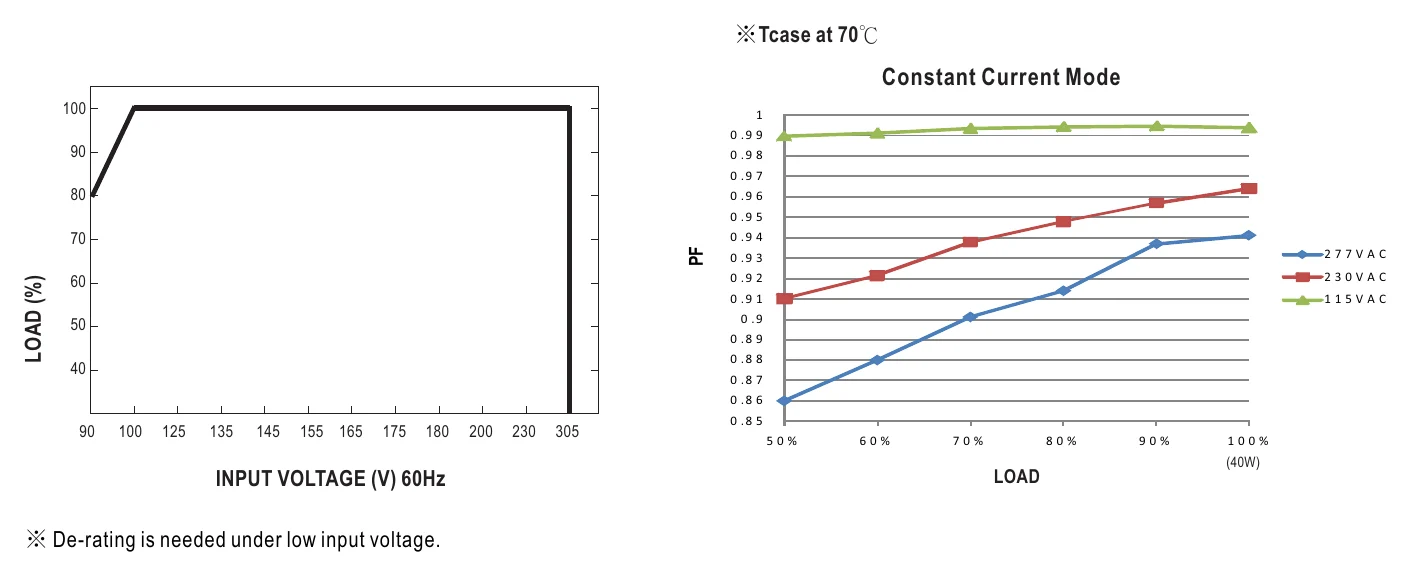

HLG-40H-24 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS

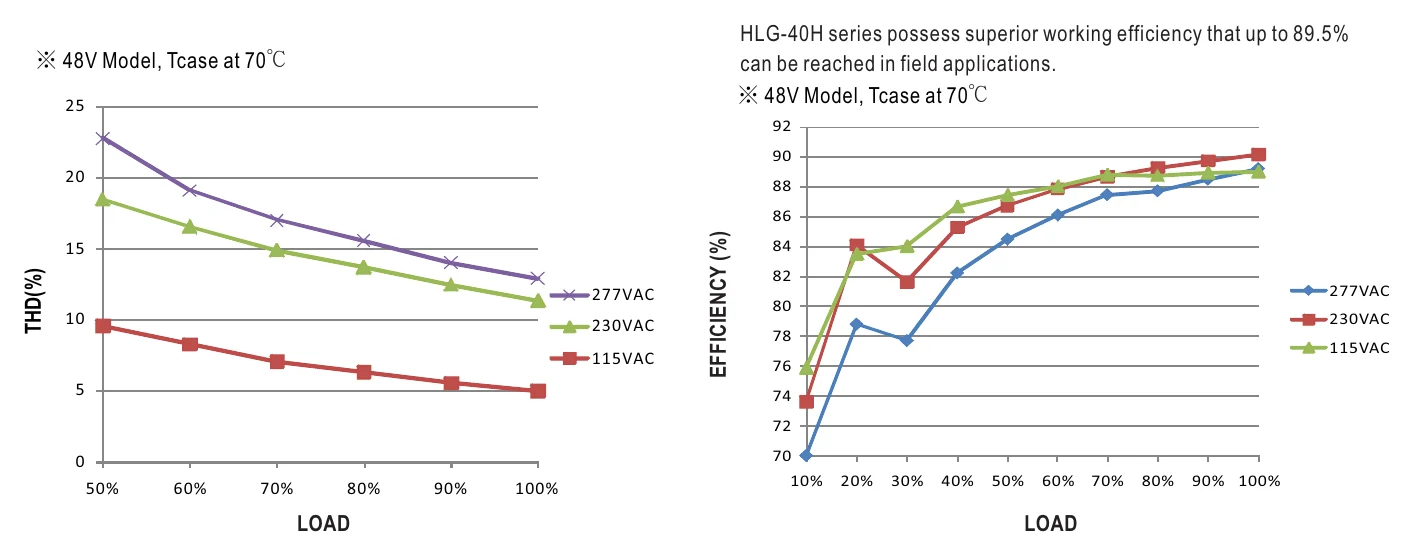

HLG-40H-24 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION

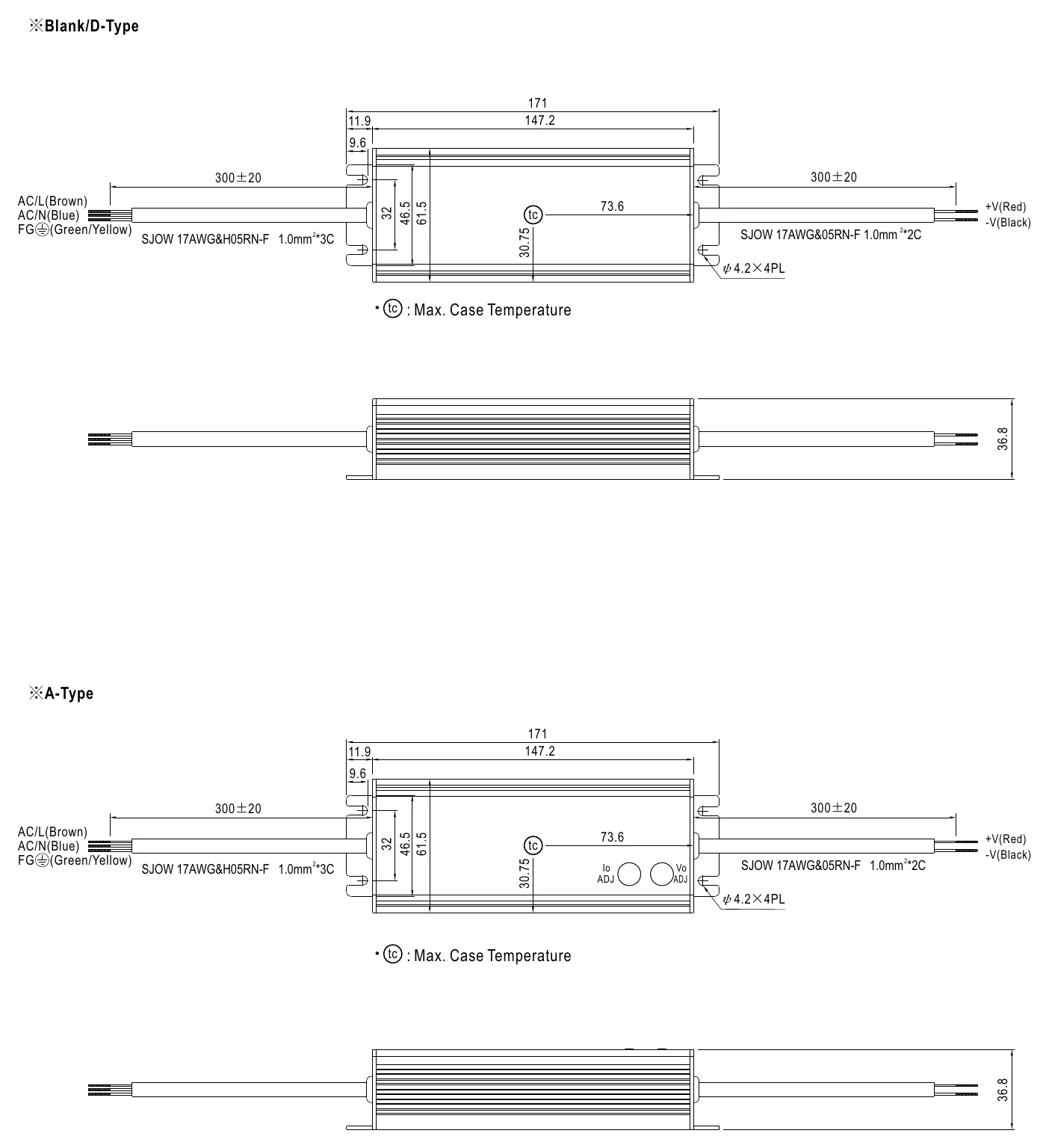

HLG-40H-24 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION

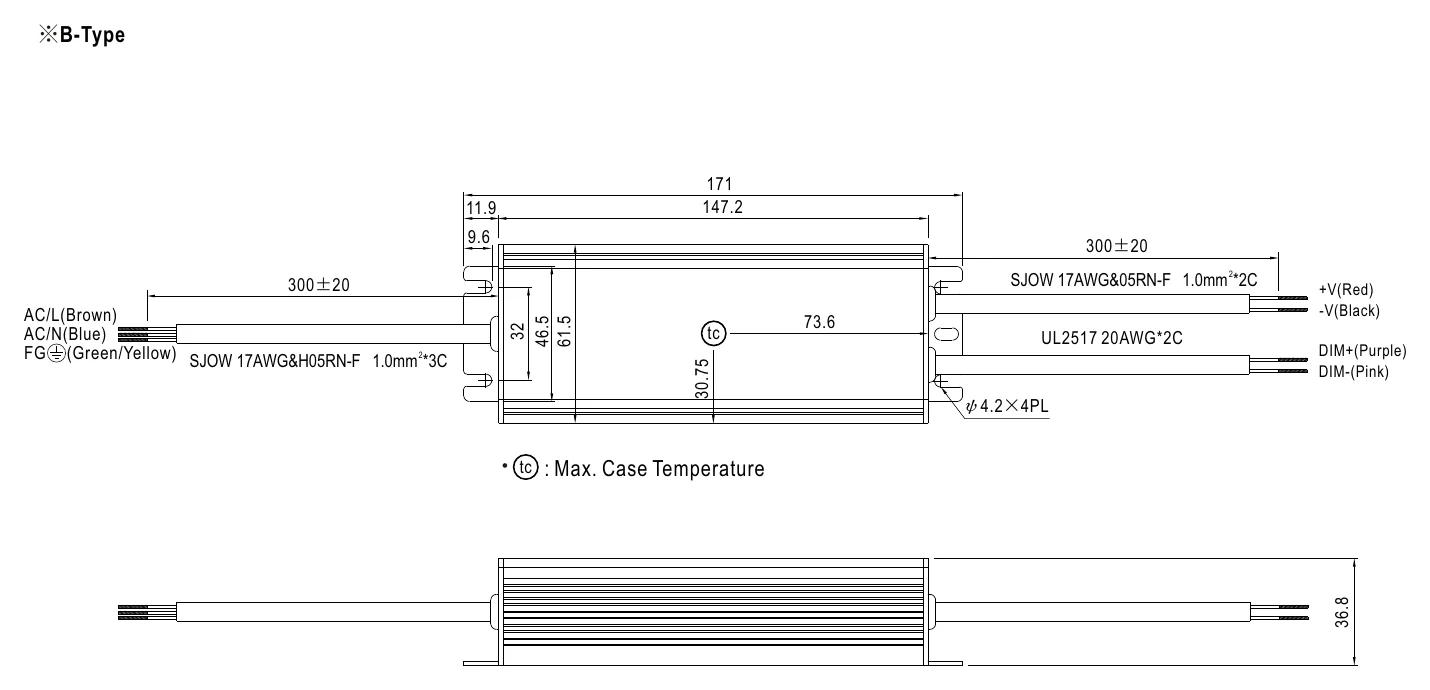

HLG-40H-24 ※B-Type
※B-Type

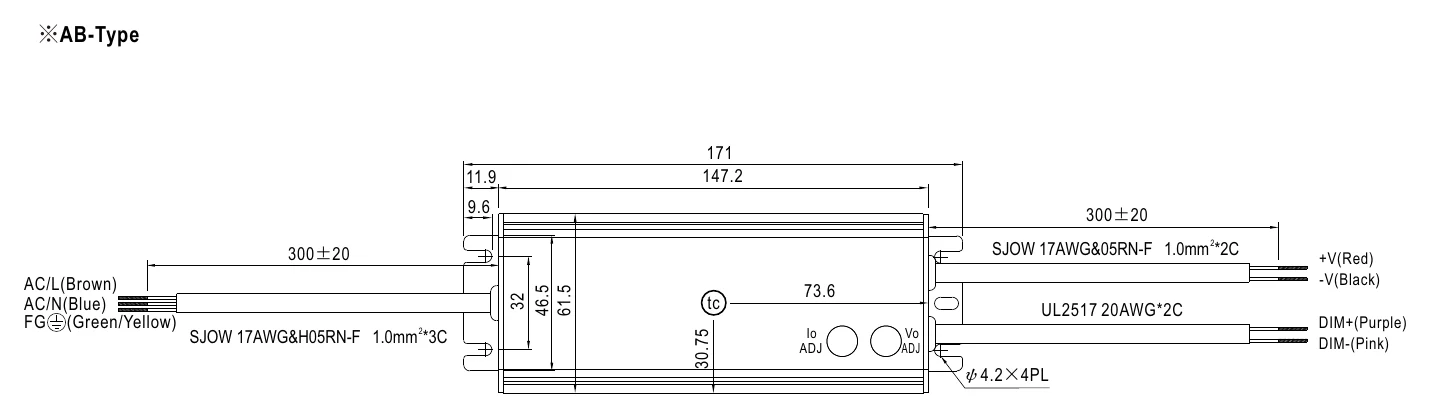

HLG-40H-24 ※AB-Type
※AB-Type

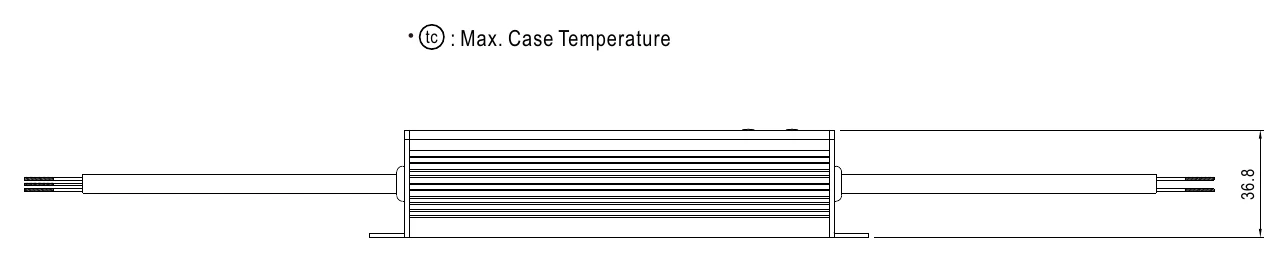

HLG-40H-24 ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature

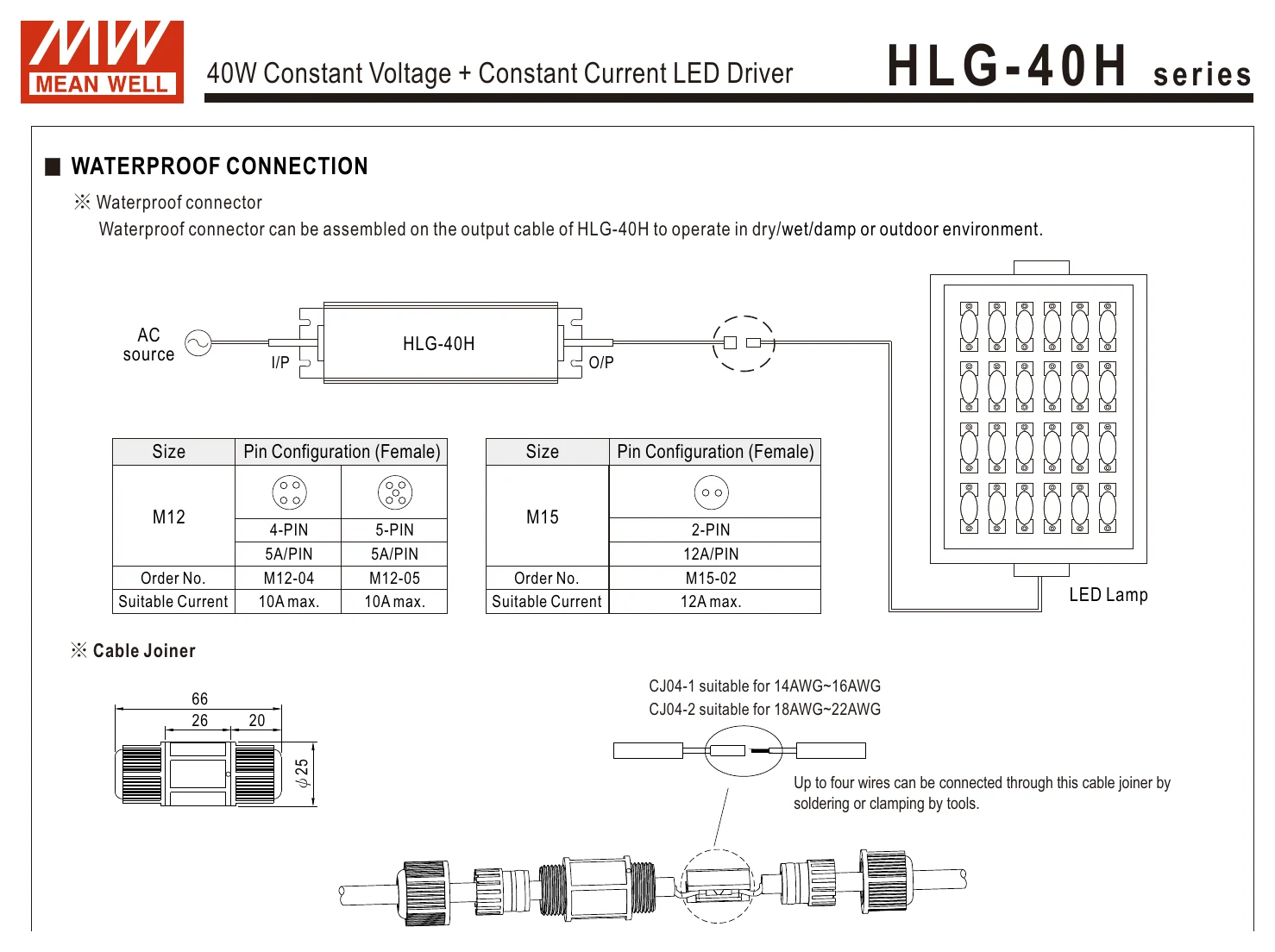

HLG-40H-24 H L G - 4 0 H series
H L G - 4 0 H series

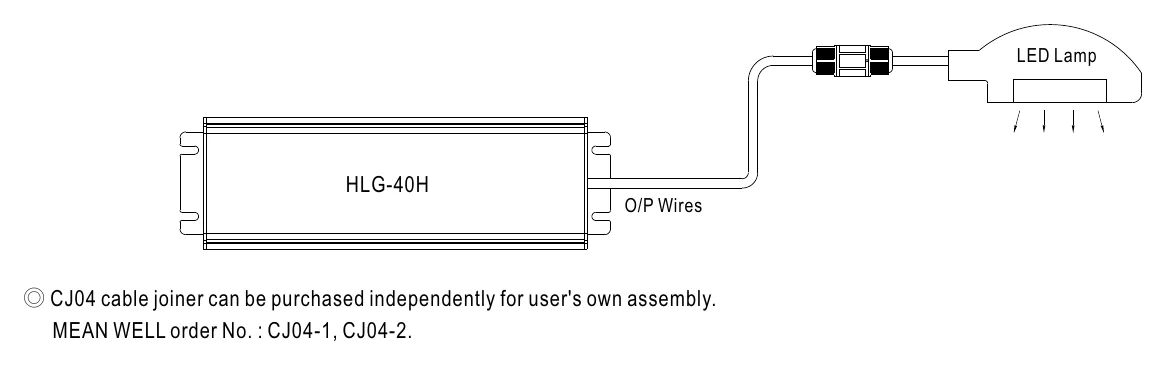

HLG-40H-24 H L G - 4 0 H series (2)
H L G - 4 0 H series (2)

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-40H-24 to power 24V LED strip lighting outdoors?

Yes. The HLG-40H-24 outputs 24V at up to 1.67A (40W) and carries an IP67 waterproof rating, making it a reliable choice for outdoor 24V LED strip projects exposed to rain, snow, or dust. The metal housing and -40°C to +80°C case temperature (Tcase) working range add durability in harsh conditions.

Is the HLG-40H-24 suitable for a small 24V LED under-cabinet lighting setup?

It works well for compact 24V under-cabinet installations where total LED load stays within 40W. The HLG-40H-24 provides a fixed 24V output (constant-current region 14.4-24V), delivering consistent brightness. Its compact 171 x 61.5 x 36.8 mm dimensions allow placement in tight spaces behind cabinetry.

Can the HLG-40H-24 power a short run of 24V LED neon flex for signage?

Yes, provided the neon flex draws 40W or less in total. Many 24V LED neon flex products consume 10-15W per meter, so the HLG-40H-24 could support roughly 2.5 to 4 meters depending on the flex's power rating. Check your specific product's rated power per meter to confirm.

How many meters of 24V LED strip can the HLG-40H-24 support?

That depends on the strip's rated power per meter. The HLG-40H-24 provides 40W at 24V. For example, if your strip draws 14.4W per meter, you could run approximately 2.7 meters (40W / 14.4W per meter = 2.77m). Always check your strip's rated power per meter and keep total load at or below 40W.

Can the HLG-40H-24 be installed in an outdoor location with direct rain exposure?

Yes. The IP67 waterproof rating means the HLG-40H-24 is dust-tight and can handle temporary immersion in water up to 1 meter deep. Direct rain and sprinkler overspray are within its design tolerance, though it is not intended for prolonged submersion. The sealed metal case prevents moisture from reaching the electronics.

What are the differences between the HLG-40H-24 and HLG-40H-24A?

Both deliver 40W at 24V and 1.67A. The base HLG-40H-24 has fixed output and an IP67 waterproof rating. The HLG-40H-24A adds a built-in potentiometer for adjustable output voltage and current but carries a lower IP65 water-resistant rating. Choose the -24A when you need output tuning in a sheltered location, or the base -24 when waterproofing is the priority.
