Mean Well

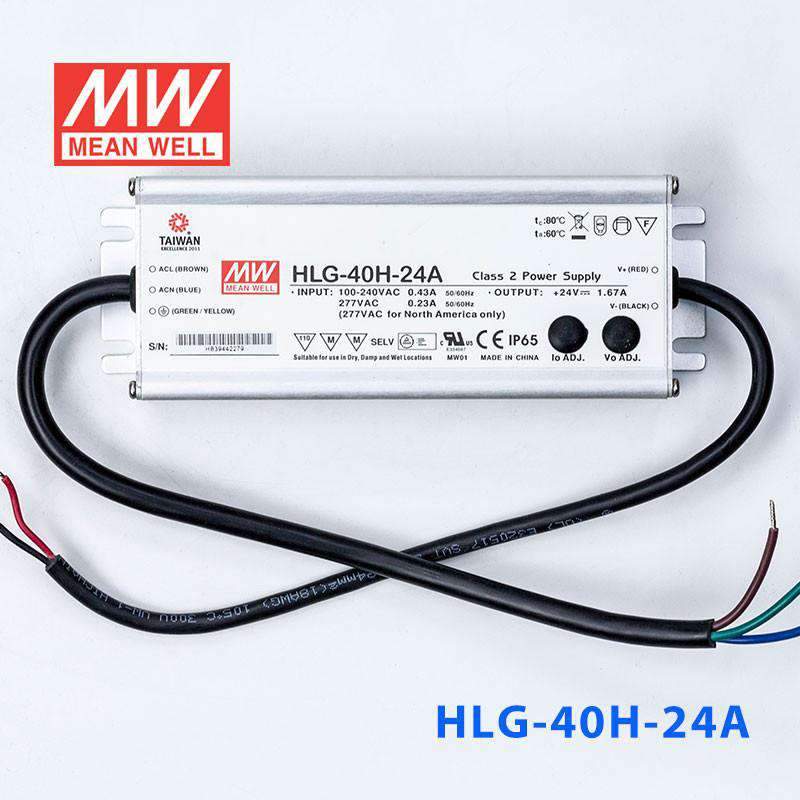

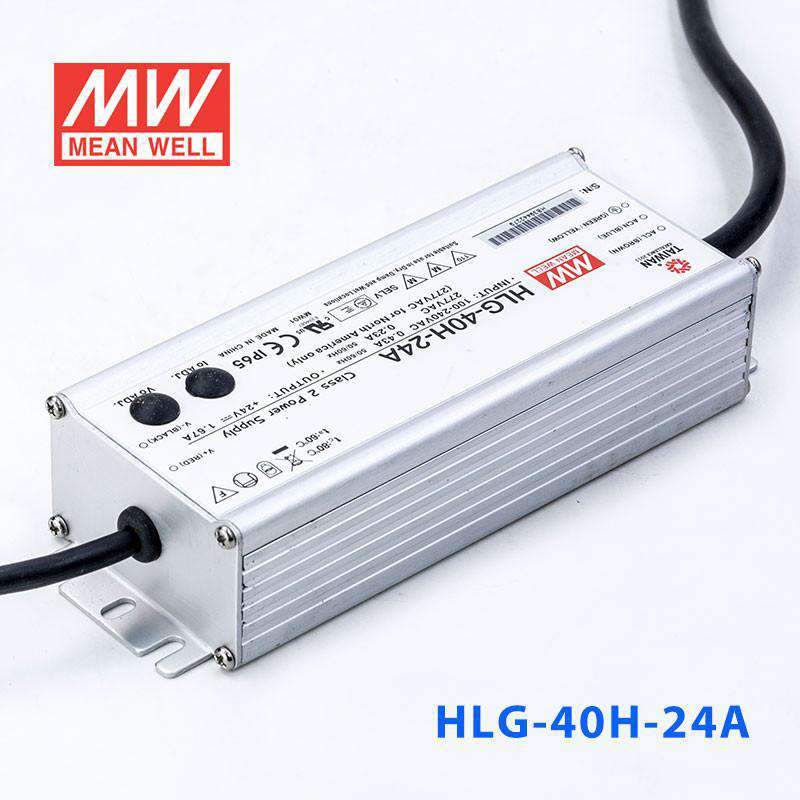

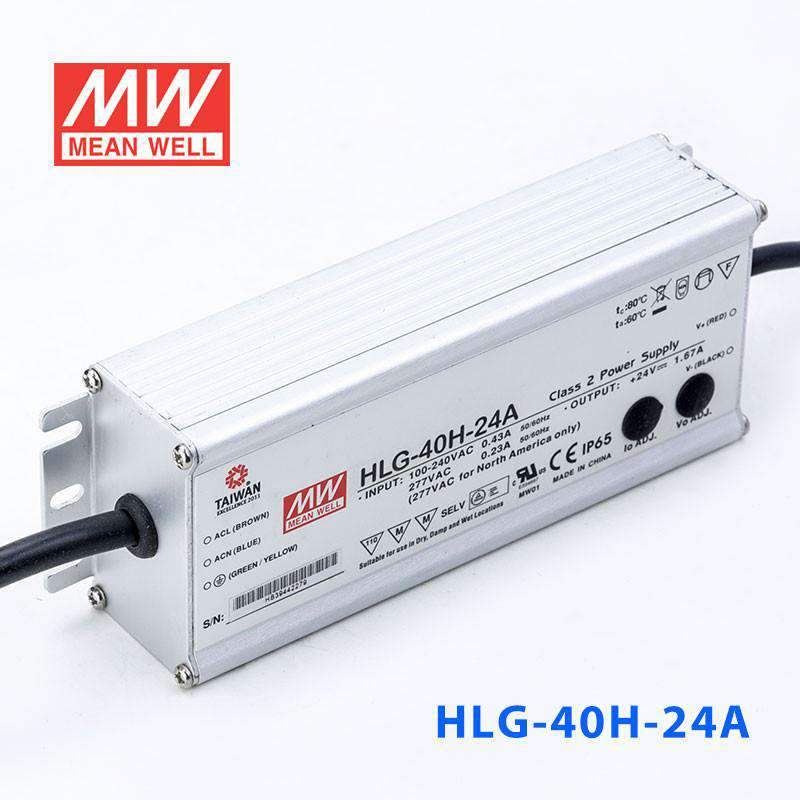

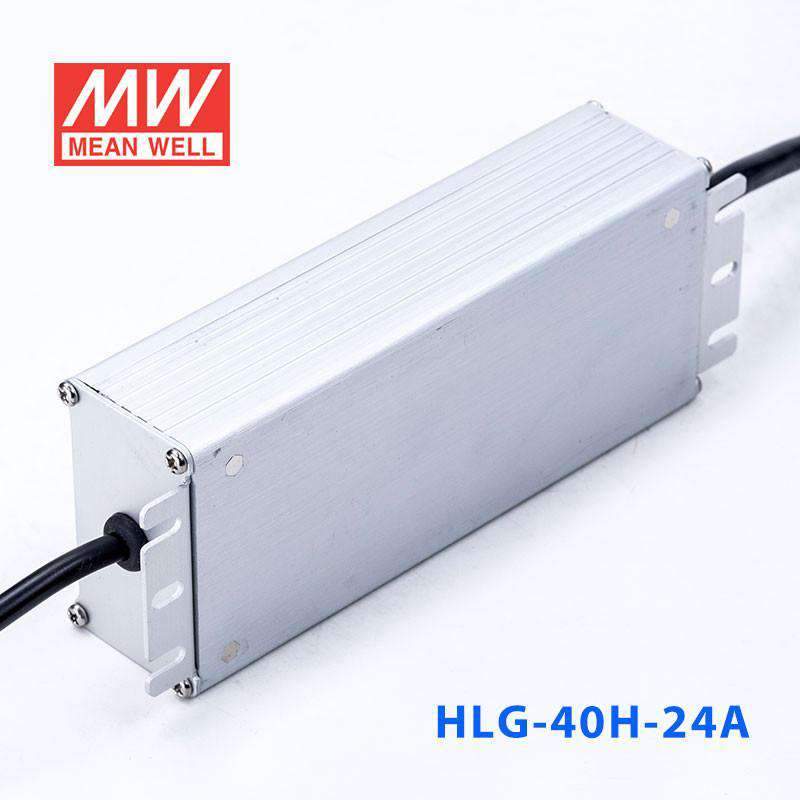

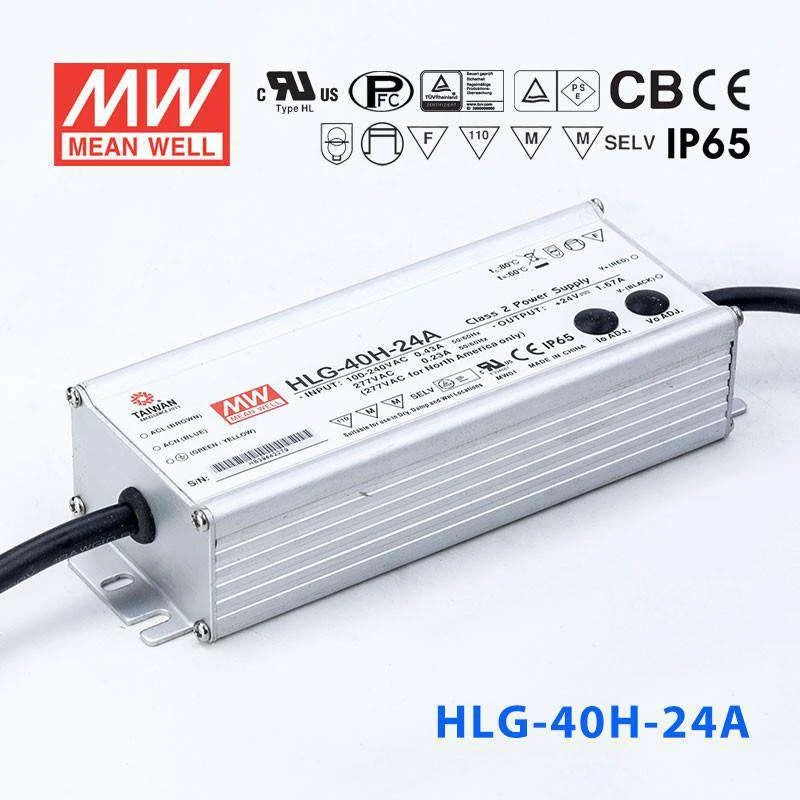

Mean Well HLG-40H-24A Power Supply 40W 24V - Adjustable

premium quality, 7 years warranty, aluminium casing, high efficiency
SKU:
HLG-40H-24A
Model
Please for Pricing
|

Description

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 90.5%
Built-in active PFC function, PF> 0.9 for 60% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
IP67 / IP65 design for indoor or outdoor installations
Class 2 power unit
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4kV surge immunity level (IEC61000-4-5)
Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details.
7 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range ±10% rated output voltage (A-Type only)
Current adjustment range 60%~100% rated output current adjustable by internal potentiometer (A-Type only)
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 109%~145% rated output voltage, shut off, re-power on to recover
Setup, rise, hold up time 1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG:0.5kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output A/D/Blank-Type: SVT 18AWGx2C (30cm); B-Type: SVT 18AWGx2C (30cm)+UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 171x 61.5x 36.8

Specifications
  • Brand
    Mean Well
  • Series
    HLG Series
  • Power Rating
    40 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.67 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    7 Year
  • Length
    17.1 cm
  • Width
    6.15 cm
  • Height
    3.68 cm
  • Weight
    0.73 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HLG-40H-24A for adjustable 24V LED display case lighting?

Yes. The HLG-40H-24A delivers 24V at up to 1.67A (40W) and includes a built-in potentiometer to adjust output voltage and current. This is practical for display cases where you want to fine-tune brightness to match the merchandise without needing an external dimmer.

Is the HLG-40H-24A suitable for 24V LED strip cove lighting with adjustable output?

It is well suited for indoor cove lighting where you need to dial in the exact operating point. The adjustable output covers the 14-24V constant-current range, letting you optimize brightness and efficiency for your specific LED strip. Total load must remain at or below 40W.

Can I power 24V LED modules in a small sign with the HLG-40H-24A?

Yes, provided total module power stays under 40W. The HLG-40H-24A's adjustable output lets you match voltage precisely to your LED modules within the 14-24V range. The IP65 rating is adequate when the driver is housed inside a weatherproof sign cabinet or indoor enclosure.

How many meters of 24V LED strip can the HLG-40H-24A drive?

The HLG-40H-24A supplies up to 40W at 24V. Divide 40W by your strip's rated wattage per meter. For example, a strip rated at 10W per meter would allow up to 4 meters (40W / 10W per meter = 4m). Always check your strip's rated power per meter and keep total load within the 40W limit.

Can the HLG-40H-24A be installed in a bathroom or humid indoor area?

The HLG-40H-24A is rated IP65, which provides protection against dust and low-pressure water jets. It can handle humid indoor environments like bathrooms when mounted away from direct water spray. For locations with higher water exposure, consider the IP67-rated HLG-40H-24 base model.

Other HLG-40H Models

1 other model
ModelPowerVoltageCurrentIP Rating
Mean Well HLG-40H-24 Power Supply 40W 24V 40W 24V 1.67A IP67 View
View all 388 HLG Series models
