Archilight

Archilight linea 68 Downlight 4.5W

SKU 375303BL4911
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 4 variants

375303BL4911
LED Colour
Finish Colour
4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Downlight

Specifications

Archilight linea 68 Downlight 4.5WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU
375303MW4911

Product specsheet

Input
350mA
Power rating
4.5 W
Beam angle
40°
Brightness
425 lm
Efficacy
≥94.4 lm/W
Colour render index(CRI)
≥82
Colour temperature
2700K / 3000K / 4000K
UGR
<19
IP level
IP20
Temperature range
-25°C~45°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Adjustable
Mounting
Recessed
Driver
Driver Not Included
Warranty
7 years
Lifetime
70,000hrs
Material
Die-Cast Aluminum
Finish
White, Black

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

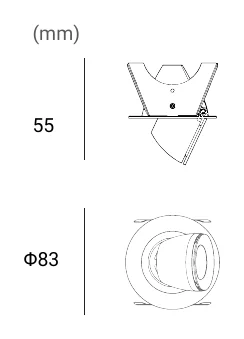

Archilight linea 68 Downlight 4.5W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of product is the Archilight Linea 68 Downlight 4.5W?

The Archilight Linea 68 is a recessed LED downlight designed for interior lighting applications. It is part of the Linea family and is built as a compact, high-end luminaire with a 4.5W power rating and a Holland-made fitting.

What variant options are available in the Linea 68 Downlight family?

This product family is offered in multiple finish and light color variants. Based on the available variants, it comes in white or black finishes and in 2700K, 3000K, or 4000K color temperatures, all with a 40 degree beam angle.

How bright is the Archilight Linea 68 Downlight 4.5W?

Brightness depends slightly on the selected variant. The listed versions deliver either 400 lumens or 425 lumens, with the 4000K white version reaching the higher 425 lumen output.

Is the Archilight Linea 68 Downlight dimmable and does it include a driver?

The Linea 68 Downlight is dimmable as an optional feature, so dimming support depends on the driver used. A driver is not included with the product family, which is an important consideration when specifying the fixture.

What are the key performance and quality specifications of the Linea 68 family?

Across the family, the downlight has a CRI of 82, a rated lifetime of 70,000 hours, and a 7-year warranty. Archilight also states that the color consistency is maintained to MacAdam step 3 SDCM for more uniform visual results.

Where can the Archilight Linea 68 Downlight be used in relation to moisture exposure?

This product is rated IP44 only when installed in a closed ceiling. In that condition, it may be exposed to water splashes on the front side only, so it should be selected with that environmental limitation in mind.

What cut-out size does the Linea 68 Downlight family require?

The listed variants in this family all show a cut-out size of 68 mm. That consistency makes the family easier to compare when choosing between finish or color temperature options.
